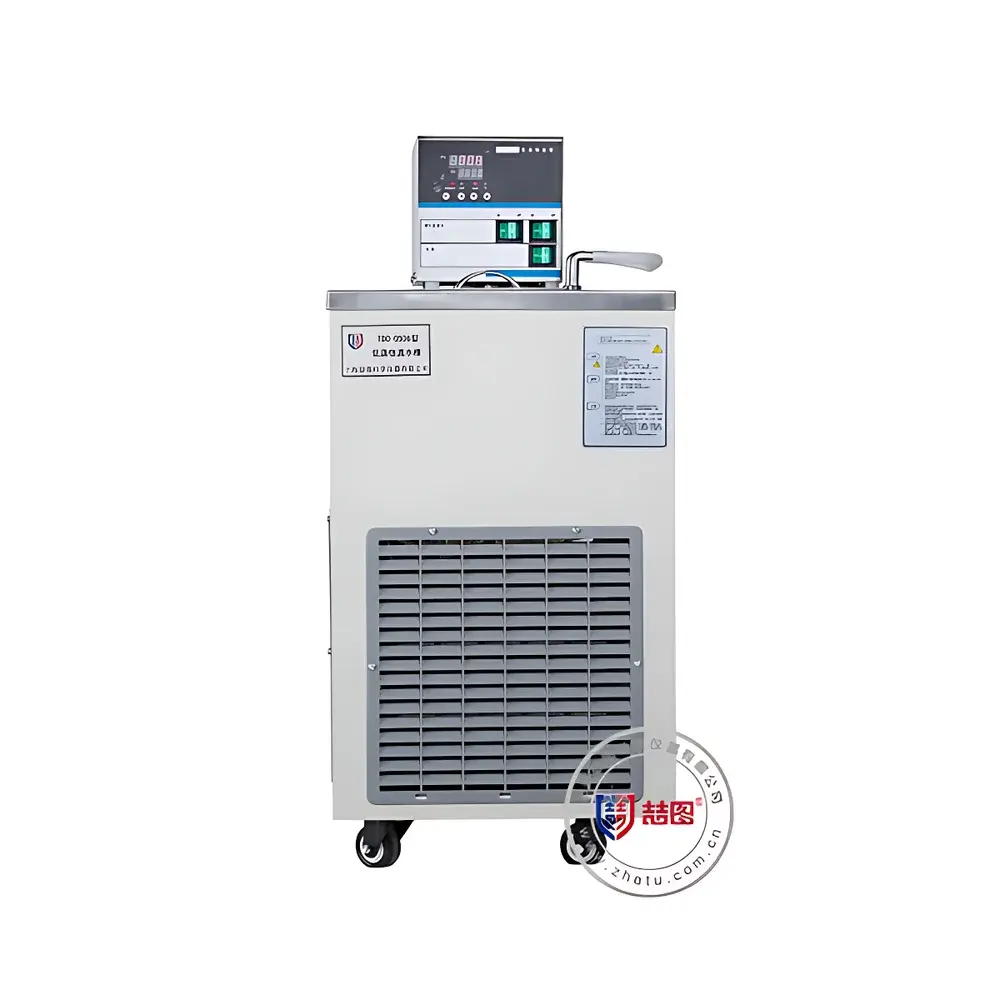

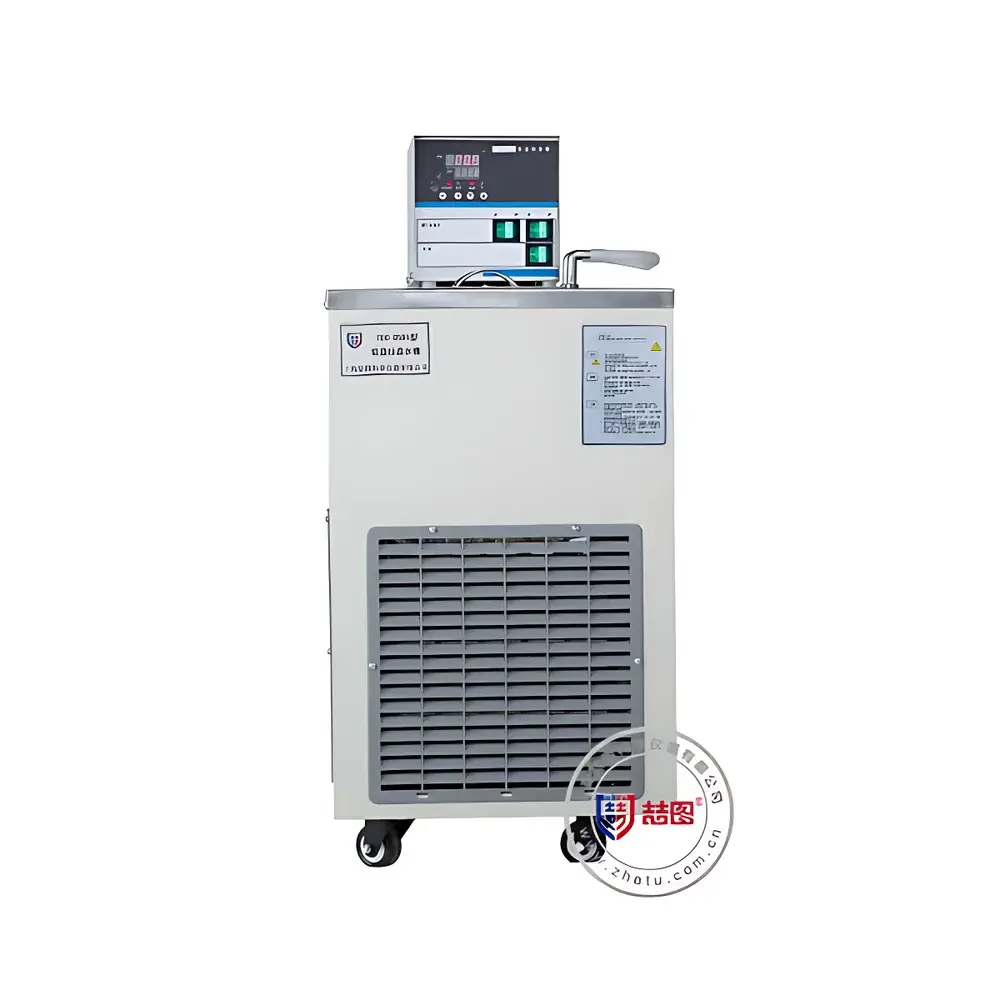

DRETOP TDC-3015 Low-Temperature Constant-Temperature Bath

Overview

The DRETOP TDC-3015 Low-Temperature Constant-Temperature Bath is a precision-engineered circulating thermal bath designed to deliver stable, uniform temperature control across a wide operational range—from −30 °C to 100 °C. It integrates a hermetically sealed refrigeration system with resistive heating elements and a high-flow centrifugal circulation pump, enabling both active cooling and heating within a single compact unit. The device operates on the principle of forced convection heat transfer: temperature-controlled fluid (water, water-glycol mixtures, or other compatible heat-transfer media) is continuously circulated through the stainless-steel bath chamber and—optionally—through external apparatus via dedicated inlet and outlet ports. This dual-mode capability supports applications requiring either internal sample immersion or external thermal conditioning of analytical instruments, reactors, or sensors. Its design conforms to fundamental thermodynamic requirements for laboratory-grade thermal stability, making it suitable for environments where reproducible thermal conditions are critical—such as calibration laboratories, QC/QA testing facilities, and university research labs engaged in material property characterization.

Key Features

• Full stainless-steel interior and deck construction ensures long-term corrosion resistance, compatibility with aqueous and mildly acidic/alkaline solutions, and ease of cleaning under GLP-compliant protocols.
• Hermetically sealed compressor-based refrigeration system with integrated overheat and overcurrent protection circuits enhances operational safety and extends service life.
• High-efficiency centrifugal circulation pump delivers a consistent flow rate of 13 L/min, supporting both internal recirculation and external loop configurations via standardized G1/4″ BSP quick-connect ports.
• Dual-mode thermal control architecture enables seamless transition between cooling and heating modes without manual intervention; temperature setpoint accuracy is maintained at ±1 °C with 0.1 °C digital resolution.
• LED-backlit LCD controller provides intuitive menu navigation, real-time display of setpoint/actual temperature, and programmable ramp-hold profiles (standard firmware; advanced PID tuning available upon request).
• Modular design accommodates optional upgrades—including U-series (0.01 °C resolution) and M-series (0.001 °C resolution) temperature control modules—for applications demanding enhanced thermal fidelity.

Sample Compatibility & Compliance

The TDC-3015 accommodates a broad spectrum of sample formats and experimental configurations. Internally, its 15 L working volume and 260 × 220 mm opening allow immersion of standard flasks, cuvettes, probes, and small-scale reaction vessels. Externally, the dual-port circulation system supports integration with viscometers, spectrophotometers, calorimeters, and custom-built test rigs requiring precise thermal management. Compatible heat-transfer fluids include deionized water (5–85 °C), 15% glycerol–water mixtures (85–95 °C), and silicone oils (up to 100 °C); fluid selection must align with viscosity, flash point, and thermal degradation thresholds per ASTM D2889 and ISO 2555. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets CE marking requirements for EMC and low-voltage directives. While not inherently 21 CFR Part 11 compliant, audit-ready data logging (via optional RS485/USB interface) supports traceability in regulated environments when paired with validated third-party software.

Software & Data Management

The standard TDC-3015 operates via an embedded microcontroller with non-volatile memory storing up to 10 user-defined temperature programs. Real-time temperature data is logged internally at 1-second intervals for up to 72 hours; logs are exportable via USB flash drive in CSV format. Optional communication modules enable remote monitoring and control through Modbus RTU (RS485) or virtual COM port (USB CDC), permitting integration into LabVIEW, MATLAB, or SCADA-based lab automation frameworks. For GxP-regulated workflows, DRETOP offers a validated firmware package (TDC-VF1) that includes electronic signature support, user access levels (admin/operator), and immutable audit trails—fully aligned with ALCOA+ data integrity principles and FDA expectations for instrument qualification (IQ/OQ/PQ documentation available upon request).

Applications

• Thermal calibration of platinum resistance thermometers (PRTs), thermocouples, and infrared sensors per ISO/IEC 17025 requirements.
• Viscosity measurement support for rotational rheometers and capillary viscometers requiring precise thermal preconditioning.
• Stability testing of pharmaceutical formulations, polymers, and colloidal dispersions under accelerated aging protocols (ICH Q1A–Q1E).
• Controlled-temperature reaction kinetics studies in physical chemistry and catalysis research.
• Pre-conditioning of optical components and semiconductor devices prior to spectral or electrical characterization.
• Environmental simulation for electronics reliability testing (e.g., thermal cycling per JEDEC JESD22-A104).

FAQ

What is the recommended heat-transfer fluid for operation at 90 °C?
For sustained operation between 85 °C and 95 °C, a 15% (v/v) glycerol–deionized water mixture is recommended to suppress boiling while maintaining acceptable viscosity and thermal conductivity.
Can the TDC-3015 be used for external cooling of an HPLC column oven?
Yes—the external circulation mode supports connection to auxiliary equipment via standard 1/4″ ID tubing; ensure flow resistance remains below 0.5 bar and total loop volume does not exceed 5 L to maintain thermal response time.
Is the unit suitable for GLP-compliant laboratories?
When equipped with the TDC-VF1 firmware option and operated with documented IQ/OQ protocols, the system satisfies core GLP requirements for instrument traceability, data integrity, and user accountability.
Does the bath include a drain valve for fluid replacement?
Yes—a front-mounted stainless-steel ball valve facilitates rapid, spill-free drainage without disassembly.
What is the typical cooldown time from 20 °C to −30 °C?
Measured under standard ambient conditions (25 °C, no external load), the TDC-3015 achieves −30 °C in approximately 45 minutes; actual performance varies with fluid volume, initial temperature, and insulation of connected external loops.
