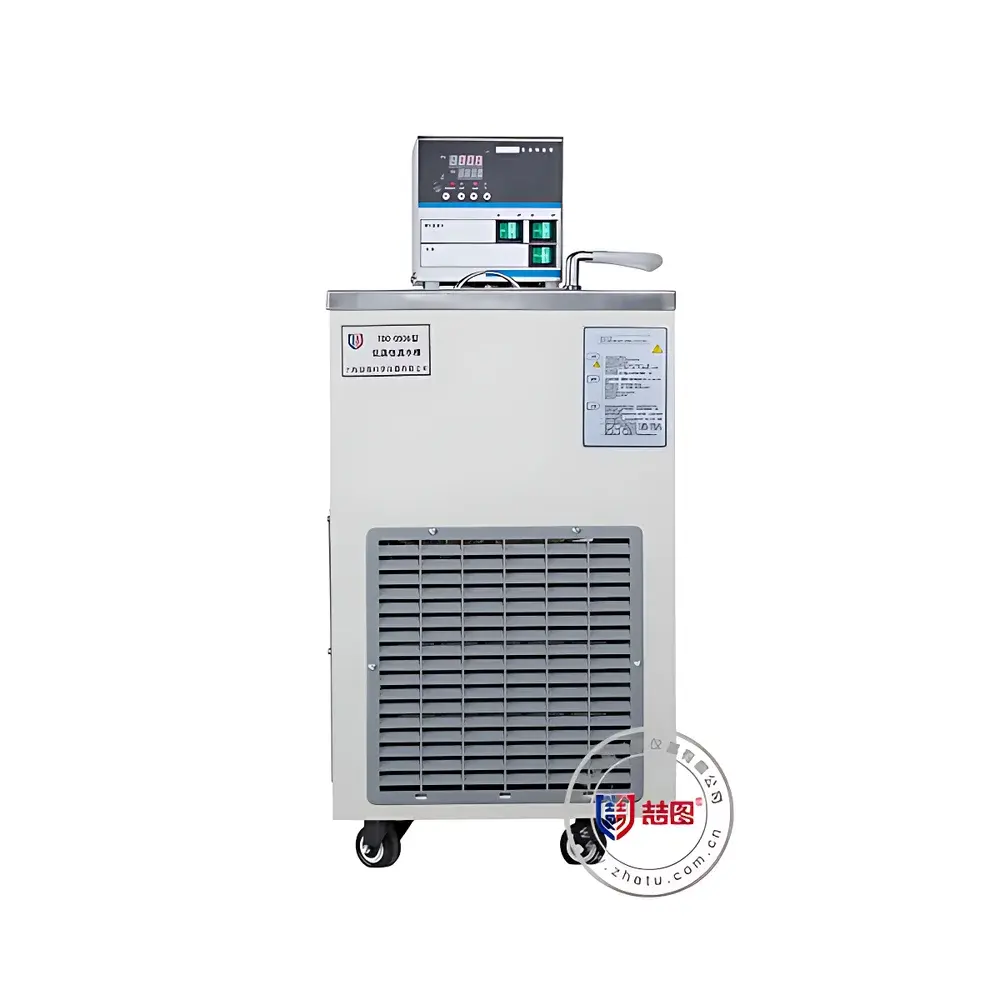

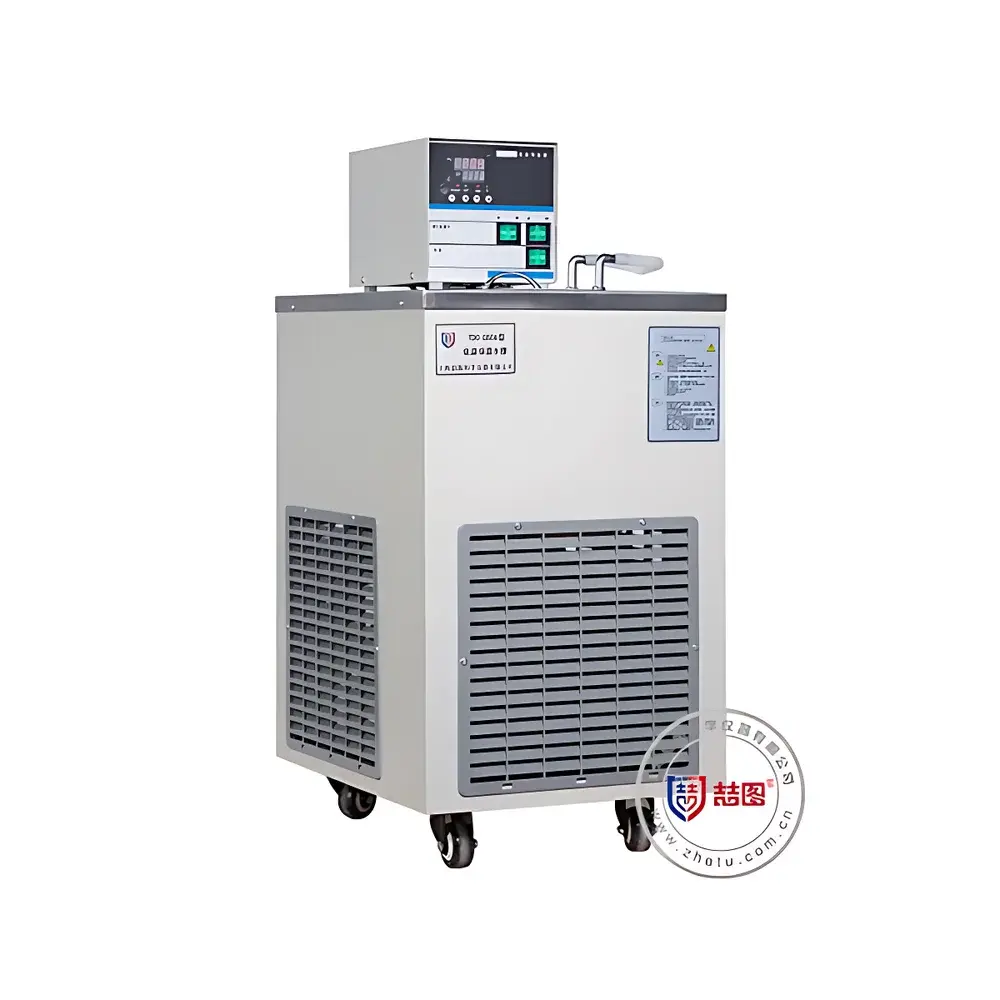

DRETOP TDC-6010 Low-Temperature Constant-Temperature Bath

Overview

The DRETOP TDC-6010 is a high-performance, dual-mode circulating constant-temperature bath engineered for precise thermal control across demanding laboratory and industrial applications. Utilizing a hermetically sealed refrigeration system combined with high-efficiency electric heating elements, the unit delivers stable temperature regulation from −60 °C to +100 °C—enabling both cryogenic and elevated-temperature operation within a single platform. Its core function relies on forced liquid circulation via an integrated stainless steel centrifugal pump, ensuring uniform thermal distribution throughout the bath chamber and facilitating external heat exchange through dual-port fluid routing. Designed for integration into analytical workflows—including viscometry, calorimetry, spectroscopy cell conditioning, and material property testing—the TDC-6010 serves as a certified thermal reference source compliant with ISO/IEC 17025 traceability requirements when used with calibrated PT100 sensors and documented SOPs.

Key Features

• Full stainless steel interior and work surface—resistant to corrosion, acids, alkalis, and organic solvents; compatible with water, ethanol, glycol–water mixtures, and silicone oils.
• Hermetically sealed compressor refrigeration system with dual-stage safety protection: electronic overcurrent cutoff and thermal overload relay for compressor windings.
• Dual-port circulation architecture supporting both internal recirculation (via connected inlet/outlet ports) and external closed-loop cooling/heating of auxiliary equipment (e.g., spectrophotometer jackets, reaction blocks, or environmental chambers).
• High-flow circulation pump (13 L/min) with adjustable flow control and low-pulsation output—optimized for minimal thermal lag and improved spatial uniformity (±0.3 °C typical across 10 L working volume).
• LED-backlit digital controller with real-time display of setpoint, actual bath temperature, and operational status; supports ramp-soak programming and user-defined temperature profiles (via optional firmware upgrade).
• Robust mechanical design: powder-coated steel housing, reinforced insulation layer, and condensate management system with dedicated inlet/outlet water connections for chiller integration.

Sample Compatibility & Compliance

The TDC-6010 accommodates a broad range of sample formats and thermal media. Standard operation at 5–85 °C uses deionized water; above 85 °C, 15% (v/v) glycerol–water solutions are recommended to suppress evaporation and enhance thermal stability. For sub-zero operation, ethylene glycol–water or specialized low-viscosity silicone fluids may be employed—subject to viscosity limits (<50 cSt at operating temperature) to maintain pump efficiency and heat transfer performance. The unit meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61010-1). Its construction and control architecture support GLP/GMP-aligned validation protocols, including IQ/OQ documentation templates, calibration certificate traceability to NIST standards, and audit-ready event logging when paired with DRETOP’s optional data acquisition module.

Software & Data Management

While the base TDC-6010 operates via standalone front-panel controls, optional RS485/Modbus RTU or USB-to-serial interfaces enable integration with LabVIEW, MATLAB, or custom SCADA systems for remote parameter setting, real-time temperature streaming, and automated test sequencing. The embedded controller logs timestamped temperature readings at user-selectable intervals (1–60 s), storing up to 30 days of data internally. When connected to DRETOP’s PC-based DTC-Link software (included with premium configuration), users gain access to trend visualization, statistical process monitoring (SPC), deviation alerts, and exportable CSV reports compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails, and data integrity safeguards.

Applications

• Calibration of thermistors, RTDs, and infrared thermometers against NIST-traceable references.
• Thermal conditioning of optical cells in UV-Vis, FTIR, and fluorescence spectrometers to minimize thermal drift during long-duration acquisitions.
• Controlled-rate cooling/heating cycles for polymer crystallization studies, phase transition analysis (DSC pre-conditioning), and rheological sample equilibration.
• Stabilization of laser diodes, photodetectors, and precision electronic components during parametric testing under thermal stress.
• Supporting ASTM D2196 (viscosity of non-Newtonian materials), ISO 2555 (solution viscosity), and USP environmental control for sterile compounding workflows.
• Integration into automated QC lines for pharmaceutical excipient testing, food emulsion stability assessment, and battery electrolyte characterization.

FAQ

What thermal fluids are compatible with the TDC-6010 at −60 °C?
Ethylene glycol–water (30:70 v/v) or low-viscosity silicone oils (e.g., DC200 series) are validated for continuous operation at −60 °C. Avoid aqueous solutions with freezing points above −60 °C.
Can the unit maintain ±0.1 °C stability across the full temperature range?
Yes—stability of ±0.1 °C is guaranteed per IEC 60068-3-5 under static load conditions; dynamic stability during ramping depends on thermal mass and fluid selection.
Is external circulation flow rate adjustable?
The pump delivers fixed 13 L/min nominal flow; external flow modulation requires an inline needle valve or pressure-regulated secondary loop.
Does the TDC-6010 support validation for regulated environments?
Yes—factory-provided IQ/OQ documentation, 3-point temperature calibration certificate, and optional 21 CFR Part 11-compliant software qualify it for GxP laboratories.
What maintenance intervals are recommended?
Compressor oil inspection every 24 months; refrigerant leak check annually; pump impeller cleaning and seal inspection biannually under continuous operation.
