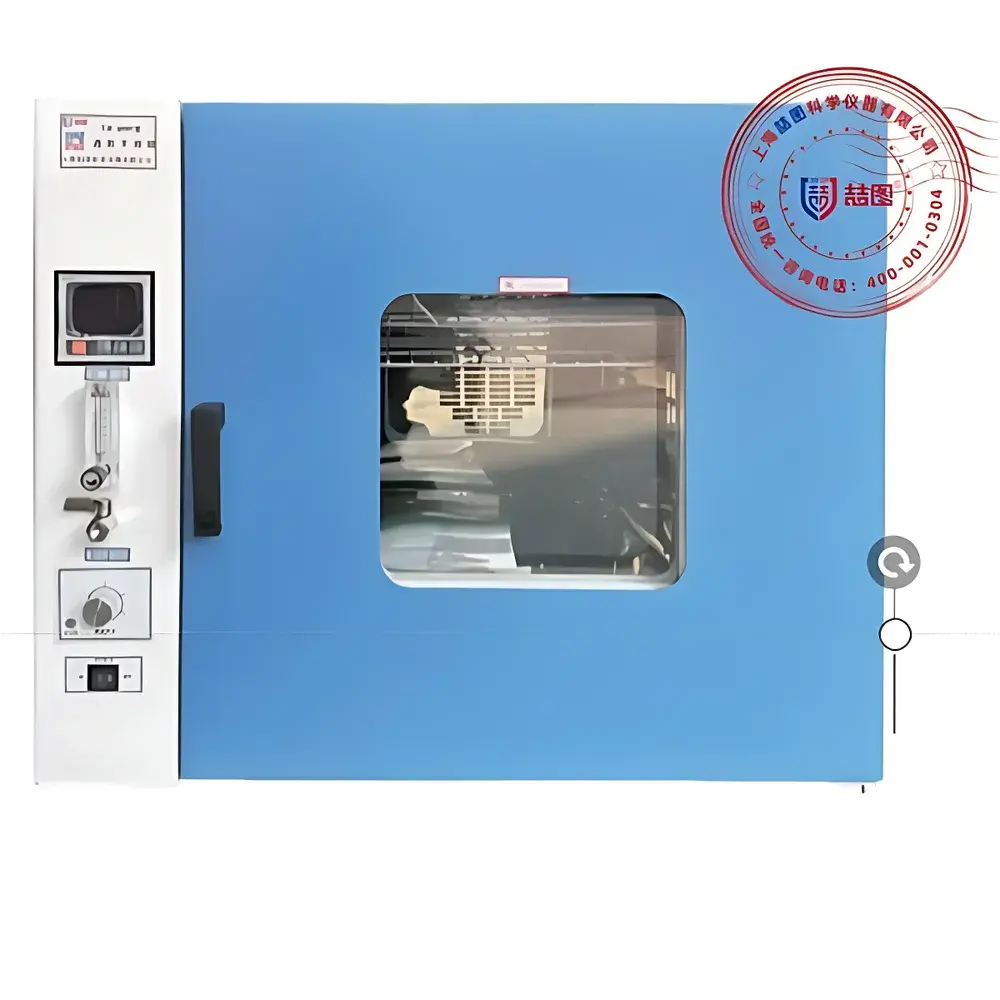

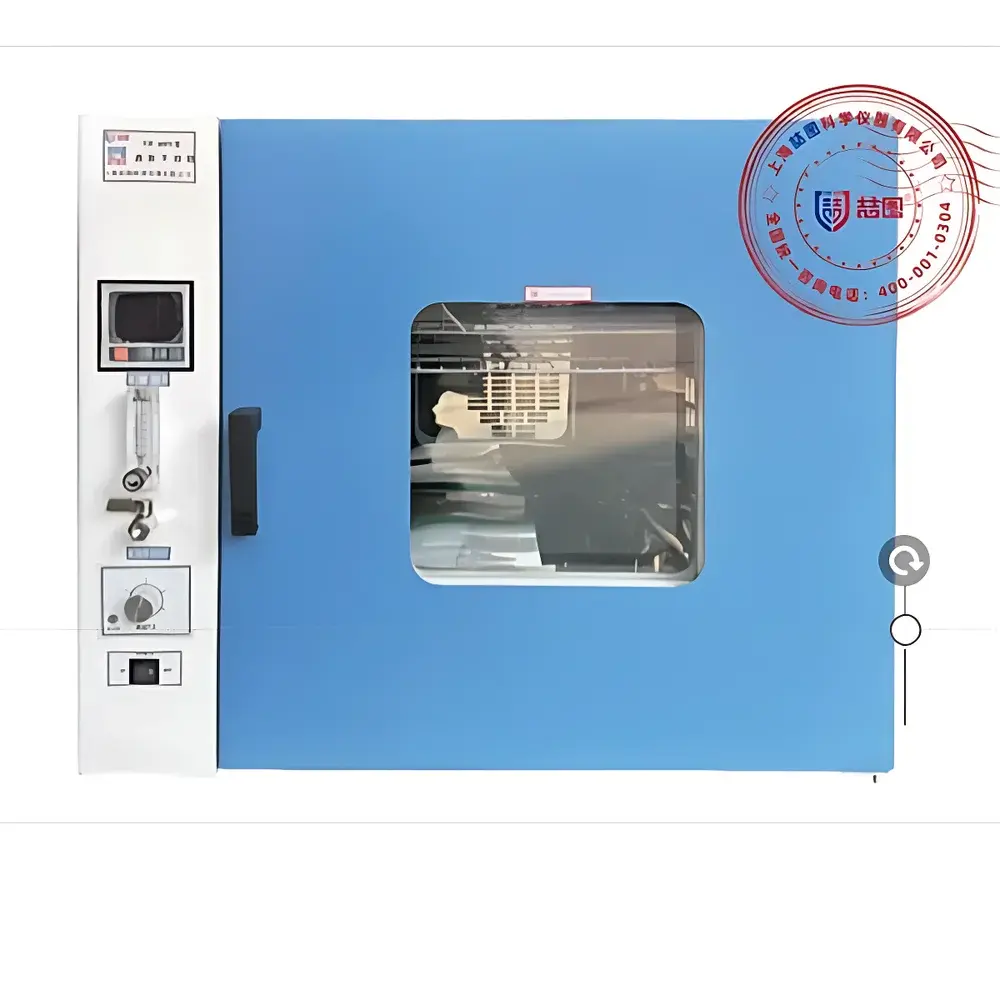

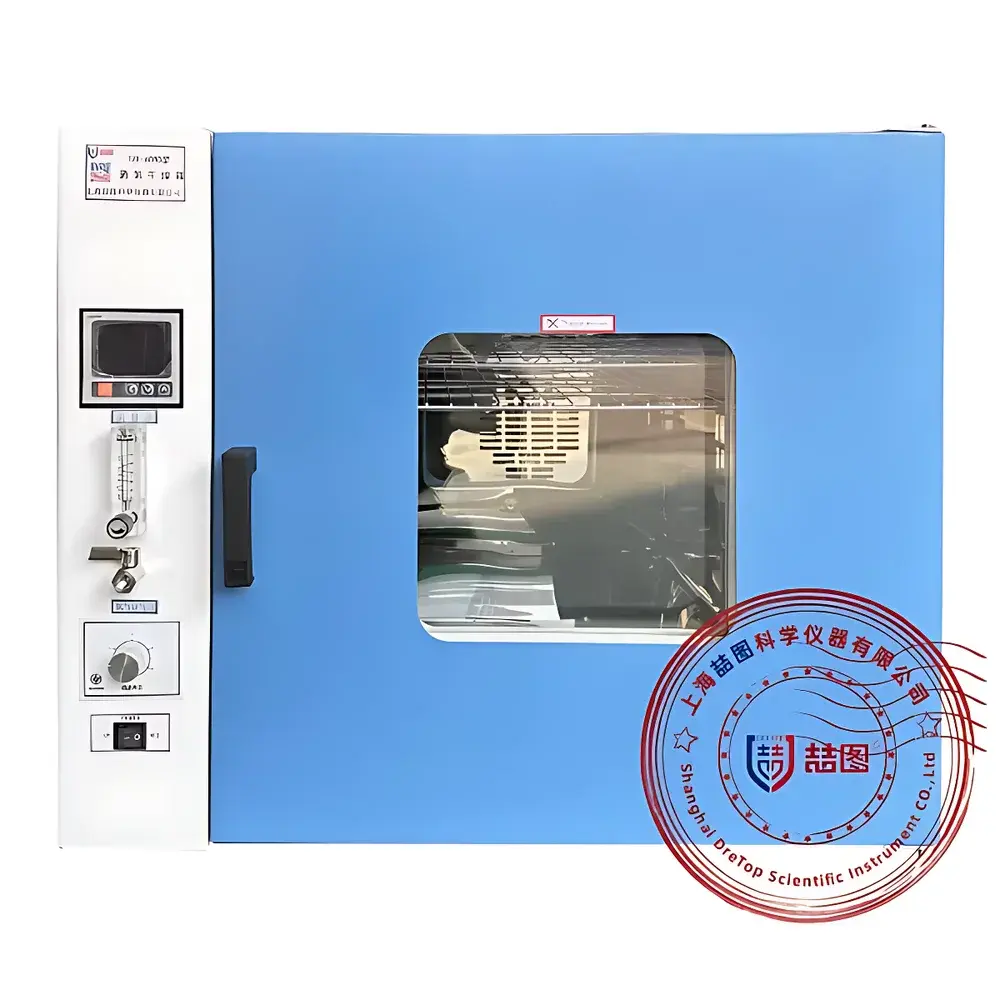

DRETOP TDG-70A Nitrogen-Purged Drying Oven

Overview

The DRETOP TDG-70A Nitrogen-Purged Drying Oven is an engineered solution for controlled thermal processing under inert atmospheric conditions. Designed for laboratories requiring oxidation-sensitive drying, solvent removal, or moisture determination, the unit operates on the principle of forced convection heating combined with continuous nitrogen purging. Unlike conventional ovens, the TDG-70A integrates a calibrated gas flow meter and adjustable air velocity control to maintain stable low-oxygen environments—critical for applications involving reactive metals, thermolabile biomolecules, hygroscopic reagents, or volatile organic compounds. Its chamber is constructed from AISI 304 stainless steel, ensuring corrosion resistance and long-term dimensional stability under repeated thermal cycling. The oven complies with national standards for industrial analysis (GB/T 211–2017 for total moisture in coal; GB/T 212–2008 for proximate analysis), making it suitable for quality control workflows in materials science, pharmaceutical pre-formulation, and environmental testing laboratories.

Key Features

• Microprocessor-based PID temperature controller with digital LCD interface, enabling precise setpoint programming, real-time monitoring, and programmable timer functions;
• Dual-circuit forced-air circulation system featuring a stainless-steel multi-blade centrifugal fan and symmetrical duct design, achieving ±2.5°C temperature uniformity across the 70 L working volume;
• Adjustable nitrogen inlet flow meter (0–10 L/min range, factory-calibrated) integrated into the rear chamber wall, allowing user-defined purge rates to balance inerting efficiency and gas consumption;
• High-efficiency thermal insulation using mineral wool with aluminum foil facing, minimizing heat loss and maintaining ambient-safe external surface temperatures during operation at 250°C;
• Robust safety architecture including dual independent over-temperature cut-off (mechanical and electronic), pressure-relief venting, and door-mounted interlock switch to disable heating when open;
• Ergonomic chamber design with two removable, height-adjustable stainless-steel shelves and smooth-radius interior corners for facile cleaning and residue-free sample handling.

Sample Compatibility & Compliance

The TDG-70A accommodates diverse sample formats—including Petri dishes, crucibles, weighing boats, glass vials, and metal trays—within its 450 × 400 × 450 mm stainless-steel chamber. It supports both static and dynamic drying protocols: samples may be processed under continuous nitrogen flow (to suppress oxidation) or under reduced pressure when interfaced with optional vacuum pumps (vacuum capability requires external equipment and is not built-in). The unit meets JB/T 5520–1991 technical specifications for drying ovens and aligns with ISO/IEC 17025 documentation requirements for equipment qualification. While not certified to FDA 21 CFR Part 11 out-of-the-box, its RS485 interface enables integration with validated LIMS or ELN systems supporting audit-trail-enabled data capture.

Software & Data Management

The TDG-70A operates via embedded firmware without proprietary software dependency. All operational parameters—including set temperature, elapsed time, real-time chamber temperature, and alarm status—are displayed locally on the high-contrast LCD. For traceable recordkeeping, optional accessories include an RS485 serial interface (Modbus RTU protocol) for connection to SCADA platforms or custom LabVIEW applications, and a miniature thermal printer for hard-copy logging of start/stop timestamps and final temperature readings. When paired with an external data logger, the system supports GLP-compliant validation per IQ/OQ protocols, including temperature mapping studies per ASTM E2251–22.

Applications

• Moisture content determination in coal, biomass, and geological samples per GB/T 211–2017 and ASTM D3173;
• Pre-drying of filter papers, crucibles, and volumetric glassware prior to gravimetric analysis;
• Thermal stabilization of lithium-ion battery electrode materials under oxygen-free conditions;
• Desolvation of coordination polymers and metal–organic frameworks (MOFs) without framework collapse;
• Accelerated aging studies of polymer films and encapsulants where oxidative degradation must be excluded;
• Residual solvent removal from pharmaceutical intermediates under ICH Q5C guidelines.

FAQ

Does the TDG-70A include vacuum capability?
No—the TDG-70A is configured exclusively for nitrogen-purged operation. Vacuum functionality is not integrated; users requiring combined purge/vacuum cycles must connect an external vacuum pump via a custom flanged port (not supplied).

What is the maximum recommended nitrogen flow rate?
The built-in flow meter is calibrated for 0–10 L/min. Optimal inerting performance is typically achieved at 2–5 L/min for standard 70 L chamber volumes; higher flows increase operating costs without proportional improvement in O₂ displacement.

Can the oven be validated for GMP environments?
Yes—its mechanical construction, repeatable thermal performance (±0.5°C fluctuation), and optional RS485 interface support IQ/OQ/PQ execution. Full 21 CFR Part 11 compliance requires third-party software layer integration.

Is the stainless-steel interior electropolished?
No—the chamber uses standard mill-finish AISI 304 stainless steel. Electropolishing is available as a custom order (lead time +4 weeks, +18% surcharge).

What maintenance intervals are recommended?
Fan bearings and door gaskets should be inspected quarterly; calibration of the temperature sensor is advised annually against a NIST-traceable reference thermometer.
