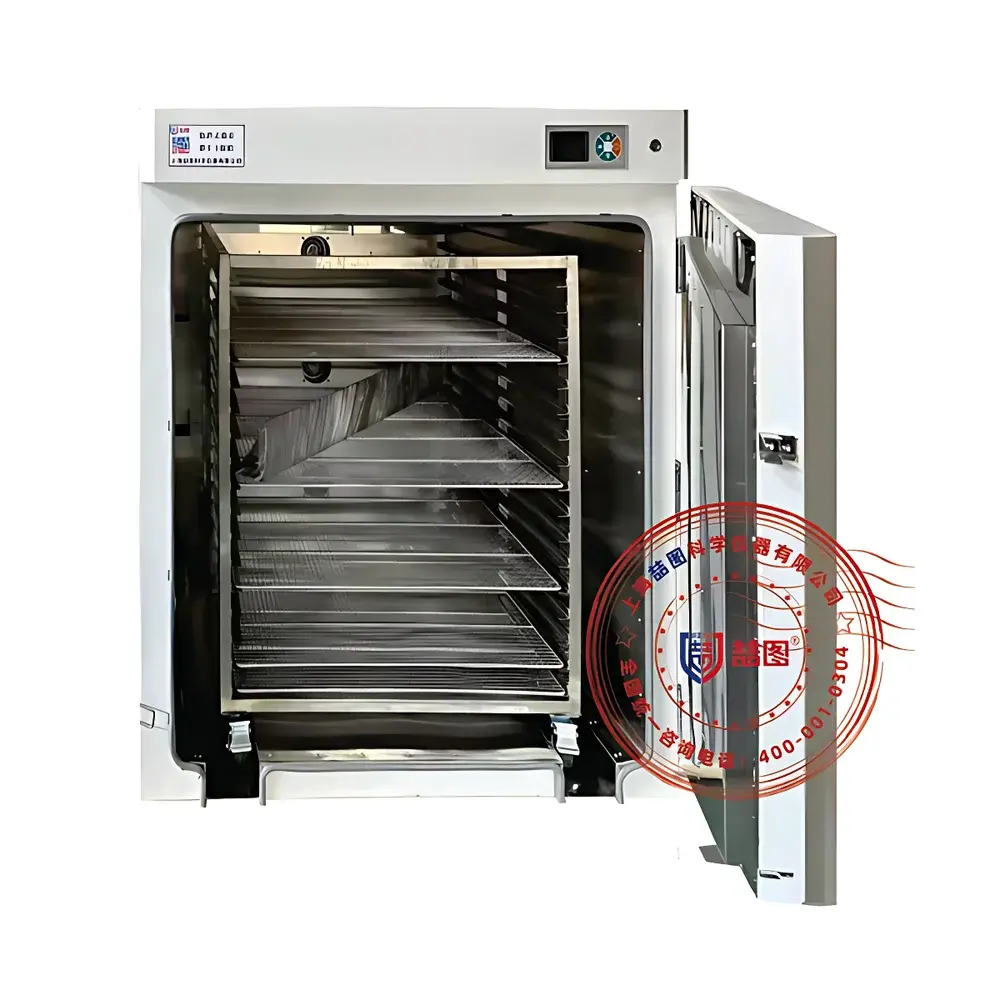

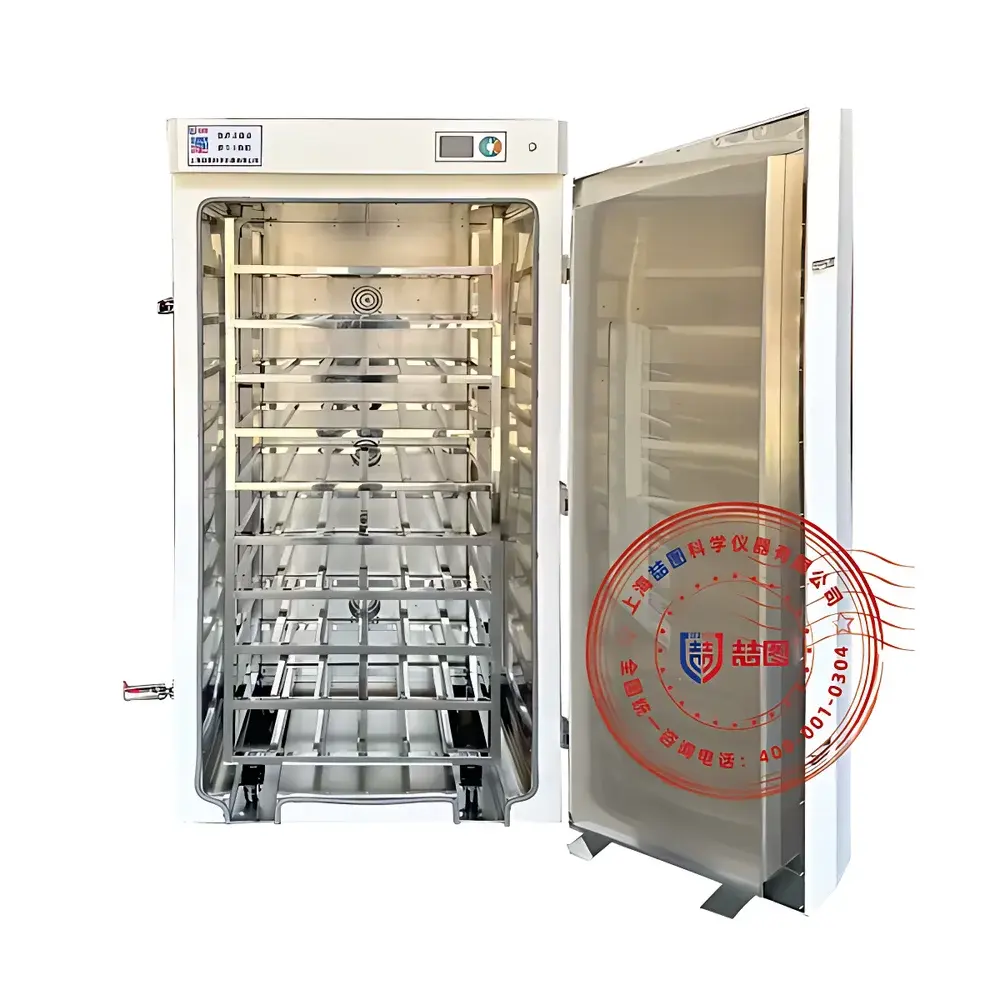

DRETOP TGD-1040B Track-Mounted Heavy-Duty Trolley Drying Oven
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TGD-1040B |
| Instrument Type | General-Purpose Industrial Drying Oven |
| Temperature Range | RT +20°C to 300°C |
| Temperature Uniformity | ±1°C (at setpoint) |
| Internal Chamber Dimensions | 1000 × 800 × 1300 mm (W×D×H) |
| Temperature Resolution | 0.1°C |
| Operating Ambient Temperature | 5–40°C |
| Interior Material | Stainless Steel (AISI 304) |
| Heating Method | Forced-Air Circulation with Top/Side Mounted High-Capacity Fans |
| Control System | Digital PID Temperature Controller with Timer Function |
| Safety Features | Over-Temperature Alarm (audible/visual), Door-Interlocked Heating Cut-off, Thermal Overload Protection |
| Power Supply | AC 380 V, 50 Hz |
| Rated Input Power | 6.5 kW |
| Nominal Chamber Volume | 1040 L |
| Trolley Configuration | Standard Single-Layer Load-Bearing Trolley (≤100 kg capacity |
Overview
The DRETOP TGD-1040B Track-Mounted Heavy-Duty Trolley Drying Oven is an industrial-grade thermal processing system engineered for high-capacity, repeatable, and operator-safe drying, curing, moisture removal, and low-to-moderate temperature heat treatment of large or bulky workpieces. Unlike conventional benchtop or cabinet-style ovens, the TGD-1040B integrates a precision-aligned floor-level rail system that enables seamless horizontal transfer of load-bearing trolleys directly from production floor to chamber interior—eliminating manual lifting, crane dependency, or pallet jack repositioning. Its operational principle relies on forced convection heating: multiple high-volume axial fans circulate heated air across engineered baffle plates to achieve uniform thermal distribution within the insulated workspace. Designed for continuous operation in manufacturing, R&D, and quality assurance environments, this oven complies with fundamental thermal safety and electrical standards applicable to Class II industrial heating equipment under IEC 61000-6-2 (EMC immunity) and IEC 60529 (IP20 enclosure rating). It is not intended for sterilization or vacuum applications.
Key Features
- Integrated floor-level track system compatible with standard workshop flooring—enables direct trolley ingress/egress without ramps or lifts
- Reinforced stainless steel (AISI 304) inner chamber with double-wall construction: outer cold-rolled steel shell, high-density mineral wool insulation (≥100 mm), and seamless welded interior joints for thermal integrity and corrosion resistance
- Forced-air circulation architecture featuring top- and side-mounted centrifugal fans with adjustable airflow direction via fixed-angle diffusers—optimized to minimize thermal stratification and ensure ≤±1°C uniformity at nominal load
- Digital PID temperature controller with 0.1°C resolution, programmable ramp-soak profiles, and real-time deviation monitoring; supports up to 99-stage time-temperature sequences
- Comprehensive safety architecture including dual-limit temperature sensors, door-actuated contactor cut-off, audible/visual over-temperature alarm (LED status indicators + buzzer), and motorized fan interlock during door opening
- Modular trolley design: standard configuration includes one-layer 304 stainless steel tray mounted on sealed ball-bearing casters; optional configurations support multi-tier stacking, custom tray dimensions, and reinforced frames rated for 1–5 ton static loads
Sample Compatibility & Compliance
The TGD-1040B accommodates irregularly shaped, oversized, or high-mass samples—including transformer cores, motor stators, cast sand molds, coated enclosures, composite laminates, and pharmaceutical excipient batches—without requiring disassembly or reorientation. Its 1040 L internal volume (1000 × 800 × 1300 mm) provides unobstructed vertical clearance for tall fixtures and lateral access for trolley loading. While not certified to ISO 17025 or ASTM E2251 for metrological validation, the oven’s thermal performance aligns with routine process qualification requirements per ISO 9001:2015 Clause 7.1.5 and ASTM D1654 (for coating drying evaluation). It meets basic CE marking prerequisites for machinery (2006/42/EC) and electromagnetic compatibility (2014/30/EU), and its control interface supports audit-ready event logging when integrated with external SCADA systems.
Software & Data Management
The embedded controller does not include built-in data export or cloud connectivity; however, it provides RS485 Modbus RTU output for integration into facility-wide supervisory systems (e.g., Siemens SIMATIC, Rockwell FactoryTalk). Optional analog 4–20 mA outputs are available for remote temperature and alarm status monitoring. All operational events—including setpoint changes, door openings, over-temperature triggers, and timer completions—are timestamped and stored in non-volatile memory for ≥30 days. For GxP-regulated environments, third-party validation packages (IQ/OQ/PQ) can be deployed using calibrated reference thermocouples and NIST-traceable data loggers; the system supports 21 CFR Part 11-compliant electronic signatures when paired with validated external software platforms.
Applications
- Electrical manufacturing: drying of laminated silicon steel cores, epoxy-cured windings, and impregnated busbars under controlled ramp-hold cycles
- Automotive & aerospace: post-painting bake-out of instrument panels, brake calipers, and composite tooling fixtures; moisture conditioning of carbon fiber preforms
- Foundry & metalworking: desiccation of ceramic shell molds, stress-relief baking of large castings, and binder burnout prior to investment casting
- Materials science labs: thermal aging studies of elastomers, polymer composites, and battery electrode coatings under defined humidity-agnostic conditions
- Pharmaceutical device manufacturing: drying of stainless steel trays, silicone gaskets, and packaging components where particulate-free airflow and non-contaminating surfaces are required
FAQ
Is the TGD-1040B suitable for use in cleanroom environments?
No—it lacks HEPA filtration, positive pressure control, or ISO Class-rated airflow certification. It is designed for general industrial settings.
Can the trolley be customized for higher load capacity?
Yes. Structural reinforcement, extended frame geometry, and multi-tier configurations are available as factory-engineered options; maximum static load extends to 5 metric tons.
Does the oven support nitrogen purging or inert atmosphere operation?
Not natively. The chamber is not gas-tight nor equipped with inlet/outlet ports for purge gas integration. Custom modifications require engineering review.
What is the typical lead time for delivery and commissioning?
Standard units ship within 4–6 weeks after order confirmation; on-site mechanical/electrical commissioning and FAT documentation require additional scheduling with DRETOP’s regional technical support team.
Is calibration certificate included with shipment?
A factory-as-tested temperature uniformity report (per ASTM E2251 Annex A1 methodology) is provided. NIST-traceable calibration certificates require separate purchase and on-site verification by accredited third-party providers.
