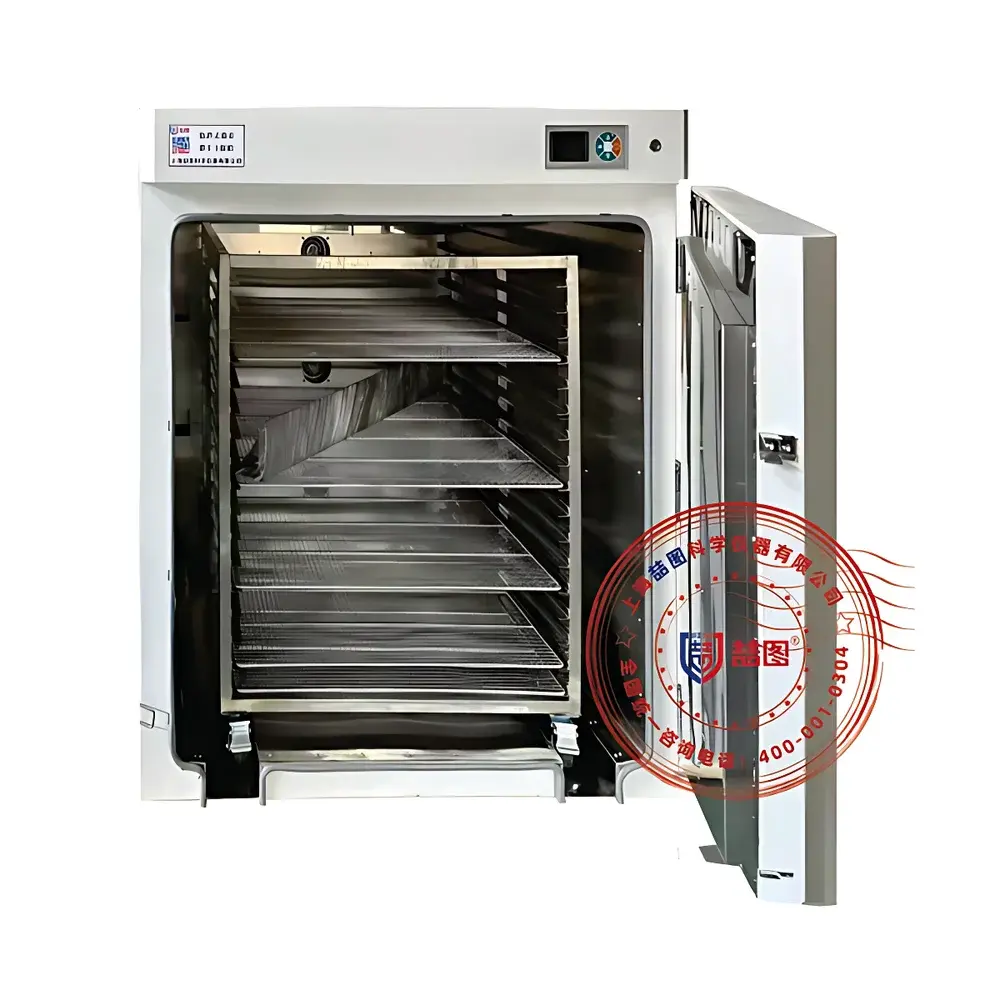

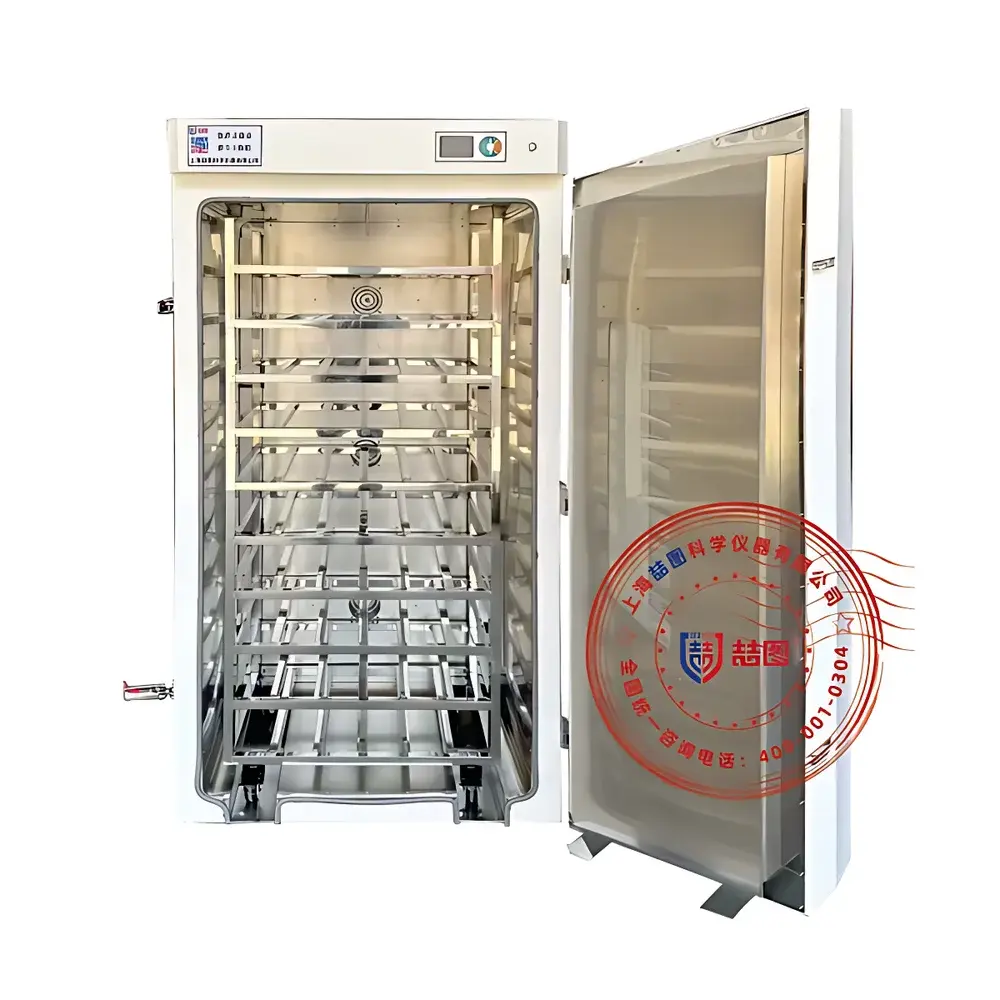

DRETOP TGD-1440A Track-Mounted Heavy-Duty Trolley Drying Oven

Overview

The DRETOP TGD-1440A Track-Mounted Heavy-Duty Trolley Drying Oven is an industrial-grade thermal processing system engineered for high-mass, high-volume drying, curing, moisture removal, and low-to-medium temperature heat treatment applications. Unlike conventional benchtop or cabinet-style ovens, the TGD-1440A integrates a precision-engineered floor-level rail interface with a reinforced stainless-steel trolley, enabling seamless horizontal transfer of payloads up to 1,000 kg (customizable to 5,000 kg upon request). Its operational principle relies on forced-air convection: multiple high-efficiency axial fans—mounted at the chamber ceiling—generate uniform airflow across calibrated baffle systems, ensuring laminar thermal distribution throughout the full 1440 L working volume. Designed for integration into production lines and R&D pilot facilities, it complies with core thermal validation requirements under ISO 17025-accredited environmental testing workflows and supports documented process control in GLP/GMP environments.

Key Features

• Integrated track-guided trolley system with adjustable rail spacing (standard 600 mm center-to-center); compatible with standard workshop floor leveling and direct roll-in/out operation without ramps or lifts.
• Structural trolley frame fabricated from reinforced carbon steel with optional 304 stainless steel decking; fitted with dual-row sealed ball-bearing guide wheels for low-friction, zero-jerk transit and long-term dimensional stability under thermal cycling.
• Dual-wall insulated chamber: inner lining of 2.0 mm thick 304 stainless steel, outer shell of powder-coated cold-rolled steel, and 120 mm thick high-density mineral wool insulation (thermal conductivity ≤ 0.038 W/m·K at 200 °C).
• Microprocessor-based digital temperature controller with PID algorithm, programmable ramp-soak profiles, real-time data logging (via RS485/Modbus RTU), and user-configurable alarm thresholds for over-temperature, sensor failure, and door interlock breach.
• Redundant safety architecture including Class B thermal cut-offs (IEC 60730-1), door-activated contactor disengagement, and dual-channel independent over-temperature protection circuits meeting EN 61000-6-2 EMC immunity standards.

Sample Compatibility & Compliance

The TGD-1440A accommodates large-format, irregular, or high-inertia samples—including transformer cores, cast sand molds, motor stators, coated electrical enclosures, composite laminates, and bulk pharmaceutical excipients—without requiring disassembly or reorientation. Its open-trolley design eliminates vertical stacking constraints and supports full-face exposure to convective airflow. The chamber’s square cross-section and absence of internal obstructions ensure unimpeded air circulation, critical for achieving ±1 °C uniformity per ASTM E2207 (Standard Practice for Calibration of Ovens and Furnaces). The system meets CE marking requirements (2014/30/EU EMC Directive, 2014/35/EU LVD Directive) and is compatible with IQ/OQ/PQ validation protocols required by FDA 21 CFR Part 11–compliant quality systems.

Software & Data Management

The embedded controller provides local setpoint configuration, runtime monitoring, and event-triggered alarm history (retaining ≥ 10,000 entries with timestamp, parameter, and operator ID). Optional Ethernet-enabled data acquisition modules support continuous export of temperature traces (CSV/Excel) and integration with SCADA platforms (OPC UA, MQTT). Audit trail functionality records all parameter modifications, door openings, and alarm acknowledgments—enabling full traceability for regulatory review. Firmware updates are performed via USB port with cryptographic signature verification to maintain integrity in validated environments.

Applications

• Electrical manufacturing: Pre-bake drying of transformer laminations and coil windings prior to varnish impregnation (per IEEE Std 666 and IEC 60076-11).
• Automotive & aerospace: Moisture evacuation from brake calipers, gear housings, and composite tooling before adhesive bonding or autoclave pre-cure cycles.
• Foundry & metalworking: Dehumidification of green sand molds and cores; stress-relief baking of large castings and machined structural components.
• Pharmaceutical & biotech: Controlled dehydration of lyophilized product trays, excipient granules, and stainless-steel process vessels (validated per USP and EU GMP Annex 15).
• Materials science research: Thermal aging studies of elastomers, thermosets, and ceramic matrix composites under ISO 188 and ASTM D573 conditions.

FAQ

What is the maximum permissible load capacity for the standard TGD-1440A trolley?
The base configuration supports up to 1,000 kg uniformly distributed; heavy-duty variants (TGD-1440A-HD) are available for loads up to 5,000 kg with reinforced rails and upgraded wheel assemblies.
Can the oven be validated for GMP-compliant processes?
Yes—the system is designed to support Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation packages, including temperature mapping reports, sensor calibration certificates, and alarm response verification logs.
Is remote monitoring supported out of the box?
Local HMI operation is standard; Ethernet or Wi-Fi connectivity requires the optional DRETOP-DAQ module, which enables secure cloud telemetry and email/SMS alerting via configurable thresholds.
How is temperature uniformity verified during commissioning?
DRETOP provides a 9-point thermocouple mapping procedure aligned with ASTM E2207, using NIST-traceable Class A PT100 sensors and certified data loggers; final report includes spatial deviation analysis and worst-case zone identification.
Does the trolley require periodic maintenance?
Guide wheels and rail interfaces should be inspected quarterly for wear and lubricated with high-temperature synthetic grease (ISO-L-XBCGB 2); no scheduled replacement is required within 10,000 operating hours under nominal load conditions.
