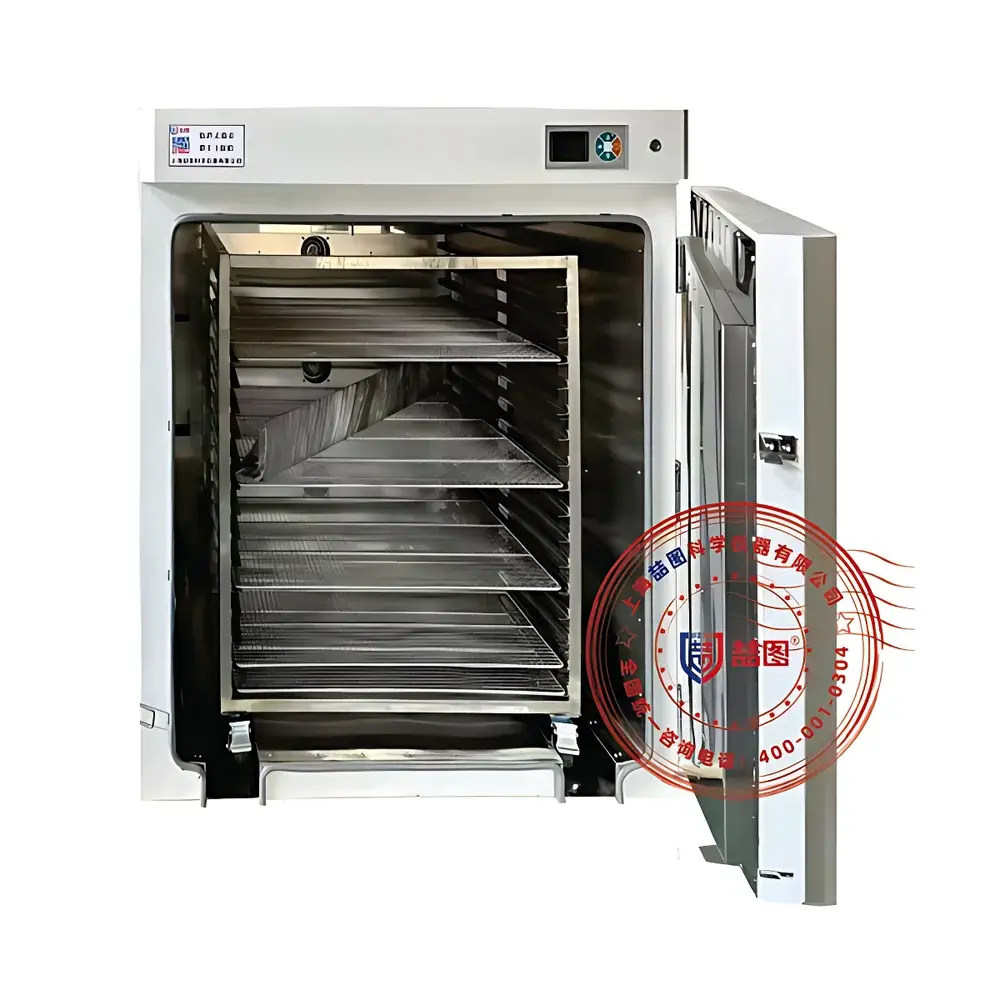

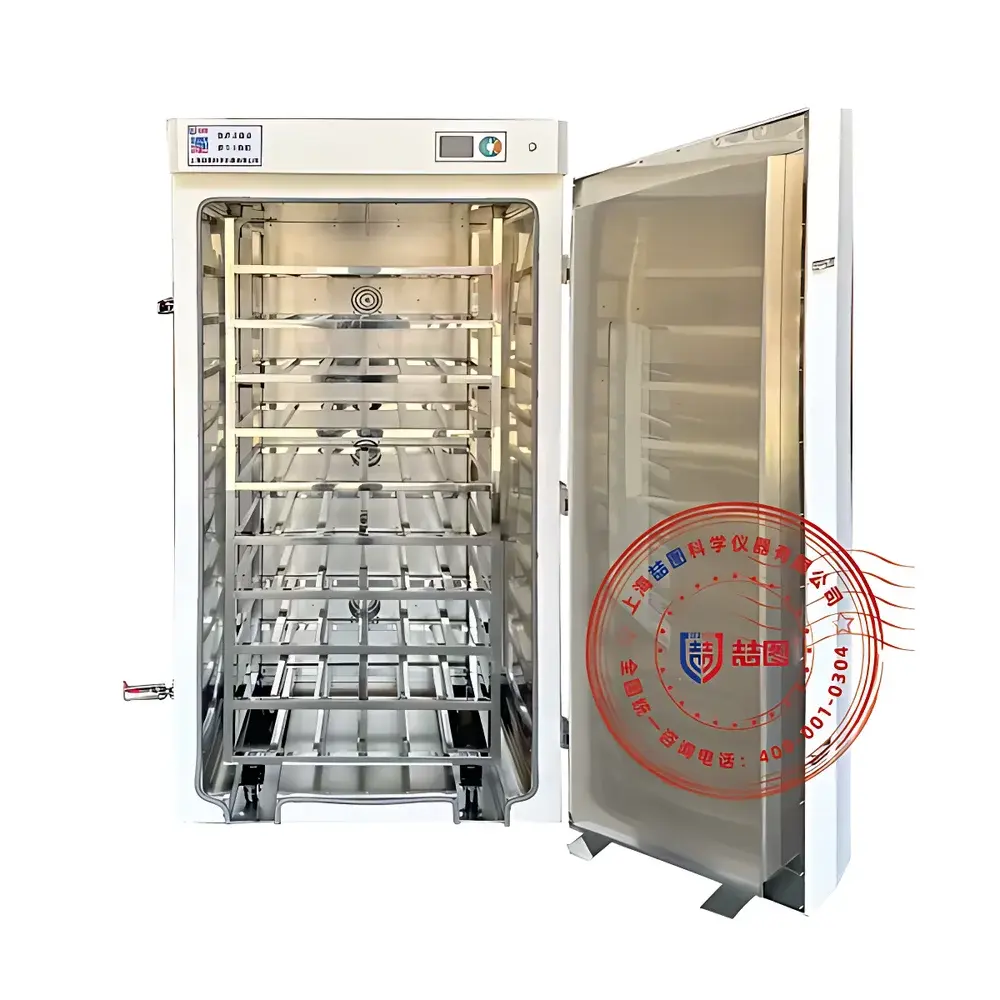

DRETOP TGD-640 Track-Mounted Heavy-Duty Conveyor Drying Oven

Overview

The DRETOP TGD-640 Track-Mounted Heavy-Duty Conveyor Drying Oven is an industrial-grade thermal processing system engineered for high-capacity, repeatable drying, curing, and moisture removal of large, heavy, or batched components. Unlike conventional benchtop or cabinet-style ovens, the TGD-640 integrates a precision-aligned floor-level rail system with a reinforced stainless-steel trolley, enabling seamless material transfer directly from production floor to chamber without lifting, hoisting, or repositioning. Its design adheres to fundamental principles of convective heat transfer—leveraging high-volume, laminar airflow generated by top-mounted centrifugal fans and optimized baffle geometry—to ensure uniform thermal exposure across volumetric loads up to 640 L. The oven operates within a calibrated temperature range of RT + 20 °C to 250 °C, with digital PID control delivering stability within ±1 °C and resolution to 0.1 °C. It is intended for integration into manufacturing workflows where process repeatability, operator safety, and throughput efficiency are governed by ISO 9001-compliant thermal validation protocols.

Key Features

• Integrated floor-level rail system compatible with standard workshop flooring—enables direct horizontal trolley ingress/egress without ramps or lifts
• Reinforced trolley frame constructed from SUS304 stainless steel or cold-rolled steel; configurable load capacity per shelf (standard: ≤50 kg/shelf; custom options support up to 1,000 kg total)
• Dual-wall insulated chamber: inner liner of 1.5 mm SUS304, outer shell of powder-coated cold-rolled steel, filled with ≥100 mm high-density ceramic fiber insulation (thermal conductivity <0.04 W/m·K at 200 °C)
• Forced-air circulation architecture featuring a high-efficiency axial fan (≥1,200 m³/h airflow) with adjustable speed control and directional vanes for minimized thermal stratification
• Digital microprocessor-based temperature controller with programmable ramp-soak profiles, real-time data logging, and RS485 Modbus RTU interface for SCADA integration
• Safety-critical interlocks: door-open heating cutoff, dual independent overtemperature protection (mechanical + electronic), audible/visual alarm system compliant with IEC 61000-6-2 EMC standards

Sample Compatibility & Compliance

The TGD-640 accommodates irregularly shaped, high-mass components—including transformer cores, cast iron molds, epoxy-coated enclosures, and composite laminates—without requiring disassembly or fixture redesign. Its open-plan chamber geometry eliminates blind zones, permitting full exposure of surfaces to convective heat flux. The system conforms to key regulatory frameworks applicable to thermal processing equipment in regulated industries: it supports IQ/OQ/PQ documentation packages aligned with FDA 21 CFR Part 11 requirements for electronic records and signatures; its temperature mapping protocol follows ASTM E2207 for forced-air ovens; and its construction meets IP20 ingress protection rating per IEC 60529. For GMP environments, optional validation kits (including Class A PT100 sensors, calibration certificates traceable to NIST, and audit-ready log files) are available.

Software & Data Management

The embedded controller provides local operation via a 5.7-inch TFT touchscreen interface with multilingual support (English, German, Spanish, Chinese). All temperature setpoints, dwell times, and alarm thresholds are stored in non-volatile memory with timestamped event logging (max. 10,000 entries). Optional Ethernet or Wi-Fi connectivity enables remote monitoring through DRETOP’s OEM-compatible OPC UA server, allowing integration with MES platforms such as Siemens SIMATIC IT or Rockwell FactoryTalk. Raw thermal data exports in CSV format include time-stamped chamber temperature, setpoint deviation, fan status, and fault codes—structured for statistical process control (SPC) analysis using JMP or Minitab. Audit trails comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for GLP/GMP audits.

Applications

• Electrical manufacturing: drying of wound stators/rotors, impregnation cure cycles for insulating varnishes, and post-weld stress relief of busbars
• Automotive & aerospace: moisture removal from aluminum die-cast housings prior to coating, adhesive curing for composite bonding fixtures, and solvent evaporation from elastomeric gaskets
• Materials science: thermal conditioning of ceramic green bodies, binder burnout in investment casting molds, and aging studies of polymer matrix composites
• Pharmaceutical & medical device production: depyrogenation of stainless-steel trays and tooling, residual solvent removal from coated implants, and controlled dehydration of hydrogel scaffolds
• Energy sector: pre-heating of wind turbine gearboxes before oil filling, drying of transformer laminations after phosphating, and thermal stabilization of battery module housings

FAQ

What is the maximum permissible load per shelf in the standard TGD-640 configuration?
Standard shelves are rated for ≤50 kg each. Load capacities exceeding this threshold require structural reinforcement and must be specified at time of order.
Can the TGD-640 be validated for GMP compliance?
Yes—optional IQ/OQ documentation packages, NIST-traceable sensor calibration, and 21 CFR Part 11–compliant data archiving modules are available upon request.
Is the rail system customizable for non-standard floor interfaces?
Yes—rail width, height tolerance, and mounting bracket geometry can be adapted to match existing factory floor rails or concrete anchor points.
Does the oven support multi-step thermal profiles?
Yes—the controller supports up to 32 programmable segments with independent ramp rates, dwell times, and hold conditions.
What maintenance intervals are recommended for the forced-air system?
Fan motor bearings require lubrication every 2,000 operating hours; air filter elements (if installed) should be inspected quarterly and replaced annually under continuous operation.
