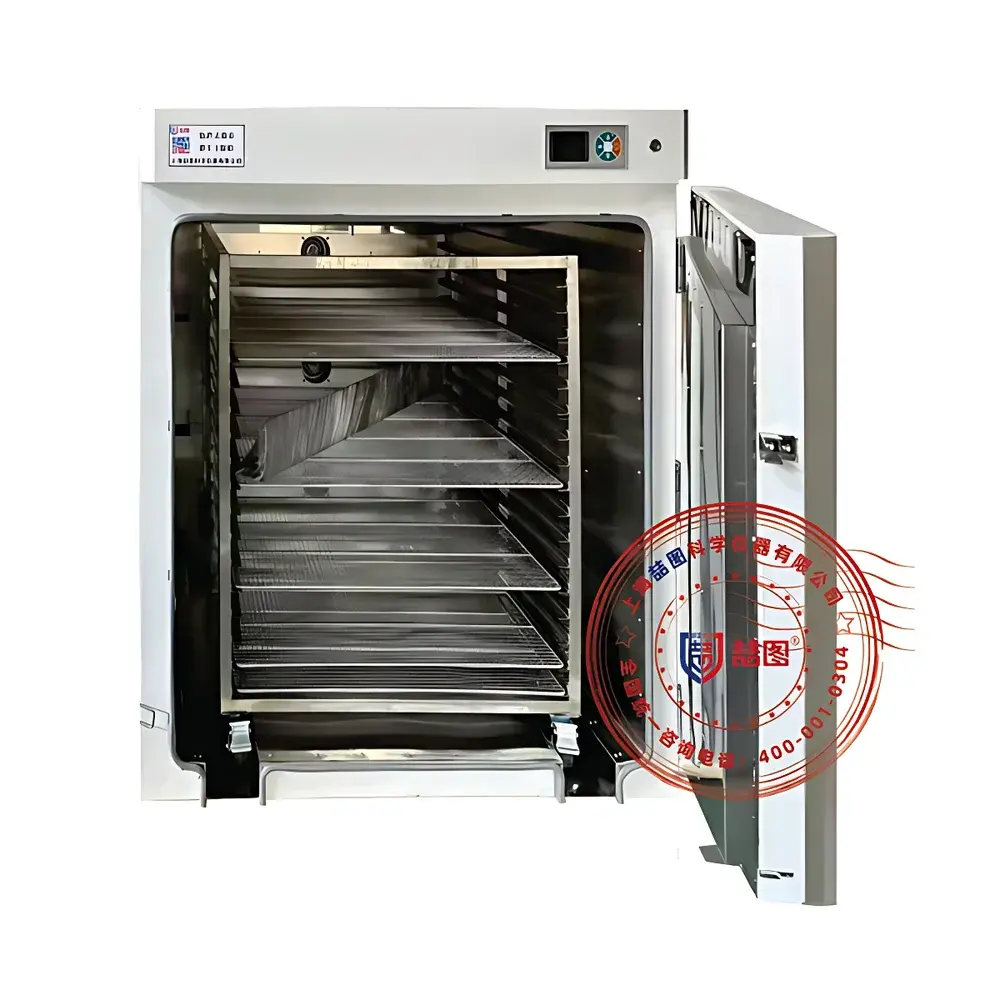

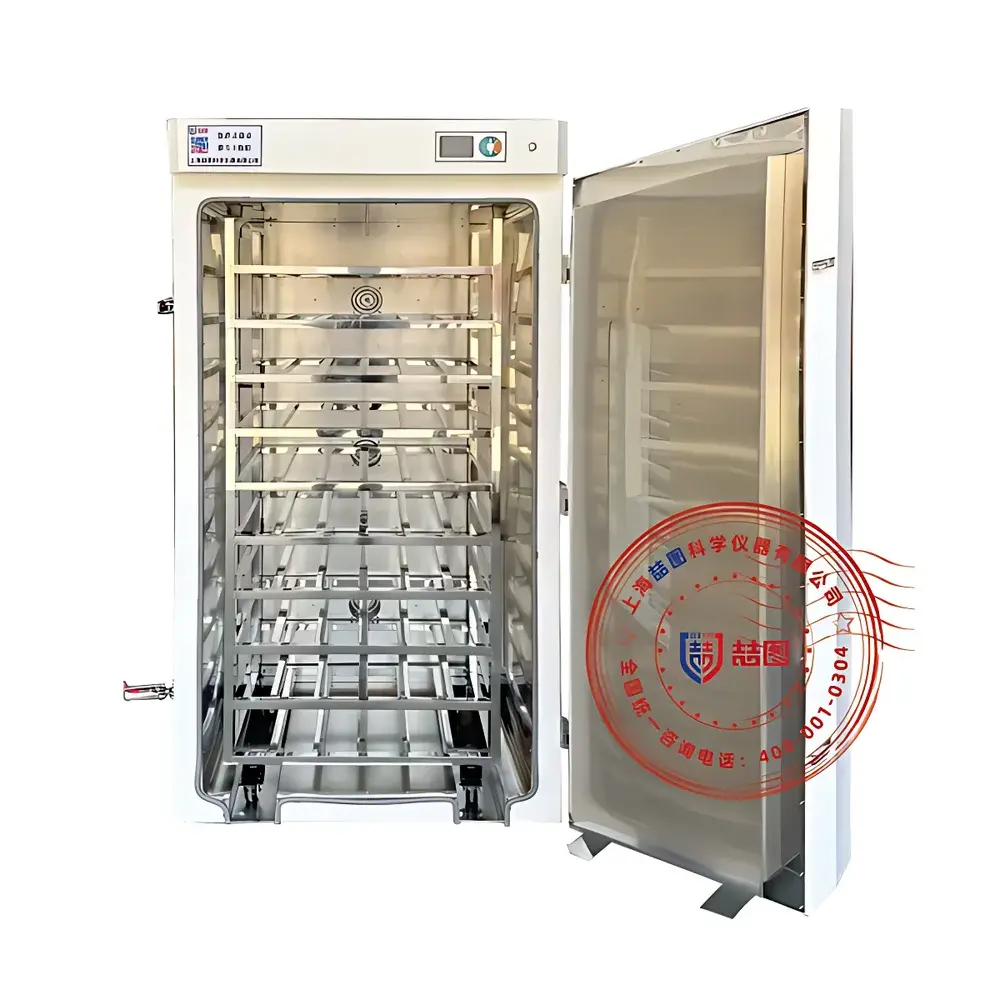

DRETOP TGD-640BP Track-Mounted Heavy-Duty Trolley Drying Oven

Overview

The DRETOP TGD-640BP Track-Mounted Heavy-Duty Trolley Drying Oven is an industrial-grade forced-air circulating oven engineered for high-mass, high-volume thermal processing in manufacturing, materials science, and production R&D environments. Unlike conventional benchtop or cabinet-style ovens, the TGD-640BP integrates a precision-engineered rail-guided trolley system directly into the chamber architecture—enabling seamless, low-effort loading and unloading of large, dense, or palletized workpieces without crane assistance or manual lifting. Its operational principle relies on uniform convective heat transfer: multiple high-static-pressure centrifugal fans drive conditioned air through optimized baffle channels, ensuring laminar airflow distribution across the full internal volume. This design mitigates thermal stratification and supports repeatable drying, curing, moisture removal, and preheating cycles for components ranging from transformer cores and cast sand molds to coated electrical enclosures and composite laminates.

Key Features

• Integrated floor-level rail interface: Allows direct horizontal trolley transfer from workshop floor into the chamber—eliminating ramp inclines, forklift dependency, and associated safety hazards.
• Reinforced trolley platform: Standard configuration includes one-tier 304 stainless steel or powder-coated cold-rolled steel deck with load-rated polyurethane guide wheels; custom configurations support static loads from 1,000 kg to 5,000 kg.
• Dual-layer insulated chamber: 304 stainless steel inner liner (thickness ≥1.5 mm) bonded to 1.2 mm cold-rolled steel outer shell, separated by ≥100 mm of non-combustible, low-conductivity mineral wool insulation (thermal conductivity ≤0.04 W/m·K at 200°C).
• Precision digital temperature control: PID-regulated microprocessor controller with real-time setpoint programming, ramp-soak profiles, and timer-based cycle termination; 0.1°C resolution and ±0.5°C stability under steady-state conditions.
• Redundant safety architecture: Independent mechanical overtemperature cutout (adjustable), door-actuated contactor disengagement, dual-channel thermal fuses, and Class II LED alarm panel with configurable fault codes.
• Service-accessible design: Front-mounted fan assemblies, removable side panels, and modular heater banks facilitate routine maintenance and calibration traceability.

Sample Compatibility & Compliance

The TGD-640BP accommodates geometrically complex and dimensionally oversized samples—including stacked metal plates (≤800 mm width × 800 mm depth × 1000 mm height), assembled motor stators, epoxy-encapsulated transformers, and bulk-packed ceramic substrates. Its open-trolley workflow supports batch sizes exceeding 50 units per cycle without compromising thermal homogeneity. While not certified as a Class I Div 2 hazardous location device, the oven complies with general-purpose industrial safety standards including IEC 60529 (IP20 enclosure rating), IEC 61000-6-2 (immunity), and IEC 61000-6-4 (emission). For regulated environments, the controller supports audit-ready data logging (via optional RS485/Modbus RTU or Ethernet TCP/IP interface) aligned with 21 CFR Part 11 principles when paired with validated third-party software—enabling electronic signatures, user access tiers, and immutable event records required for GLP and GMP documentation.

Software & Data Management

The embedded controller provides local HMI operation with password-protected parameter editing, real-time temperature curve display, and onboard cycle history storage (≥1,000 events). Optional communication modules enable integration into centralized MES or SCADA platforms. When configured with DRETOP’s optional DataLink Pro software (sold separately), users gain CSV-exportable time-stamped logs, deviation alerts with timestamped screenshots, and customizable report templates compliant with ISO/IEC 17025 Clause 7.7 (result reporting). All firmware updates are delivered via secure USB key with SHA-256 checksum verification—ensuring integrity and version control in validated settings.

Applications

• Electrical manufacturing: Core drying of silicon steel laminations, vacuum-pressure impregnation (VPI) post-bake cycles, and coil varnish curing under controlled ramp rates.
• Foundry & metalworking: Sand mold moisture evacuation prior to casting, stress-relief annealing of large castings, and dimensional stabilization of machined aluminum housings.
• Automotive & aerospace: Adhesive bond-line curing for composite brackets, paint-bake simulation for prototype validation, and humidity-conditioning of sensor housings.
• Pharmaceutical equipment prep: Sterile barrier component depyrogenation support (non-sterilizing cycle), tray-drying of excipient blends, and packaging material conditioning per USP .
• Materials R&D: Thermal aging studies of elastomers and thermosets, outgassing characterization of space-grade composites, and binder burnout profiling for ceramic green bodies.

FAQ

Is the TGD-640BP suitable for vacuum or inert-atmosphere applications?
No. This model operates exclusively under ambient atmospheric conditions and does not include vacuum ports, gas purge fittings, or pressure-rated seals.
Can the trolley be customized for higher load capacity or multi-tier stacking?
Yes. DRETOP offers engineering consultation for reinforced trolley variants—including dual-tier decks, integrated lifting lugs, and custom wheelbase configurations—subject to structural validation and lead-time adjustment.
What calibration documentation is provided with shipment?
Each unit ships with a factory-as-built test report, including chamber temperature uniformity mapping (9-point grid at 100°C, 200°C, and 300°C), controller accuracy verification against NIST-traceable reference thermometers, and safety interlock functional test records.
Does the oven support programmable multi-step thermal profiles?
Yes. The standard controller supports up to 32 segments per program, with independent ramp rate (°C/min), soak duration (hh:mm:ss), and target temperature parameters—fully editable and recallable via front-panel interface.
Are replacement parts and service support available outside mainland China?
DRETOP maintains authorized service partners in Germany, USA, and Singapore. Critical spares—including fan assemblies, heating elements, and controller PCBs—are stocked regionally with typical lead times under 10 business days.
