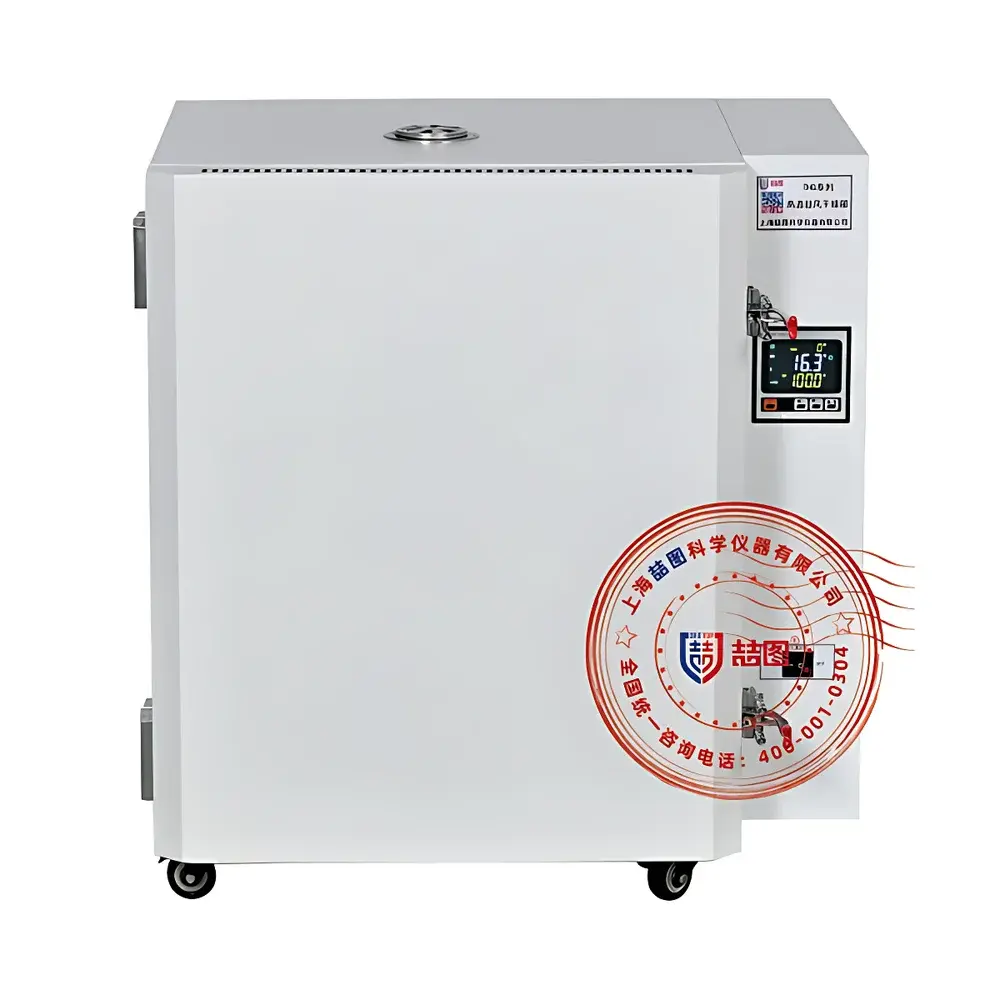

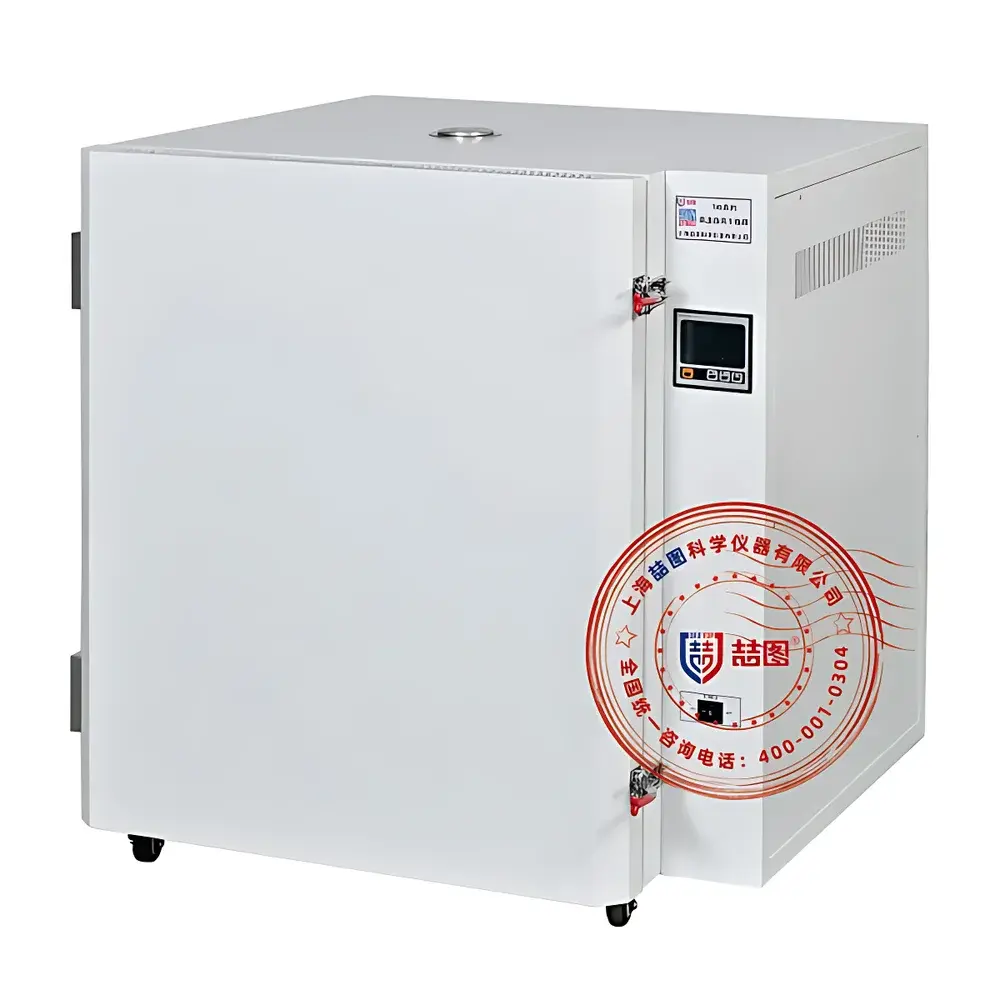

DRETOP THG-9249A High-Temperature Forced-Air Drying Oven

Overview

The DRETOP THG-9249A High-Temperature Forced-Air Drying Oven is an industrial-grade thermal processing instrument engineered for precise, repeatable, and stable operation across demanding laboratory and pilot-scale applications. It employs a dual-channel forced convection system driven by a high-efficiency, low-noise centrifugal blower and powered by stainless-steel sheathed heating elements. Heat transfer is optimized via strategically designed air ducts and directional airflow channels, enabling rapid temperature ramping and uniform thermal distribution throughout the 240 L working chamber. The oven operates within a calibrated range of ambient +20°C to 500°C—making it suitable for applications requiring sustained exposure to elevated thermal conditions without degradation of structural integrity or control fidelity. Its architecture conforms to fundamental principles of convective heat transfer and thermal equilibrium modeling, ensuring predictable performance under both static and dynamic load conditions.

Key Features

• Microprocessor-based PID temperature controller with K-type thermocouple feedback, offering ±1°C temperature fluctuation and 0.1°C resolution for high-fidelity thermal regulation.
• Intelligent self-diagnostic system displaying real-time fault codes on a large backlit LCD interface, facilitating rapid troubleshooting and minimizing operational downtime.
• Adjustable, drawer-style stainless-steel shelving with tool-free height adjustment and full removal capability—optimized for flexible sample loading and efficient chamber cleaning.
• Robust thermal insulation using high-density glass fiber (≥100 mm thickness) combined with a high-temperature silicone rubber door gasket (rated to 600°C), reducing external surface temperature rise and improving energy efficiency.
• Dual safety architecture: primary PID control loop paired with an independent mechanical limit thermostat; configurable over-temperature alarm thresholds with automatic power cutoff upon deviation.
• Quiet, continuous-duty motor with multi-blade impeller ensures consistent airflow velocity and minimizes vibration-induced thermal stratification in the chamber.

Sample Compatibility & Compliance

The THG-9249A accommodates a broad spectrum of sample types—including ceramic green bodies, metal alloys, polymer composites, pharmaceutical excipients, and sterilizable labware—without risk of cross-contamination or chemical interaction, owing to its electropolished SUS304 interior. Its design supports compliance with internationally recognized standards for thermal validation and process qualification, including ASTM E2297 (Standard Guide for Validation of Thermal Processing Equipment), ISO 17025 (General Requirements for the Competence of Testing and Calibration Laboratories), and USP (Sterilization and Sterility Assurance). While not intrinsically certified for GMP environments, the oven’s data retention, alarm logging, and optional RS485/USB interfaces enable integration into GLP/GMP-compliant workflows when paired with validated software systems meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

The base configuration includes a programmable timer (1–9999 minutes) and real-time temperature display. Optional upgrades extend functionality significantly: a color touchscreen controller enables multi-segment programmable ramp-soak profiles; RS485 serial communication permits remote monitoring and data acquisition via Modbus RTU protocol; USB export allows direct transfer of time-stamped temperature logs to external storage devices for audit-ready documentation. When connected to compatible third-party SCADA or LIMS platforms, the oven supports automated report generation, trend analysis, and long-term stability assessment—critical for quality assurance protocols in regulated industries such as medical device manufacturing and active pharmaceutical ingredient (API) processing.

Applications

This oven serves critical roles across multiple technical domains. In materials science, it supports sintering pre-treatment of advanced ceramics, stress-relief annealing of aerospace-grade alloys, and binder burnout in investment casting molds. In pharmaceutical development, it facilitates residual solvent removal from lyophilized formulations, depyrogenation of glass vials, and accelerated stability testing per ICH Q1 guidelines. In electronics manufacturing, it performs moisture desorption prior to conformal coating and solder paste drying. Additional use cases include catalyst activation in chemical R&D, moisture content determination per AOAC 950.46, and pre-heating of test fixtures in automotive component validation labs.

FAQ

What is the maximum operating temperature, and is it validated at 500°C?
The THG-9249A is rated for continuous operation up to 500°C. Temperature uniformity and stability specifications are verified per internal calibration procedures traceable to NIST-certified references at key setpoints including 100°C, 300°C, and 500°C.
Does the oven support vacuum operation?
No—the THG-9249A is a forced-air convection oven only. Vacuum capability requires a separate vacuum drying system (e.g., DRETOP ZK series); consult technical support for compatible configurations.
Can the unit be integrated into a centralized building management system (BMS)?
Yes—via optional RS485 Modbus RTU output, the oven can transmit real-time temperature, status flags, and alarm events to BMS or PLC networks for facility-wide environmental monitoring.
Is the stainless-steel interior electropolished or passivated?
The inner chamber uses brushed-finish SUS304 stainless steel. Electropolishing is available as a custom option for enhanced corrosion resistance in aggressive chemical environments.
What maintenance intervals are recommended for optimal performance?
Blower filter inspection every 3 months; door gasket integrity check every 6 months; annual verification of thermocouple calibration and PID tuning parameters using accredited metrology services.
