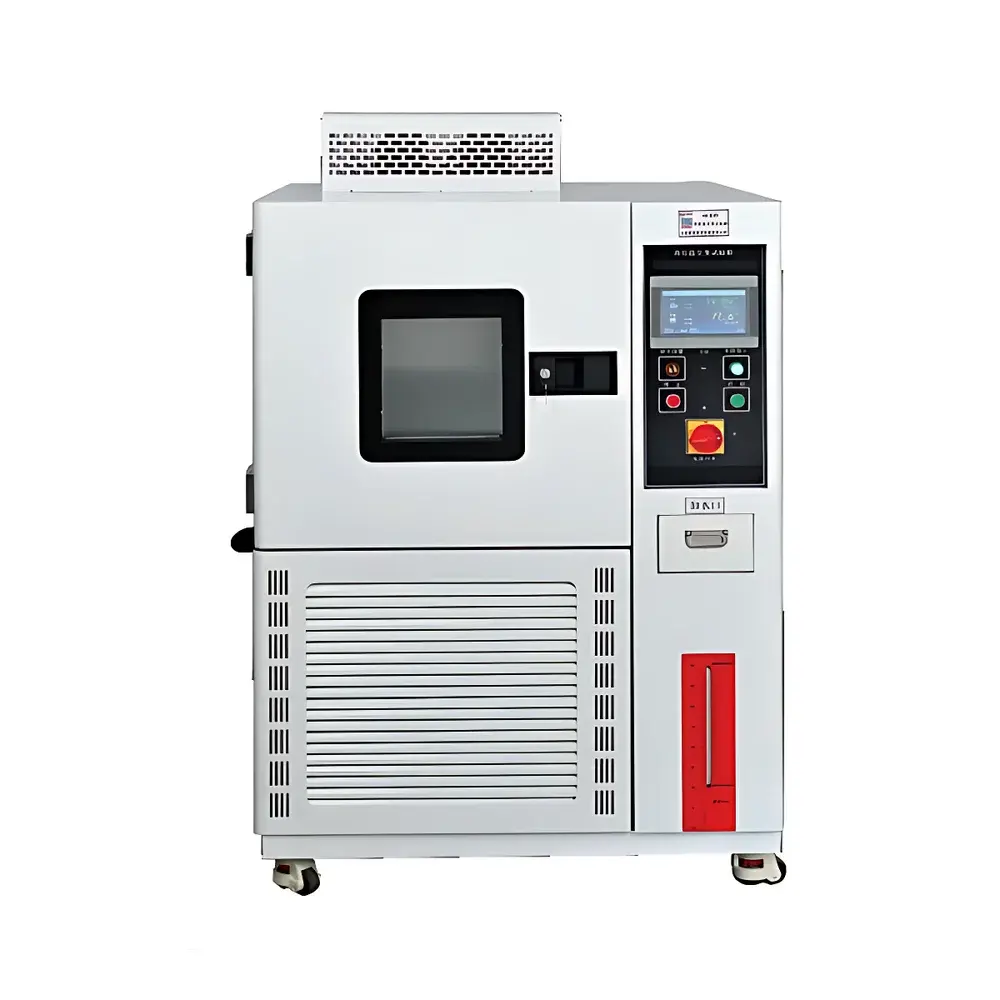

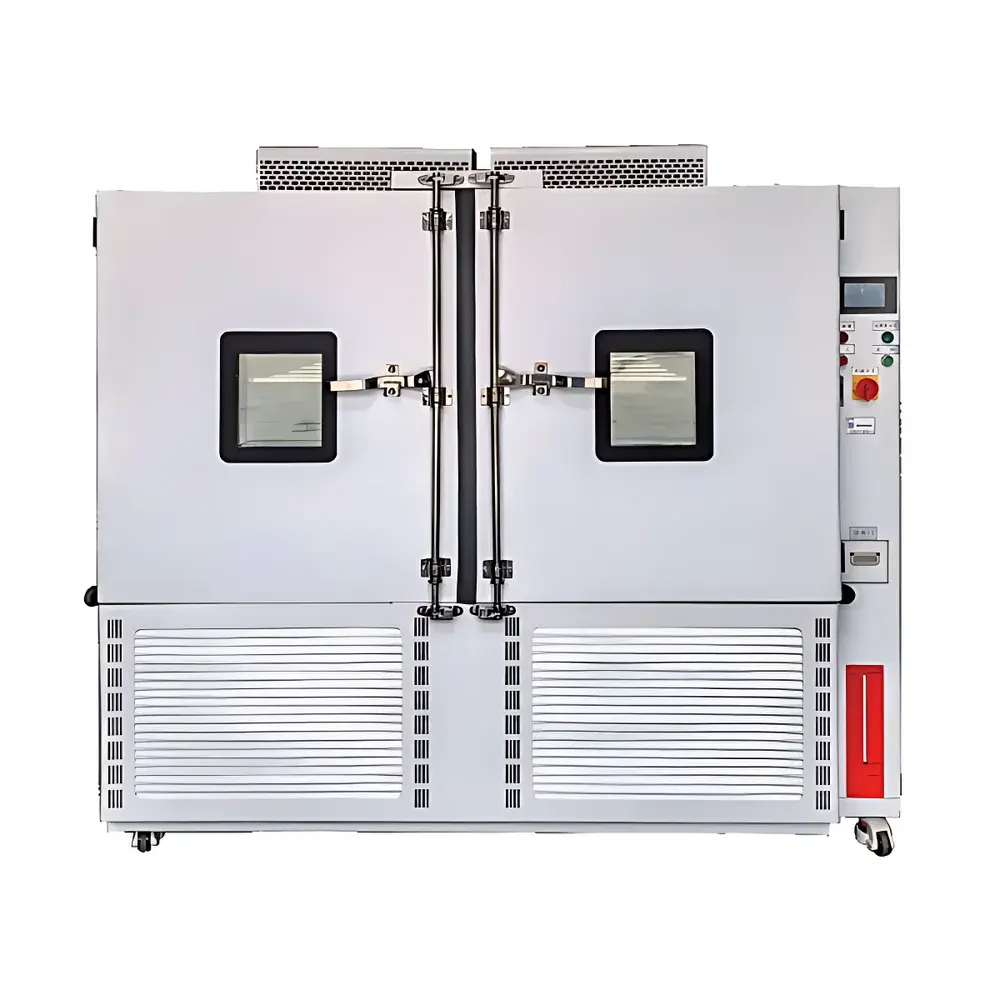

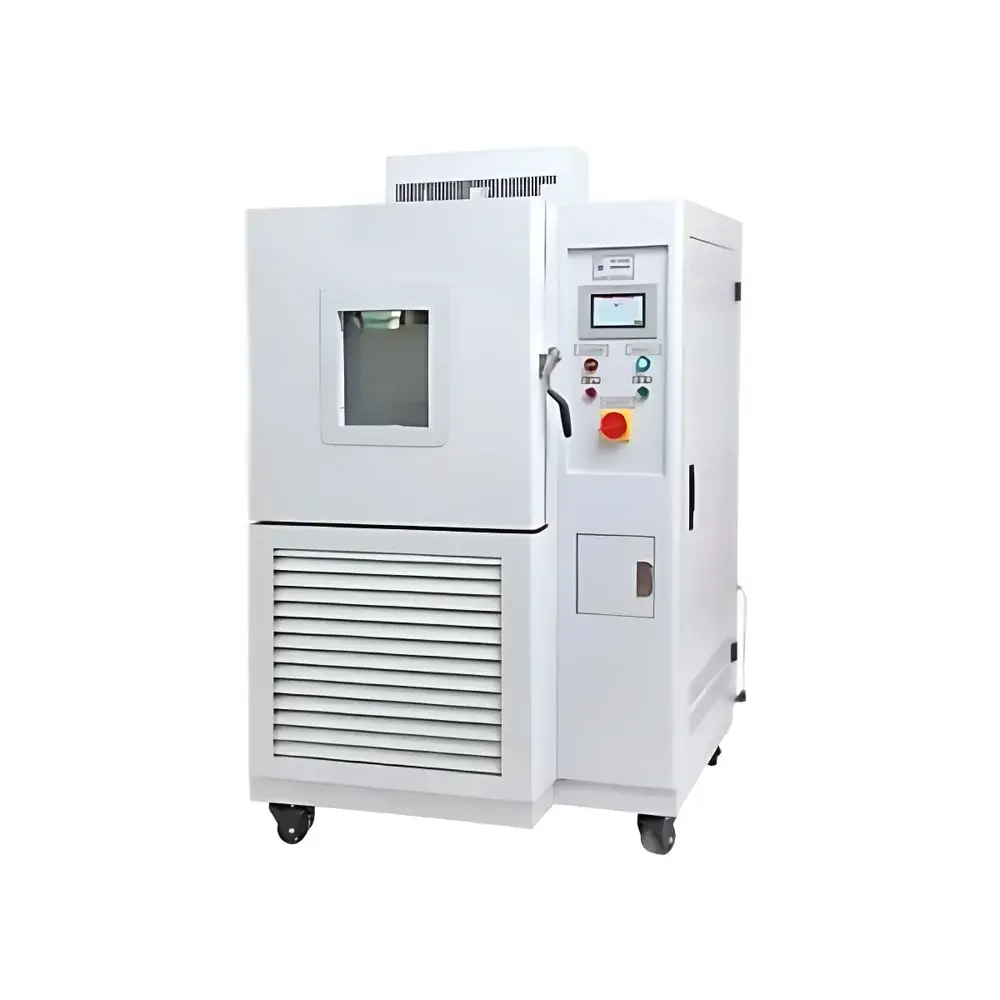

DRETOP THL-A1000-II High-Low Temperature Alternating Test Chamber

Overview

The DRETOP THL-A1000-II High-Low Temperature Alternating Test Chamber is an engineered environmental simulation system designed for rigorous thermal stress testing under programmable, cyclic temperature profiles. Based on forced-air convection and dual-stage refrigeration architecture, it replicates real-world thermal exposure conditions—including rapid transitions between extreme low and high temperatures—to evaluate material stability, component integrity, and functional reliability across industrial product lifecycles. Its operational envelope spans from –20°C to +150°C, supporting standardized thermal cycling protocols required in qualification testing for electronics, automotive ECUs, aerospace avionics, polymer composites, and medical device packaging. The chamber’s structural design complies with fundamental thermal test chamber performance criteria defined in IEC 60068-3-5 (environmental testing—guidance on the use of thermal test chambers) and aligns with the physical constraints outlined in ASTM E145 for gravity-convection and forced-air laboratory ovens.

Key Features

• High-resolution 7-inch color touchscreen controller with multilingual UI (English/Chinese), password-protected hierarchical access control (operator, engineer, administrator levels), and audit-trail-capable event logging.
• Dual-stage cascade refrigeration system using environmentally compliant R404A/R23 refrigerants, featuring a shared evaporator-condenser heat exchanger to enhance thermodynamic efficiency and extend compressor service life.
• Optimized airflow path with nickel-chromium alloy heating elements and high-static-pressure centrifugal circulation fans ensures ≤2°C temperature uniformity across the 1000 L working volume per IEC 60068-3-5 Annex B.
• Double-glazed, heated observation window with anti-frost coating prevents condensation during low-temperature operation, eliminating optical distortion and safeguarding test specimens from moisture-related failure modes.
• Independent PID auto-tuning for both heating and cooling loops, enabling dynamic compensation for thermal load variations and maintaining ±0.5°C temperature stability under dynamic ramp-and-soak conditions.
• Integrated safety architecture includes over-temperature cut-off, compressor overcurrent protection, fan failure detection, phase-loss monitoring, and automatic power recovery after grid interruption.

Sample Compatibility & Compliance

The THL-A1000-II accommodates large-format assemblies—including printed circuit board stacks, battery modules, sensor housings, and automotive lighting units—within its 1000×800×1000 mm stainless-steel interior. Standard 50 mm diameter test ports (with silicone gaskets) support live electrical feedthroughs, pneumatic line routing, and thermocouple insertion without compromising chamber integrity. The system meets mechanical and thermal performance requirements specified in ISO 16750-4 (road vehicles—environmental conditions and testing for electrical and electronic equipment—climate loads), MIL-STD-810G Method 502.6 (low temperature) and Method 501.6 (high temperature), and GB/T 2423.1–2022 (cold testing) and GB/T 2423.2–2022 (dry heat testing). Optional RS485 or USB interfaces enable integration into centralized lab management systems compliant with FDA 21 CFR Part 11 data integrity requirements when paired with validated software.

Software & Data Management

The embedded controller supports full-cycle data acquisition at user-defined intervals (1 s to 60 min resolution), storing time-stamped temperature readings, program status flags, alarm events, and cumulative runtime metrics. Exported datasets are natively formatted as CSV files compatible with Excel, MATLAB, and JMP; optional PC-based DRETOP LabView-compatible software provides real-time remote monitoring, multi-chamber synchronization, and GLP-compliant report generation with digital signature fields. All configuration changes, program executions, and fault logs are timestamped and retained onboard for ≥30 days—supporting internal quality audits and regulatory traceability under ISO/IEC 17025 and GMP Annex 11 frameworks.

Applications

• Thermal cycling validation of PCBAs per IPC-9701A to assess solder joint fatigue resistance.
• Accelerated aging studies of lithium-ion battery cells under alternating thermal stress to model calendar-life degradation mechanisms.
• Qualification testing of automotive infotainment displays per UNECE R100 thermal shock specifications.
• Material coefficient-of-thermal-expansion (CTE) correlation studies using dimensional metrology tools integrated through optional viewports.
• Pre-compliance screening for IEC 60529 IPX4 water resistance tests where thermal preconditioning precedes humidity exposure.
• Reliability assessment of optical fiber connectors and laser diode packages subjected to repeated thermal expansion/contraction cycles.

FAQ

What is the maximum allowable thermal ramp rate for this chamber?
The THL-A1000-II supports programmable heating rates from 1°C/min to 3°C/min and cooling rates from 0.7°C/min to 1°C/min—both adjustable in 0.1°C/min increments within the controller interface.
Can the chamber maintain temperature stability during door opening?
Yes—the optimized air distribution system and high-efficiency door seal minimize thermal lag; typical recovery to setpoint after a 15-second door opening is ≤3 minutes at mid-range temperatures (25°C), per IEC 60068-3-5 Clause 6.3.
Is remote monitoring supported out of the box?
Standard RS485 Modbus RTU communication is provided; Ethernet or Wi-Fi connectivity requires optional hardware add-on and firmware upgrade.
Does the system include calibration documentation?
Each unit ships with a factory-as-built calibration certificate traceable to NIM (National Institute of Metrology, China); ISO/IEC 17025-accredited third-party calibration services are available upon request.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil and filter replacement is advised every 24 months under continuous operation; annual inspection of refrigerant charge, condenser coil cleanliness, and fan bearing condition is required per manufacturer guidelines.
