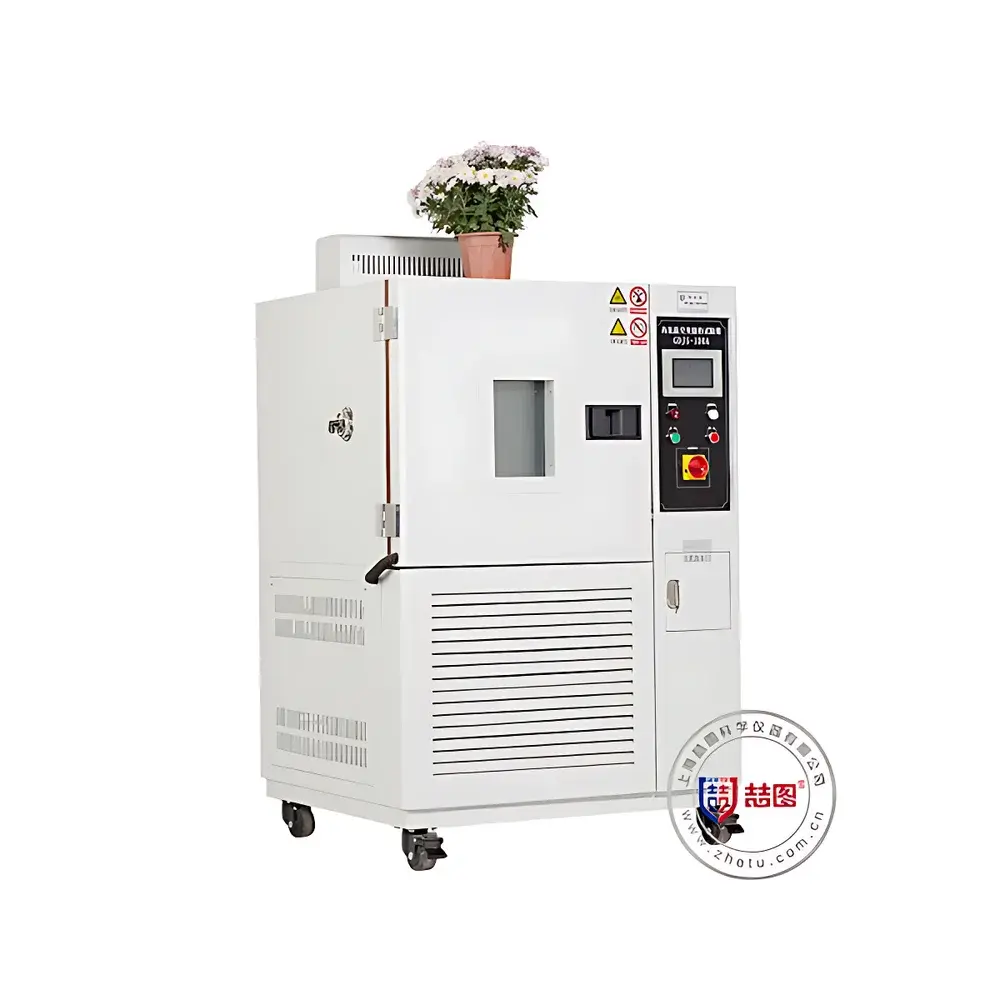

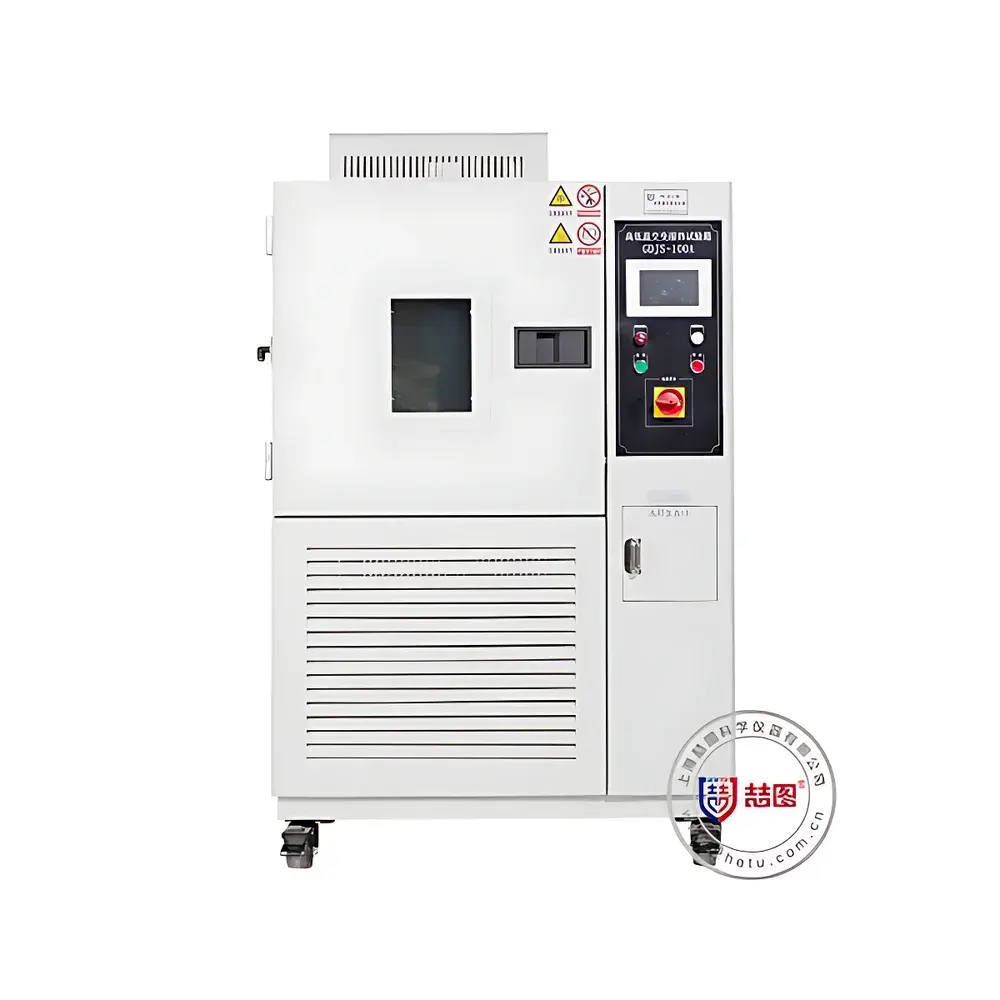

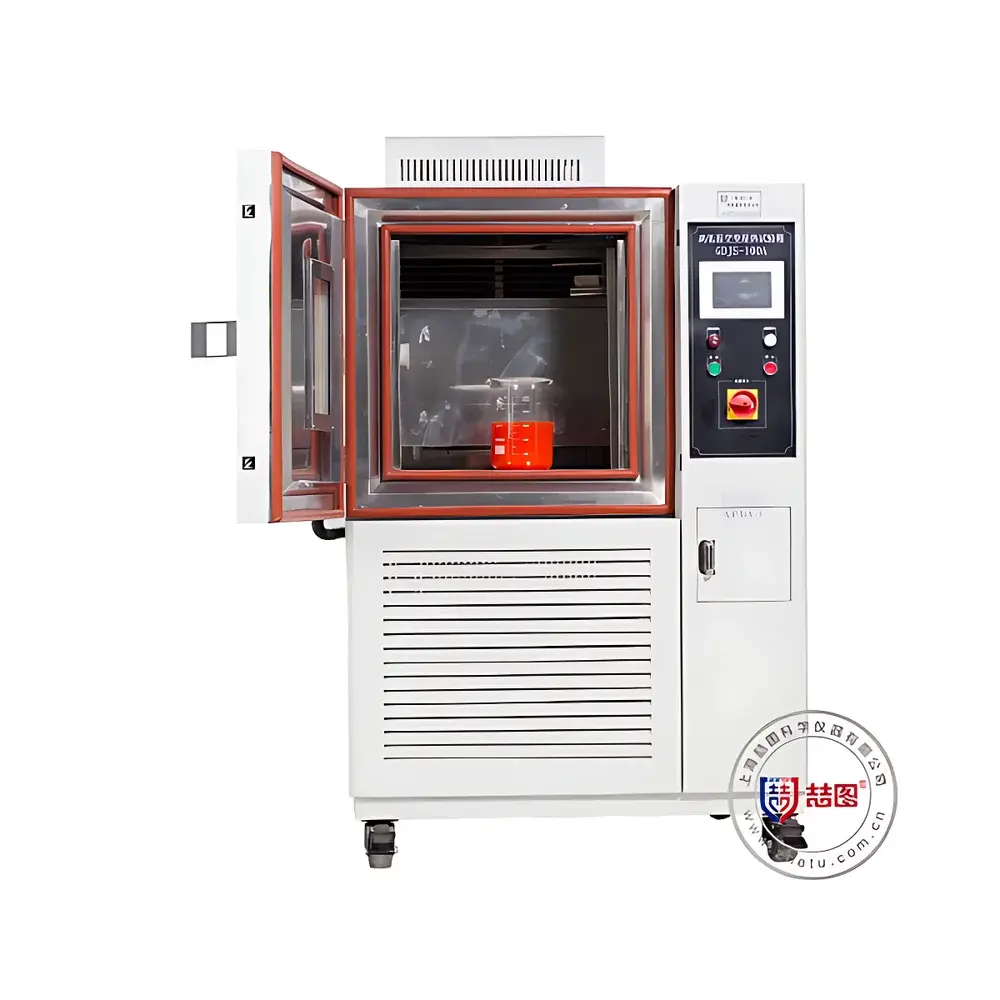

DRETOP THL-A400-II High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-A400-II High-Low Temperature Environmental Test Chamber is a precision-engineered climatic simulation system designed for rigorous thermal stress evaluation of materials and components under controlled, repeatable, and programmable temperature cycling conditions. Operating on the principle of forced-air convection with dual-stage refrigeration architecture, the chamber delivers stable, uniform thermal environments across its full operational range of −20 °C to +150 °C. Its design conforms to core requirements of international environmental testing standards—including IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and MIL-STD-810G Method 501.6/502.6—enabling reliable qualification of product thermal resilience during development, validation, and production QA/QC phases. The THL-A400-II is not a general-purpose storage unit but an instrument-grade test platform engineered for reproducible thermal profiling, supporting both steady-state exposure and dynamic ramp-hold-cycle protocols essential for accelerated life testing and failure mode analysis.

Key Features

• Full-color 7-inch capacitive touchscreen HMI with intuitive icon-based navigation, supporting up to 1,000 multi-segment programs (100 segments per program), including ramp-soak-cycle sequences with slope control and user-defined dwell times.
• Dual-language interface (English/Chinese) with hierarchical password protection (administrator/operator/user levels) to enforce procedural integrity and audit-ready access control.
• Optimized air circulation system featuring high-efficiency centrifugal blower, nickel-chromium alloy heating elements, and a cascaded two-stage compressor refrigeration circuit—where the evaporator of the high-temperature stage doubles as the condenser for the low-temperature stage—ensuring rapid thermal response and minimal cross-stage interference.
• Double-layer tempered safety glass observation window with integrated anti-frost heating film and LED interior lighting, preventing condensation-induced short circuits or sample contamination during low-temperature operation.
• PID auto-tuning algorithm with adaptive compensation for load variation, door opening events, and ambient fluctuations—maintaining temperature stability within ±0.5 °C fluctuation and ±0.5 °C uniformity across the 400 L working volume (800 × 600 × 850 mm).
• Robust mechanical construction: stainless steel 304 inner chamber, reinforced insulation layer (≥100 mm polyurethane foam), silicone rubber door gasket rated for −80 °C to +150 °C service life, and dual-position casters (swivel + lockable fixed feet) for lab-floor mobility and seismic-grade stability.
• Comprehensive safety architecture including over-temperature cut-off, compressor/fan overload protection, phase-loss detection, ground-fault interruption, and automatic power recovery after grid interruption.

Sample Compatibility & Compliance

The THL-A400-II accommodates diverse sample geometries via two adjustable stainless-steel shelves (load capacity: 30 kg per shelf) and a standard 50 mm diameter test port (with silicone plug) for real-time electrical, pneumatic, or data-line interfacing under thermal stress. Its internal airflow profile meets ISO 16750-4 and SAE J2380 requirements for automotive component thermal cycling, while thermal performance metrics align with ASTM E145 Class II specifications for gravity-convection and forced-air chambers. The system supports GLP-compliant operation through optional RS485/USB connectivity, enabling external logging, remote supervision, and integration into centralized LIMS or MES platforms. Though not intrinsically explosion-proof, it complies with EN 61000-6-2/6-4 for electromagnetic compatibility and carries CE marking for EMC and Low Voltage Directive conformity.

Software & Data Management

The embedded controller records time-stamped temperature data at configurable intervals (1 s to 60 min resolution) and stores up to 30 days of continuous operation history locally. Export options include CSV-formatted Excel files and native .DAT archives compatible with DRETOP’s optional PC-based analysis software (THL-DataView Pro), which generates trend plots, deviation histograms, and pass/fail compliance reports against user-defined specification limits. When connected via RS485 (Modbus RTU protocol) or USB CDC, the chamber supports third-party SCADA integration and satisfies FDA 21 CFR Part 11 requirements for electronic records when paired with validated audit-trail-enabled host software. All data transfers are non-volatile and retain integrity during power loss.

Applications

This chamber serves critical functions across multiple industrial R&D and manufacturing domains: evaluating solder joint integrity and PCB warpage in electronics under thermal cycling; validating sealant adhesion and polymer crystallinity shifts in automotive interiors; assessing battery cell impedance drift and electrolyte volatility in EV energy systems; qualifying aerospace composite layup stability during ground-to-flight thermal transients; and supporting material science research on phase transitions in metallic alloys, elastomers, and advanced ceramics. It is routinely deployed in accredited calibration labs for sensor verification (e.g., thermocouple drift testing per ISO/IEC 17025) and by regulatory test houses conducting IEC 60068-2 series certification.

FAQ

What is the maximum allowable sample mass for thermal stability testing?
The chamber supports up to 60 kg total load (30 kg per shelf) without compromising temperature uniformity or ramp rate performance—provided samples do not obstruct airflow grilles or exceed 70% internal volume occupancy.
Can the THL-A400-II perform humidity-controlled testing?
No—this is a dry-thermal-only chamber. For combined temperature/humidity profiles, consider the DRETOP THS series (e.g., THS-A400-II) with integrated steam humidification and dehumidification modules.
Is firmware update capability available remotely?
Yes—via USB flash drive import using the built-in upgrade utility. Network-based OTA updates are not supported due to lab network security policies; all firmware revisions undergo ISO 13485-aligned validation prior to release.
Does the system meet MIL-STD-810H thermal shock requirements?
While optimized for gradual ramp-hold cycling, the THL-A400-II does not achieve the ≥15 °C/min transition rates required for Method 503.5 thermal shock. For such applications, DRETOP recommends the dedicated TSC series dual-chamber thermal shock testers.
What documentation is provided for IQ/OQ validation?
A complete validation package—including Factory Acceptance Test (FAT) report, calibration certificate traceable to NIM (China National Institute of Metrology), and blank IQ/OQ templates aligned with Annex 15 and GAMP5 guidelines—is supplied with each unit.
