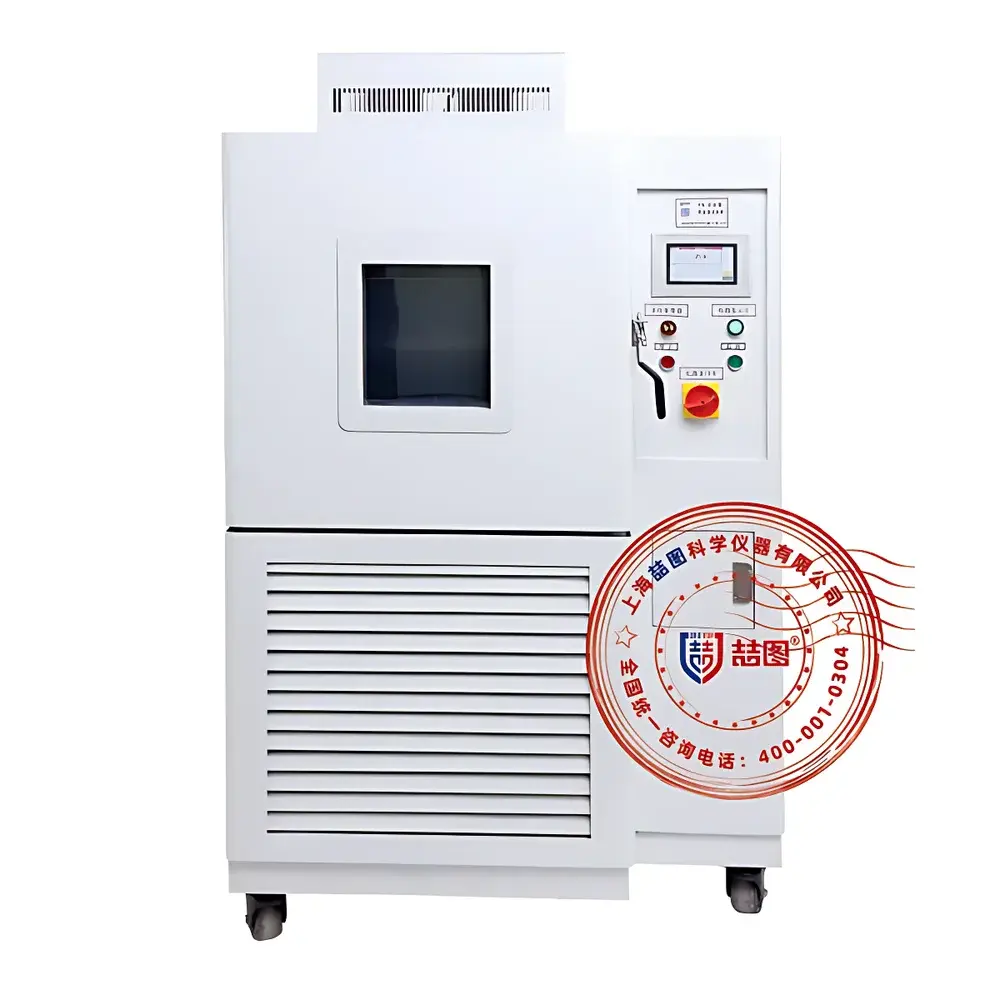

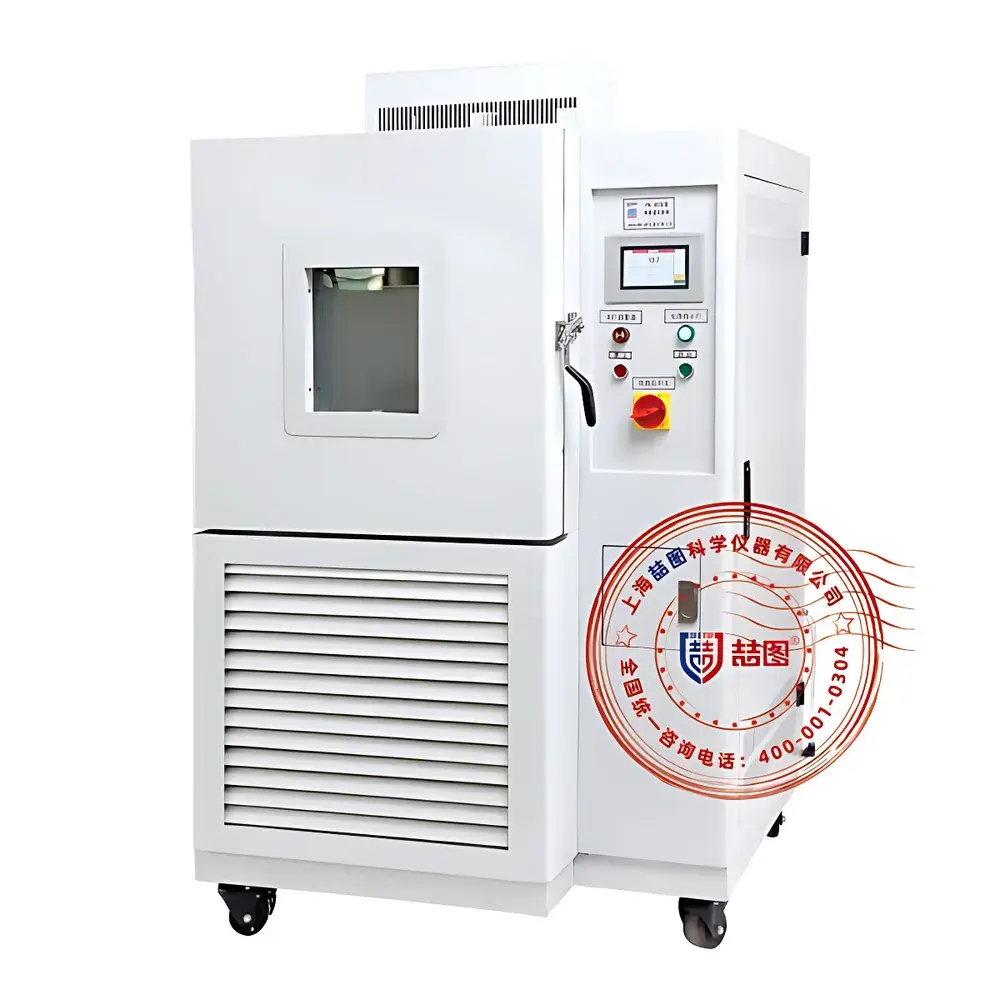

DRETOP THL-A500 High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-A500 High-Low Temperature Environmental Test Chamber is an engineered thermal stress testing platform designed to replicate extreme ambient temperature conditions for reliability validation and performance evaluation of industrial components and materials. Based on forced-air convection and dual-stage refrigeration architecture, the chamber precisely subjects test specimens to controlled, programmable thermal cycling between −20 °C and +120 °C—enabling simulation of real-world environmental exposure in accelerated timeframes. Its design adheres to core principles of thermal dynamics and heat transfer engineering, ensuring stable boundary conditions required for repeatable qualification testing per international standards such as IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and MIL-STD-810G Method 501.5/502.5. The THL-A500 serves as a foundational tool in product development lifecycles—from early-stage design verification through final production lot acceptance—supporting compliance-driven workflows in regulated sectors including automotive electronics, aerospace avionics, medical device packaging, and industrial-grade power electronics.

Key Features

• Industrial-grade color touchscreen controller with intuitive HMI interface, supporting up to 1000 user-defined test programs, each containing up to 100 programmable segments; bilingual (English/Chinese) display with hierarchical password protection to prevent unauthorized parameter modification.

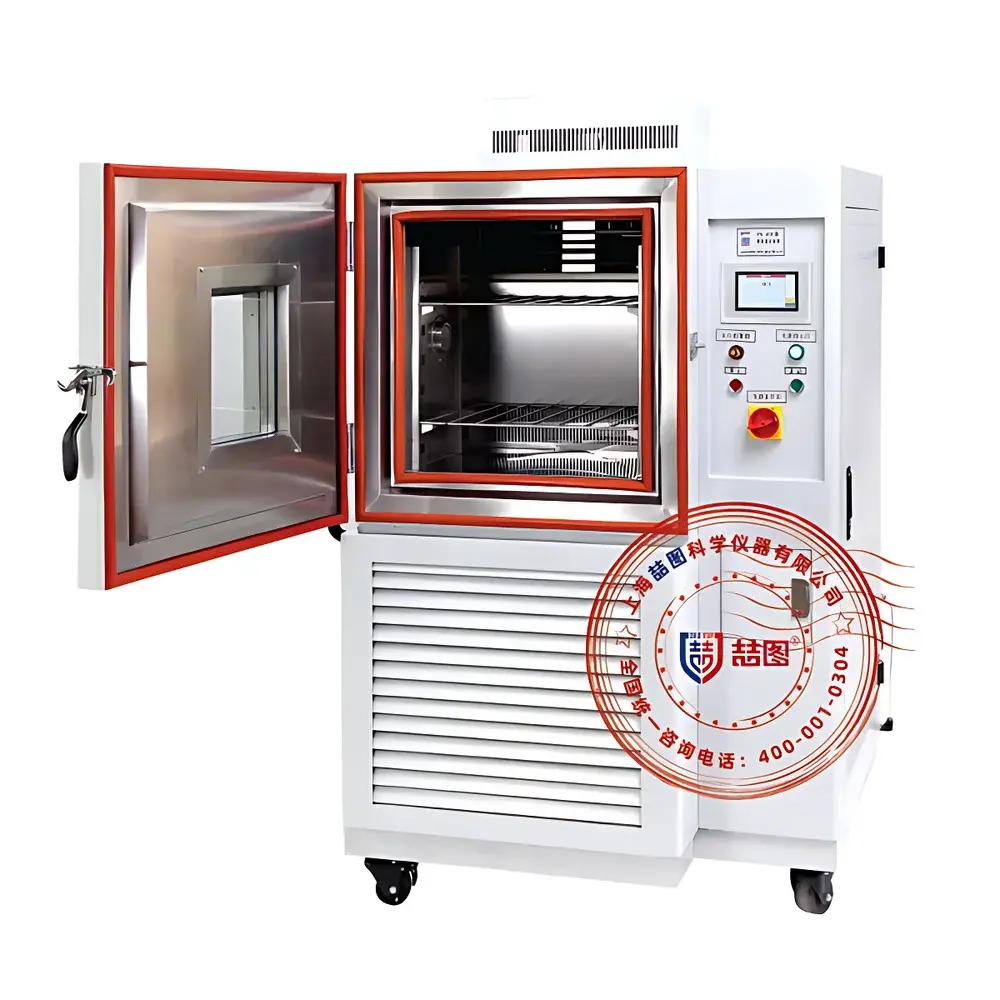

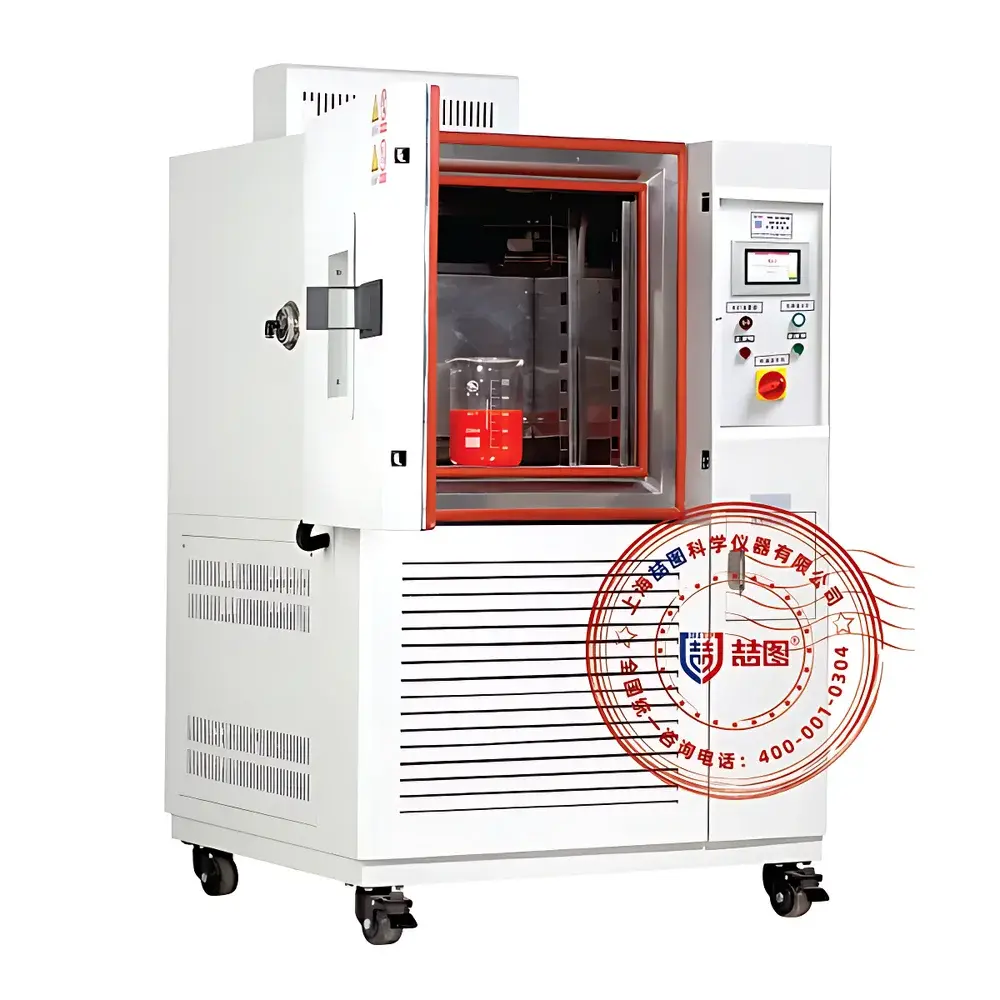

• Dual-layer tempered glass observation window with integrated anti-frost heating and LED illumination—designed to maintain optical clarity during low-temperature operation and prevent condensation-induced short circuits or sample contamination.
• Hermetically sealed imported compressor refrigeration system utilizing cascade evaporator-condenser coupling, optimized for energy efficiency and long-term operational stability under continuous thermal load.
• Nichrome alloy heating elements combined with high-static-pressure centrifugal circulation fans ensure rapid thermal response and uniform temperature distribution (±2.0 °C across working volume), validated per ASTM E744 and ISO 16750-4 methodology.
• Modular control architecture with independent regulation of heating, cooling, and airflow subsystems—reducing cross-interference, minimizing recovery time after door opening, and extending component service life.
• Comprehensive safety suite including over-temperature cut-off, compressor/fan overload protection, ground-fault interruption, automatic power resumption after grid outage, and audible/visual alarm signaling.

Sample Compatibility & Compliance

The THL-A500 accommodates diverse sample geometries and electrical configurations via a standard 50 mm diameter test port (optional sealing gasket available), enabling live monitoring of voltage, current, signal integrity, or pneumatic pressure during thermal stress. Internal dimensions (800 × 700 × 900 mm) provide a 500 L usable volume suitable for PCB assemblies, automotive ECUs, battery modules, polymer enclosures, and mechanical subassemblies. All structural materials—including SUS304 stainless steel inner chamber, high-density polyurethane insulation (≥100 mm thickness), and silicone rubber door seals—meet RoHS and REACH material restrictions. The system supports GLP/GMP-aligned audit trails when configured with optional RS485/USB data logging interfaces compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

The embedded controller firmware enables real-time acquisition of chamber temperature, ramp rate, dwell duration, and elapsed cycle time. Data can be exported in native CSV format or directly into Excel-compatible spreadsheets for post-test statistical analysis (e.g., Weibull failure modeling, Arrhenius acceleration factor calculation). Optional PC-based software provides remote supervision, multi-chamber synchronization, automated report generation (PDF/HTML), and trend visualization with timestamped metadata. All logged data includes operator ID, program name, start/stop timestamps, and deviation flags—ensuring traceability for internal QA audits or third-party certification bodies such as TÜV SÜD or UL.

Applications

• Temperature cycling reliability assessment of printed circuit boards (PCBs) and solder joints per IPC-9701 and JEDEC JESD22-A104.
• Thermal shock preconditioning prior to HALT/HASS testing of embedded controllers and sensor modules.
• Validation of thermal expansion coefficients and dimensional stability in polymer composites and elastomeric seals.
• Accelerated aging studies for lithium-ion battery cells under storage and operational temperature profiles (UN 38.3 Section 4.3).
• Environmental stress screening (ESS) of military-grade connectors, conformal coatings, and optical housings per MIL-STD-202G.
• Material compatibility testing of adhesives, potting compounds, and encapsulants used in outdoor-rated electronics.

FAQ

What is the maximum allowable sample weight inside the THL-A500 chamber?
The chamber supports static loads up to 50 kg distributed evenly across two adjustable stainless steel shelves; dynamic vibration or mechanical actuation during testing is not supported.
Can the THL-A500 perform humidity-controlled tests?
No—the THL-A500 is a dry-heat/cold thermal chamber only; for combined temperature-humidity testing, consider the DRETOP THL-H series with integrated steam humidification and dehumidification modules.
Is calibration documentation provided with shipment?
Yes—a NIST-traceable temperature calibration certificate (covering −20 °C, 25 °C, and +120 °C reference points) is included, along with a full factory test report verifying uniformity, fluctuation, and ramp rate performance.
What maintenance intervals are recommended for optimal long-term accuracy?
Compressor oil and refrigerant levels should be verified annually; air filters require cleaning every 3 months; temperature sensors are recommended for recalibration every 12 months or after 2000 operating hours.
Does the controller support custom scripting or API integration?
The standard firmware does not support external scripting; however, the RS485 Modbus RTU protocol allows integration with SCADA systems, PLCs, or custom LabVIEW/Python applications for automated test sequencing.
