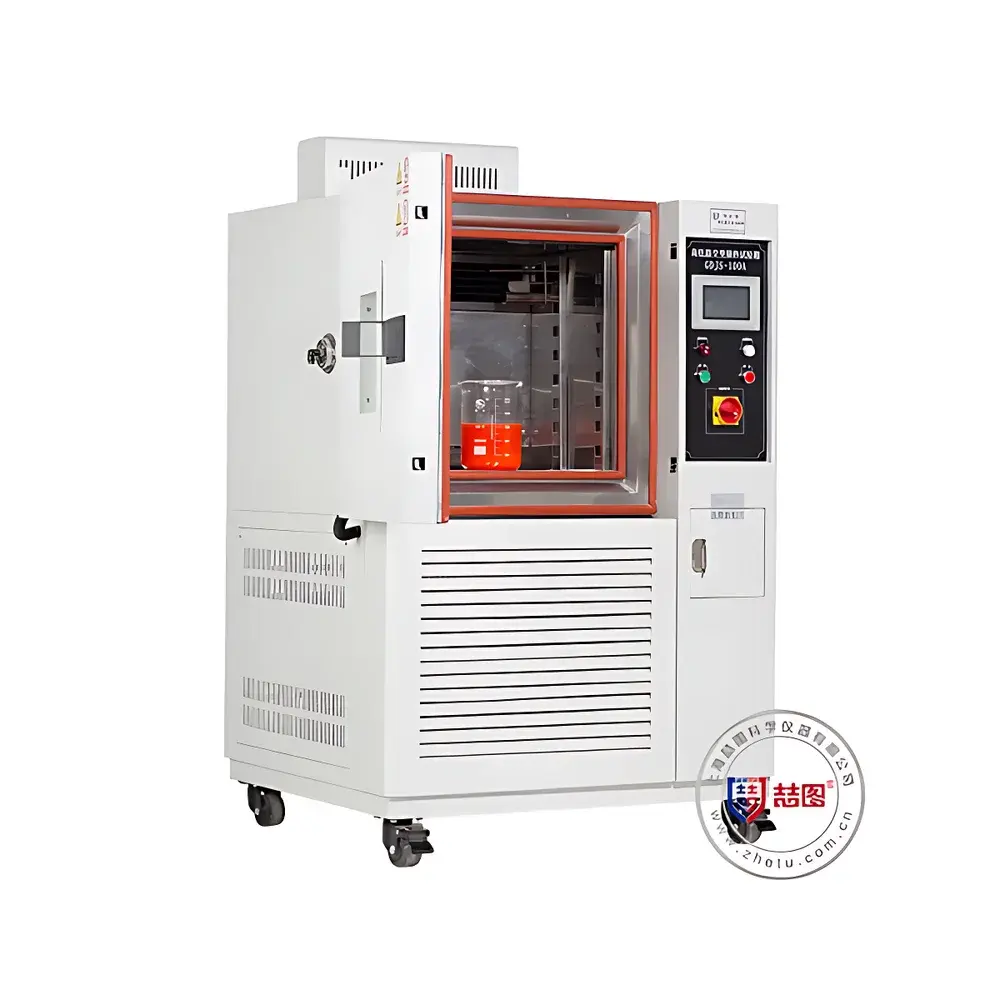

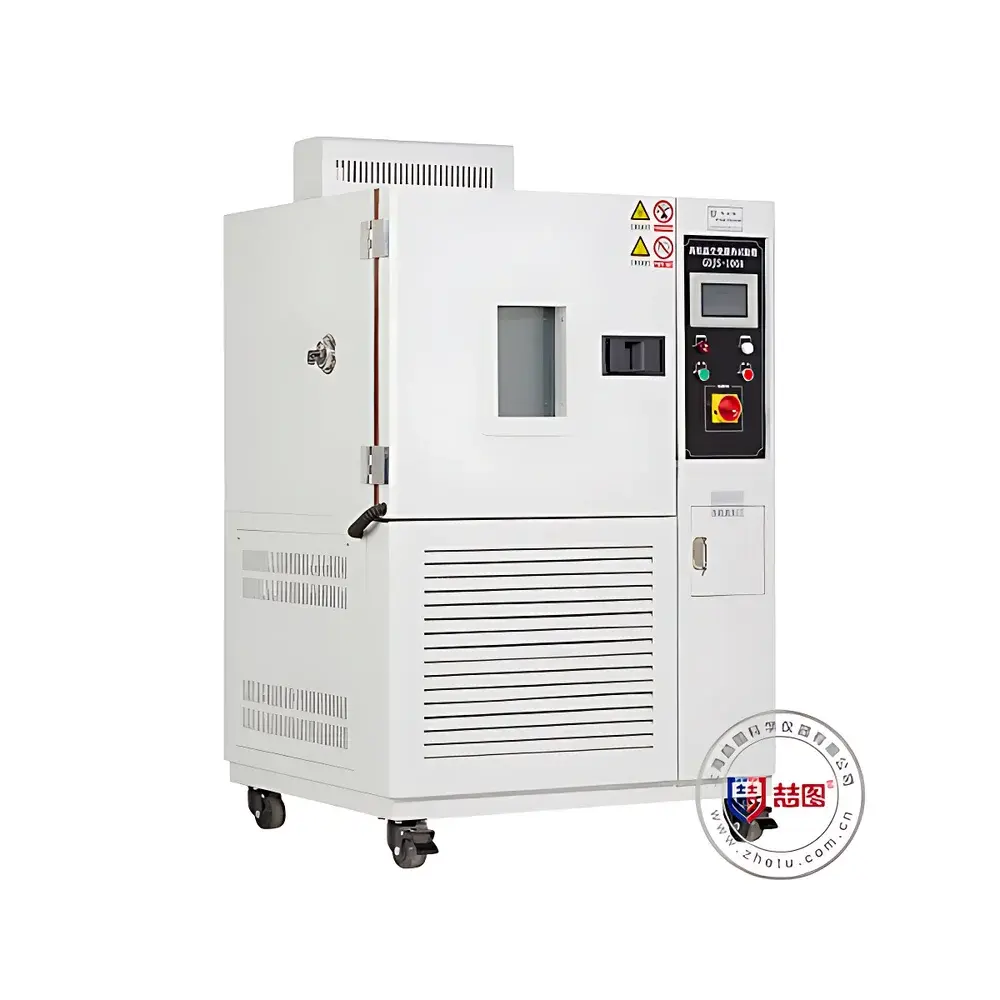

DRETOP THL-A800-I High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-A800-I High-Low Temperature Environmental Test Chamber is an engineered environmental simulation system designed for rigorous thermal stress testing of industrial components and materials under controlled, repeatable, and programmable temperature conditions. It operates on a dual-stage refrigeration principle—utilizing a hermetically sealed imported compressor with an optimized cascade heat exchanger configuration—enabling stable operation across a wide temperature range from –20 °C to +120 °C. The chamber employs forced-air convection via high-efficiency centrifugal fans and a precision-engineered air duct system to ensure uniform thermal distribution throughout the 800 L internal workspace (1000 × 800 × 1000 mm). Its architecture complies with fundamental requirements for environmental testing per IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and ISO 16750-4 (Road Vehicles — Environmental Conditions), making it suitable for qualification, reliability screening, and design validation in regulated engineering environments.

Key Features

• 10.1-inch full-color capacitive touchscreen HMI with multi-language interface (English/Chinese), password-protected hierarchical access control (operator, engineer, administrator levels) to prevent unauthorized parameter modification.
• Advanced programmable logic controller supporting up to 1000 stored test profiles, each comprising up to 100 programmable segments—including ramp, soak, and step functions—with slope-based temperature control and user-defined lighting activation schedules.
• Dual-layer tempered glass observation window with integrated anti-frost heating film and LED interior illumination—designed to eliminate condensation during low-temperature operation and prevent moisture deposition on test specimens.
• Nichrome alloy heating elements coupled with high-torque centrifugal circulation fans deliver rapid thermal response and maintain ≤2 °C spatial uniformity per ASTM E145-22 Annex A3 criteria.
• Independent proportional-integral-derivative (PID) controllers for heating and cooling subsystems, enabling dynamic thermal compensation and minimizing overshoot during transitions.
• Robust mechanical construction: stainless steel inner chamber, double-wall insulated cabinet with polyurethane foam (≥100 mm thickness), silicone rubber door gasket rated for continuous operation from –40 °C to +150 °C without hardening or adhesion loss.
• Comprehensive safety architecture including over-temperature cut-off, compressor/fan overload protection, leakage current detection, and automatic power recovery after grid interruption.
• Standard 50 mm diameter test port with EPDM sealing cap; optional RS485 Modbus RTU or USB-B interface for external data logging and remote supervision via PC-based software.

Sample Compatibility & Compliance

The THL-A800-I accommodates a broad spectrum of physical sample types—including printed circuit boards (PCBs), automotive ECUs, polymer housings, battery modules, optical sensors, and metal fasteners—without requiring custom fixtures. Its internal volume (800 L) and removable stainless steel shelves (2 standard shelves included) support both single-unit and batch-level evaluation. The chamber meets baseline mechanical and electrical safety requirements per GB/T 10589-2008 (Chinese national standard for low- and high-temperature test chambers) and aligns with functional performance expectations outlined in ISO/IEC 17025:2017 for calibration laboratories conducting environmental conditioning. While not intrinsically explosion-proof, its standard configuration satisfies non-hazardous area deployment per IEC 60079-0 for general-purpose industrial use.

Software & Data Management

The embedded controller logs real-time temperature data at user-selectable intervals (1–60 seconds), stores up to 30 days of historical records internally, and exports time-stamped datasets in CSV format compatible with Excel, MATLAB, or statistical process control (SPC) platforms. Optional PC software provides live graphing, alarm event tagging, audit trail generation (including operator ID, timestamp, and parameter changes), and exportable PDF test reports—supporting documentation traceability required under GLP and GMP frameworks. All data files include CRC checksum verification to ensure integrity during transfer or archival.

Applications

This chamber serves critical roles across multiple technical domains: accelerated life testing of consumer electronics per JEDEC JESD22-A104; thermal cycling validation of aerospace avionics per DO-160G Section 4.5; material embrittlement assessment for automotive plastics under SAE J2334; and pre-compliance screening for MIL-STD-810H Method 501.7 (High Temperature) and Method 502.7 (Low Temperature). It is routinely deployed in R&D labs, quality assurance departments, and third-party certification bodies performing environmental stress screening (ESS), HALT/HASS preparation, and supplier qualification audits.

FAQ

What is the maximum allowable ambient operating temperature for this chamber?
The unit is rated for installation in rooms maintained between 15 °C and 30 °C, with relative humidity ≤80% RH non-condensing.
Can the THL-A800-I perform temperature cycling with dwell periods?
Yes—it supports fully programmable cycles with unlimited ramp-soak sequences, including dwell times from 1 minute to 999 hours per segment.
Is 21 CFR Part 11 compliance supported?
The base controller does not provide electronic signature or audit trail features required for FDA-regulated environments; however, optional validated software packages with Part 11 functionality are available upon request.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil and refrigerant integrity should be verified annually; air filters require cleaning every 3 months under continuous operation.
Does the chamber support external triggering or synchronization with other test equipment?
Yes—via dry-contact relay outputs (programmable per event) and Modbus RTU commands over RS485, enabling integration into automated test systems.
