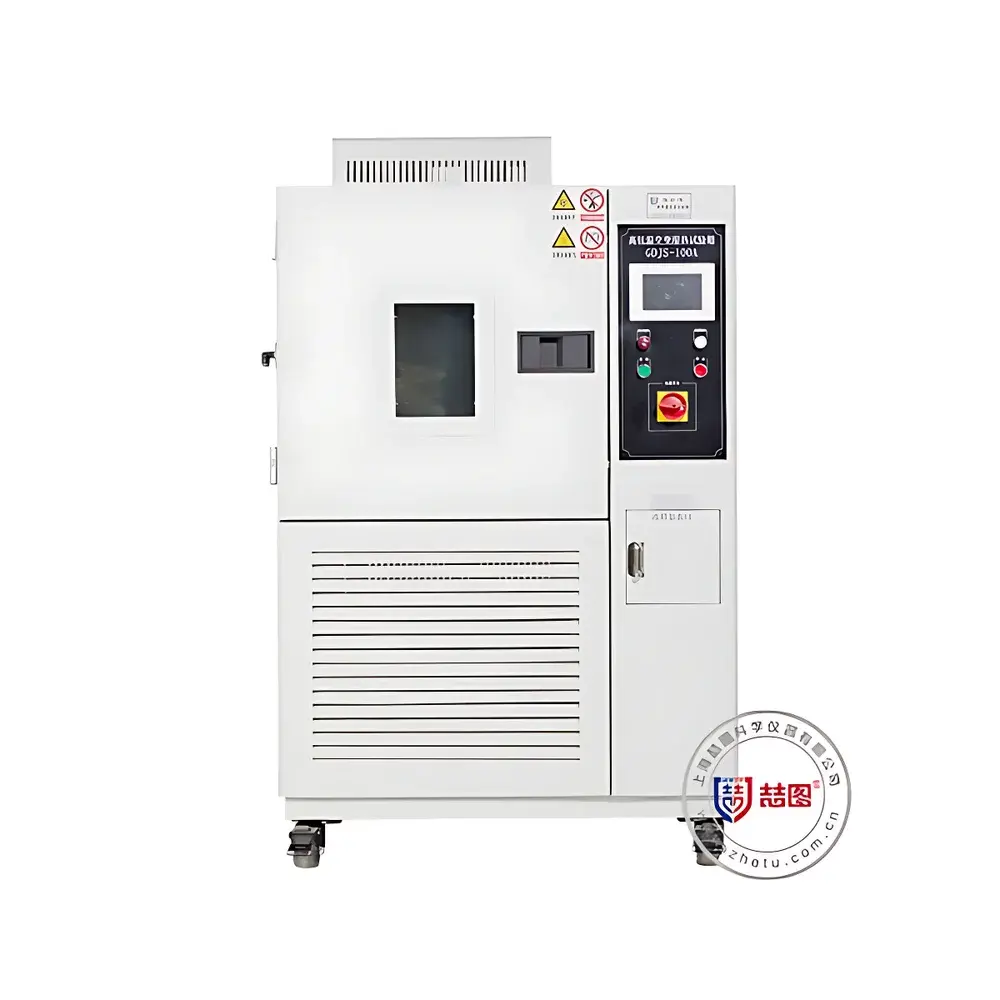

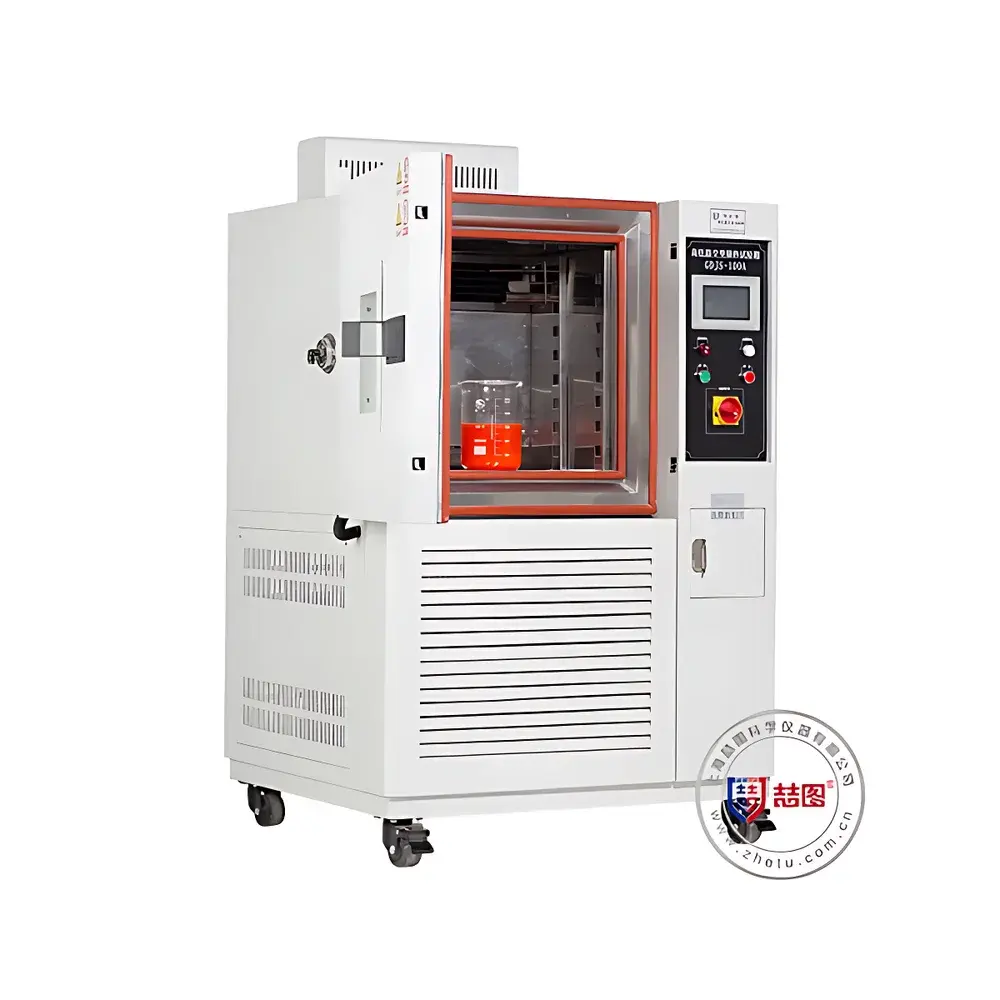

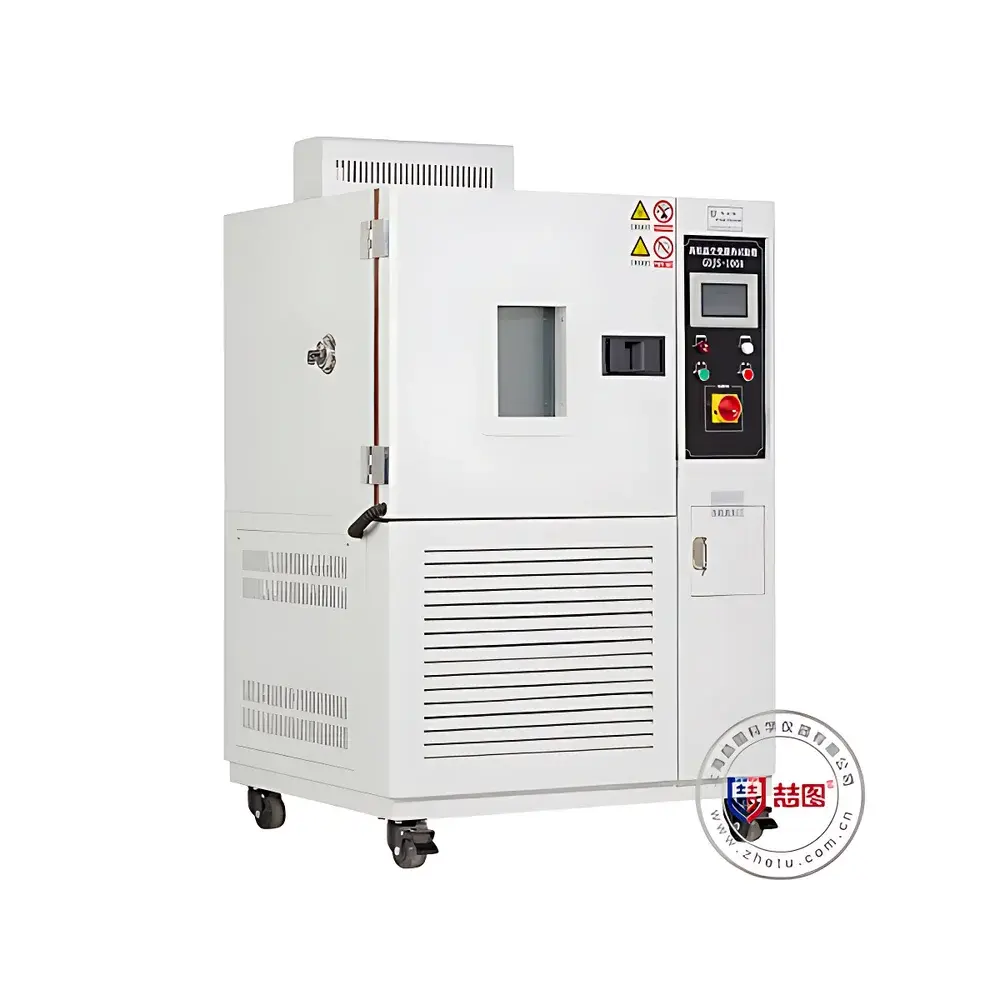

DRETOP THL-B150-II High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-B150-II High-Low Temperature Environmental Test Chamber is an engineered precision system designed for controlled thermal stress evaluation of materials and components under dynamic temperature cycling conditions. Based on forced-air convection and dual-stage refrigeration architecture, it replicates real-world environmental extremes—including rapid transitions between sub-zero cold and elevated heat—to assess thermal stability, dimensional integrity, material phase behavior, and functional reliability. The chamber operates across a validated range of −40 °C to +150 °C, supporting standardized thermal cycling protocols per IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and IEC 60068-2-14 (Change of Temperature). Its robust thermal management enables reproducible qualification testing in R&D validation, design verification, and production lot acceptance—particularly critical for electronics, automotive ECUs, aerospace avionics, polymer composites, and medical device packaging.

Key Features

• Full-color 7-inch capacitive touchscreen controller with multi-level password protection, enabling role-based access control (operator, engineer, administrator) to prevent unauthorized parameter modification.
• Advanced programmable logic: supports up to 1000 user-defined test programs, each containing up to 100 segments; allows ramp/soak profiles, slope-controlled transitions, and conditional branching (e.g., jump-to-step, hold-on-alarm, end-on-completion).
• Dual-stage refrigeration system using hermetically sealed imported compressors with shared evaporator-condenser configuration—optimized for efficiency across wide ambient and setpoint differentials.
• High-efficiency forced-air circulation: centrifugal blower with nickel-chromium alloy heating elements and aerodynamically optimized ductwork ensures ≤2 °C temperature uniformity (per IEC 60068-3-5) and rapid recovery (<3 min) after door opening.
• Double-glazed, heated observation window with anti-frost coating prevents condensation buildup during low-temperature operation—critical for optical inspection and avoiding moisture-induced sample degradation.
• Structural integrity features: silicone rubber door gasket maintaining seal integrity from −40 °C to +150 °C; reinforced stainless-steel inner chamber; adjustable heavy-duty casters with locking mechanism for lab mobility and stable positioning.
• Comprehensive safety architecture: independent over-temperature cut-off (mechanical backup), leakage current protection, compressor/fan motor overload monitoring, and automatic power disconnection upon fault detection or timer expiration.
• PID auto-tuning algorithm continuously adapts control parameters to load and ambient variations, maintaining ±0.5 °C temperature fluctuation (1σ) under steady-state conditions.

Sample Compatibility & Compliance

The THL-B150-II accommodates a broad spectrum of non-hazardous solid and packaged samples up to 500 × 500 × 600 mm (W×D×H), with two adjustable stainless-steel shelves included as standard. Optional through-wall ports (Φ50 mm, sealed with silicone grommets) permit powered, signal-carrying, or pneumatic feedthroughs for in-situ electrical or mechanical testing. The chamber complies with electromagnetic compatibility requirements per EN 61326-1 and meets structural safety standards under EN 61000-6-2/-6-3. While not certified for Class I, Division 1 hazardous locations, its standard configuration satisfies general-purpose industrial and laboratory use per ISO/IEC 17025:2017 environmental monitoring clauses. For regulated industries, the system supports audit-ready documentation when integrated with external data loggers compliant with FDA 21 CFR Part 11 (electronic records/signatures) via optional RS485 or USB interface.

Software & Data Management

The embedded controller logs timestamped temperature data at user-selectable intervals (1–600 seconds), storing up to 30 days of continuous operation locally. Export options include CSV-formatted files compatible with Excel, MATLAB, or statistical process control (SPC) platforms. Optional PC-based software (DRETOP EnviroLog Pro) enables remote monitoring, real-time graphing, alarm notification via email/SMS, and automated report generation—including compliance summaries aligned with ISTA, JEDEC JESD22-A104, and MIL-STD-810H thermal shock test templates. All data entries include operator ID, program name, start/end timestamps, and deviation flags—supporting GLP/GMP traceability requirements when deployed in quality assurance laboratories.

Applications

• Electronics: Thermal cycling of PCBAs, connectors, and semiconductor packages to evaluate solder joint fatigue, CTE mismatch, and intermetallic growth.
• Automotive: Validation of infotainment modules, battery management systems (BMS), and ADAS sensors under extreme climate profiles per ISO 16750-4.
• Polymers & Elastomers: Assessment of embrittlement, softening point shift, and creep behavior across service temperature ranges.
• Aerospace: Pre-flight conditioning of avionics housings and composite airframe components per RTCA DO-160 Section 4.
• Academic Research: Controlled environment studies on phase-change materials (PCMs), shape-memory alloys, and thermally responsive hydrogels.
• Medical Devices: Shelf-life simulation of sterile packaging, drug delivery systems, and diagnostic cartridges under accelerated aging conditions (ICH Q1A).

FAQ

What is the standard warranty coverage for the THL-B150-II?
DRETOP provides a 24-month parts-and-labor warranty from shipment date, covering defects in materials and workmanship under normal laboratory use.
Can the chamber be calibrated to NIST-traceable standards?
Yes—third-party calibration services are available upon request, including certificate of calibration with uncertainty budget per ISO/IEC 17025 accredited providers.
Is remote firmware update supported?
Firmware updates require local USB drive upload via the controller’s maintenance menu; no cloud-based OTA capability is implemented for security and regulatory compliance reasons.
Does the system meet UL or CE safety certification?
The THL-B150-II carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; UL certification is available as a factory option (UL 61010-1) with additional lead time and cost.
How is temperature uniformity verified during installation qualification (IQ)?
DRETOP supplies a 9-point sensor mapping protocol (per ASTM E744) with recommended thermocouple placement coordinates; IQ documentation templates and test reports are provided with commissioning support.
