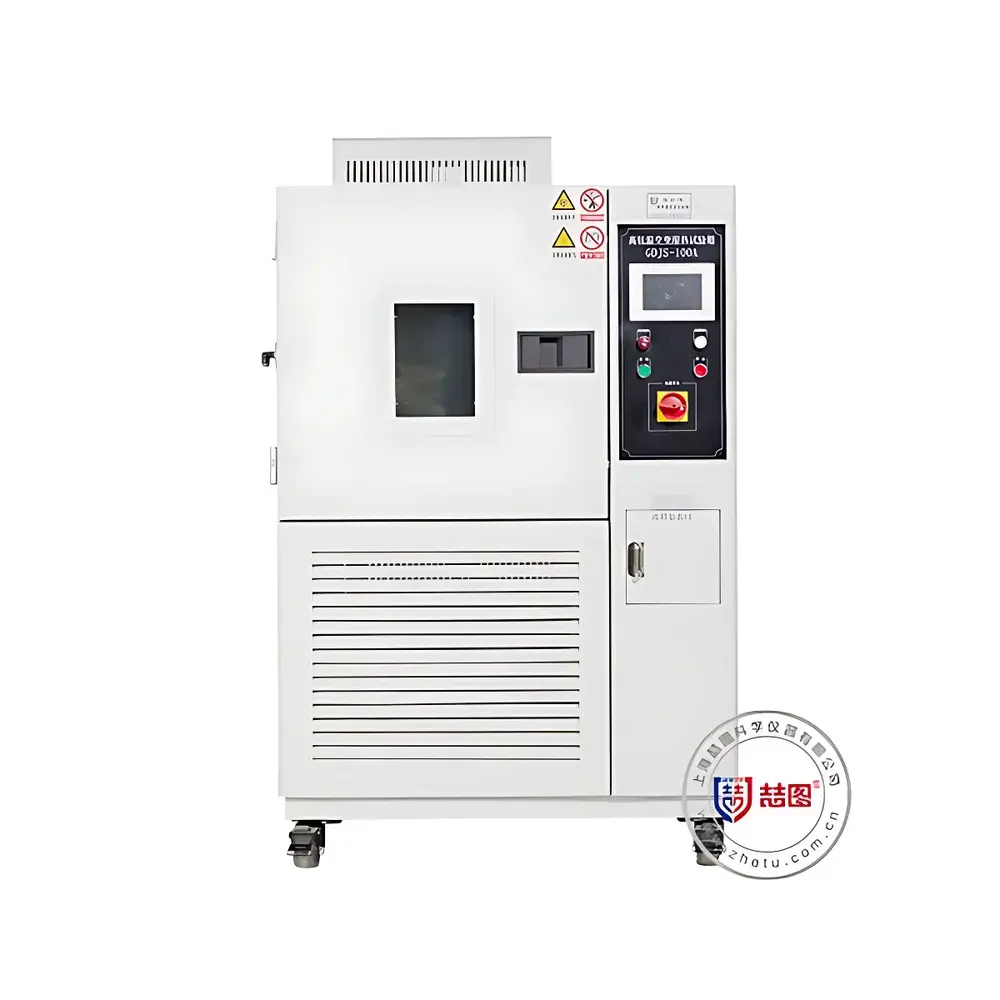

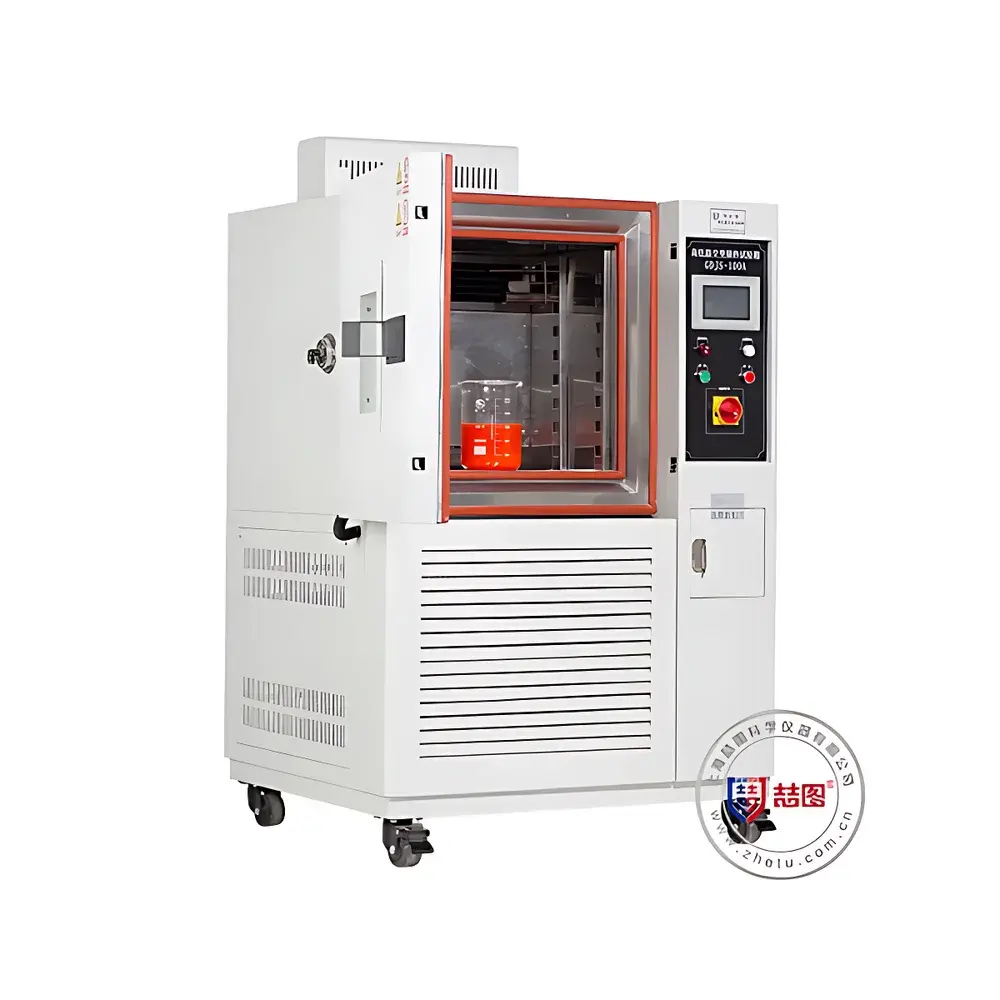

DRETOP THL-D400-II High-Low Temperature Environmental Test Chamber

Overview

The DRETOP THL-D400-II High-Low Temperature Environmental Test Chamber is an engineered thermal stress testing system designed for precise simulation of extreme ambient temperature conditions across a wide operational range—from –80 °C to +150 °C. Based on dual-stage compressor refrigeration architecture and PID-controlled resistive heating, the chamber delivers thermally stable, reproducible environments essential for evaluating material behavior under thermal cycling, storage, transportation, and operational life-cycle conditions. It complies with core international test standards including IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and ISO 16750-4 (Road Vehicles—Environmental Conditions), supporting qualification testing in accordance with automotive, aerospace, electronics, and industrial component development workflows. The unit is intended for laboratory-based reliability assessment—not for continuous production-line integration—and is configured for standalone operation in controlled indoor environments with adequate ventilation and electrical infrastructure.

Key Features

• 7-inch full-color touchscreen controller with bilingual (English/Chinese) interface, hierarchical password protection, and up to 1000 programmable test profiles—each supporting up to 100 individual segments for complex thermal ramp-hold-cycling sequences.
• Dual-stage hermetic compressor refrigeration system with shared evaporator-condenser configuration, enabling stable sub-zero operation down to –80 °C without liquid nitrogen or cascade CO₂ supplementation.
• Nichrome alloy heating elements combined with high-efficiency centrifugal forced-air circulation ensure rapid thermal response and uniform internal temperature distribution (≤2 °C deviation across working volume).
• Double-layer tempered glass observation window with integrated anti-frost heating film and LED interior lighting—designed to prevent condensation-induced short circuits during low-temperature operation and enable real-time visual monitoring.
• Optimized air duct geometry and balanced airflow dynamics minimize thermal recovery time after door opening (<60 seconds to re-stabilize within ±0.5 °C at setpoint) while maintaining compliance with ASTM E145 Class B uniformity requirements.
• Robust mechanical construction: stainless steel inner chamber, powder-coated cold-rolled steel outer shell, silicone rubber door gasket rated for –80 °C to +150 °C service life without hardening or adhesion loss.
• Comprehensive safety architecture including over-temperature cut-off, compressor/fan overload protection, leakage current detection, and automatic power-down upon alarm activation—meeting EN 61000-6-2/6-4 EMC immunity and safety directives.
• Standard 50 mm diameter test port (with brass plug and silicone seal) enables live electrical, pneumatic, or signal feedthrough for in-situ functional testing under thermal stress.

Sample Compatibility & Compliance

The THL-D400-II accommodates samples up to 800 mm (W) × 600 mm (D) × 850 mm (H) in its internal workspace, with two adjustable stainless steel shelves included as standard. It supports non-hazardous solid and packaged specimens—including PCB assemblies, polymer housings, battery modules, optical sensors, and metallic fasteners—provided they do not emit volatile organic compounds (VOCs) exceeding 10 ppm or generate particulate matter above ISO Class 8 cleanroom limits. The chamber is certified to meet CE marking requirements per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. While not intrinsically safe, it may be operated in non-classified laboratory zones when used with externally certified instrumentation. Calibration traceability follows ISO/IEC 17025 guidelines via optional NIST-traceable temperature mapping reports (performed annually or per user-defined QA schedule).

Software & Data Management

The embedded controller logs temperature data at user-selectable intervals (1–600 seconds) and stores up to 30 days of continuous history internally. Export options include USB flash drive transfer of CSV-formatted datasets compatible with Excel, MATLAB, or JMP for statistical process control (SPC) analysis. Optional RS485 Modbus RTU communication enables integration into centralized LabVantage or Siemens Desigo CCMS platforms for remote supervision and audit trail generation. All program edits, alarm events, and runtime statistics are timestamped and retained with immutable logging—supporting GLP-compliant documentation where required. Firmware updates are performed offline via USB; no cloud connectivity or third-party telemetry is implemented.

Applications

• Thermal cycling validation of automotive ECUs, ADAS sensors, and EV battery management systems per AEC-Q200 and SAE J2380.
• Accelerated aging studies of elastomers, adhesives, and encapsulants under alternating hot/cold exposure (e.g., ISO 11346, ASTM D573).
• Pre-conditioning of electronic components prior to HALT/HASS testing or solder joint reliability evaluation (IPC-9701).
• Stability assessment of pharmaceutical packaging materials per USP and ICH Q1A(R2) guidelines.
• Qualification testing of aerospace-grade composites and fasteners under MIL-STD-810H Method 502.7 (Low Temperature) and Method 501.7 (High Temperature).
• Academic research in polymer crystallinity, phase transition kinetics, and thermo-mechanical fatigue modeling.

FAQ

What is the maximum sample weight the THL-D400-II can accommodate without compromising thermal uniformity?
The chamber is rated for static loads up to 50 kg distributed evenly across both shelves. Exceeding this may impede airflow and degrade temperature uniformity beyond the specified ≤2 °C tolerance.
Is the controller compliant with FDA 21 CFR Part 11 for electronic records and signatures?
The base controller does not include Part 11–compliant audit trails or electronic signature functionality. However, third-party validated software extensions (e.g., DRETOP DataGuard Pro) are available for regulated GxP environments.
Can the THL-D400-II perform humidity-controlled thermal cycling?
No—this is a dry-thermal-only chamber. For combined temperature/humidity testing, consider the DRETOP THS-D400-II series, which integrates steam humidification and desiccant dehumidification modules.
What maintenance intervals are recommended for optimal long-term performance?
Compressor oil and refrigerant levels should be verified annually; air filters require cleaning every 3 months; door gasket integrity and calibration accuracy should be assessed semiannually using NIST-traceable reference probes.
Does the unit support external trigger inputs for synchronized start/stop with other test equipment?
Yes—via dry-contact closure input (24 VDC, isolated) on the rear I/O terminal block, configurable through the controller’s “External Signal” menu for automated test sequencing.
