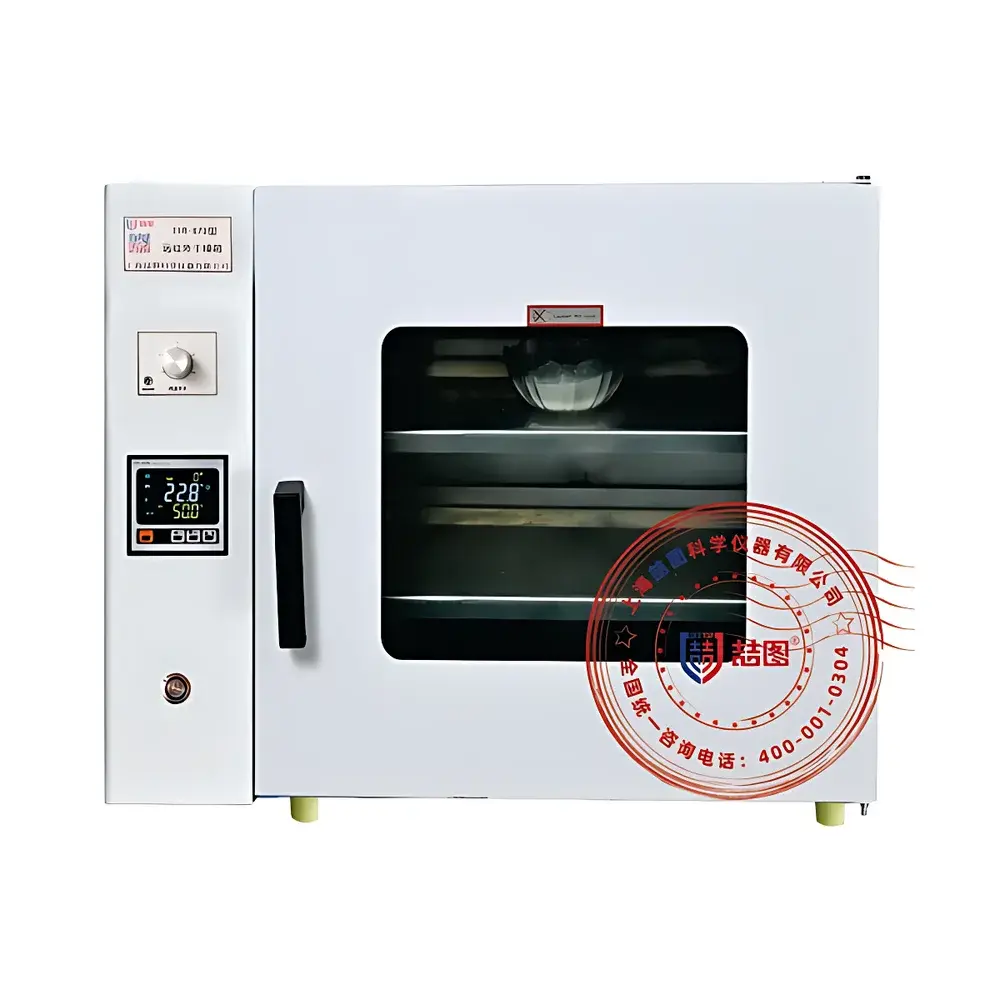

DRETOP TIR-148AP Far-Infrared Drying Oven
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TIR-148AP |
| Temperature Range | 10–250 °C |
| Temperature Uniformity | ±2.5 °C (@100 °C, with forced air circulation) |
| Temperature Fluctuation | ±1 °C |
| Temperature Resolution | 0.1 °C |
| Inner Chamber Dimensions (W×D×H) | 600 × 450 × 550 mm |
| Inner Chamber Material | Stainless Steel |
| Heating Method | Far-Infrared Radiant Heating |
| Control Mode | Microcomputer PID Controller with Timer Function |
| Working Environment Temperature | 0–45 °C |
| Airflow Control | Stepless Adjustable Fan Speed (including zero-airflow mode) |
| Safety Features | Overtemperature Protection, Leakage Current Protection, Short-Circuit & Overload Protection, Power-Failure Data Retention |
| Optional Accessories | USB Data Export Interface, Programmable Temperature Controller, RS-485 Communication Port, Thermal Printer Interface, Color Touchscreen Upgrade |
Overview
The DRETOP TIR-148AP Far-Infrared Drying Oven is an engineered solution for precise, uniform, and controllable thermal processing in laboratory and industrial settings. Unlike conventional convection ovens that rely solely on heated air circulation—potentially disturbing fine powders or fragile samples—the TIR-148AP integrates far-infrared radiant heating elements with a fully adjustable forced-air system. This hybrid thermal architecture leverages the rapid energy transfer and low thermal inertia of far-infrared radiation (wavelength range: ~3–10 µm), enabling efficient volumetric heating of materials while minimizing surface turbulence. The oven operates within a validated temperature range of RT+10 °C to 250 °C, with microprocessor-based PID control ensuring stable setpoint maintenance and minimal overshoot. Its design prioritizes reproducibility across repeated drying, curing, sterilization, and moisture-loss assays—particularly where sample integrity, thermal homogeneity, and process traceability are critical.
Key Features
- Far-infrared heating elements with low thermal mass and high emissivity, delivering rapid heat-up times and reduced energy consumption compared to resistive wire or quartz-tube systems.
- Stepless variable-speed fan control allows seamless transition from zero airflow (ideal for delicate particulates, filter papers, or lyophilized samples) to optimized forced convection (for accelerated drying and improved temperature uniformity).
- 3D-refractive thermal field design: strategically angled internal reflectors and multi-directional radiant paths enhance spatial temperature consistency, achieving ±2.5 °C uniformity at 100 °C under active circulation mode.
- Stainless steel inner chamber (304 grade) and reinforced electrostatically sprayed exterior housing ensure corrosion resistance, structural rigidity, and long-term dimensional stability under thermal cycling.
- Intelligent diagnostics: real-time fault code display on a tri-color backlit LCD interface enables rapid identification of sensor anomalies, heater failures, or controller malfunctions without external instrumentation.
- Dual-stage overtemperature protection: independent mechanical and electronic limit switches interrupt power if the chamber exceeds user-defined safety thresholds, complying with IEC 61010-1 requirements for laboratory electrical equipment safety.
Sample Compatibility & Compliance
The TIR-148AP accommodates a broad spectrum of sample formats—including Petri dishes, weighing boats, glass vials, ceramic crucibles, and aluminum trays—without risk of displacement during operation. Its zero-airflow capability makes it suitable for ASTM D2240 (Shore hardness testing specimens), ISO 527-2 (polymer tensile test specimen conditioning), and USP water content determination protocols where convective disturbance must be avoided. The stainless steel interior meets FDA-recommended material criteria for non-reactive contact surfaces in pharmaceutical QC labs. While not certified for Class II biological safety or explosion-proof environments, the unit adheres to GLP-aligned operational documentation standards when paired with optional data logging accessories.
Software & Data Management
The base configuration includes a programmable timer (1–9999 minutes) and persistent parameter memory that retains settings after power interruption—a requirement for uninterrupted thermal validation runs. Optional upgrades extend functionality: the USB interface supports direct export of time-stamped temperature logs to FAT32-formatted flash drives; the RS-485 port enables integration into centralized lab monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager) using Modbus RTU protocol; and the programmable controller permits up to 30-segment ramp-soak profiles compliant with ISO/IEC 17025 calibration record retention guidelines. All digital interfaces support audit-trail-capable firmware versions meeting FDA 21 CFR Part 11 principles when deployed with appropriate user access controls and electronic signature modules.
Applications
- Moisture content analysis per AOAC 950.46 and ISO 1442 (meat and poultry), where consistent radiant exposure minimizes case hardening and improves gravimetric repeatability.
- Pre-conditioning of reference standards and calibration weights in metrology labs, leveraging the oven’s ±1 °C fluctuation stability and low particulate generation.
- Curing of epoxy-coated substrates, printed circuit board solder masks, and thin-film photovoltaic layers requiring controlled ramp rates and dwell times.
- Drying of botanical extracts, herbal powders, and microbiological media plates in compliance with Chinese Pharmacopoeia (ChP) General Chapter 8201 and EU GMP Annex 15 guidelines.
- Accelerated aging studies per ASTM F1980 for medical device packaging, utilizing the oven’s repeatable thermal profile delivery across multiple chambers.
FAQ
Does the TIR-148AP support vacuum operation?
No—the TIR-148AP is a standard atmospheric-pressure drying oven. Vacuum drying requires a separate vacuum chamber and pump system; DRETOP offers complementary vacuum ovens (e.g., DZF series) for such applications.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes—its stable PID control, documented temperature uniformity data, and optional data logging interfaces enable full qualification per ISO/IEC 17025 and GxP requirements when supported by third-party thermocouple mapping and calibration certificates.
What is the maximum load capacity for the adjustable shelves?
Each stainless steel shelf supports up to 15 kg uniformly distributed; total chamber loading should not exceed 45 kg to maintain airflow integrity and thermal response characteristics.
Is the far-infrared emitter replaceable as a field-serviceable component?
Yes—the modular far-infrared heating panels are accessible via rear service panels and can be replaced without recalibration or chamber disassembly.
Does the unit comply with CE or UL safety standards?
The TIR-148AP carries CE marking (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU); UL certification is available upon request for North American markets, subject to regional voltage and labeling adaptations.
