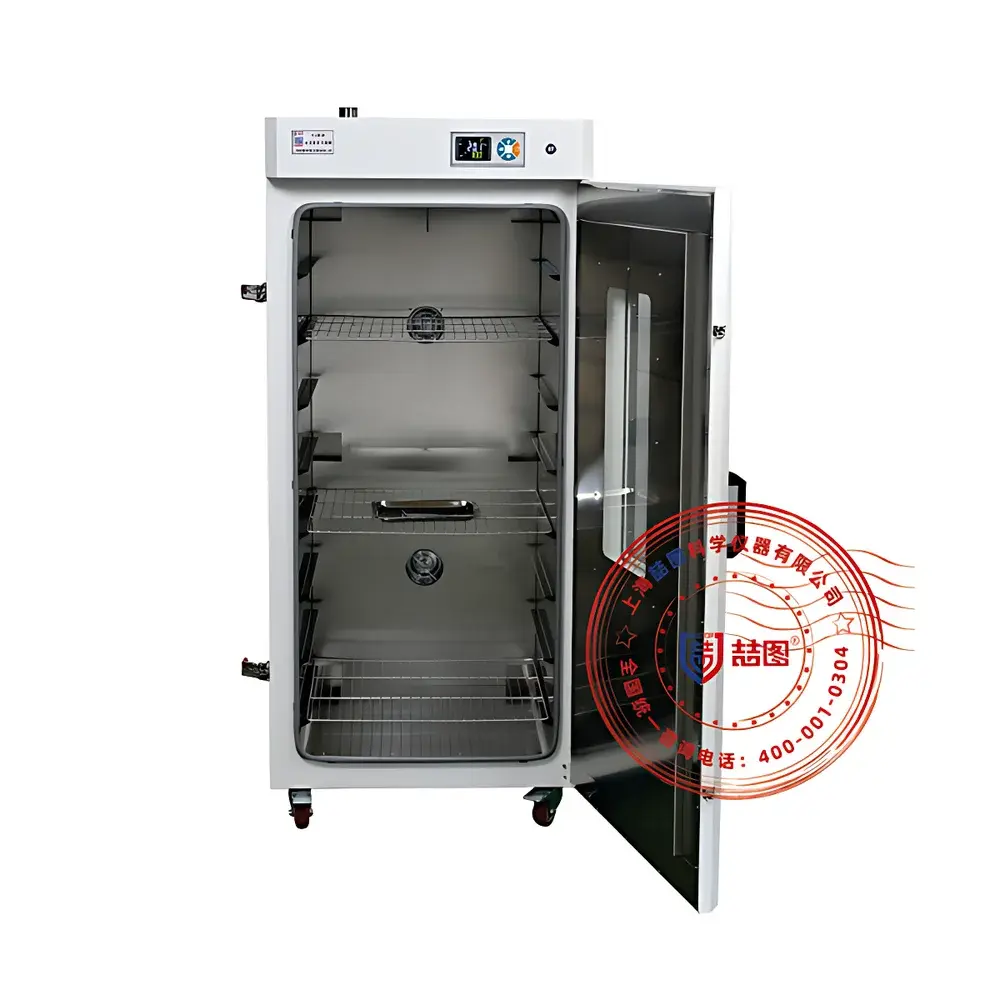

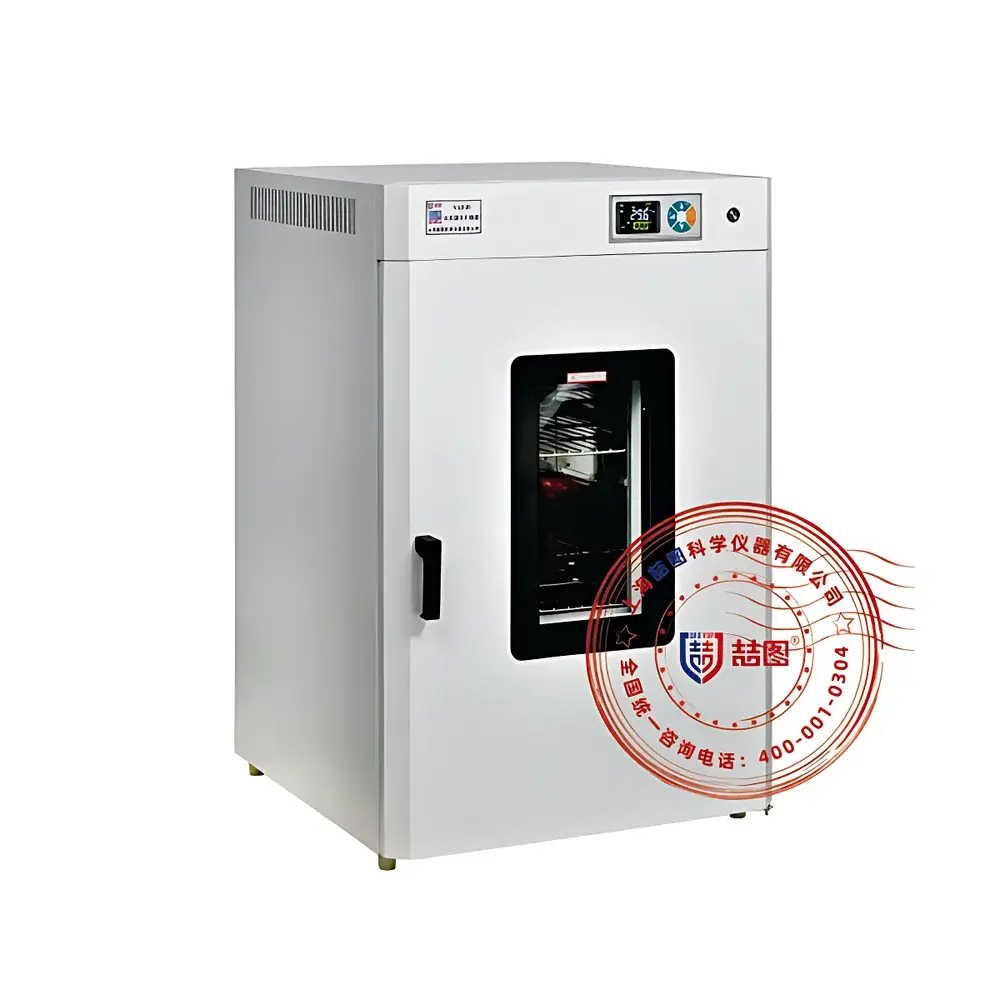

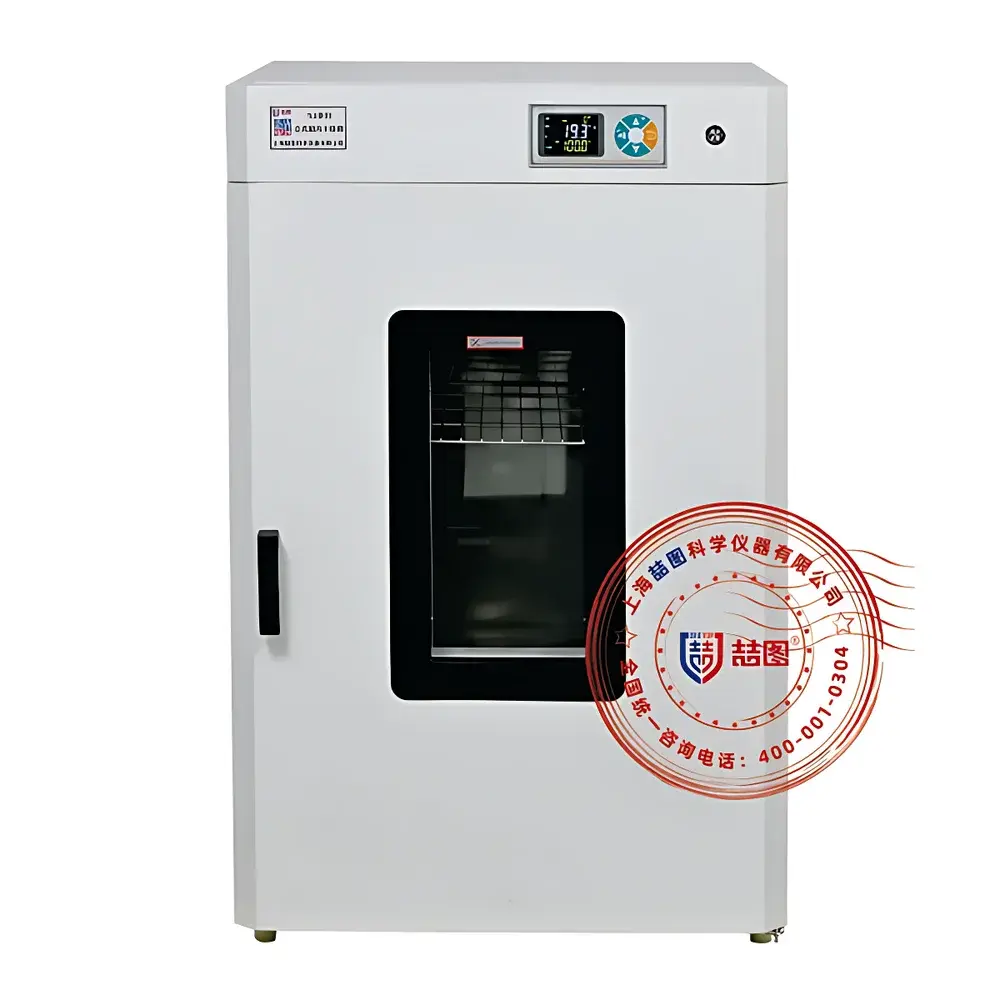

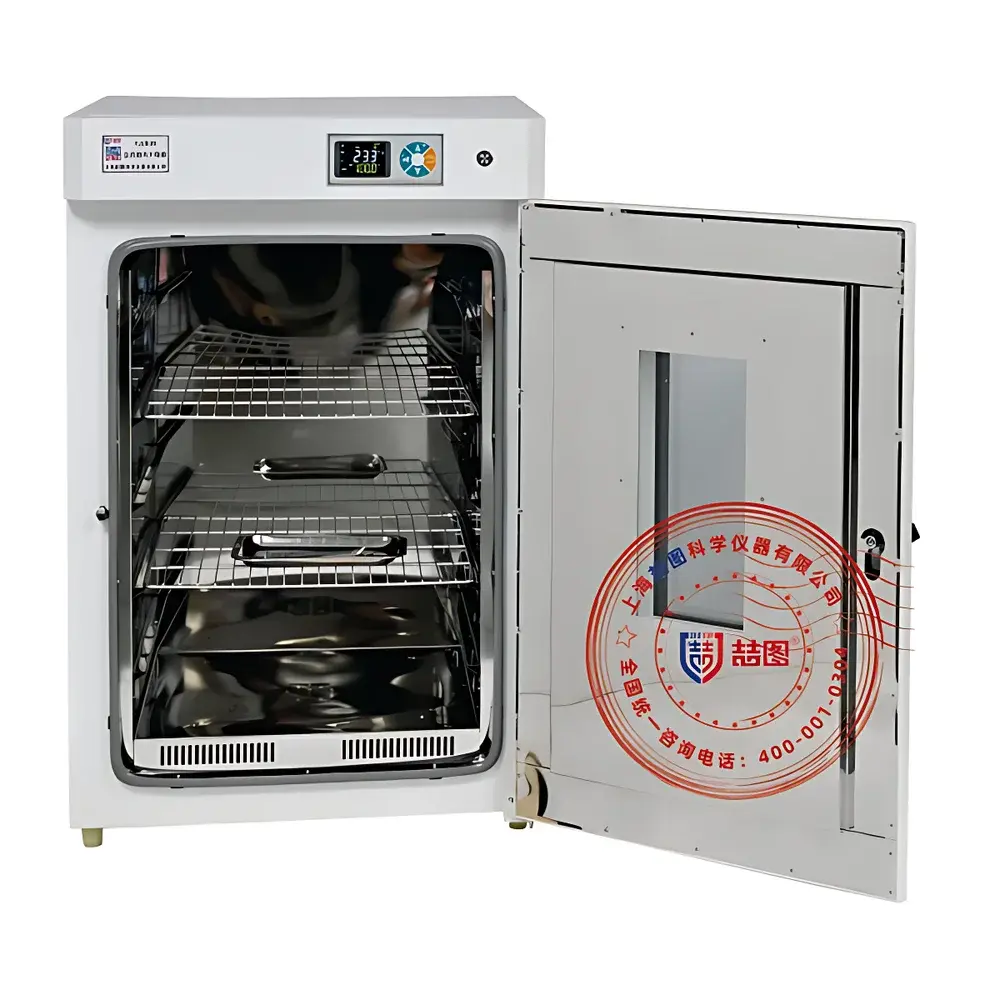

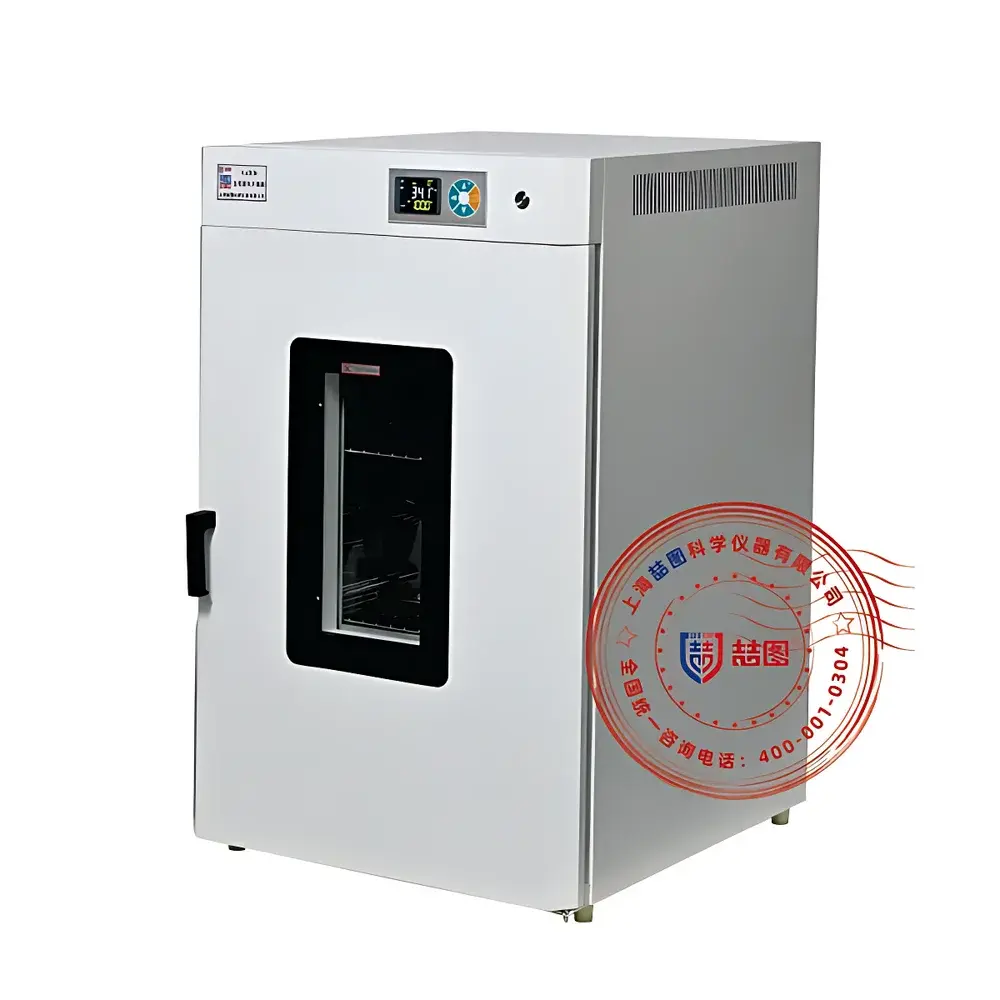

DRETOP TLG-9070A Vertical Forced-Air Drying Oven

Overview

The DRETOP TLG-9070A Vertical Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed around a robust forced-convection principle, the unit utilizes a high-temperature-rated centrifugal blower and an optimized internal airflow path—including rear-mounted horizontal exhaust ducts and directional baffle-guided circulation—to ensure rapid thermal equilibration and uniform temperature distribution across the entire working chamber. Its operational range of RT+10 °C to 250 °C supports standard drying, curing, baking, moisture removal, and pre-conditioning protocols compliant with ASTM D1654 (corrosion testing), ISO 17025 calibration requirements, and GLP-aligned stability studies. The vertical footprint minimizes benchtop space consumption while enabling floor-standing deployment—ideal for labs where spatial efficiency and ergonomic access are critical.

Key Features

• Microprocessor-based P.I.D. temperature controller with dual-stage overtemperature protection and real-time deviation monitoring; supports programmable ramp-soak profiles when equipped with optional multi-segment controller.
• Triple-layer insulated double-glazed observation window with tempered safety glass, providing clear visual access without compromising thermal integrity or operator safety.
• Four-tier stainless steel (SUS304) shelving system with tool-free vertical adjustment and full removal capability—enabling flexible sample loading and simplified cleaning between experiments.
• Dual-point mechanical door lock with zinc-alloy handle and high-elasticity silicone gasket (rated to 300 °C), ensuring long-term compression resilience and leak-tight sealing under repeated thermal cycling.
• Self-diagnostic firmware that displays standardized error codes (e.g., E01 for sensor open-circuit, E02 for heater failure) directly on the backlit LCD interface—reducing troubleshooting time and supporting preventive maintenance planning.
• Integrated ventilation port at the rear panel allows direct connection to external fume extraction systems, facilitating safe handling of volatile solvents, off-gassing polymers, or odor-emitting samples per OSHA and local laboratory ventilation standards.

Sample Compatibility & Compliance

The TLG-9070A accommodates a broad spectrum of sample types—including electronic components, polymer pellets, pharmaceutical excipients, metal coatings, ceramic green bodies, and food-grade packaging materials—without cross-contamination risk, thanks to its seamless stainless-steel interior and absence of painted or plated surfaces. All electrical components meet IEC 61010-1 safety certification requirements for laboratory equipment. The oven’s temperature stability (±0.5 °C fluctuation) and uniformity (±2.5 °C at 100 °C, empty load) satisfy routine validation criteria outlined in USP , ISO 9001 clause 7.6, and internal SOPs for equipment qualification (IQ/OQ/PQ). Optional RS485 communication and USB data export support audit-ready documentation for FDA 21 CFR Part 11 compliance when paired with validated software platforms.

Software & Data Management

While the base configuration features a fixed-function LCD controller with timer (1–9999 minutes), the TLG-9070A supports modular digital expansion. An optional color touchscreen interface enables graphical programming of up to 30 temperature segments with slope control, hold times, and cycle repetition. USB data logging permits export of time-stamped temperature histories to CSV files for post-analysis in Excel or statistical process control (SPC) tools. For networked lab environments, the RS485 port enables integration into centralized monitoring systems using Modbus RTU protocol—supporting remote supervision, automated report generation, and electronic batch record (EBR) linkage. All logged data include timestamps, setpoint history, actual chamber readings, and event flags (e.g., door opening, alarm activation), satisfying ALCOA+ data integrity principles.

Applications

• Pre-drying of analytical samples prior to gravimetric moisture analysis (ASTM D2216, ISO 11465).
• Accelerated aging of adhesives, conformal coatings, and encapsulants in electronics reliability testing (JEDEC JESD22-A108).
• Residual solvent removal from coated films and thin-film substrates in semiconductor and display manufacturing.
• Thermal stabilization of reference standards and calibration artifacts before metrological evaluation.
• Conditioning of filter media, desiccant packs, and hygroscopic test specimens under controlled humidity-adjacent environments.
• Post-curing of composite laminates and resin-matrix materials in aerospace QA workflows.

FAQ

What is the maximum operating temperature of the TLG-9070A?
The unit is rated for continuous operation up to 250 °C. Extended exposure above this threshold may compromise gasket integrity and sensor accuracy.
Can the oven be validated for GMP-compliant processes?
Yes—when configured with optional data logging, audit trail functionality, and calibrated NIST-traceable sensors, it meets core requirements for equipment qualification under Annex 15 and EU GMP guidelines.
Is the interior volume sufficient for standard ISO test specimens?
With a usable chamber volume of approximately 71 liters (400 × 400 × 445 mm), the TLG-9070A accommodates multiple ISO 17025-compliant sample racks, including 100-mm Petri dishes, 250-mL Griffin beakers, and ASTM D638 tensile bars mounted on fixture plates.
How does the forced-air system improve temperature uniformity compared to natural convection ovens?
The integrated high-efficiency blower maintains laminar airflow velocity ≥0.5 m/s across all shelf levels, reducing thermal stratification and shortening stabilization time by >40% versus static ovens—critical for reproducible drying kinetics.
Are replacement parts such as shelves and gaskets available separately?
Yes—DRETOP supplies OEM-certified stainless steel shelves (part #TLG-SH4), high-temp silicone door gaskets (part #TLG-GSKT-9070), and calibrated PT100 probe assemblies (part #TLG-SEN-P100) through authorized international distributors.
