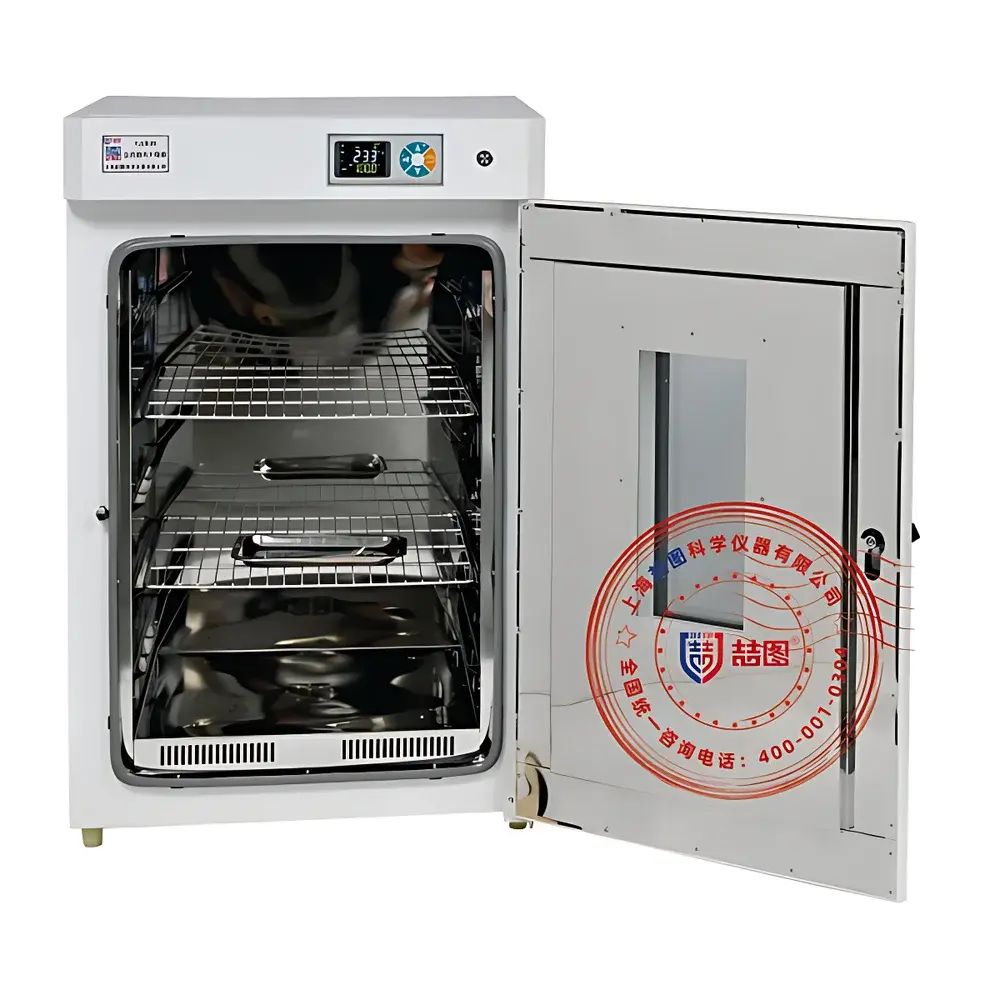

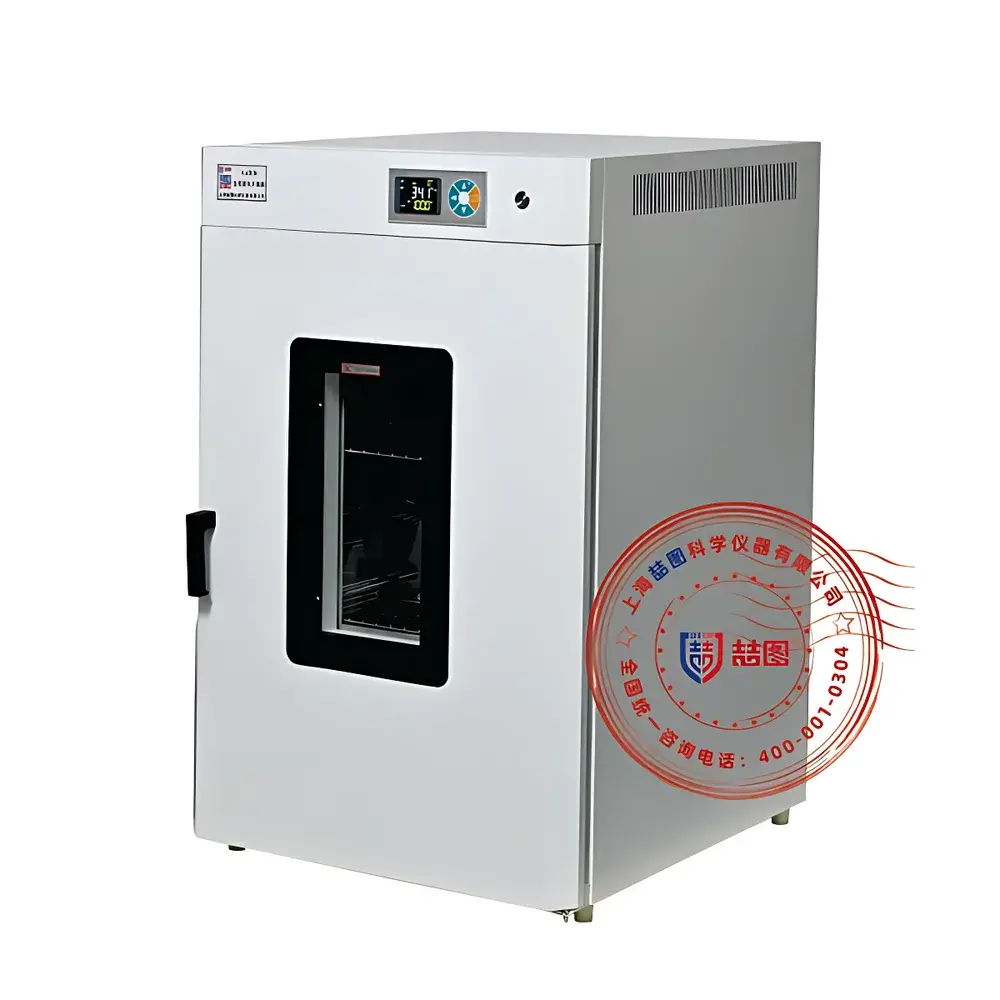

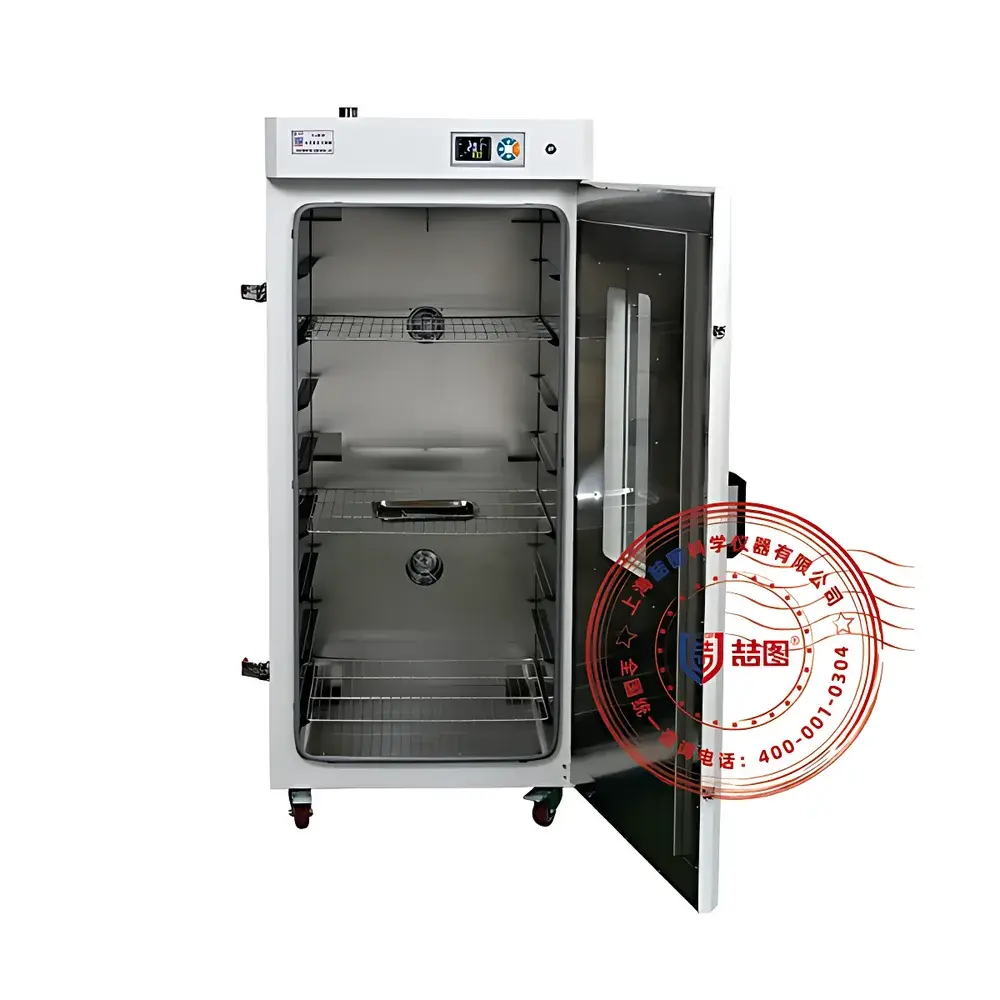

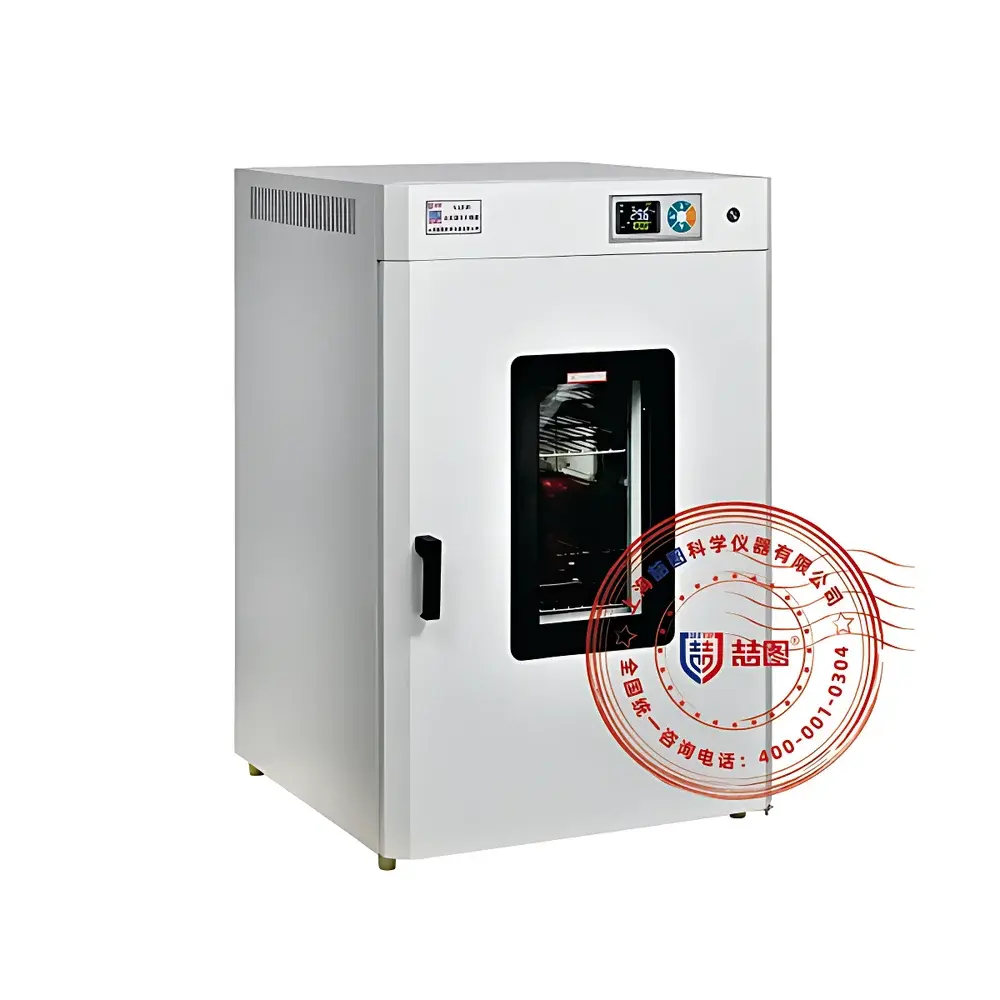

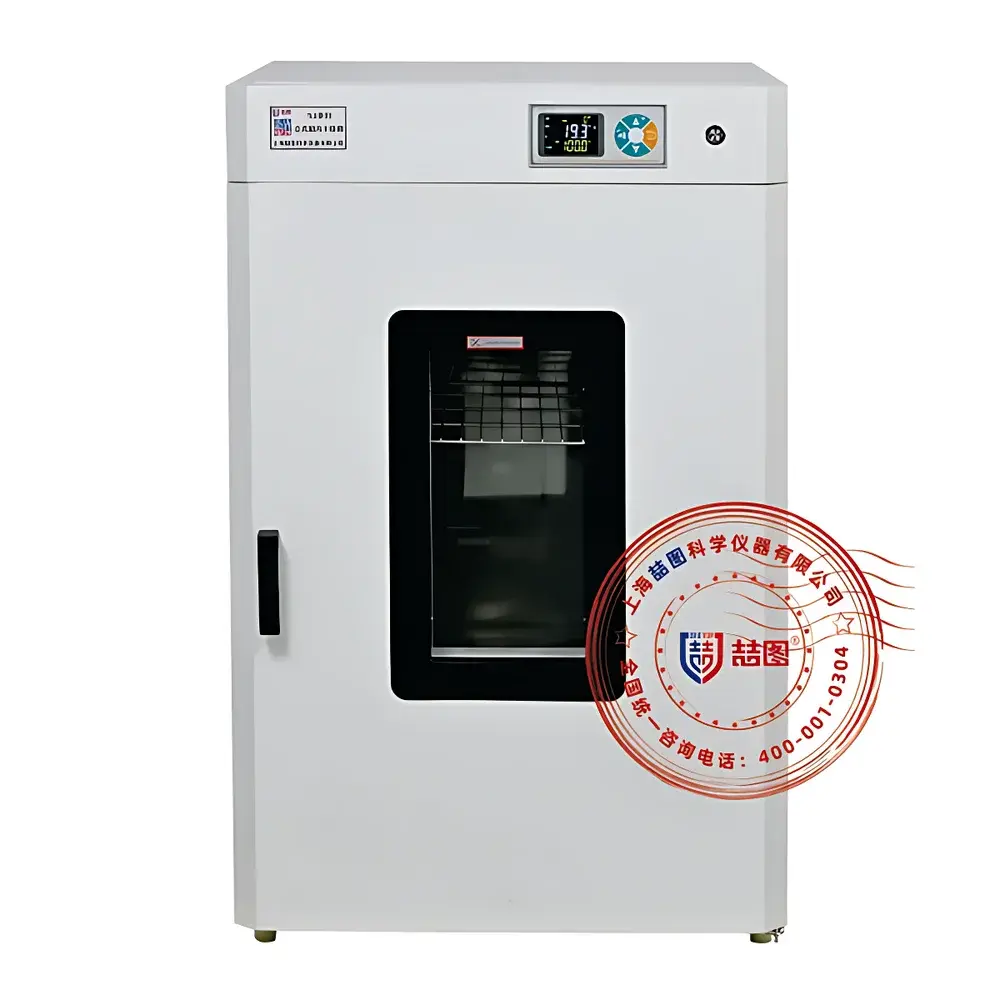

DRETOP TLG-9645A Vertical Forced-Air Drying Oven

Overview

The DRETOP TLG-9645A Vertical Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed around the principle of convective heat transfer via a high-efficiency, temperature-stable forced-air circulation system, this oven ensures uniform thermal distribution across its large-volume stainless steel chamber (640 L nominal capacity). Its vertical free-standing architecture optimizes floor space utilization while maintaining ergonomic access—particularly critical for high-throughput drying, curing, sterilization validation, and accelerated aging protocols. The unit operates within a calibrated temperature range of RT+10°C to 300°C, supporting applications requiring both low-temperature desiccation and high-temperature stabilization of materials such as polymers, electronic components, pharmaceutical excipients, and composite substrates.

Key Features

• Microprocessor-based P.I.D. temperature controller with real-time digital display, offering ±0.5°C fluctuation control and 0.1°C resolution for traceable thermal stability.
• Robust forced-air circulation system featuring a high-temperature-rated axial fan and multi-directional airflow ducts, engineered to achieve ±2.5°C temperature uniformity (measured per ISO 17025-compliant empty-chamber mapping at 100°C).
• Dual-layer tempered glass observation window with silicone-sealed gasket and dual-stage rotary locking mechanism, ensuring thermal integrity and operator safety during extended operation.
• Interior constructed entirely from SUS304 stainless steel—including chamber walls, shelving supports, and adjustable, removable wire shelves—resisting corrosion, oxidation, and residue buildup under repeated thermal cycling.
• Self-diagnostic firmware with fault-code display (e.g., E01 for sensor open-circuit, E02 for overtemperature), enabling rapid troubleshooting without external service intervention.
• Power-loss recovery function retaining setpoint, timer, and alarm parameters after mains interruption—critical for GLP/GMP-aligned long-duration stability studies.

Sample Compatibility & Compliance

The TLG-9645A accommodates diverse sample formats including petri dishes, crucibles, PCB assemblies, polymer films, metal coupons, and packaged medical device components. Its chamber geometry (800 × 800 × 1000 mm) allows vertical stacking of standardized trays or custom fixtures. The unit complies with IEC 61010-1:2010 safety requirements for laboratory equipment and meets electromagnetic compatibility standards per EN 61326-1. While not certified for Class I Div 1 hazardous locations, its optional ventilation port (rear-mounted horizontal exhaust duct) supports connection to facility fume extraction systems when handling volatile solvents or off-gassing materials—facilitating alignment with OSHA 1910.1200 and local chemical hygiene plans. Temperature performance data can be validated per ASTM E2203 (Standard Practice for Calibration of Ovens) using NIST-traceable PT100 probes.

Software & Data Management

The standard configuration includes an embedded LCD interface with programmable timer (1–9999 minutes) and overtemperature cut-off protection. Optional upgrades include RS485 Modbus RTU communication for integration into centralized lab monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager), USB data export for time-stamped temperature logs (CSV format), and a 7-inch color touchscreen with multi-segment programmable ramp-soak profiles (up to 30 steps). All optional controllers support audit trail functionality compliant with FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable event logging—for regulated environments engaged in pharmaceutical stability testing (ICH Q1A–Q1E) or automotive component qualification (SAE J2412).

Applications

• Moisture content determination per AOAC 950.46 and USP for food, feed, and pharmaceutical raw materials.
• Thermal aging of elastomers and adhesives per ASTM D573 and ISO 188 for predictive lifetime modeling.
• Curing of powder coatings and printed circuit board laminates under controlled convection conditions.
• Pre-conditioning of test specimens prior to tensile, impact, or dielectric testing (ASTM D638, D256, D149).
• Residual solvent removal from lyophilized formulations and API intermediates in non-sterile manufacturing support labs.
• Calibration verification of thermocouples and RTDs using fixed-point reference blocks placed inside the chamber.

FAQ

What is the maximum sustainable operating temperature for continuous use?
The TLG-9645A is rated for continuous operation up to 300°C; however, prolonged exposure above 250°C may reduce seal longevity and accelerate fan bearing wear—consult the maintenance schedule for recommended inspection intervals.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes. The unit’s stable P.I.D. control, documented temperature uniformity profile, and optional data-logging interfaces enable full GxP-compliant qualification when supported by third-party calibration certificates and mapping reports.
Is the stainless steel interior electropolished or passivated?
The SUS304 chamber surfaces undergo standard mill-passivation per ASTM A967, but electropolishing is available as a factory customization upon request.
Does the oven meet CE marking requirements for export to the EU?
CE marking is applied to units configured with EU-compliant power supply (230 V / 50 Hz) and supplied with Declaration of Conformity referencing EN 61010-1 and EN 61326-1.
How is airflow velocity controlled within the chamber?
Air velocity is optimized via fixed duct geometry and fan speed regulation through the P.I.D. controller—not user-adjustable—but verified during factory acceptance testing to ensure uniformity across all shelf levels.
