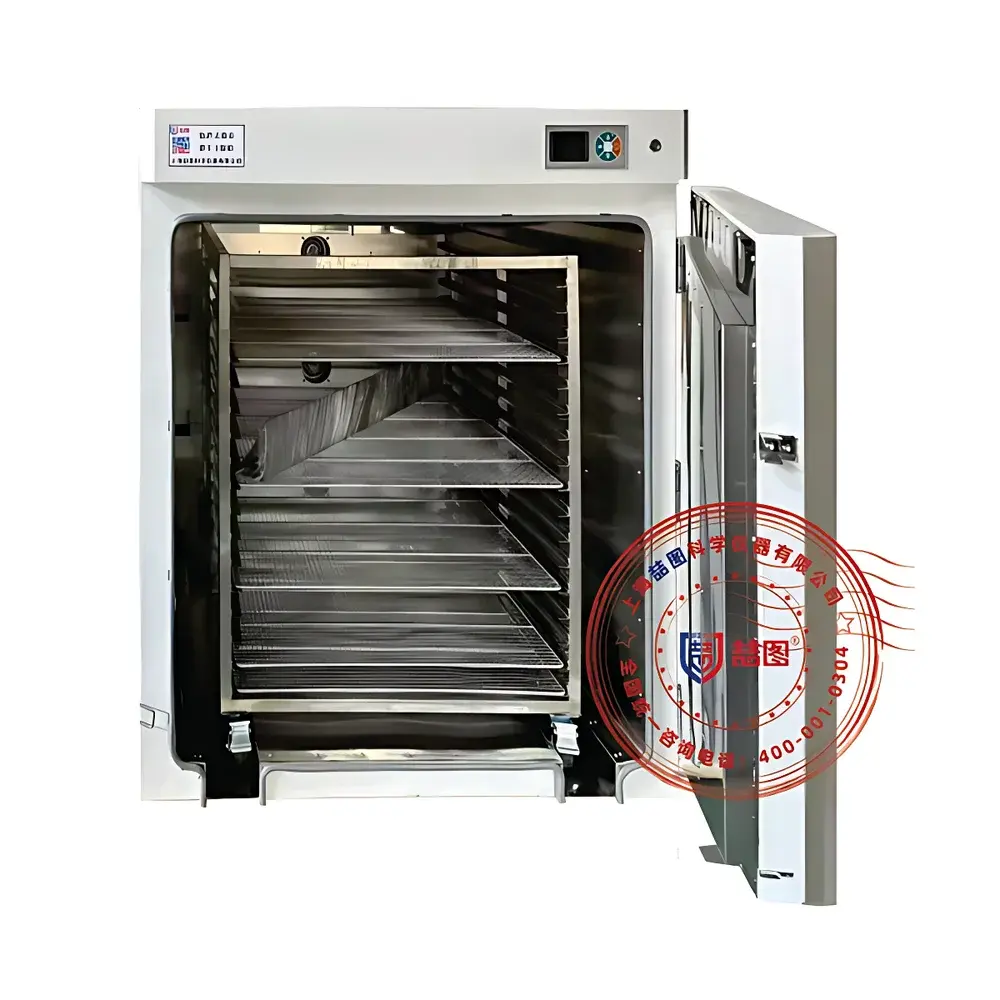

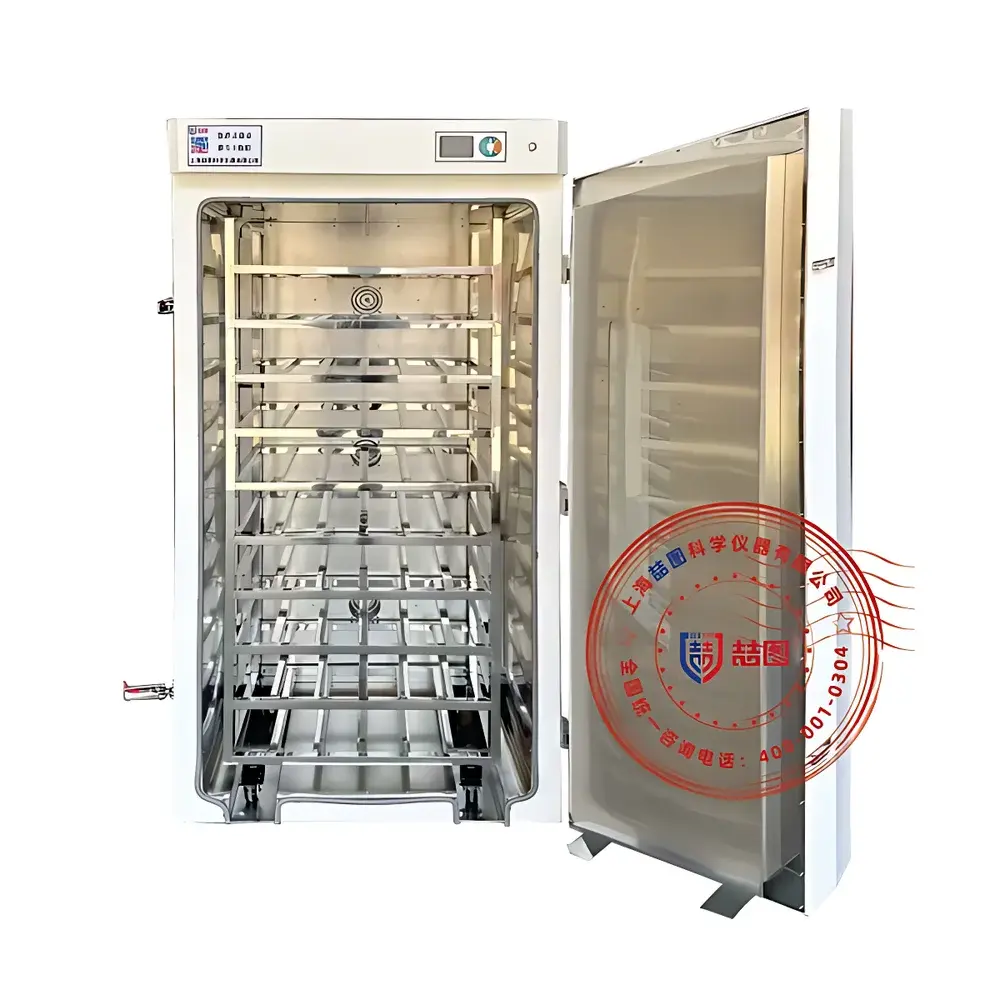

DRETOP TLG-K045A Vertical Forced-Air Drying Oven with Integrated Trolley System

Overview

The DRETOP TLG-K045A is a vertically oriented, forced-air drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of horizontal rear-mounted convection airflow—where a high-temperature-rated centrifugal blower directs heated air through an engineered duct system along the rear wall, then across the full depth and height of the chamber before recirculating. This configuration ensures rapid thermal equilibration and minimizes stratification, delivering stable, repeatable temperature profiles essential for ASTM D1654 (coating drying), ISO 5651-2 (plastic thermal stability), and USP (sterile product drying validation) applications. Designed as a floor-standing unit with integrated trolley-based sample handling, the TLG-K045A eliminates manual tray insertion/extraction fatigue while maintaining strict adherence to GLP-compliant operational traceability when paired with optional data logging modules.

Key Features

• Triple-layer adjustable stainless steel shelves mounted on heavy-duty telescopic rails—each rated for 100 kg load capacity and fully removable for cleaning or reconfiguration;
• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution, real-time deviation compensation, and programmable ramp-soak profiles (when equipped with optional multi-step controller);
• Dual-stage rotary door locking mechanism with compression-sealed AISI 304 gasket, ensuring consistent thermal integrity across the full operating range up to 300°C;
• Front-facing dual-layer tempered glass viewport with anti-fog coating, enabling continuous visual monitoring without compromising chamber insulation;
• Self-diagnostic firmware that displays alphanumeric fault codes (e.g., E01 = sensor open circuit, E03 = overtemperature event) directly on the 7-inch color TFT touchscreen;
• Automatic moisture exhaust management via rear-mounted horizontal vent duct—compatible with external fume hood integration for volatile solvent or odor-sensitive drying protocols;
• Power-loss recovery function retaining setpoints, timer status, and active program state after unexpected mains interruption;
• Independent overtemperature cut-off circuit with physical relay bypass—certified to IEC 61000-4-2 immunity standards and compliant with EN 61010-1 safety requirements.

Sample Compatibility & Compliance

The TLG-K045A accommodates diverse sample formats including petri dishes, crucibles, metal test coupons, polymer sheets, PCB assemblies, and pharmaceutical blister packs. Its 1 m³ internal volume supports batch processing under controlled ambient conditions per ISO 17025 Clause 5.4.2 (equipment calibration traceability). The chamber’s stainless steel construction meets FDA 21 CFR Part 11 readiness when used with audit-trail-enabled software options. All electrical components comply with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and thermal insulation materials are halogen-free per RoHS 2011/65/EU Annex II. No vacuum capability is integrated; this model is strictly configured for atmospheric-pressure convection drying.

Software & Data Management

Standard operation uses the built-in 7-inch capacitive touchscreen interface supporting multilingual UI (English, German, French, Chinese). Optional upgrades include USB mass storage export (CSV-formatted time-stamped temperature logs), RS-485 Modbus RTU communication for SCADA integration, and real-time thermal curve printing via IEEE 1284 parallel interface. When deployed with the programmable controller module, users may define up to 32 segments per program—including ramp rates (°C/min), dwell durations (0–9999 min), and cycle repeats—with automatic CSV backup to removable media. All logged datasets include operator ID stamping, timestamping with NTP synchronization support, and checksum-verified integrity—meeting ALCOA+ principles for raw data preservation.

Applications

This oven serves critical roles in material science labs evaluating thermal degradation kinetics (ASTM E2550), electronics manufacturing for conformal coating cure profiling, automotive component outgassing studies (SAE J2722), food science moisture migration analysis, and pharmaceutical excipient drying validation. Its trolley-based loading system enhances ergonomics during repeated loading/unloading cycles in QC labs performing daily batch release testing per USP . The uniform airflow design also supports accelerated aging per IEC 60068-2-2 (dry heat testing) and long-term stability assessment per ICH Q1A(R2).

FAQ

What is the maximum operating temperature and certified accuracy at that point?
The TLG-K045A is rated for continuous operation up to 300°C. At 300°C, temperature uniformity is validated at ±3.5°C (empty chamber), and fluctuation remains within ±0.8°C per 24-hour stability test per internal QA protocol.
Is the stainless steel interior electropolished or passivated?
The AISI 304 chamber walls and shelves undergo standard acid passivation per ASTM A967, but electropolishing is not included in the base configuration—available as a factory-customized option.
Can the trolley system be retrofitted to existing TLG-series ovens?
No—the trolley rail mounting structure, reinforced floor plate, and vertical guide alignment are integral to the TLG-K045A mechanical design and cannot be field-installed on earlier TLG models.
Does the unit meet UL or CSA certification requirements for North American installation?
The TLG-K045A carries CE, RoHS, and ISO 9001 manufacturing certifications. UL/cULus listing requires additional regional compliance testing and is available only through authorized DRETOP North American distribution partners under OEM agreement.
How is temperature calibration performed and documented?
Each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China) standards. Field recalibration uses dual-channel reference thermocouples (Type K, Class 1) inserted at nine predefined ISO 17025-defined measurement points; calibration reports include uncertainty budgets per GUM (JCGM 100:2008).
