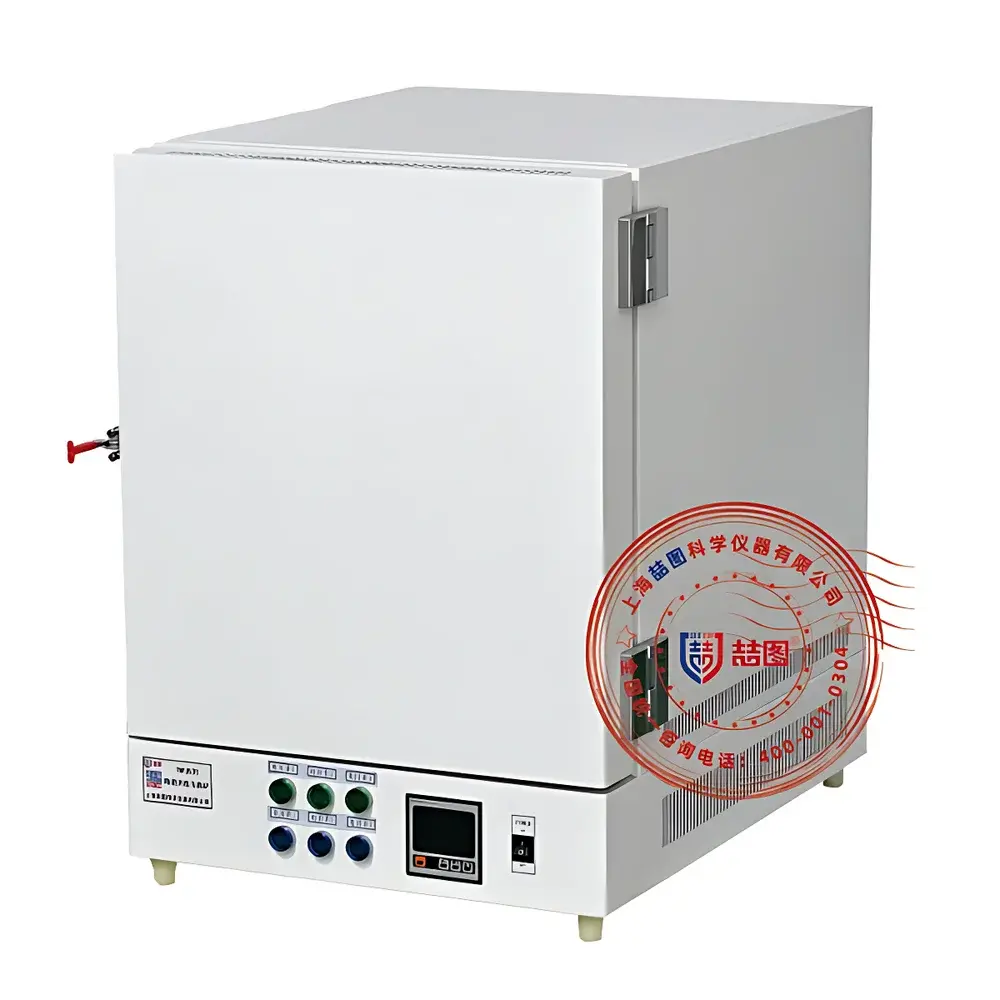

DRETOP TMF-120-10TP Ceramic Fiber Muffle Furnace

Overview

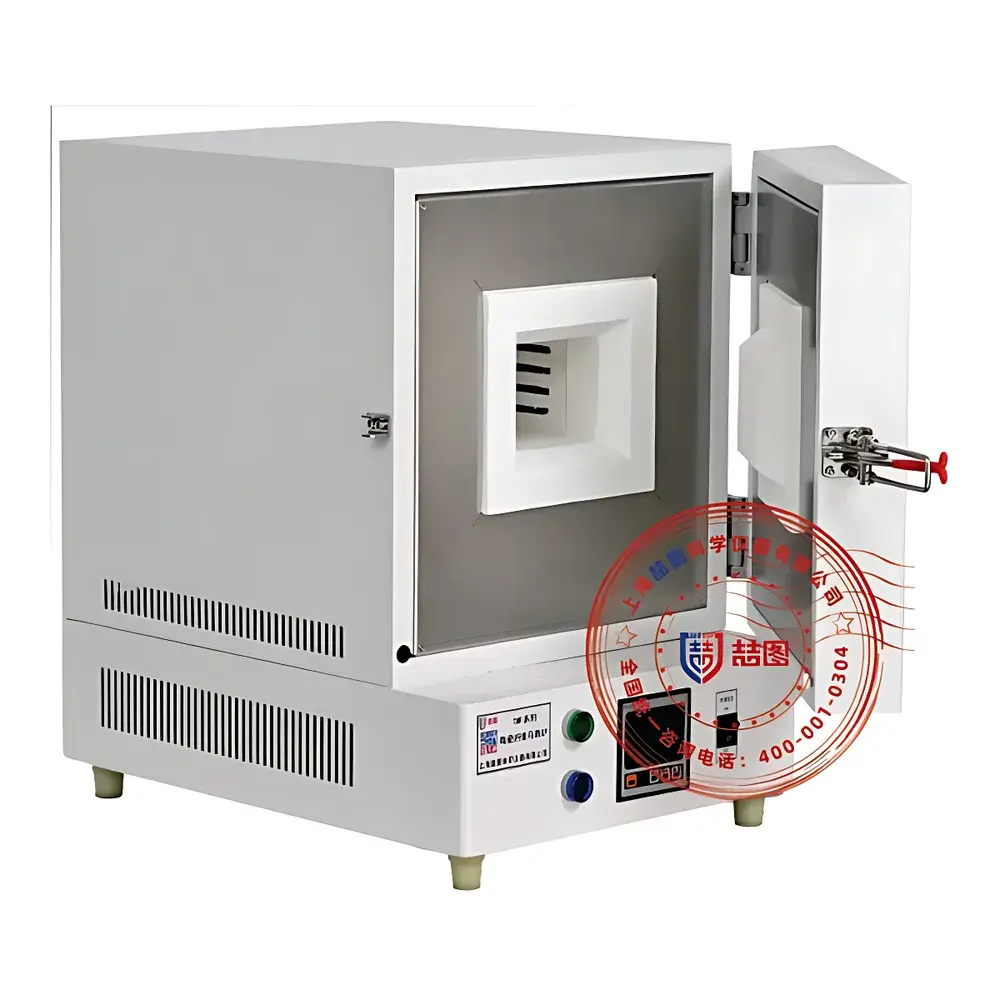

The DRETOP TMF-120-10TP is a high-performance ceramic fiber box-type muffle furnace engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. Unlike traditional refractory brick furnaces, it employs vacuum-microporous ceramic fiber insulation—offering exceptional thermal efficiency, rapid heating response, and superior temperature uniformity across its 120 L chamber. Its operational principle relies on resistive heating via high-stability nickel-chromium alloy elements embedded in three-sided furnace walls, enabling symmetrical radiant heat distribution and minimizing axial and radial thermal gradients. Designed for applications demanding strict thermal reproducibility—including ash content determination (ASTM D3174, ISO 1171), ceramic sintering, glass annealing, powder metallurgy, and heat treatment of metallic components—the TMF-120-10TP operates within a calibrated range of RT + 50 °C to 1000 °C with ±1 °C control accuracy under steady-state conditions per IEC 60584-2 and ASTM E220 calibration protocols.

Key Features

• Triple-wall radiant heating architecture ensures uniform temperature distribution (±3 °C at 1000 °C, measured per ISO 9001-compliant validation procedure at 9 points)
• Microcomputer-based PID controller with 30-segment programmable ramp-soak profiles, supporting user-defined heating/cooling rates and automatic shutdown
• Integrated door-interlock safety system: power cutoff upon door opening; automatic resumption upon closure
• Dual-stage overtemperature protection with independent thermocouple monitoring and hardware-based cut-off relay
• Digital voltage and current meters provide real-time electrical status feedback for preventive maintenance and GLP traceability
• Phosphate conversion coating + high-temp epoxy powder-coated steel enclosure enhances corrosion resistance and structural integrity during repeated thermal cycling

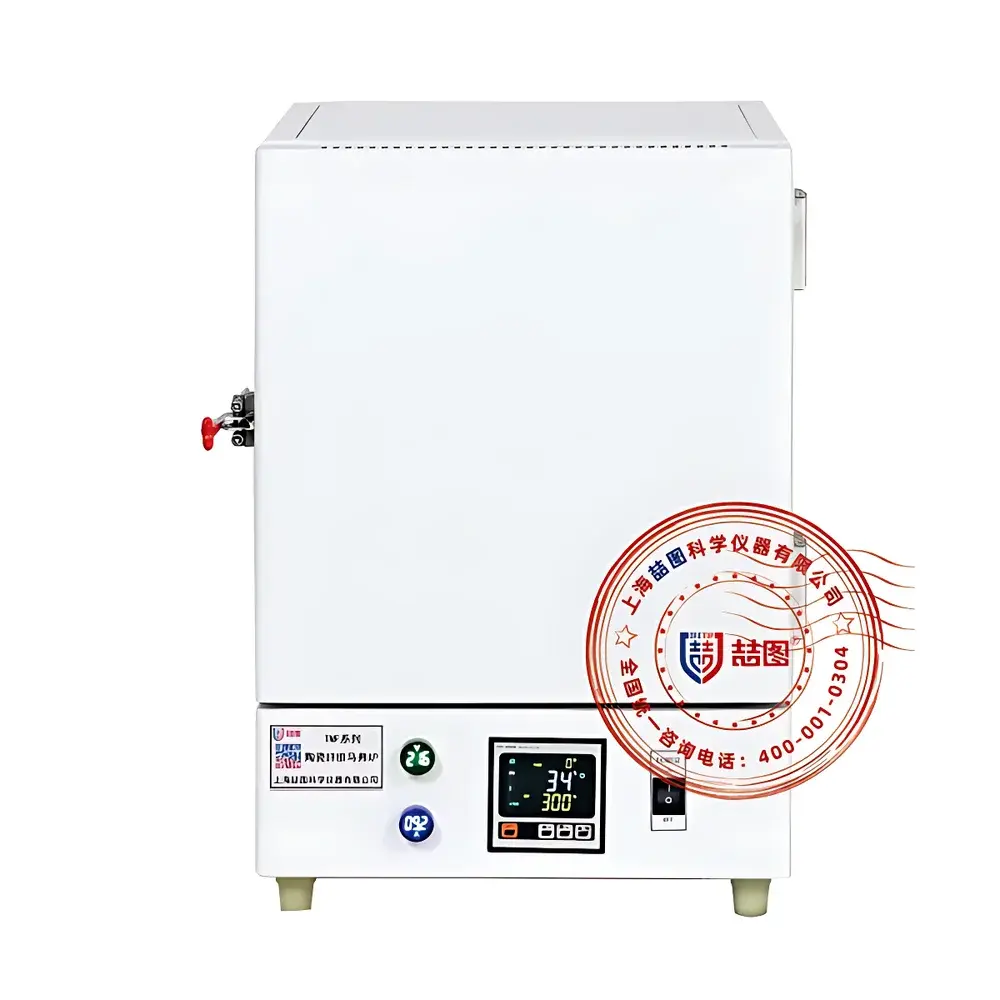

• Front-mounted control panel with large LCD display, intuitive navigation, and non-volatile memory for power interruption recovery

Sample Compatibility & Compliance

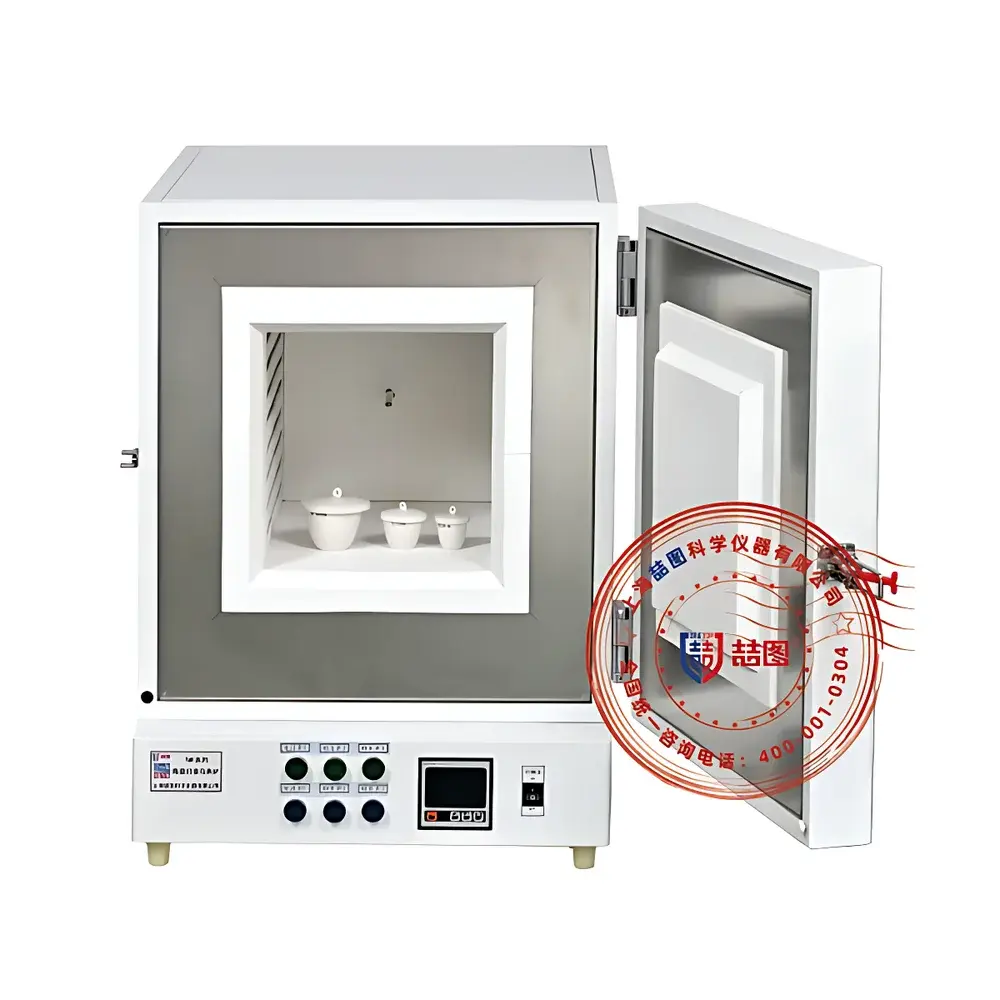

The TMF-120-10TP accommodates standard crucibles (alumina, quartz, silicon carbide), ceramic setters, graphite trays, and inert sample boats up to 400 mm × 550 mm footprint. Its ceramic fiber chamber (rated to 1260 °C continuous service) is chemically inert toward oxides, carbonates, and most halides—making it suitable for ASTM C114 cement analysis, USP heavy metal testing, and ISO 5660 cone calorimetry sample conditioning. The furnace meets CE electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU) requirements. Optional inert gas purging (N₂, Ar) via integrated inlet valve supports oxygen-sensitive processes compliant with GMP Annex 15 thermal validation guidelines.

Software & Data Management

While the base TP-series controller operates without external software, optional RS485 Modbus RTU interface enables integration with laboratory information management systems (LIMS) or SCADA platforms for automated data logging. All temperature profiles, setpoints, and alarm events are timestamped and stored locally with 10,000-cycle non-volatile memory. For regulated environments, the optional color touchscreen (TC-series upgrade) provides FDA 21 CFR Part 11–compliant audit trails—including operator ID, parameter changes, and electronic signatures—when deployed with role-based access control and encrypted data export.

Applications

• Quantitative residue/ash analysis per AOAC 923.03, EPA Method 200.7, and ISO 11885
• Sintering of advanced ceramics (ZrO₂, Al₂O₃), ferrites, and battery cathode materials (LiCoO₂, NMC)
• Thermal gravimetric pre-conditioning for TGA sample preparation
• Stress-relief annealing and tempering of tool steels and aerospace alloys
• Crucible calcination for ICP-MS sample introduction and fusion flux preparation
• Controlled oxidation studies in catalysis research (e.g., Pt/Al₂O₃ regeneration)

FAQ

What is the maximum recommended continuous operating temperature?
The furnace is rated for continuous operation at 1000 °C; exceeding this limit may accelerate ceramic fiber degradation and void warranty coverage.
Does the unit support inert atmosphere processing?
Yes—optional inert gas inlet valve (standard NPT 1/4″ port) allows controlled purge flow; recommended flow rate: 0.5–2.0 L/min for effective O₂ displacement.
How is temperature uniformity validated?
DRETOP performs 9-point mapping per ASTM E220 at three load conditions (empty, 50% volume, full load) prior to shipment; certificate available upon request.
Can the controller be upgraded to touchscreen interface post-purchase?
Yes—the TC-series color touchscreen is field-installable as a retrofit kit, including firmware update and calibration verification.
Is the furnace compatible with GLP/GMP documentation requirements?
With optional RS485 + TC controller, full electronic records—including calibration logs, run reports, and user actions—are exportable in CSV/PDF for audit submission.
