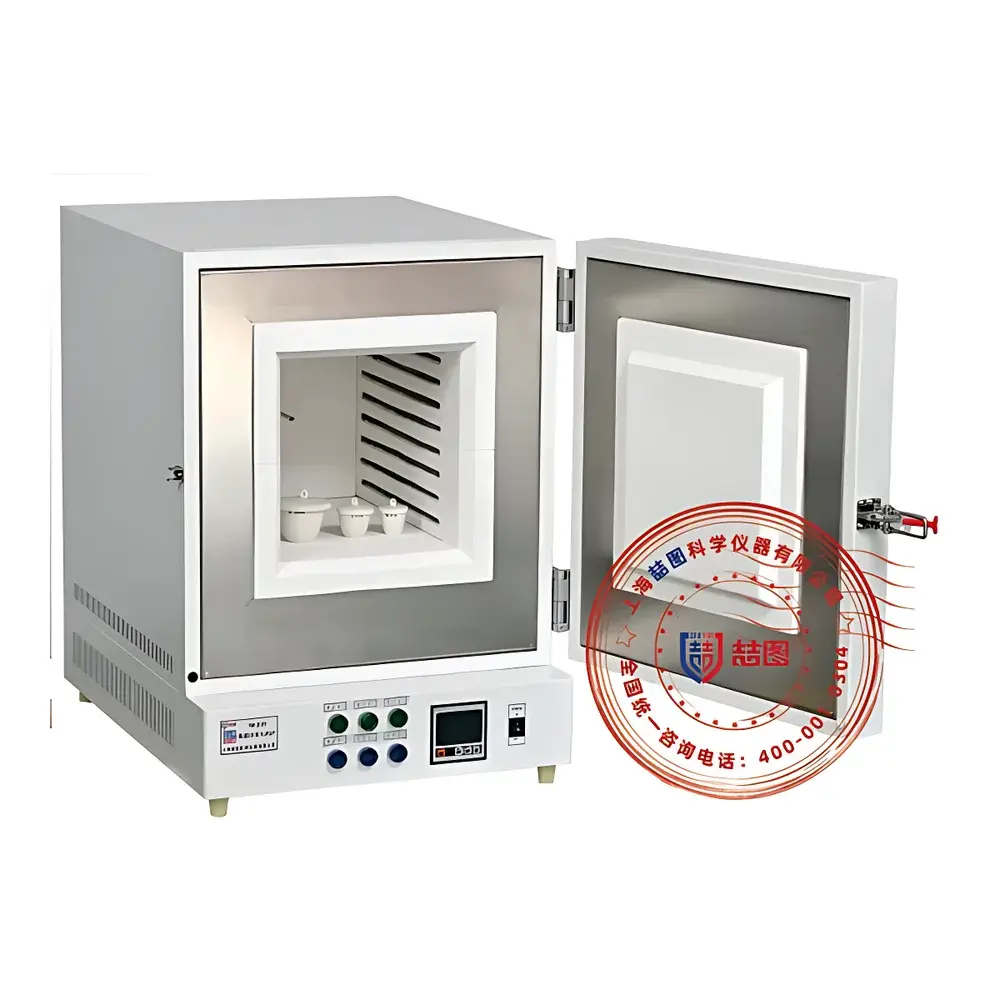

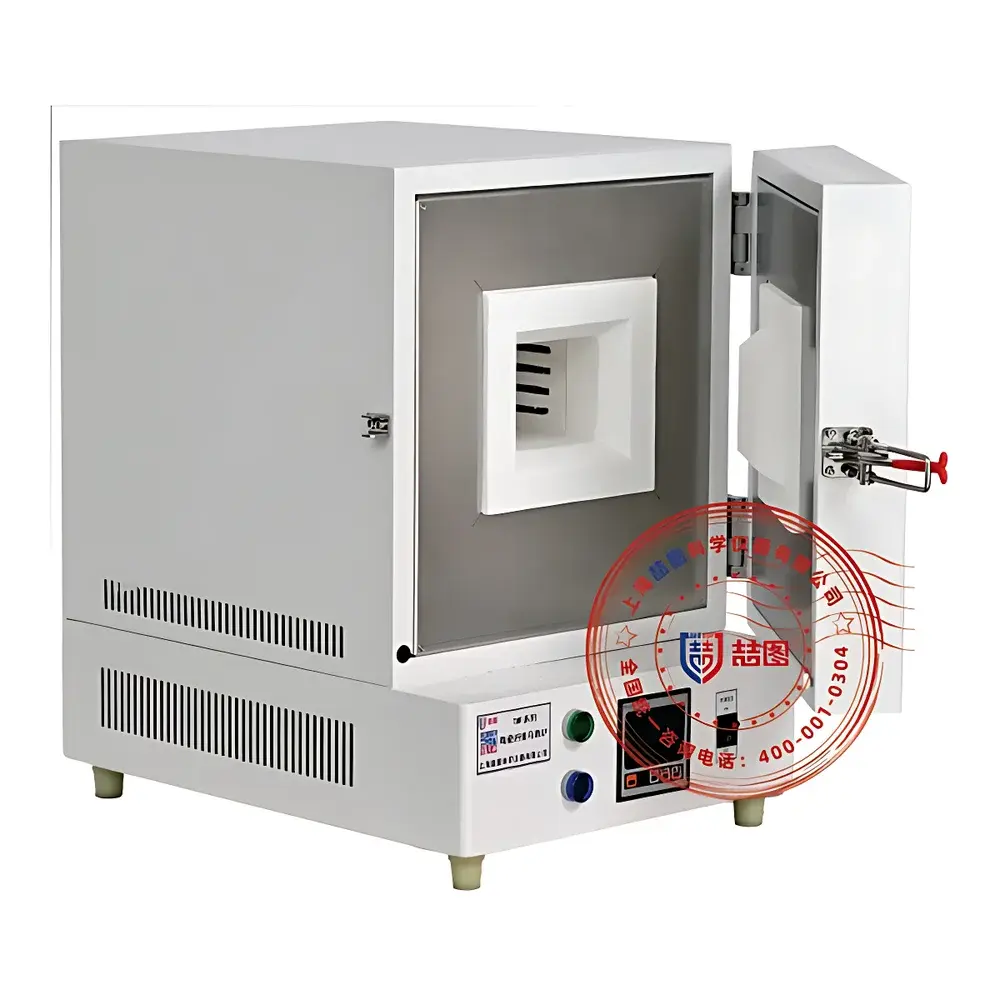

DRETOP TMF-36-10TP Ceramic Fiber Muffle Furnace

Overview

The DRETOP TMF-36-10TP is a high-performance ceramic fiber box-type muffle furnace engineered for precision thermal processing in research laboratories, materials science facilities, and industrial quality control environments. Unlike traditional refractory brick furnaces, it employs vacuum-microporous ceramic fiber insulation—offering superior thermal efficiency, rapid thermal response, and exceptional temperature uniformity across its 36 L chamber. Its operational range spans from ambient +50 °C to 1000 °C, making it suitable for applications requiring controlled oxidative or inert-atmosphere heat treatment—including ashing, calcination, sintering, annealing, and heat sterilization. The furnace operates on resistive heating via high-stability nichrome wire elements embedded in three-sided furnace walls, enabling symmetrical radiant heat distribution and minimizing thermal gradients. Its structural integrity is maintained under repeated thermal cycling due to reinforced ceramic fiber board construction and an integrated stainless steel inner lining at the chamber aperture.

Key Features

• Triple-wall heating configuration with spiral-wound nichrome elements ensures axial and radial thermal symmetry; measured temperature uniformity is ≤±3 °C within the working zone (per ASTM E220-22 calibration methodology).

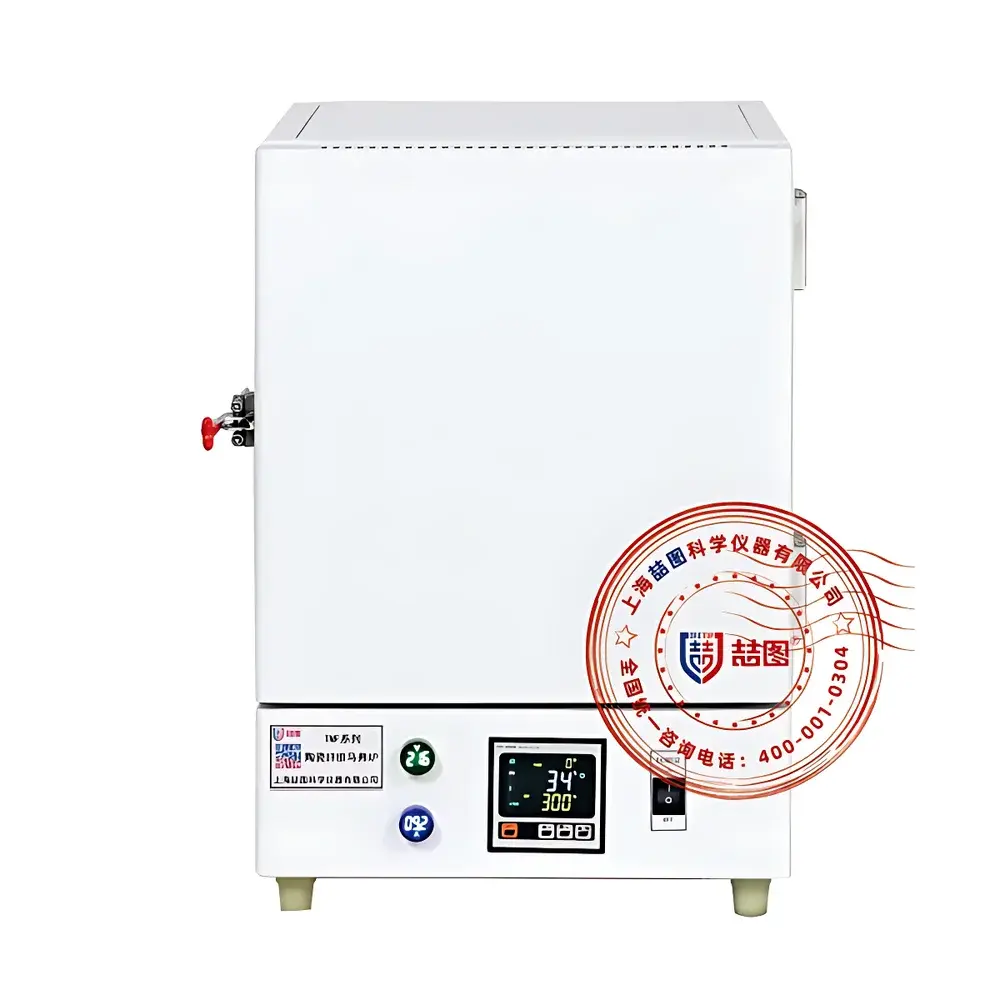

• Microprocessor-based PID controller with large-backlit LCD display provides intuitive operation, real-time parameter monitoring, and 30-segment programmable ramp/soak profiles—supporting complex thermal protocols required for GMP-compliant material qualification.
• Automatic door interlock system interrupts power supply upon opening, resuming heating automatically after closure—critical for safe intermediate sample handling without thermal drift or operator exposure.
• Dual-stage overtemperature protection: primary limit set at 1050 °C (mechanical cut-off), secondary at 1020 °C (electronic relay)—both independently monitored with audible and visual alarm outputs.
• Integrated digital voltmeter and ammeter enable continuous electrical load diagnostics; circuit anomaly detection supports predictive maintenance and compliance with ISO/IEC 17025 Clause 6.4.9 (equipment monitoring).
• Phosphate conversion coating followed by high-temp epoxy powder coating delivers corrosion resistance and mechanical durability; external surface temperature remains ≤55 °C during continuous operation at 1000 °C.

Sample Compatibility & Compliance

The TMF-36-10TP accommodates standard crucibles (alumina, quartz, stainless steel) and custom fixtures up to 300 mm × 400 mm × 300 mm. Its open-chamber design permits direct access for thermocouple insertion, gas inlet/outlet ports (optional inert gas purging), and integration with exhaust ducting (e.g., fume hood linkage). The furnace meets essential safety and performance benchmarks including IEC 61000-6-3 (EMC emissions), UL 61010-1 (electrical safety), and EN 60519-2 (industrial electroheating equipment). While not certified for Class A cleanroom use, its low particulate emission profile (verified per ISO 14644-1 Class 8 baseline testing) supports semiconductor precursor annealing and pharmaceutical excipient drying under GLP-aligned SOPs.

Software & Data Management

The standard TP-series controller logs time-stamped temperature data internally (10,000-point capacity) with timestamped event markers (door open/close, alarm triggers, program completion). Optional RS485 Modbus RTU interface enables bidirectional communication with LIMS or SCADA systems—supporting 21 CFR Part 11-compliant audit trails when paired with validated third-party software (e.g., LabVIEW™ or WinCC OA). The optional color touchscreen (TC upgrade) adds graphical trend visualization, multi-level user authentication (engineer/operator/administrator), and CSV export functionality—facilitating raw data traceability for ISO 9001 internal audits and FDA pre-submission reviews.

Applications

• Quantitative ash content determination per AOAC 942.05 and ASTM D3174-22 in coal, biomass, and food matrices.
• Sintering of oxide ceramics (Al₂O₃, ZrO₂) and ferrites under air or nitrogen purge—enabling reproducible grain growth kinetics studies.
• Thermal annealing of thin-film photovoltaic substrates (CIGS, perovskite precursors) where ramp rate control (<5 °C/min) and soak stability (<±0.5 °C over 4 h) are critical.
• Pre-treatment of catalyst supports (SiO₂, TiO₂) prior to impregnation—ensuring consistent surface area and pore structure via BET validation.
• Heat sterilization of reusable labware per ISO 17665-1:2019 Annex B, validated using biological indicators (Geobacillus stearothermophilus spores).

FAQ

What is the recommended maintenance schedule for optimal thermal performance?
Perform quarterly verification of thermocouple calibration against NIST-traceable reference standards; inspect ceramic fiber joints annually for microcracking using borescope imaging—replace panels if >5% surface delamination is observed.
Can this furnace operate under inert gas atmosphere?
Yes—when equipped with optional inert gas inlet valve and exhaust chimney, it supports continuous N₂ or Ar purging at flow rates of 0.5–2.0 L/min, maintaining O₂ <50 ppm as verified by inline oxygen sensor (not included).
Is the controller compliant with FDA 21 CFR Part 11 requirements?
The base PID controller does not include electronic signature or audit trail capabilities; however, the TC-series touchscreen upgrade—when deployed with validated third-party software—supports full Part 11 compliance including role-based access, electronic signatures, and immutable data archiving.
How does the furnace achieve ±1 °C control accuracy despite ambient fluctuations?
Through adaptive PID tuning combined with real-time ambient temperature compensation (measured via internal thermistor), the controller dynamically adjusts proportional band and integral time constants to counteract convective losses at the chamber opening.
What safety certifications does the TMF-36-10TP hold?
It carries CE marking per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; full test reports for EN 61000-6-2 (immunity) and EN 60519-2 (thermal hazard assessment) are available upon request.
