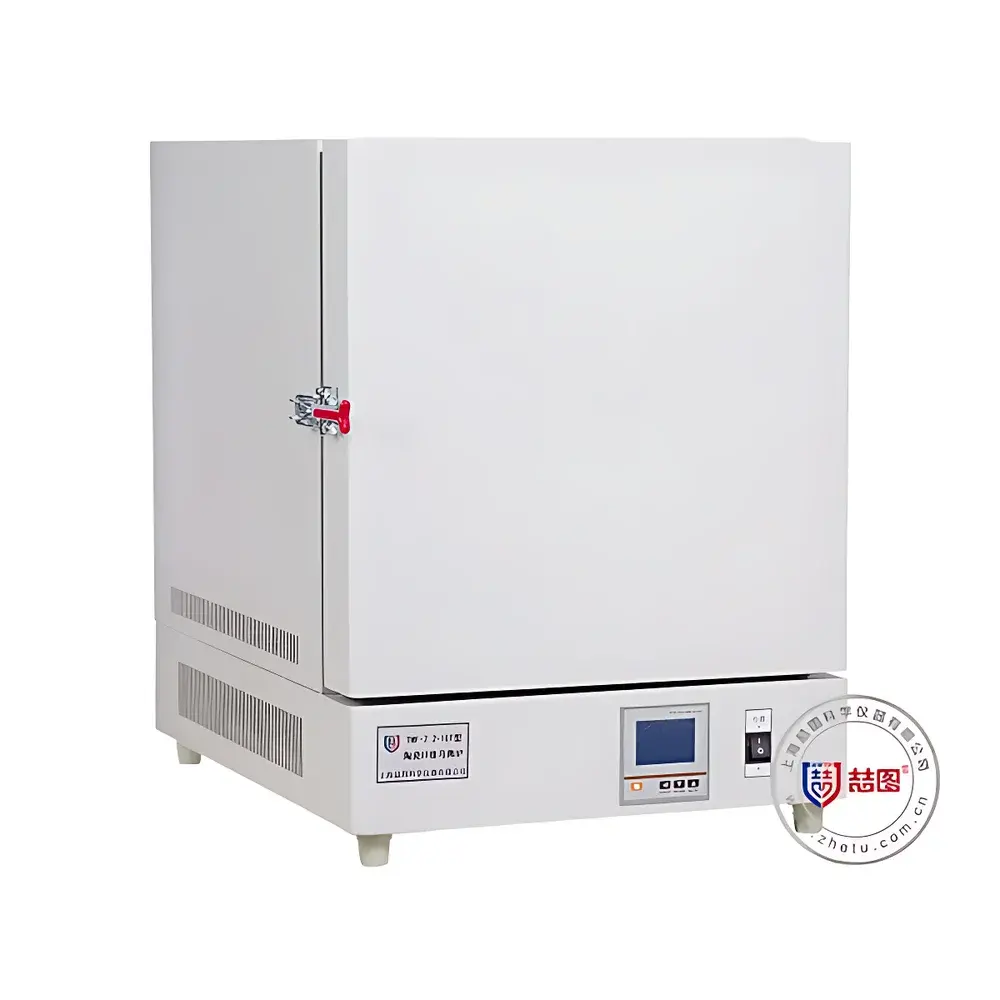

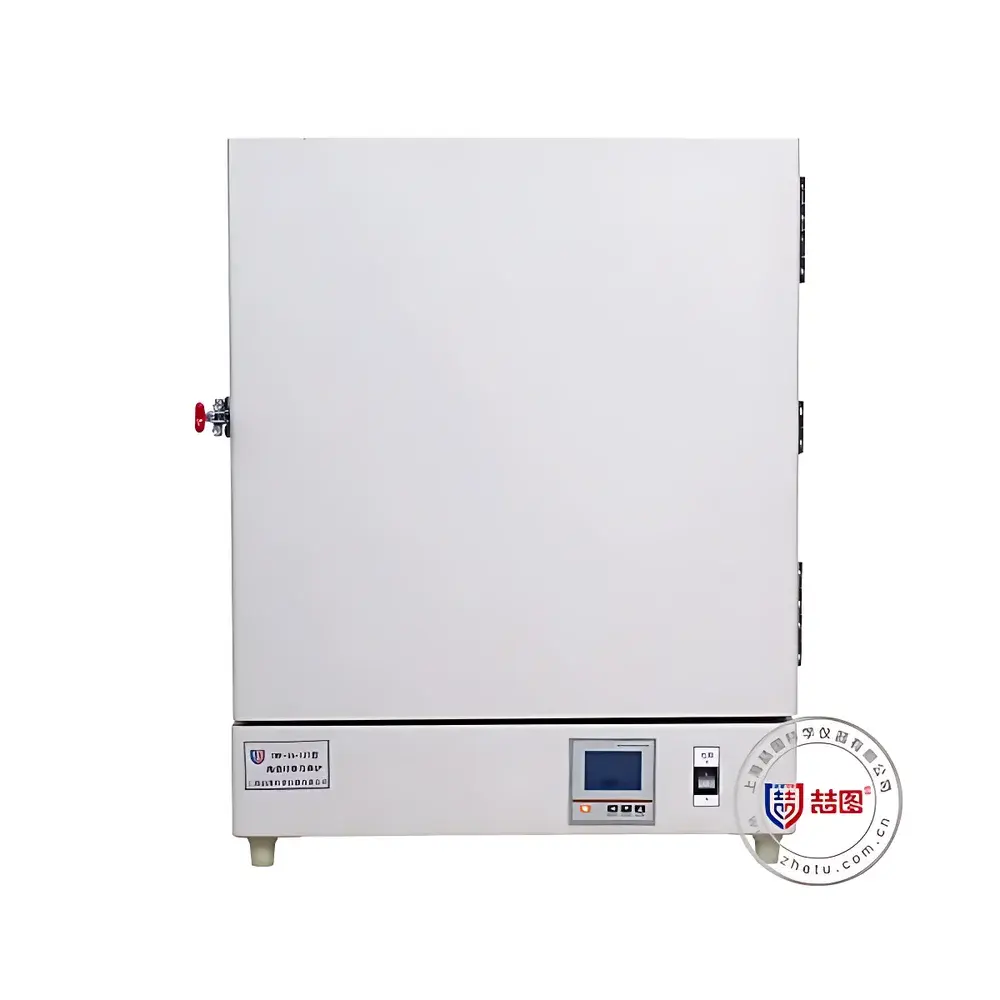

DRETOP TMF-48-13TP Ceramic Fiber Muffle Furnace

Overview

The DRETOP TMF-48-13TP is a high-performance ceramic fiber box-type muffle furnace engineered for precision thermal processing in research laboratories, quality control environments, and materials development facilities. Utilizing advanced vacuum-microporous ceramic fiber insulation and silicon carbide (SiC) heating elements, this furnace achieves rapid, uniform, and energy-efficient heating up to 1300 °C. Unlike traditional refractory brick furnaces, its lightweight ceramic fiber architecture minimizes thermal mass—enabling faster ramp rates (≤50 minutes to 1300 °C), superior temperature stability (±1 °C), and reduced standby heat loss. The furnace operates on a three-phase AC380V supply and complies with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity requirements), supporting repeatable, traceable thermal protocols essential for GLP- and GMP-aligned workflows.

Key Features

• Ultra-lightweight construction: Ceramic fiber insulation reduces total unit weight by ~60% versus conventional brick-lined furnaces, while maintaining surface temperatures <50 °C at ambient conditions—enhancing operator safety and lab ergonomics.
• High-reproducibility temperature control: Equipped with an intelligent PID controller featuring auto-tuning, dual-stage overtemperature protection (mechanical + electronic), and power-loss memory retention—ensuring protocol continuity after unexpected interruptions.
• Optimized thermal field design: Stainless steel inner door frame, integrated heat-shield baffle at the furnace mouth, and symmetrical SiC rod placement ensure radial and axial temperature uniformity ≤±5 °C across the full 48 L chamber (per ASTM E220-22 Annex A3 validation methodology).
• Programmable thermal profiling: Standard 30-segment programmable controller supports complex multi-step cycles—including ramp-hold-cool sequences, slope-adjusted heating curves, and automatic shutdown—with real-time parameter display on a high-contrast LCD interface.
• Rugged industrial enclosure: Cold-rolled steel housing treated with phosphate conversion coating and electrostatically applied matte gray powder coating resists corrosion, abrasion, and chemical splashes common in analytical labs.
• Integrated environmental safeguards: Optional inert gas inlet valve (N₂/Ar), exhaust chimney port (for volatile decomposition products), and door-interlocked power cutoff provide configurable containment for ASTM D3174 (ash content), ISO 1171 (ash determination), or USP <231> heavy metal testing protocols.

Sample Compatibility & Compliance

The TMF-48-13TP accommodates standard crucibles (alumina, quartz, platinum, or silicon carbide), ceramic setters, and custom fixtures up to 300 mm × 400 mm × 400 mm. It is routinely deployed for ASTM C114 (cement analysis), ISO 562 (coal ash fusion), ISO 1171 (ash content of coal and coke), and ISO 18852 (ceramic sintering). Its temperature uniformity profile meets the spatial tolerance requirements of ISO/IEC 17025:2017 Clause 6.4.3 for accredited thermal testing laboratories. All electrical components conform to UL 61010-1 and CE EN 61010-1 safety directives. Optional RS485 Modbus RTU interface enables integration into LIMS or SCADA systems compliant with FDA 21 CFR Part 11 for audit-trail–enabled data capture.

Software & Data Management

While the base model features a stand-alone programmable LCD controller, optional communication modules support bidirectional data exchange. The RS485 interface (with included Modbus-compatible PC software) allows remote setpoint adjustment, real-time temperature logging, and export of CSV-formatted time-stamped datasets—including ramp rate, dwell duration, and deviation history. For regulated environments, the optional embedded thermal printer provides immediate hard-copy records of cycle execution, satisfying ALCOA+ data integrity principles. Firmware updates are performed via USB port, and all configuration changes are timestamped and user-logged within the controller’s non-volatile memory—supporting traceability per ISO/IEC 17025:2017 and EU GMP Annex 11 requirements.

Applications

This furnace serves critical roles across multiple technical domains: elemental ash analysis (ASTM D240, ISO 2160); ceramic sintering and glaze firing (ISO 13120); powder metallurgy densification; nanomaterial annealing (e.g., TiO₂, ZnO); thermal gravimetric pre-treatment prior to XRD or SEM-EDS; controlled oxidation/reduction studies under inert atmosphere; and heat treatment of metallic components (annealing, stress-relieving, tempering). Its rapid thermal response and stable plateau performance make it particularly suitable for method development in pharmaceutical excipient characterization (USP <721>) and battery cathode material synthesis (e.g., LiCoO₂ calcination).

FAQ

Is the TMF-48-13TP suitable for continuous operation at 1300 °C?
Yes—rated for sustained operation at 1300 °C when used with appropriate crucible materials (e.g., high-purity alumina or silicon carbide) and adequate ventilation. Recommended maximum continuous duty cycle is 8 hours per session to preserve SiC rod longevity.
Does the furnace include calibration documentation?
Each unit ships with a factory-as-tested temperature uniformity report (measured per ASTM E220-22 at 900 °C and 1200 °C) and NIST-traceable thermocouple verification certificate.
Can the controller be upgraded to touchscreen functionality post-purchase?
No—the TP-series controller is hardware-specific; touchscreen (AI-series) functionality requires factory-level integration and cannot be retrofitted in the field.
What safety certifications does the furnace hold?
CE-marked per EN 61000-6-2/-3 and EN 61010-1; RoHS-compliant; conforms to IEC 60529 IP20 enclosure rating.
Is inert gas purging supported natively?
Yes—an optional front-mounted stainless steel gas inlet valve (standard NPT 1/4″ thread) allows regulated flow of N₂, Ar, or forming gas; recommended flow rate: 0.5–2.0 L/min for effective atmosphere displacement.
