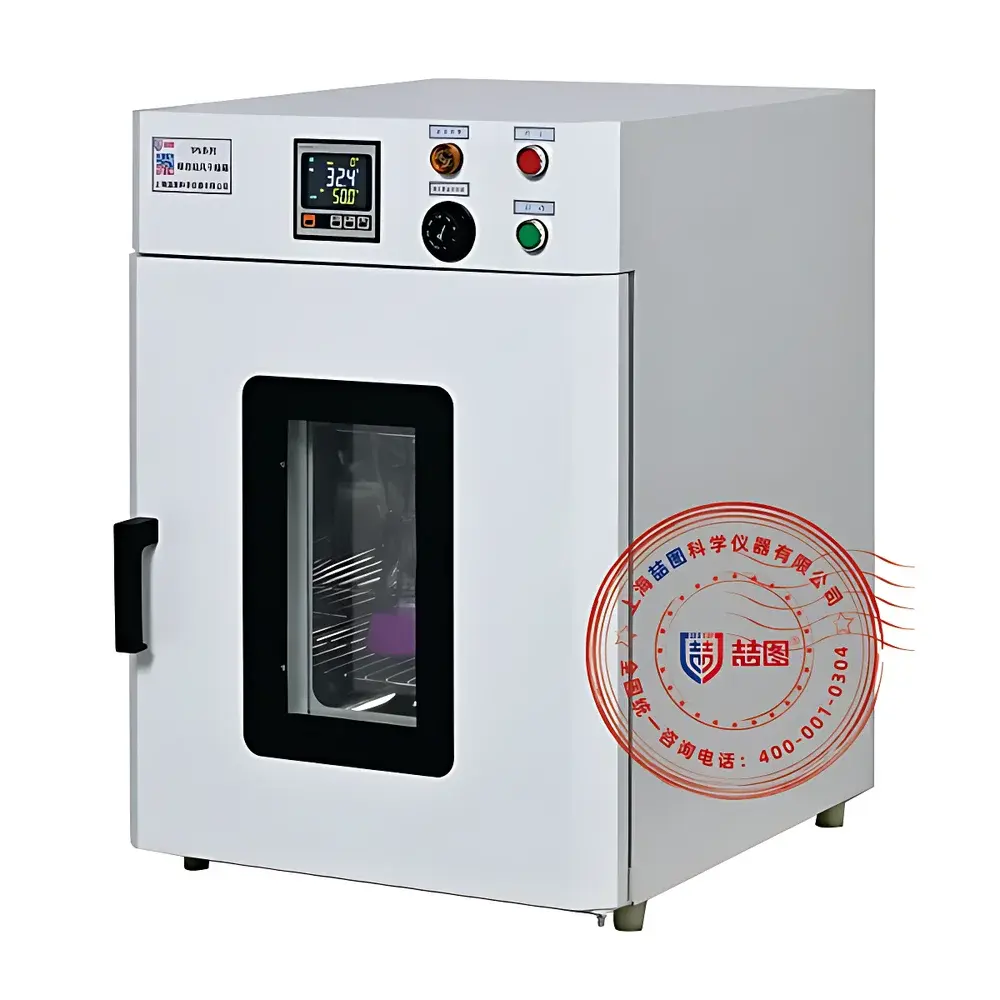

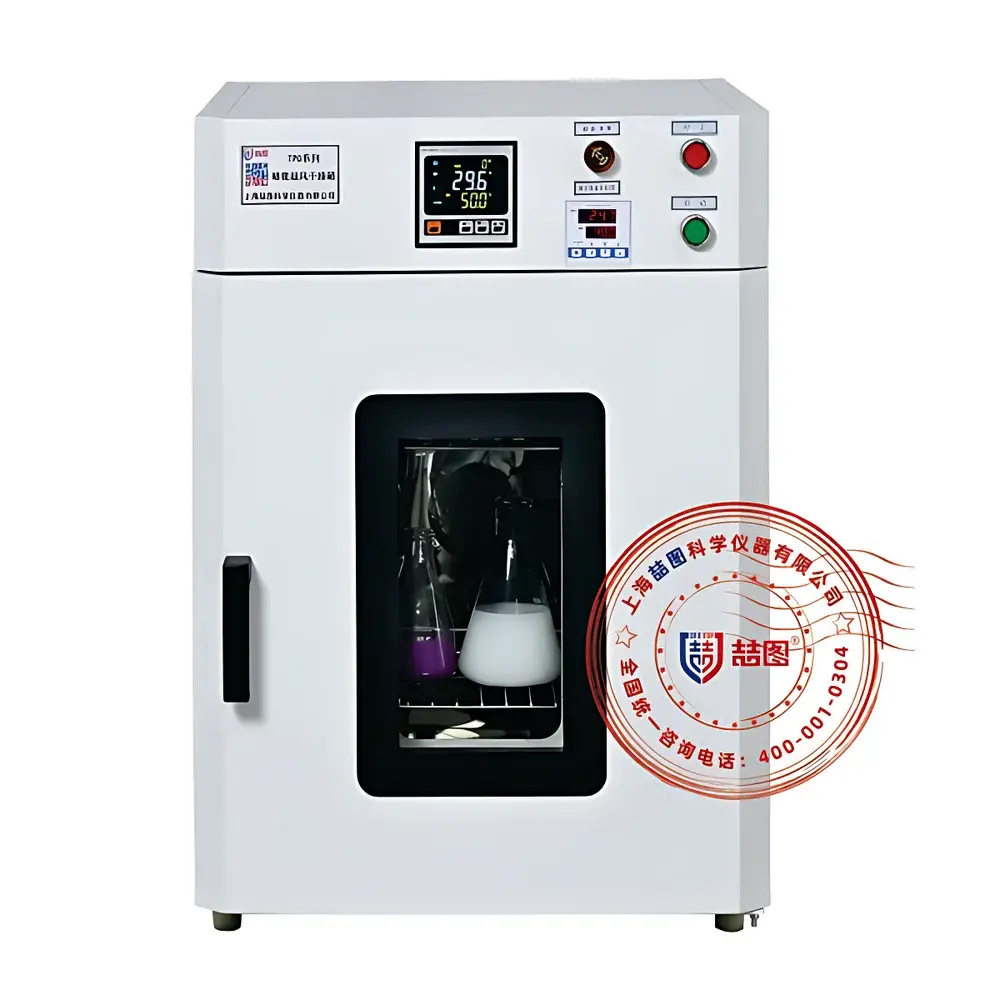

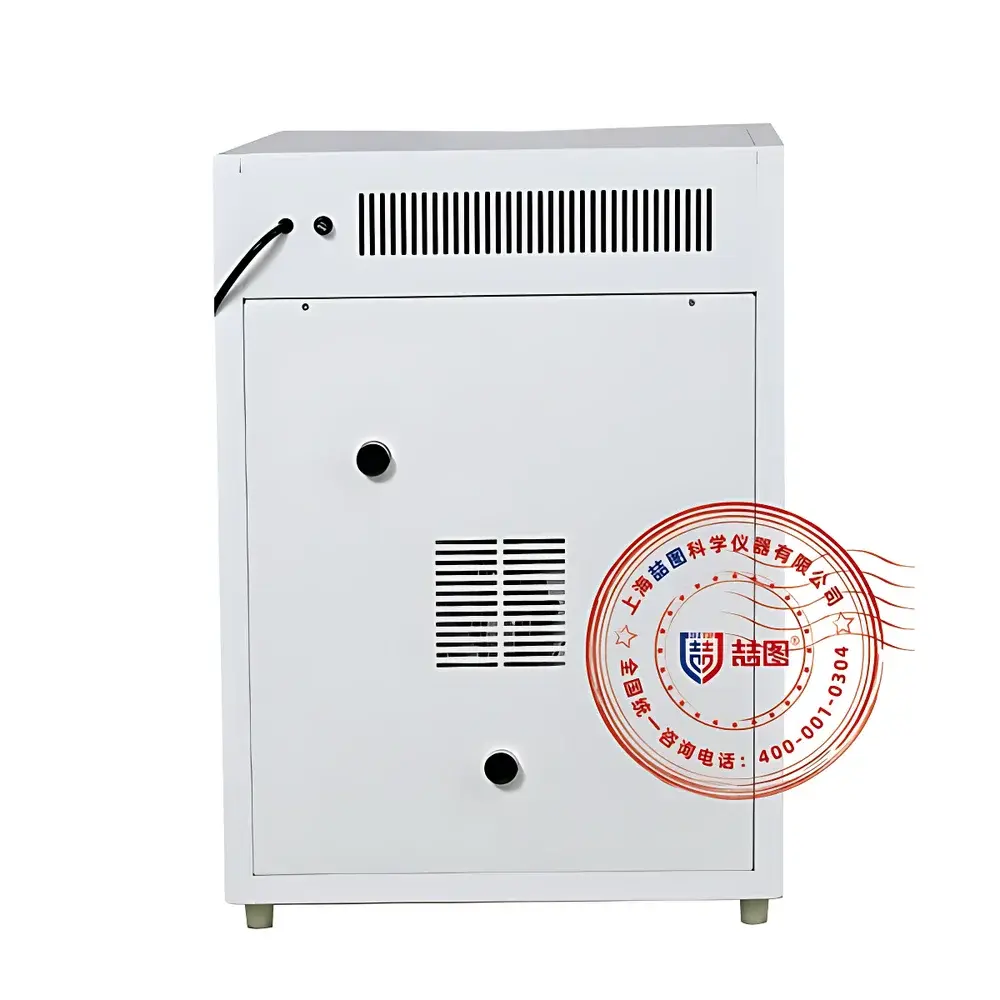

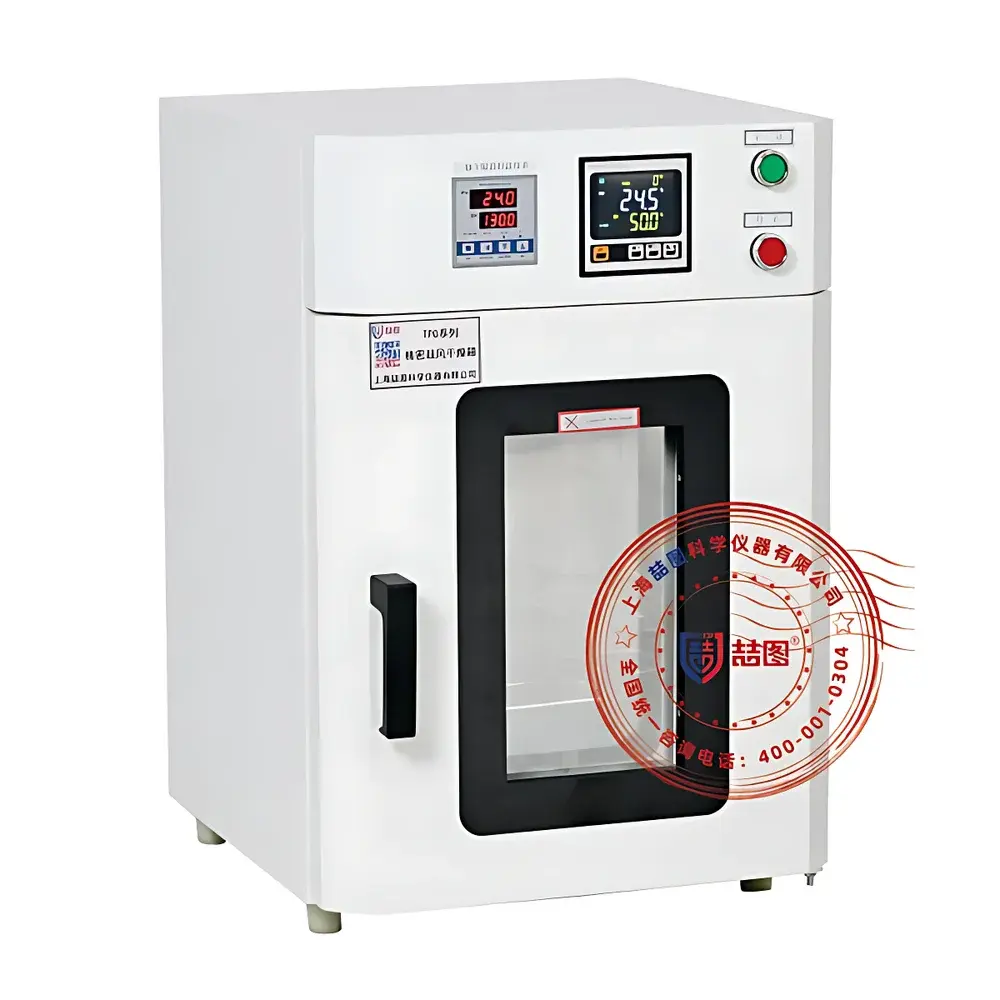

DRETOP TPG-F136B Precision Forced-Air Drying Oven

Overview

The DRETOP TPG-F136B is a high-precision forced-air drying oven engineered for laboratory and industrial applications requiring strict thermal control, repeatability, and long-term stability. It operates on the principle of regulated convective heat transfer—using a high-temperature-rated centrifugal blower and optimized internal airflow channels to ensure uniform thermal distribution across the entire working chamber. Unlike natural convection ovens, the TPG-F136B employs a fully integrated hot-air recirculation system with adjustable multi-directional air outlets and rear-mounted ducting, minimizing thermal gradients and reducing temperature overshoot during ramp-up. Designed for compliance-critical environments—including R&D labs in aerospace, new energy systems, electronics manufacturing, defense research institutes, and university materials science departments—the unit meets baseline requirements for ISO/IEC 17025-compliant thermal validation protocols and supports GLP/GMP-aligned documentation practices through its data logging and alarm traceability features.

Key Features

• Microprocessor-based PID temperature controller with dual-stage over-temperature protection: primary control via SSR-driven heating circuit and independent mechanical backup limiter ensuring fail-safe interruption at user-defined thresholds.
• High-visibility 4.3-inch color LCD interface displaying real-time temperature, setpoint, elapsed time, and fault codes—enabling rapid diagnostics without external software.
• Dual-layer tempered glass observation window with silicone-sealed gasket, providing optical clarity while maintaining thermal integrity and operator safety under sustained high-temperature operation.

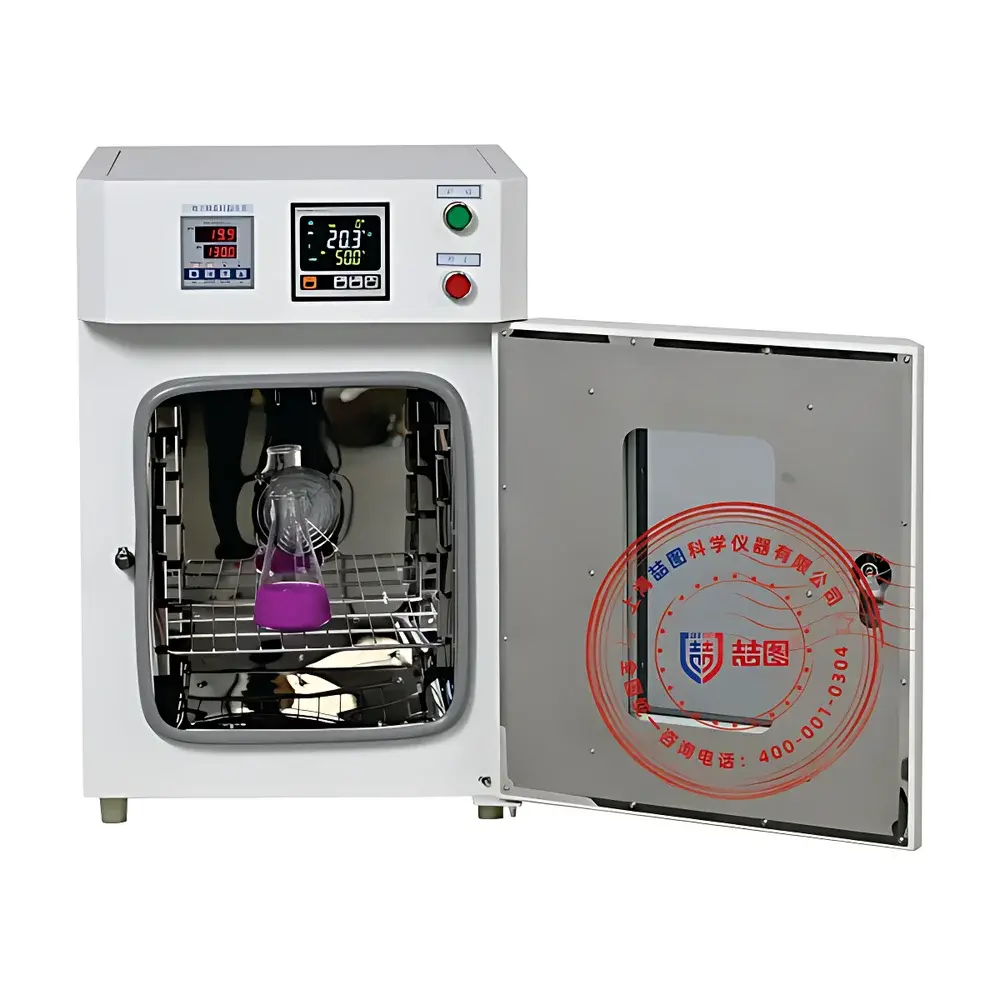

• Adjustable stainless-steel shelf system (2 standard trays included) with tool-free vertical positioning; all interior surfaces fabricated from electropolished SUS304 steel for corrosion resistance and ease of decontamination.
• Low-noise, continuous-duty motor (rated for >20,000 hours at 280°C) paired with multi-blade impeller design ensures stable airflow velocity and minimal vibration-induced sample disturbance.
• Comprehensive electrical safety architecture: integrated earth leakage protection, thermal cut-off fuses, short-circuit current limiting, and non-volatile memory retention for parameter recovery after power interruption.

Sample Compatibility & Compliance

The TPG-F136B accommodates a broad range of sample types—including polymer films, metal oxide powders, battery electrode coatings, ceramic green bodies, pharmaceutical excipients, and moisture-sensitive electronic components—within its 136 L stainless-steel chamber. Its ±1.5°C temperature uniformity (verified per ASTM E2207 and IEC 60068-3-5 at 100°C) supports method validation for gravimetric moisture analysis (e.g., USP <921>), residual solvent determination, and accelerated aging studies. The unit conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2011/65/EU material restrictions, and carries factory-calibrated traceability to NIST-traceable standards. Optional RS485 or USB interfaces enable integration into centralized lab management systems compliant with FDA 21 CFR Part 11 for electronic record integrity.

Software & Data Management

While the base configuration operates via embedded firmware, optional connectivity modules support bidirectional communication with third-party LIMS or SCADA platforms. The built-in timer function offers programmable cycles up to 9999 minutes with automatic shutdown and audible alert. When equipped with the optional USB data logger, users can export timestamped temperature logs (sampled every 10 seconds) in CSV format for audit-ready reporting. All alarm events—including over-temperature, sensor failure, door-open detection, and power anomaly—are recorded with UTC timestamps and retained in non-volatile memory for post-event forensic review. No proprietary software installation is required for basic operation, aligning with IT security policies in regulated facilities.

Applications

• Moisture content determination per ISO 554, ASTM D229, and GB/T 29246 for quality control of raw materials in chemical, food, and pharmaceutical production.
• Pre-baking of PCB substrates and semiconductor packaging components prior to solder reflow or wire bonding.
• Thermal stabilization of calibration standards and reference materials in metrology laboratories.
• Curing of epoxy resins, silicone adhesives, and powder coatings under controlled ramp-hold-cool profiles.
• Drying of filter papers, crucibles, and volumetric glassware in analytical chemistry workflows.
• Accelerated thermal aging of lithium-ion battery separators and solid electrolytes per UL 1642 and IEC 62619 test protocols.

FAQ

Is the TPG-F136B suitable for use with flammable solvents?

No. This model is designed for atmospheric-pressure drying only and lacks explosion-proof certification or inert gas purge capability. For volatile organic compounds, consult the DRETOP TPX series with ATEX/IECEx-rated variants.
What is the maximum validated operating temperature for long-term stability?

The chamber is rated for continuous operation up to 280°C. Sustained use above this threshold may accelerate seal degradation and reduce thermal uniformity reproducibility.
Can the internal shelves be removed for cleaning or custom fixture mounting?

Yes. All shelves are fully detachable and feature standardized 10-mm slot spacing for repositioning at any height within the chamber.
Does the unit include calibration documentation?

Each unit ships with a factory-issued calibration certificate covering temperature accuracy (±0.3°C at 100°C) and uniformity (±1.5°C), traceable to national metrology institutes.
Is remote monitoring supported out-of-the-box?

Basic remote status viewing requires optional RS485 or USB interface modules. Ethernet/WiFi connectivity is not natively supported but can be implemented via external gateway devices.
