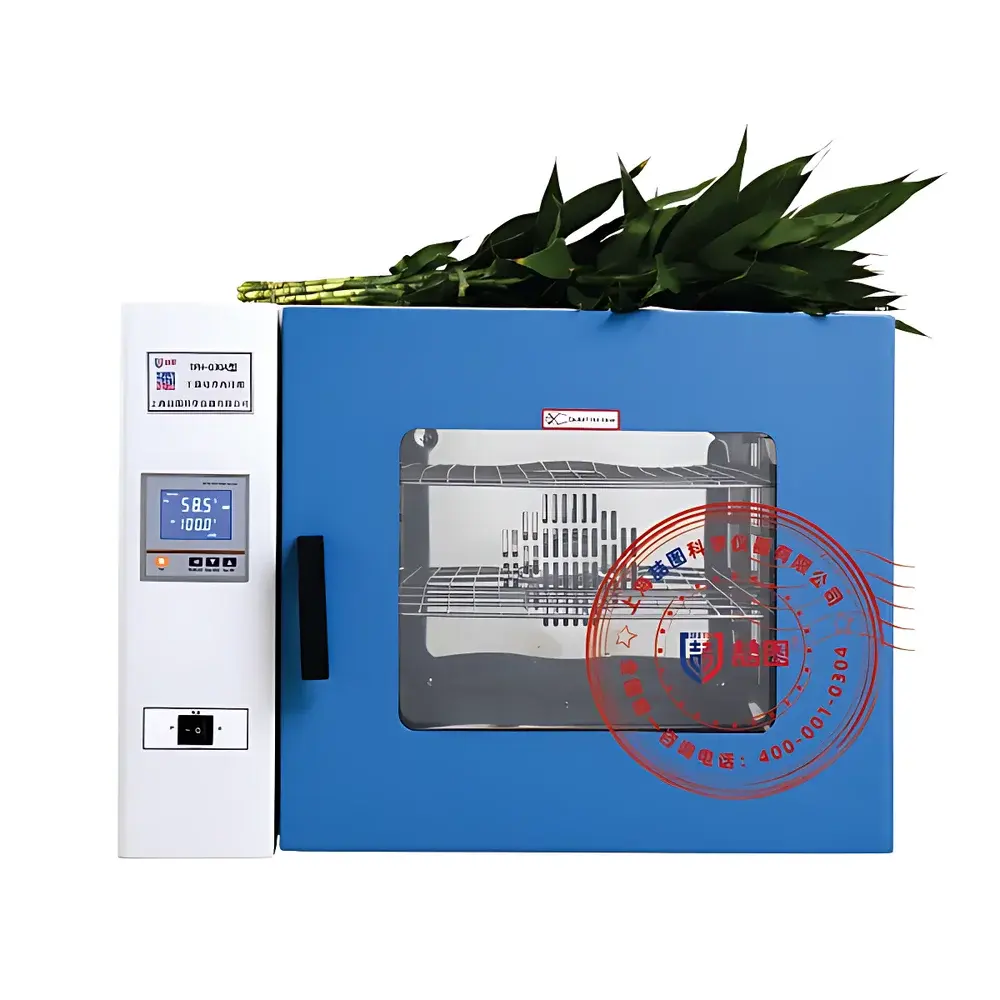

DRETOP TRX-9123A Forced-Air Dry Heat Sterilizer

Overview

The DRETOP TRX-9123A is a precision-engineered forced-air dry heat sterilizer designed for reliable, repeatable microbial inactivation in regulated laboratory and production environments. It operates on the principle of dry heat sterilization—utilizing sustained elevated temperatures in an oxygen-rich, low-humidity environment to achieve microbial lethality through oxidative damage to cellular components, protein denaturation, and desiccation-induced metabolic arrest. Unlike moist heat methods (e.g., autoclaving), dry heat is uniquely suited for materials impermeable to steam or moisture-sensitive, including borosilicate glassware (petri dishes, pipettes, test tubes), stainless steel instruments (surgical tools, forceps, needles), anhydrous oils (injectable pharmaceutical oils, ointment bases), and thermally stable powders (talcum, starch derivatives, certain APIs). The TRX-9123A complies with core sterilization validation requirements outlined in ISO 17665-1 (Sterilization of health care products — Moist heat — Part 1: General requirements for development, validation and routine control of a sterilization process for medical devices), with dry heat-specific adaptations aligned to ISO 20857 (Health care products — Sterilization — Dry heat — Requirements for the development, validation and routine control of a sterilization process for medical devices).

Key Features

• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution, ±2.5°C uniformity across the 140 L chamber (verified at 160°C per ISO 17665-1 Annex B protocols)
• Forced-air circulation system with optimized duct geometry and rear-mounted centrifugal blower, ensuring rapid heat-up (<35 min to 250°C from ambient) and spatial temperature homogeneity
• Double-sealed, ceramic fiber door gasket rated for continuous operation up to 250°C; maintains integrity over >10,000 thermal cycles without compression set or leakage
• Stainless steel (SUS304) interior chamber and adjustable, load-bearing shelves; electrostatically applied polyester powder-coated exterior for corrosion resistance
• Large-format backlit LCD display with tri-color status indicators (green/amber/red), real-time temperature graphing, and intuitive menu navigation
• Dual-stage mechanical door lock with zinc-alloy handle ensures positive seal pressure and minimizes thermal bridging at the interface
• Comprehensive safety architecture: independent hardware-limiting thermostat (cut-off at 260°C), ground-fault circuit interrupter (GFCI), thermal fuse, and non-volatile memory for parameter retention after power loss
• User-configurable audible/visual alarm thresholds for deviation, overshoot, or dwell-time failure

Sample Compatibility & Compliance

The TRX-9123A is validated for sterilization cycles conforming to USP “Sterility Assurance” and EU GMP Annex 1 (2022) requirements for dry heat depyrogenation (e.g., 250°C for ≥45 minutes for endotoxin reduction ≥3 log₁₀). Compatible loads include: glass vials, ampoules, syringes, metal surgical trays, tungsten carbide tools, silicone-free rubber stoppers (pre-conditioned), and hydrophobic excipients. It is explicitly incompatible with polymeric materials (PVC, PE, PET), natural rubber, cellulose-based filters, or heat-labile active pharmaceutical ingredients. All operational parameters support 21 CFR Part 11-compliant audit trails when paired with optional USB data logging or RS-485 interface modules. Calibration traceability follows ISO/IEC 17025 via NIST-traceable reference thermocouples.

Software & Data Management

The embedded controller supports time-temperature profiling with up to 99 programmable segments (optional color touchscreen upgrade enables multi-step ramp-soak cycles). Standard USB port allows direct export of time-stamped temperature logs (.CSV) to removable media for offline analysis in Excel or statistical process control (SPC) software. Optional RS-485 Modbus RTU interface enables integration into LabVantage, DeltaV, or Siemens Desigo CCMS systems for centralized monitoring. All event logs—including door openings, alarm triggers, setpoint changes, and cycle completions—are timestamped and stored with immutable audit trail functionality meeting GLP and GMP documentation standards.

Applications

• Depyrogenation of glass containers and stainless steel components in pharmaceutical manufacturing (e.g., lyophilization stopper trays, filling line parts)
• Sterilization of reusable labware in academic and clinical microbiology labs where autoclave access is limited
• Thermal validation of packaging materials’ stability under accelerated aging conditions (ASTM F1980)
• Pre-sterilization conditioning of analytical sample vials prior to HPLC/GC analysis
• Moisture removal and thermal stabilization of calibration standards and reference materials
• Supporting ISO 11138-4 biological indicator challenge testing using Geobacillus stearothermophilus spores on stainless steel carriers

FAQ

What is the minimum holding time required at 160°C to achieve sterility?
Per ISO 20857, a minimum dwell time of 120 minutes at 160°C is recommended for full sterilization of non-porous, dry items. Cycle validation must be performed for each load configuration.
Can the TRX-9123A be used for depyrogenation?
Yes—when operated at ≥250°C for ≥45 minutes, it achieves ≥3-log endotoxin reduction per USP and EU GMP Annex 1 criteria.
Is the unit compliant with FDA 21 CFR Part 11?
The base model supports electronic records; full Part 11 compliance (electronic signatures, audit trails) requires optional data logger firmware and user access control configuration.
What maintenance is required for long-term reliability?
Quarterly inspection of door gasket integrity, annual verification of temperature uniformity using 9-point sensor mapping, and biannual cleaning of air intake filters are recommended per manufacturer guidelines.
Does the chamber support vacuum-assisted drying?
No—the TRX-9123A is a standard atmospheric-pressure dry heat sterilizer. Vacuum functionality is available only on the separate DRETOP VDH series models.
