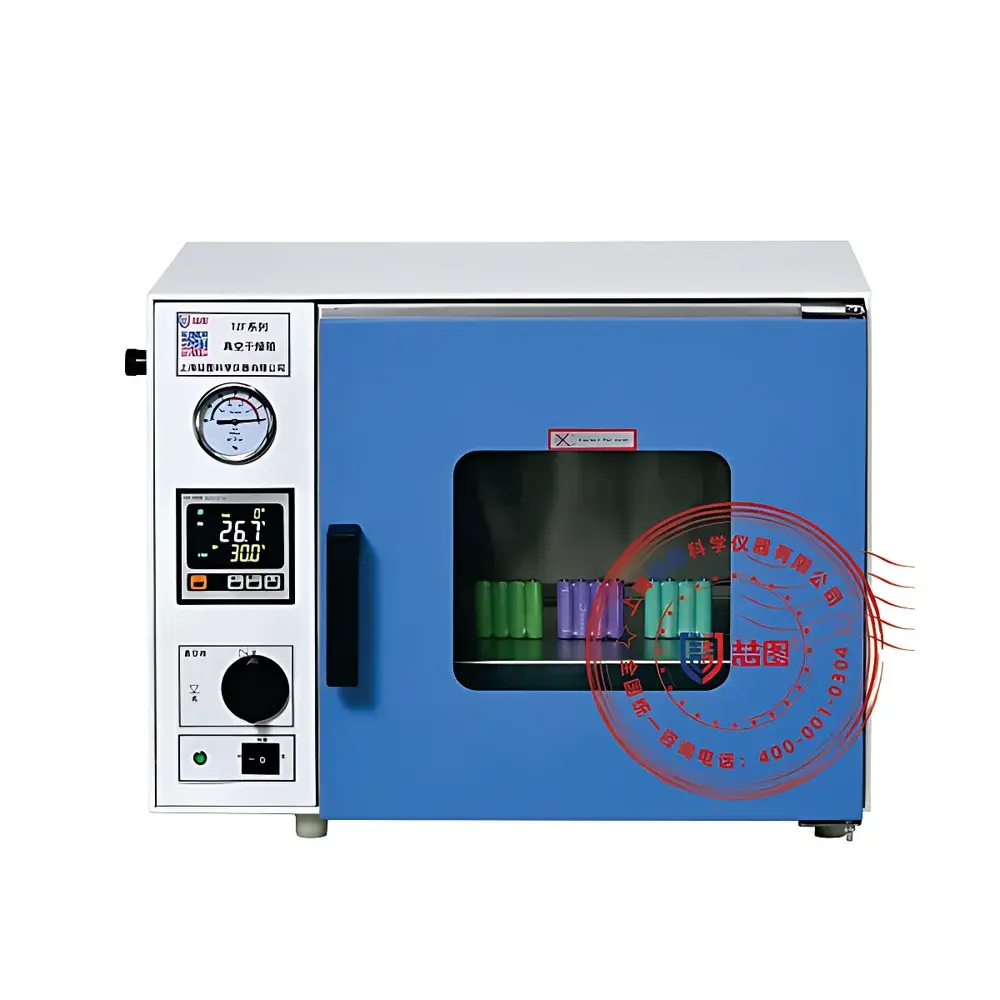

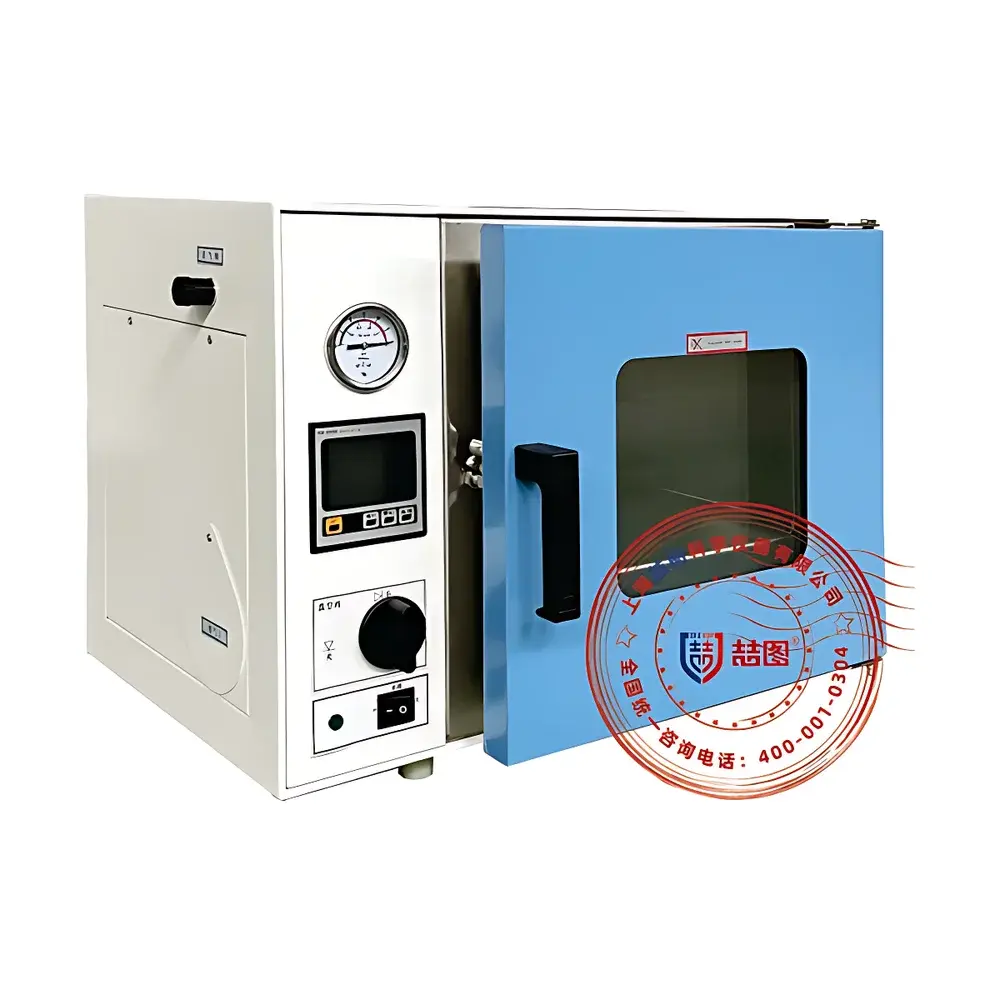

DRETOP TZF-6050 Vacuum Drying Oven

Overview

The DRETOP TZF-6050 Vacuum Drying Oven is an engineered solution for controlled thermal processing under reduced-pressure conditions. It operates on the principle of vacuum-assisted dehydration—by evacuating ambient air via an external vacuum pump (optional), the system lowers the partial pressure of water vapor, thereby reducing the boiling point of solvents and moisture within samples. This enables gentle, low-temperature drying of thermally sensitive materials without thermal degradation, oxidation, or structural collapse. Designed for precision laboratory and industrial R&D environments, the TZF-6050 delivers stable, repeatable thermal profiles across its full operating range of RT+10 °C to 250 °C, with a certified temperature fluctuation of ±0.5 °C and uniformity of ±1 °C—meeting foundational requirements for ASTM E2207, ISO 17025-compliant calibration practices, and GLP-aligned process documentation.

Key Features

• Microprocessor-based PID temperature controller with programmable timer (1–9999 minutes), real-time over-temperature alarm, and automatic cut-off protection
• Large-format backlit LCD display showing simultaneous readings of setpoint, actual chamber temperature, vacuum status, and error codes for rapid diagnostics
• Robust 304 stainless steel inner chamber and reinforced double-layer tempered glass observation window for visual monitoring without vacuum break
• External four-side radiant heating architecture—eliminates internal heating element exposure to vacuum, preventing arcing, carbon deposition, or outgassing contamination
• Two-stage rotary zinc-alloy door latch with high-compression silicone gasket ensures long-term vacuum integrity at ≤133 Pa
• Multi-layer thermal insulation using high-density glass fiber minimizes heat loss and improves energy efficiency (typical standby power draw <15 W)
• Comprehensive safety suite: earth leakage circuit breaker (ELCB), overcurrent protection, thermal fuse backup, and non-volatile parameter memory to retain settings after power interruption

Sample Compatibility & Compliance

The TZF-6050 supports diverse sample geometries and chemistries—including powders, granules, thin-film coatings, semiconductor wafers, lithium-ion battery electrodes, pharmaceutical APIs, biological tissues, and polymer composites. Its inert stainless steel chamber and absence of internal heating elements prevent cross-contamination and enable compatibility with oxygen-sensitive or solvent-laden specimens. The unit conforms to IEC 61010-1:2010 for electrical safety in laboratory equipment and supports integration into ISO 9001/14001 quality management systems. Optional inert gas inlet (N₂ or Ar) allows purging prior to vacuum draw—critical for pyrophoric or hydrolysis-prone materials per USP and FDA 21 CFR Part 11 data integrity guidelines when paired with optional RS485 or USB logging interfaces.

Software & Data Management

While the base model features standalone microcontroller operation, the TZF-6050 is fully compatible with DRETOP’s optional P-series programmable controllers and VT-series color touchscreens (sold separately). These modules support multi-step ramp-soak profiles, vacuum hold sequencing, and time-stamped event logging. When configured with RS485 Modbus RTU or USB data export, the oven generates audit-ready CSV files traceable to user ID, timestamp, setpoints, and actual chamber conditions—enabling compliance with electronic record requirements under 21 CFR Part 11. Optional embedded printers provide hard-copy batch records; optional cold traps and oil mist filters extend vacuum pump service life in high-moisture applications.

Applications

• Semiconductor manufacturing: Pre-bake of photoresists, post-develop moisture removal, and wafer-level encapsulant curing
• Lithium battery R&D: Electrode drying prior to cell assembly, separator moisture control (<20 ppm H₂O), and electrolyte impregnation stabilization
• Pharmaceutical development: Lyophilization pre-drying, excipient dehydration, and stability testing per ICH Q1A(R3)
• Materials science: Sol-gel drying, MOF activation, aerogel synthesis, and ceramic green-body densification
• Environmental testing: Soil moisture analysis (ASTM D2216), sludge solids content determination, and filter media conditioning
• Academic research: Low-temperature polymer annealing, nanomaterial solvent exchange, and biomimetic scaffold fabrication

FAQ

What vacuum level does the TZF-6050 achieve, and which pump is recommended?
The chamber achieves ≤133 Pa (1 Torr) with a standard 20 m³/h rotary vane pump (e.g., DRETOP V-20). For faster evacuation or lower ultimate pressure, a corrosion-resistant diaphragm pump (VGM series) or two-stage oil-sealed pump is advised.
Can the TZF-6050 operate under inert gas atmosphere?
Yes—when equipped with the optional inert gas inlet valve and mass flow controller, it supports nitrogen or argon purging before vacuum draw and during thermal hold phases.
Is the temperature calibration traceable to national standards?
The unit ships with factory calibration certificate (NIST-traceable reference sensor). Users may perform field verification using a Class A PT100 probe per ISO/IEC 17025 procedures.
How many shelves are included, and are they adjustable?
Two removable, height-adjustable 304 stainless steel wire shelves are supplied. Load capacity per shelf: 15 kg (uniformly distributed).
Does the oven support remote monitoring or network integration?
Via optional RS485 interface and Modbus protocol, it integrates with SCADA, LIMS, or building management systems. Ethernet or Wi-Fi modules are available through OEM customization.
