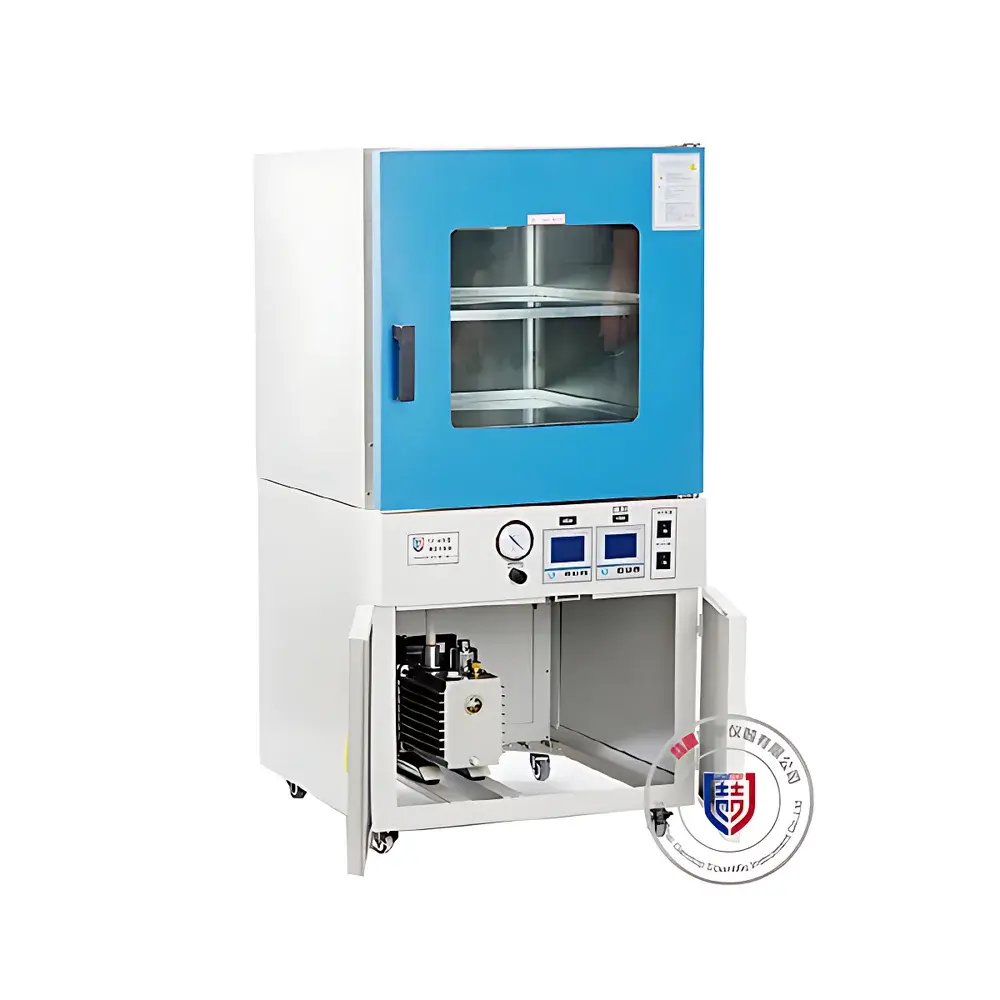

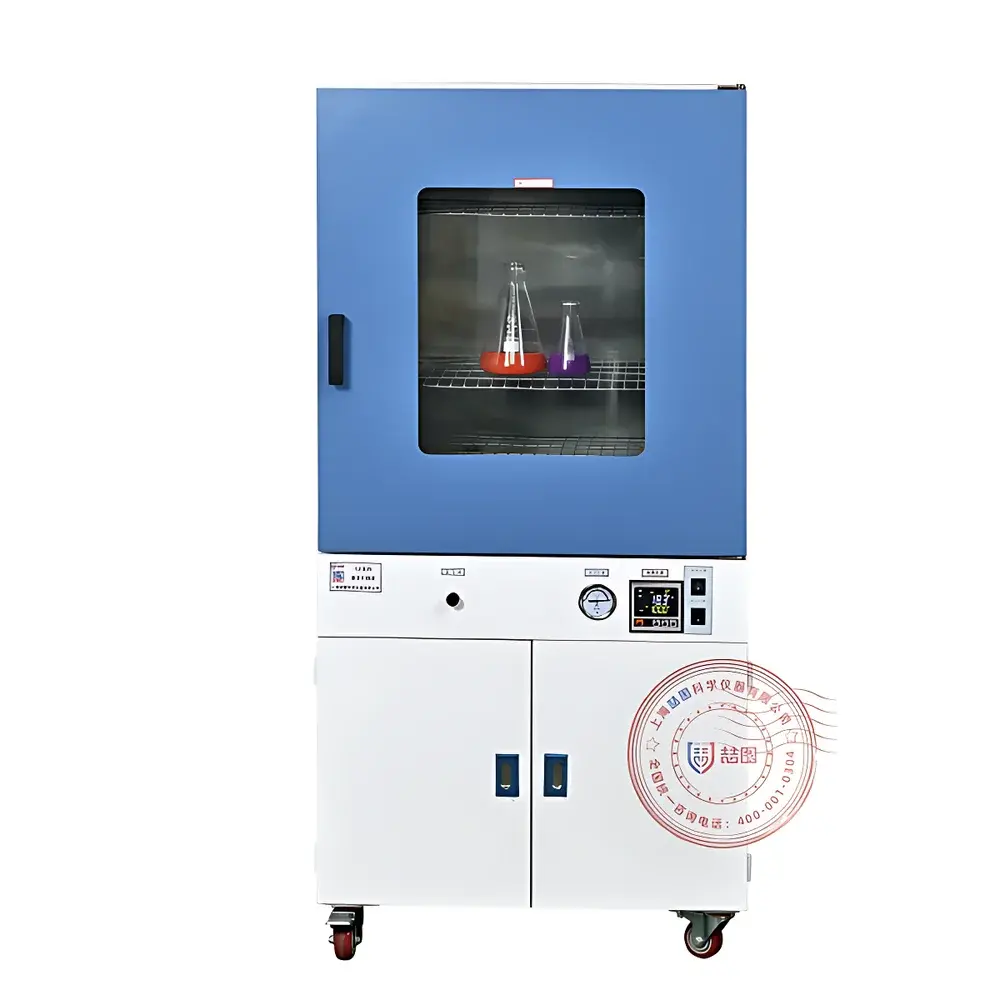

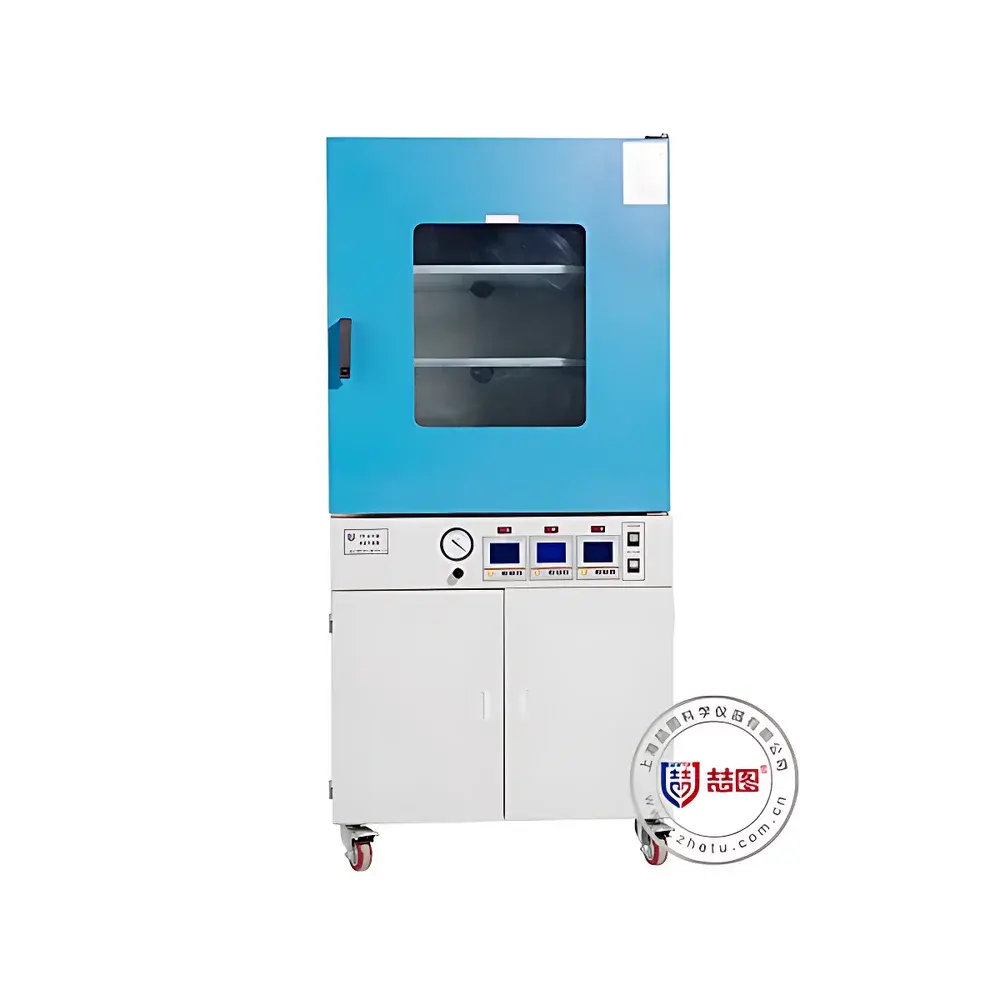

DRETOP TZF-6210LU Vertical Vacuum Drying Oven

Overview

The DRETOP TZF-6210LU is a vertically configured, high-performance vacuum drying oven engineered for precise thermal processing under controlled low-pressure environments. It operates on the principle of reducing ambient pressure inside the chamber via an integrated or externally coupled vacuum system—typically a rotary vane or diaphragm pump—to lower the boiling point of volatile components, thereby enabling gentle, oxidation-free dehydration of thermally sensitive, hygroscopic, or chemically reactive materials. Unlike conventional convection ovens, this system eliminates convective heat transfer and atmospheric oxidation, making it indispensable for applications requiring residue-free drying, solvent removal without decomposition, or inert atmosphere conditioning. Designed for laboratory-scale R&D and pilot production, the TZF-6210LU supports stable operation up to 300°C with microprocessor-based P.I.D. temperature control, ensuring reproducible thermal profiles across extended dwell times. Its vertical architecture optimizes floor space while accommodating larger sample loads—particularly relevant in semiconductor packaging, lithium-ion battery electrode drying, and pharmaceutical lyophilization pre-treatment workflows.

Key Features

• Robust 304 stainless steel inner chamber with seamless welded construction, resistant to corrosion from organic solvents, mild acids, and alkaline residues.
• Four-side external radiant heating system—mounted within the cavity walls—eliminates vacuum arcing, carbon deposition, and localized hot spots common in internal heater configurations.
• High-clarity, double-layer tempered glass observation window with anti-fog coating enables real-time visual monitoring without compromising vacuum integrity.
• Three adjustable, perforated stainless steel shelving trays with tool-free height positioning; each tray supports uniform airflow distribution and easy cleaning.
• Intelligent microcomputer controller featuring dual-display LCD interface: one channel for setpoint/actual temperature (0.1°C resolution), another for vacuum level (when paired with optional digital vacuum gauge).
• Comprehensive safety architecture including independent overtemperature cut-off, leakage current protection, thermal fuse backup, and non-volatile memory retention for parameter recovery after power interruption.
• Ergonomic dual-stage rotary latch mechanism with EPDM silicone door gasket ensures long-term sealing performance at ≤133 Pa, validated per ISO 2859-1 sampling standards.
• Energy-efficient fiberglass insulation layer (≥80 mm thickness) minimizes thermal loss and maintains surface temperatures below 45°C during continuous 250°C operation.

Sample Compatibility & Compliance

The TZF-6210LU accommodates diverse sample formats—including wafers, pouch cells, gel matrices, powder compacts, biological tissues, and coated substrates—without mechanical agitation or airflow-induced displacement. Its vacuum-compatible design complies with core requirements for GLP and GMP-aligned laboratories: traceable temperature calibration (per ASTM E220), documented alarm logging, and configurable hold/timer functions supporting repeatable process validation. While not intrinsically rated for Class I Div 1 hazardous locations, the unit may be operated in conjunction with nitrogen purge accessories (optional inert gas inlet valve) to meet OSHA 1910.1200 and IEC 60079-0 compatibility expectations for flammable solvent handling. All electrical components conform to CE/EN 61010-1 safety directives, and the stainless steel chamber meets USP extractables criteria for pharmaceutical contact surfaces.

Software & Data Management

The embedded controller supports time-stamped event logging (temperature deviation, door opening, vacuum breach) with export capability via USB flash drive (optional). When equipped with RS485 interface and Modbus RTU protocol, the oven integrates into centralized SCADA or LIMS platforms for automated batch record generation compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails, and user-level access control. Optional color touchscreen upgrade (P-series HMI) adds graphical trend visualization, multi-step program scheduling (up to 32 segments), and CSV-formatted data archiving. All firmware revisions are field-upgradable via secure firmware signing, maintaining traceability throughout equipment lifecycle.

Applications

• Semiconductor manufacturing: Pre-bake of photoresist-coated wafers and moisture removal from die-attach adhesives prior to wire bonding.
• Lithium-ion battery R&D: Electrode drying under vacuum-nitrogen to suppress LiPF₆ hydrolysis and ensure SEI layer stability.
• Pharmaceutical development: Solvent exchange and residual moisture reduction in amorphous solid dispersions prior to milling or tableting.
• Materials science: Degassing of polymer composites, ceramic green bodies, and MOF precursors to prevent blistering during sintering.
• Environmental testing labs: Conditioning of air filters, sorbent tubes, and passive samplers per EPA Method TO-17 protocols.
• Academic research: Controlled pyrolysis of biomass derivatives, catalyst activation under reducing atmospheres, and crystal growth substrate preparation.

FAQ

What vacuum level can the TZF-6210LU achieve without an external pump?

The unit does not include an integrated vacuum pump; performance depends on the selected external pump. With a standard 4 L/s rotary vane pump, ≤133 Pa is attainable within 30 minutes under no-load conditions.
Is the chamber suitable for use with aggressive solvents like chloroform or DMF?

Yes—the 304 stainless steel chamber and fluorosilicone door seal resist swelling or degradation when exposed to halogenated and polar aprotic solvents, provided condensate is removed via optional cold trap.
Can temperature and vacuum be independently programmed and synchronized?

Not natively—the base controller manages only temperature ramp/soak cycles. Full vacuum-temperature co-programming requires the optional P-series touchscreen controller with analog vacuum feedback input.
Does the oven support IQ/OQ documentation packages for regulated environments?

DRETOP provides factory-assembled qualification templates aligned with ISO 14644-1 cleanroom integration and ASTM F2476 thermal mapping procedures; site-specific PQ must be executed by end-user QA personnel.
What maintenance intervals are recommended for long-term reliability?

Vacuum gauge calibration annually, door gasket inspection every 6 months, and pump oil replacement every 500 operational hours (for oil-lubricated pumps); no scheduled maintenance required for heating elements or controllers.
