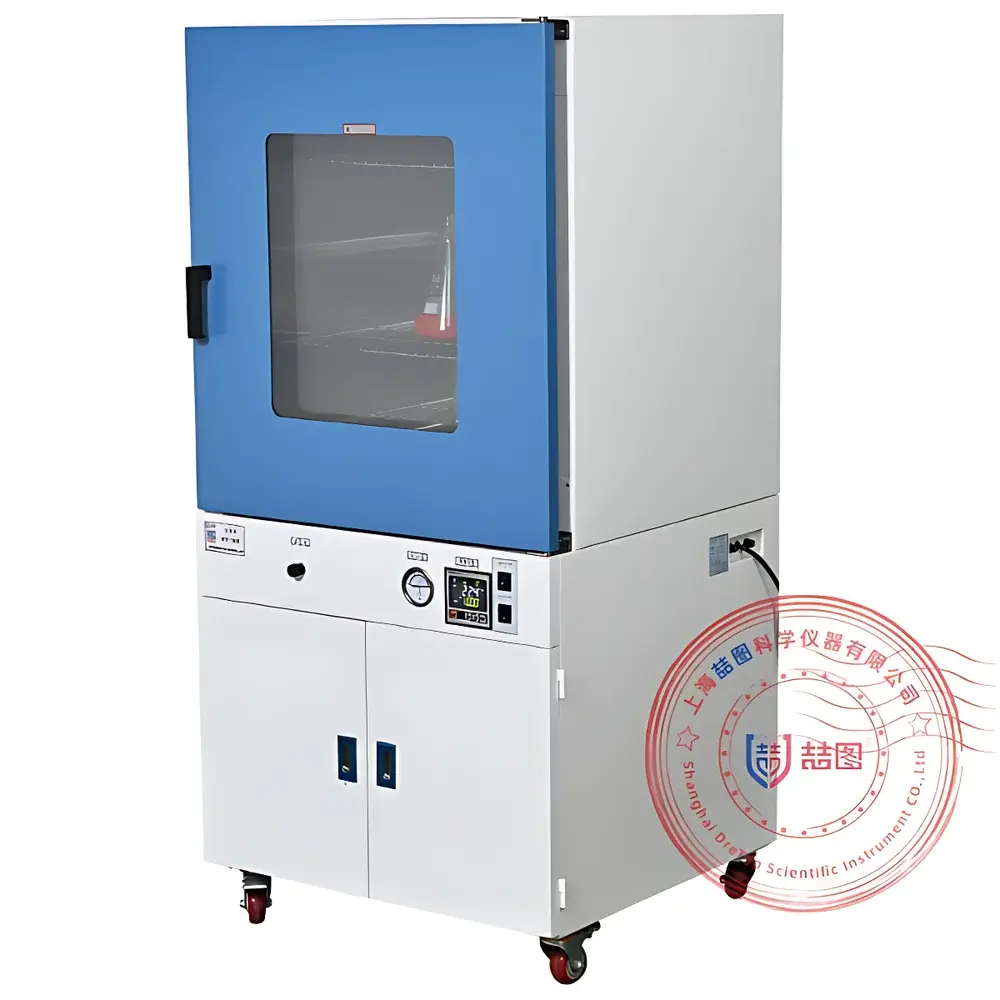

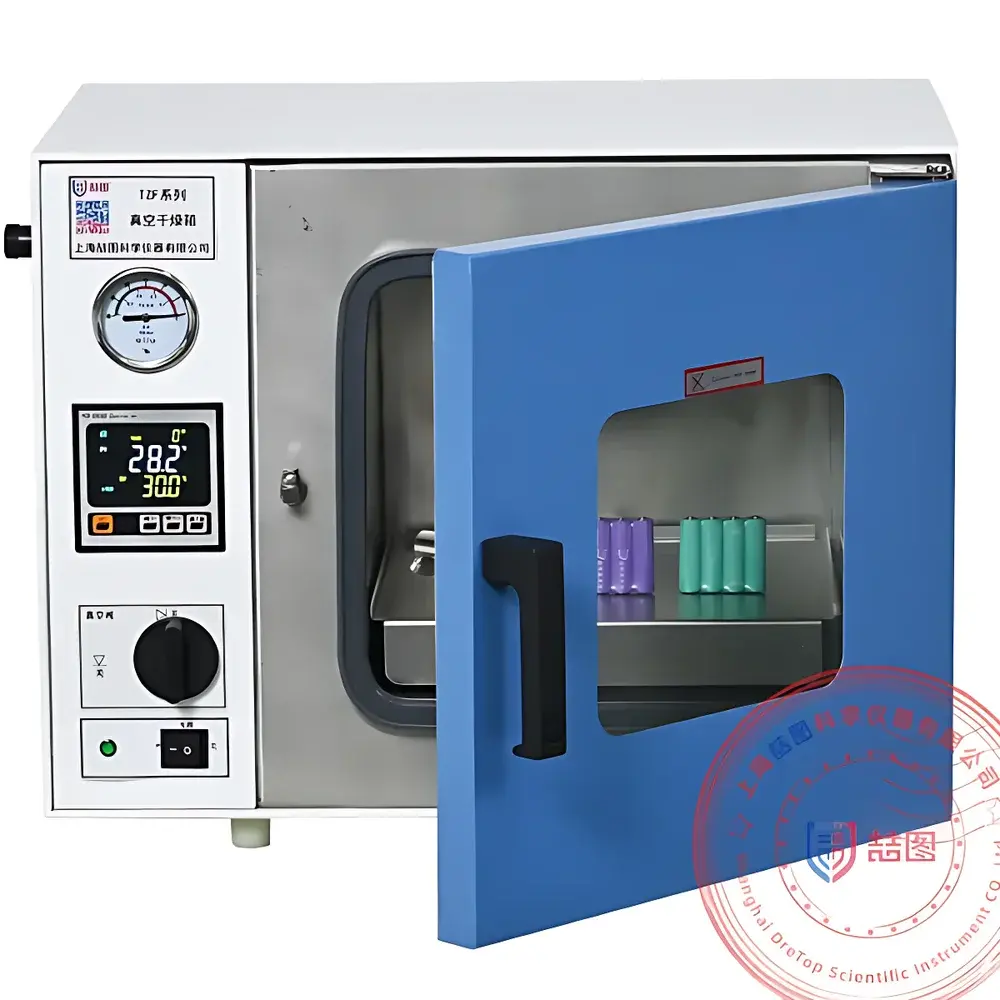

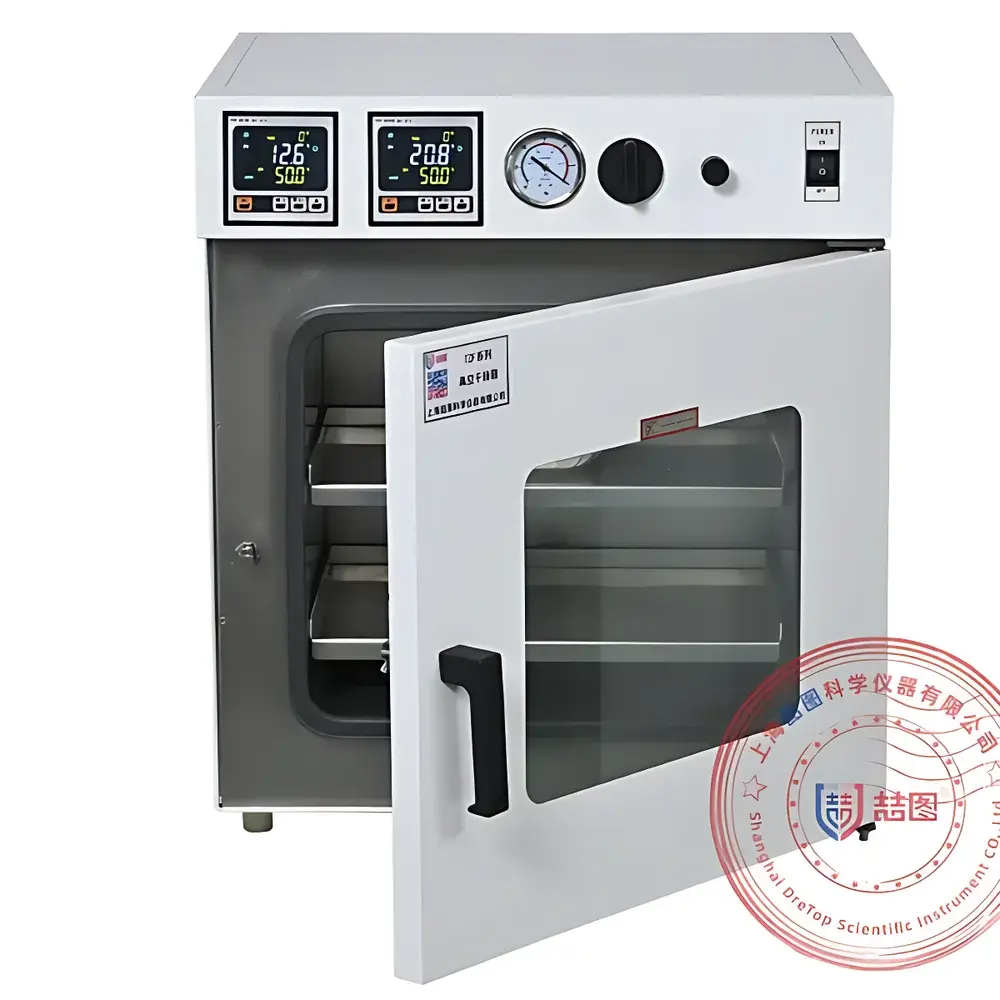

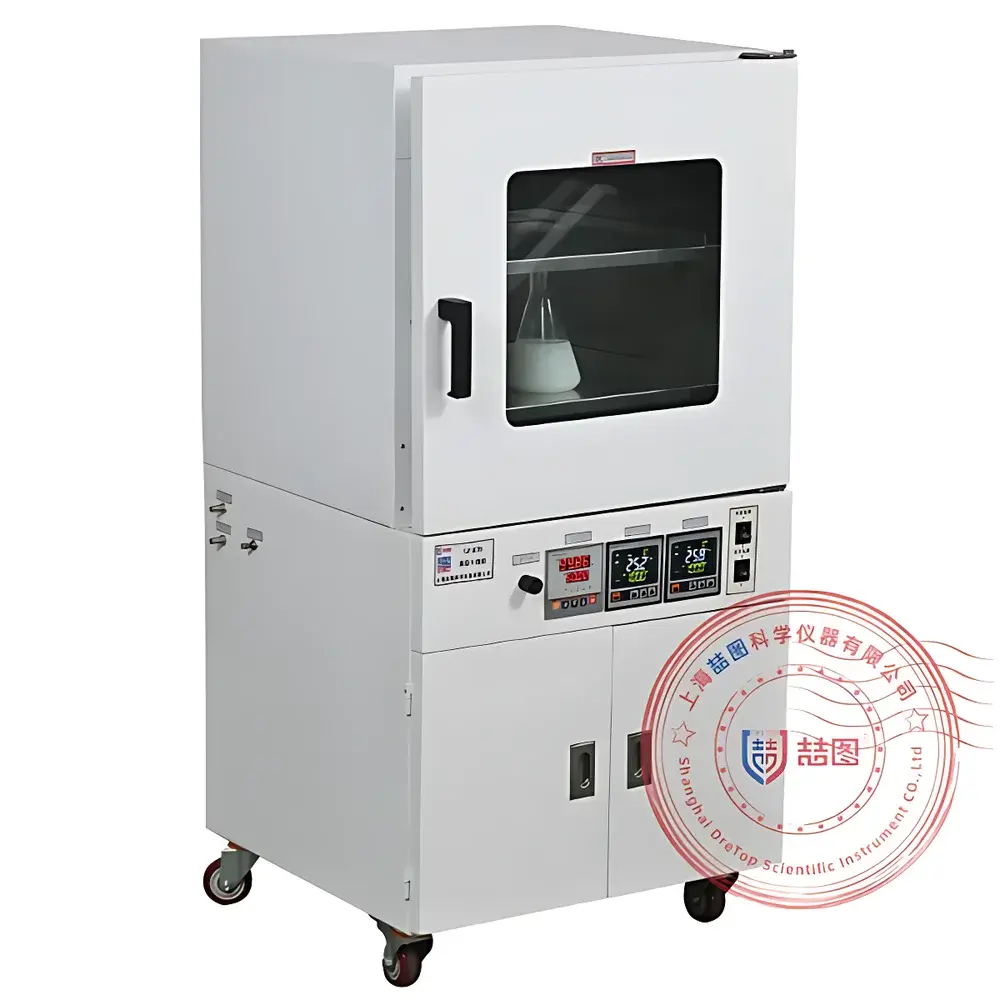

DRETOP TZF-6630L Vacuum Drying Oven

Overview

The DRETOP TZF-6630L Vacuum Drying Oven is an engineered solution for precise thermal processing under controlled low-pressure environments. It operates on the fundamental principle of vacuum-assisted drying: by evacuating ambient air via integrated vacuum pump interface (pump sold separately), the boiling point of volatile solvents and moisture is significantly lowered—enabling efficient dehydration at reduced temperatures. This mitigates thermal degradation risks for heat-sensitive materials such as pharmaceutical actives, biological macromolecules, lithium-ion battery electrode slurries, and optoelectronic thin films. Unlike conventional convection ovens, the TZF-6630L eliminates oxidative pathways during drying by maintaining an inert or near-inert vacuum atmosphere (≤133 Pa), ensuring chemical integrity, preventing surface oxidation, and minimizing residual solvent traces. Its 640 L working volume (800 × 800 × 1000 mm internal chamber) supports large-format substrates, stacked wafers, or multi-batch sample arrays—making it suitable for R&D scale-up, QC release testing, and pilot-line thermal conditioning in regulated environments.

Key Features

• External heating architecture with forced-air circulation: Ensures uniform thermal distribution across the chamber while eliminating internal heating elements—facilitating unobstructed loading of oversized or irregularly shaped components (e.g., LED modules, ceramic molds, long glass tubes).
• 304 stainless steel seamless inner chamber: Corrosion-resistant, non-porous, and compliant with ISO 14644-1 Class 7 cleanroom-compatible surface finish; smooth interior walls simplify cleaning validation per GMP Annex 1 and FDA 21 CFR Part 211.
• High-visibility dual-layer tempered glass observation window: Enables real-time visual monitoring without vacuum break; integrated anti-fog coating maintains optical clarity during prolonged low-temperature drying cycles.
• Microprocessor-based PID temperature controller with 0.1°C resolution and ±0.5°C stability: Supports programmable ramp-soak profiles, over-temperature cut-off, and auto-diagnostic fault code display (e.g., E01 = sensor open circuit, E02 = heater failure).
• Dual-stage mechanical door lock with EPDM silicone gasket: Achieves reliable vacuum sealing up to 133 Pa; zinc-alloy ergonomic handle ensures consistent compression force across full door perimeter.
• Thermal insulation: 100 mm thick high-density glass fiber blanket between outer shell and inner chamber reduces standby heat loss by >40% versus standard designs—contributing to energy efficiency and stable ambient operating conditions (RT+5°C to 45°C).

Sample Compatibility & Compliance

The TZF-6630L accommodates diverse sample geometries and material classes without cross-contamination risk. Powdered, granular, or nanoparticle-based samples remain undisturbed during vacuum drying due to absence of internal airflow—critical for catalysts, metal-organic frameworks (MOFs), and lyophilized biologics. Its external heating design avoids direct radiant exposure, preserving structural fidelity of polymer composites and photoresist-coated wafers. The unit meets mechanical safety requirements per IEC 61010-1 and electromagnetic compatibility per EN 61326-1. Optional accessories—including inert gas inlet valves (N₂/Ar), cold traps (−40°C), oil mist filters, and RS485 Modbus RTU interfaces—support integration into automated manufacturing execution systems (MES) and compliance with 21 CFR Part 11 electronic record/audit trail requirements when paired with validated software.

Software & Data Management

While the base configuration features a high-contrast LCD interface with three-color parameter display (green = normal operation, yellow = warning, red = alarm), optional upgrades include a 7-inch color touchscreen HMI with embedded data logging (up to 10,000 records), USB export, and configurable alarm thresholds. All temperature and vacuum events are timestamped with millisecond precision. When connected to a supervisory SCADA system via RS485, the oven supports remote start/stop, setpoint adjustment, and real-time trend visualization—enabling alignment with GLP/GMP documentation workflows. Audit trails include operator ID, parameter changes, door opening events, and vacuum recovery time—fully traceable for regulatory inspections.

Applications

• Semiconductor fabrication: Pre-bake of photomasks, post-develop hard bake of spin-coated resists, and desorption of adsorbed water from SiC/GaN substrates.
• Lithium battery R&D: Solvent removal from NMC/LFP slurry-coated electrodes prior to calendaring; moisture control in solid-state electrolyte synthesis.
• Pharmaceutical development: Residual solvent reduction in API crystallization batches; stabilization of thermolabile peptides and monoclonal antibodies.
• Materials science: Dehydration of hydrogels and aerogels; outgassing of ceramic green bodies before sintering; aging studies of encapsulated OLED layers.
• Environmental testing labs: Gravimetric moisture analysis per ASTM D2231 and ISO 11893-1; accelerated weathering preconditioning of polymer coatings.

FAQ

What vacuum pump is recommended for optimal performance with the TZF-6630L?

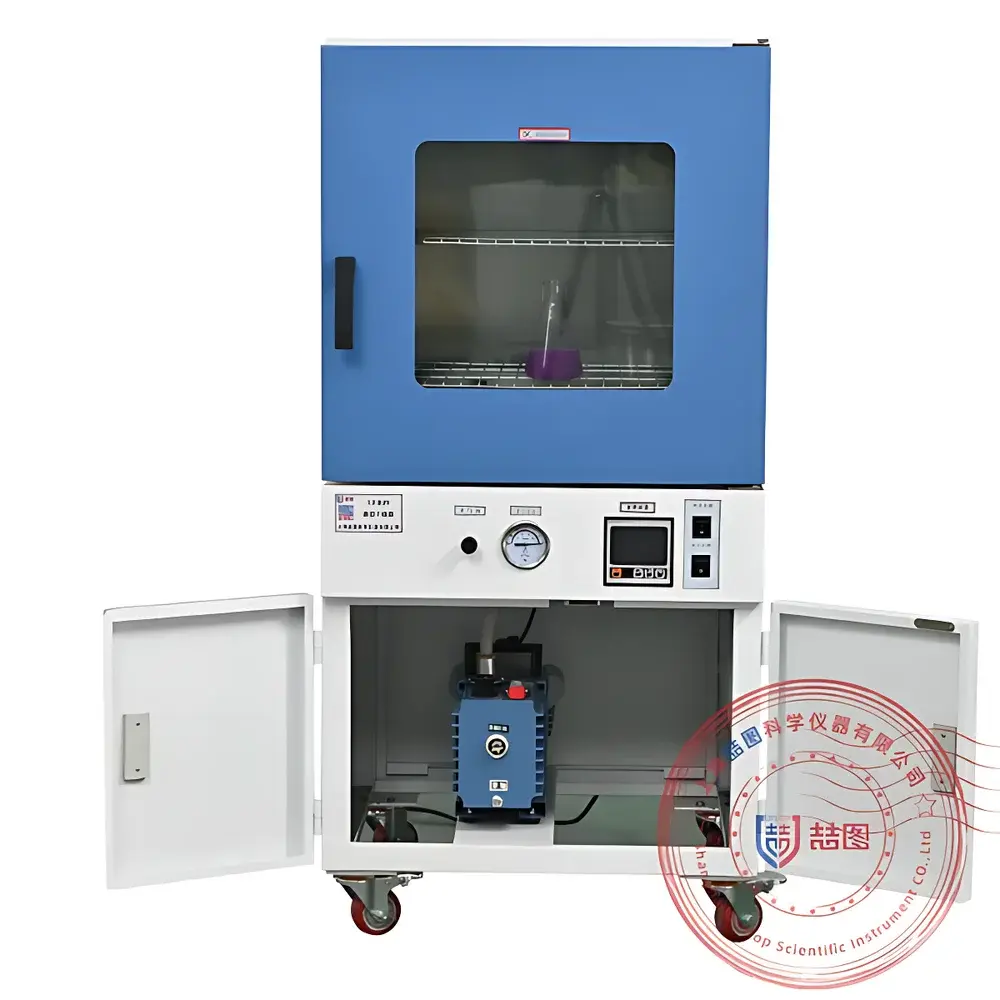

A two-stage rotary vane pump rated ≥24 m³/h (e.g., DRETOP D24 or equivalent Edwards RV8) is advised to achieve and maintain ≤133 Pa within the 640 L chamber volume. Oil-free scroll pumps may be used where hydrocarbon contamination must be avoided.
Can this oven operate under inert gas purge conditions?
Yes—optional inert gas inlet kits allow continuous nitrogen or argon purging during vacuum hold phases, enabling controlled partial-pressure drying for oxygen-sensitive organometallics or perovskite precursors.
Is the internal chamber accessible for cleaning validation in pharmaceutical use?
Absolutely—the fully welded 304 stainless steel chamber has zero crevices, no internal heaters or wiring conduits, and a removable pull-out shelf system compatible with swab sampling and rinse recovery protocols per USP .
How does external heating improve temperature uniformity compared to internal heating designs?
External heating eliminates localized hot spots from embedded resistive wires; combined with rear-mounted centrifugal fans and baffle-guided airflow, it achieves ±1.5°C uniformity across the full chamber volume—verified per ASTM E2203 test method.
Does the unit support IQ/OQ/PQ documentation packages?
DRETOP provides factory calibration certificates (traceable to NIST), electrical safety test reports, and customizable validation templates aligned with ISO/IEC 17025 and EU GMP Annex 15—available upon request for qualified customers.
