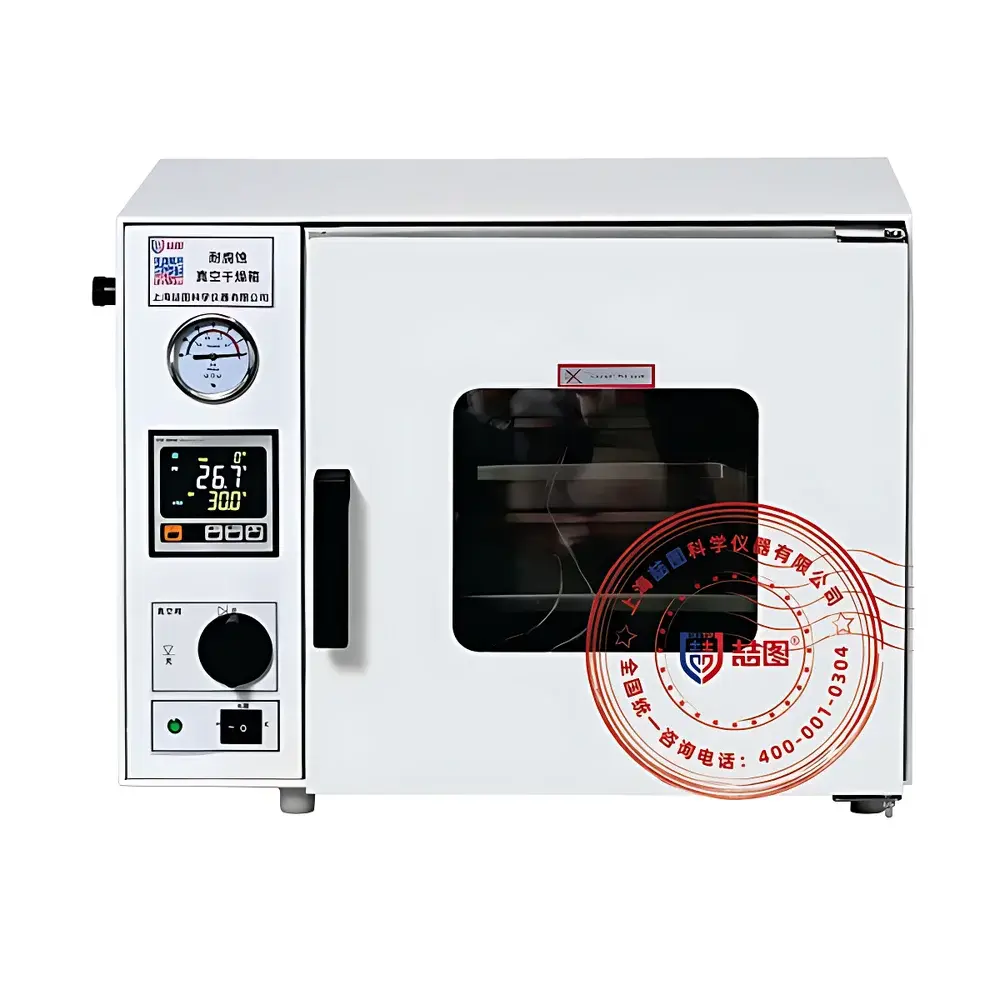

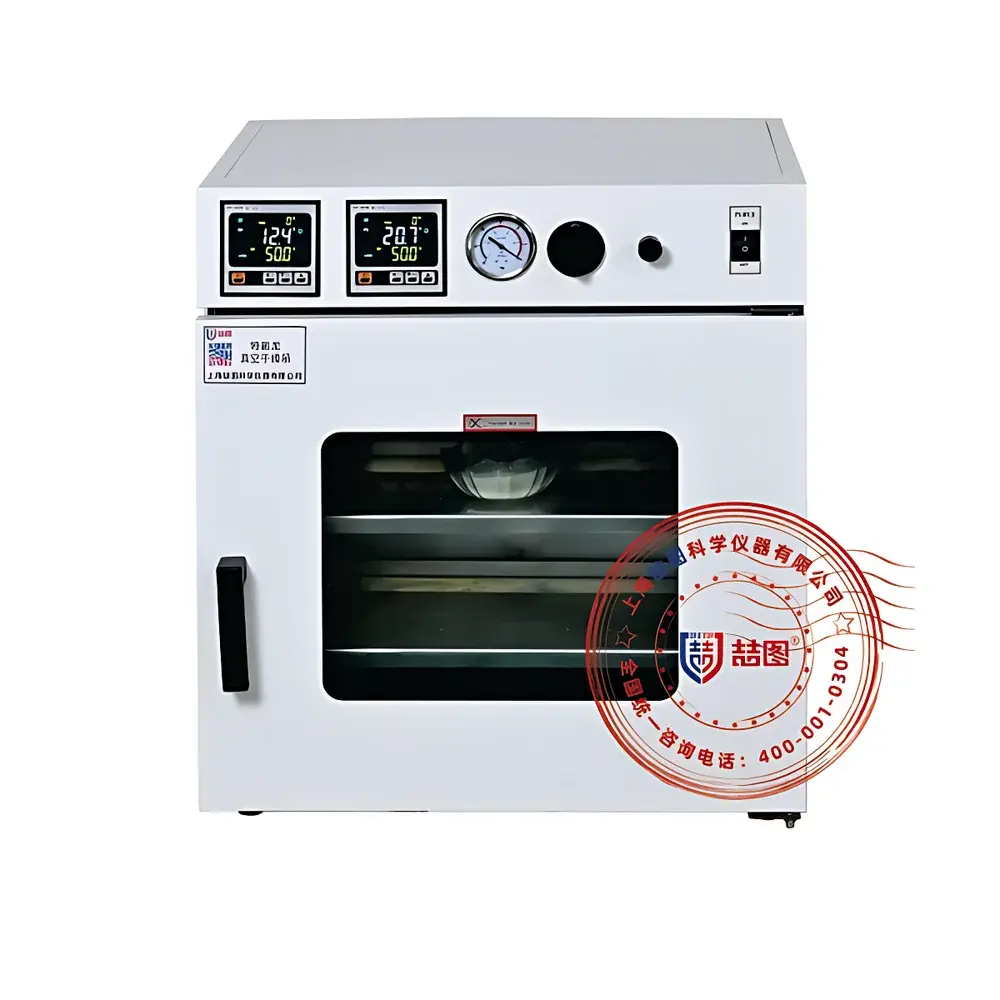

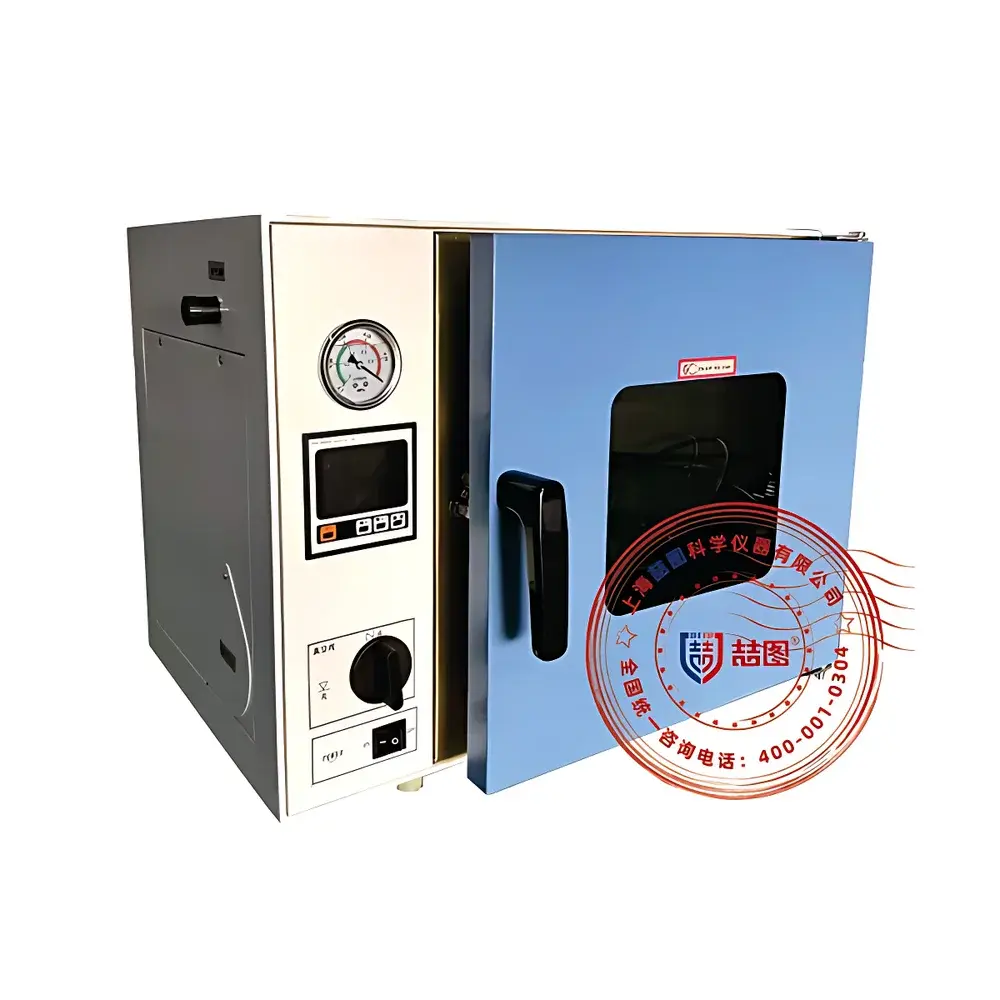

DRETOP TZF-90AVC Corrosion-Resistant Vacuum Drying Oven

Overview

The DRETOP TZF-90AVC Corrosion-Resistant Vacuum Drying Oven is an engineered solution for thermal processing of chemically aggressive, moisture-sensitive, or oxidation-prone materials under controlled low-pressure environments. It operates on the principle of vacuum-assisted thermal desorption: by reducing ambient pressure inside the chamber, the boiling point of solvents and volatile components is significantly lowered—enabling effective drying, degassing, and dehydration at temperatures well below atmospheric boiling points. This capability is critical for preserving thermolabile compounds (e.g., APIs, biologics, catalysts), preventing oxidative degradation, inhibiting hydrolysis, and eliminating residual solvents without thermal stress. The oven’s structural integrity and process reliability stem from its dual-material architecture: a fully welded 316L stainless steel inner chamber—resistant to pitting, crevice corrosion, and intergranular attack—and a robust external enclosure designed for long-term operation in laboratories handling halogenated acids, strong alkalis, oxidizing agents, and polar organic solvents.

Key Features

• 316L stainless steel chamber with electropolished finish, providing superior resistance to HCl, HNO₃, H₂SO₄, NaOH, KOH, NH₃(aq), and common organic solvents including acetone, methanol, and ethyl acetate.
• Forced-air circulation heating system with PID-controlled resistive elements ensures rapid ramp rates, ±1 °C temperature uniformity across the 90 L working volume, and stable setpoint maintenance over extended cycles (≥72 h).
• High-resolution 7-inch TFT-LCD touchscreen interface with intuitive navigation, real-time graphical display of chamber temperature/vacuum trends, and password-protected parameter locking for SOP compliance.
• Dual-layer anti-fog tempered glass observation window with integrated resistive heating, enabling unobstructed visual monitoring under high-humidity or sub-zero condensation conditions without compromising vacuum integrity.
• Comprehensive safety architecture: independent overtemperature cut-off (mechanical + electronic), vacuum loss alarm, sensor fault diagnostics, power-failure memory retention, and automatic restart sequence upon recovery.

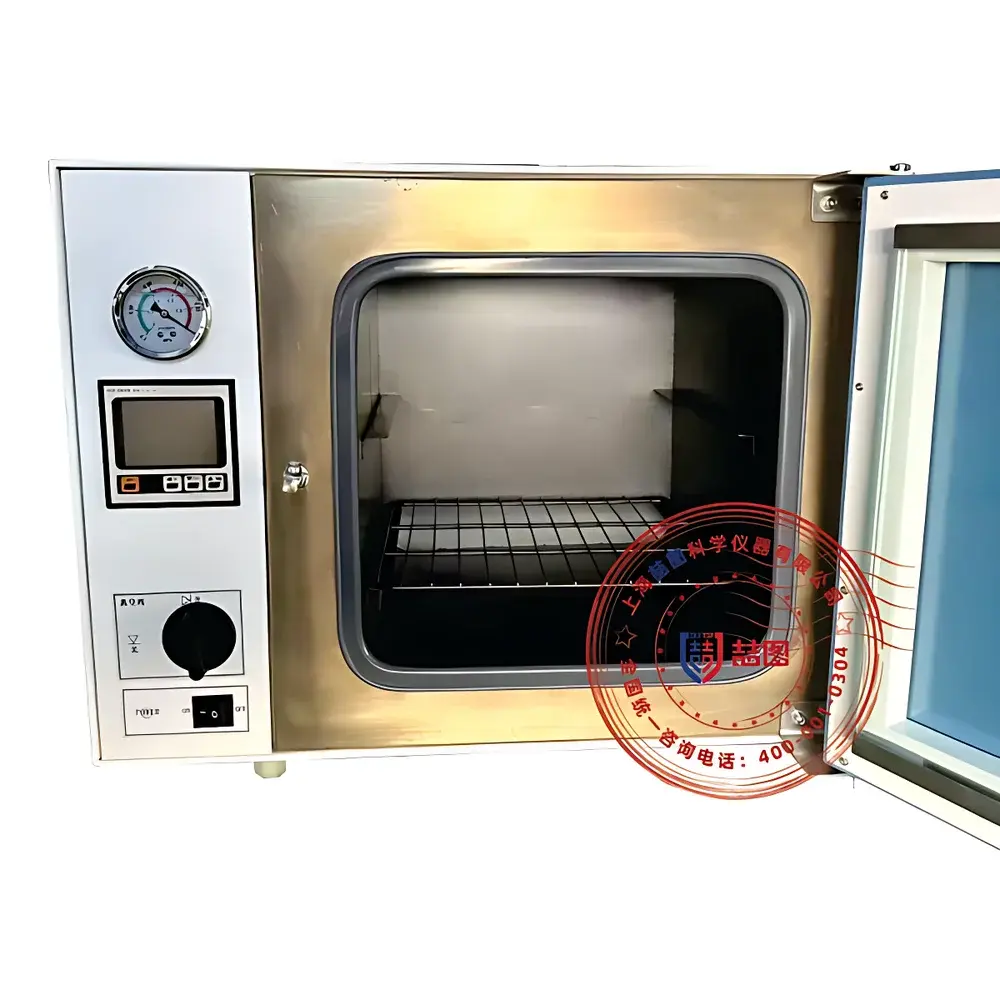

• Modular shelving system with three adjustable 316L shelves (standard); optional internal heated shelves available for enhanced thermal coupling with low-conductivity samples (e.g., polymer films, ceramic powders).

Sample Compatibility & Compliance

The TZF-90AVC is validated for use with corrosive, hygroscopic, pyrophoric, and ultra-high-purity materials requiring ISO Class 5–7 cleanroom-equivalent handling. Its 316L construction meets ASTM A240/A240M specifications for corrosion-resistant chromium-nickel-molybdenum stainless steels. For applications demanding lower metallic leachables—such as semiconductor wafer pre-bake, nuclear fuel pellet sintering support, or trace-element reference material stabilization—optional PTFE or PFA-coated chamber variants (TRA/PFA series) are available, certified per ASTM D1711 and IEC 60684-3 for dielectric and chemical inertness. The system supports GMP/GLP-aligned workflows through optional IQ/OQ/PQ documentation packages, 21 CFR Part 11-compliant audit trails (with software upgrade), and configurable alarm logging with timestamped event records.

Software & Data Management

Standard firmware includes USB data export (CSV format) for temperature and vacuum profiles, with optional multi-segment programmable control (up to 32 steps, 99 cycles). The embedded controller logs all operational events—including door openings, vacuum pump activation/deactivation, temperature deviations >±0.3 °C, and safety interlock triggers—with time/date stamps and operator ID fields. When paired with DRETOP’s optional LabLink™ PC software (Windows 10/11), users gain remote monitoring via Ethernet, automated report generation (PDF/Excel), trend analysis with statistical process control (SPC) overlays, and integration into LIMS or MES platforms via Modbus TCP or OPC UA protocols. All data archives are stored in non-volatile memory with write-protection and cyclic overwrite prevention.

Applications

• Pharmaceutical & Biotech: Drying of acid-labile antibiotics (e.g., β-lactams), alkaline-sensitive excipients, lyophilization pre-conditioning of monoclonal antibodies, and moisture removal from herbal extracts without Maillard browning.
• Energy Materials: Solvent removal from NMC cathode slurries and graphite anode coatings; dehydration of LiPF₆-based electrolytes; outgassing of solid-state battery electrolyte precursors under inert gas purge (N₂/Ar).
• Electronics & Semiconductors: Photoresist soft-bake and post-develop bake; moisture evacuation from PCB laminates prior to conformal coating; oxide layer stabilization on SiC wafers.
• Fine Chemicals & Catalysis: Activation of Pt/C, Pd/C, and Ru-based heterogeneous catalysts; solvent exchange in MOF synthesis; removal of THF or DMF from coordination polymers.
• Academic & Metrology Labs: Preparation of certified reference materials (CRMs) for ICP-MS analysis; conditioning of hygroscopic standards (e.g., KCl, MgSO₄); long-term storage stability studies of nanomaterials under inert vacuum.

FAQ

What vacuum level can the TZF-90AVC achieve, and how is it maintained?
The unit achieves ≤133 Pa (1 Torr) using its included light-duty corrosion-resistant oil-sealed rotary vane pump. Vacuum stability is ensured by a dual-valve isolation system, leak-tight chamber welds (helium leak-tested to ≤1×10⁻⁶ mbar·L/s), and automatic pressure regulation during hold phases.
Can the oven be used with inert gas purging?
Yes—standard N₂/Ar inlet and exhaust ports (¼” VCR fittings) enable vacuum-inert gas cycling. Optional mass flow controllers and residual oxygen analyzers (0–10 ppm range) are available for stringent O₂-sensitive processes.
Is the 316L chamber suitable for hydrofluoric acid exposure?
No—HF attacks stainless steel even at low concentrations. For HF-containing systems, DRETOP recommends the PFA-lined TRA-90VC-II variant, which demonstrates full resistance per ASTM D1711 Annex B testing.
Does the TZF-90AVC support validation documentation for regulated industries?
Yes—factory-issued IQ/OQ protocols (per ASTM E2500 and EU Annex 15), calibration certificates traceable to NIST standards, and complete component traceability files are available upon request.
What maintenance intervals are recommended for sustained performance?
Vacuum pump oil replacement every 500 operating hours; chamber gasket inspection every 6 months; annual verification of temperature uniformity (per ISO 14644-3) and vacuum leak rate using calibrated helium leak detector.
