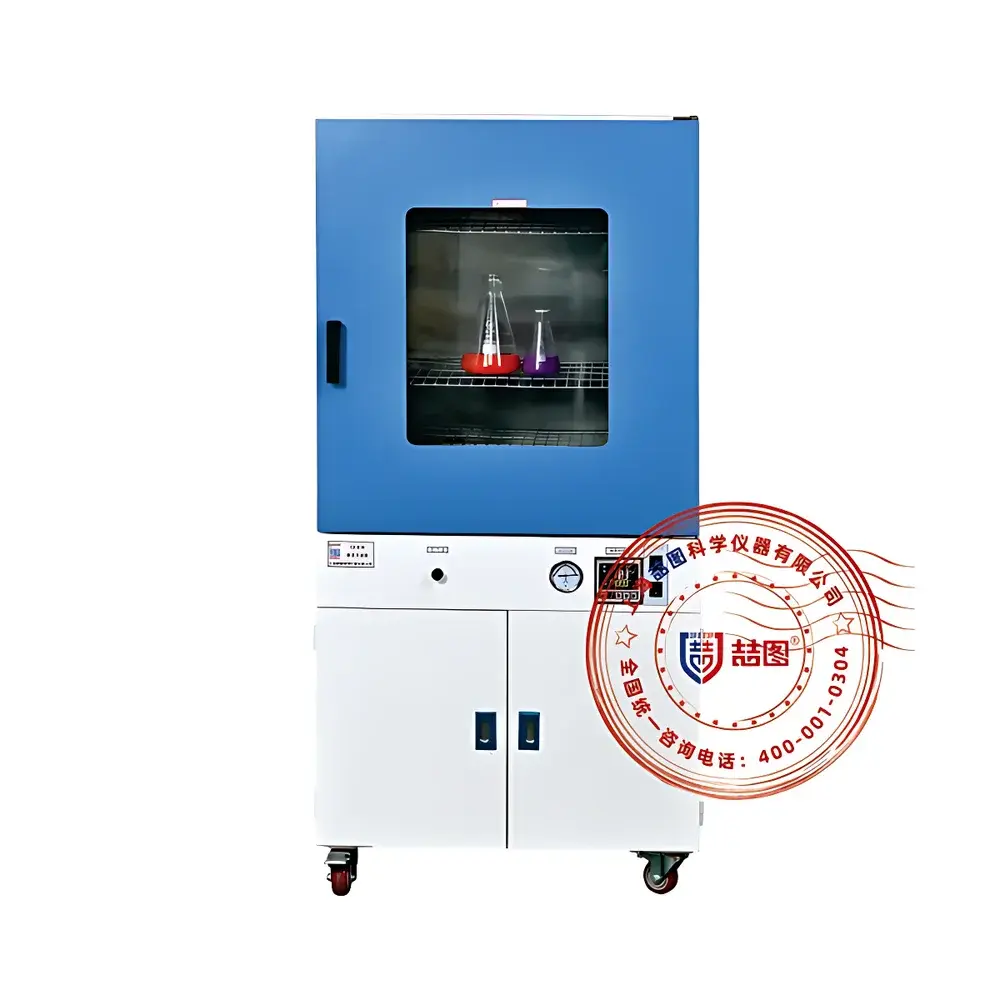

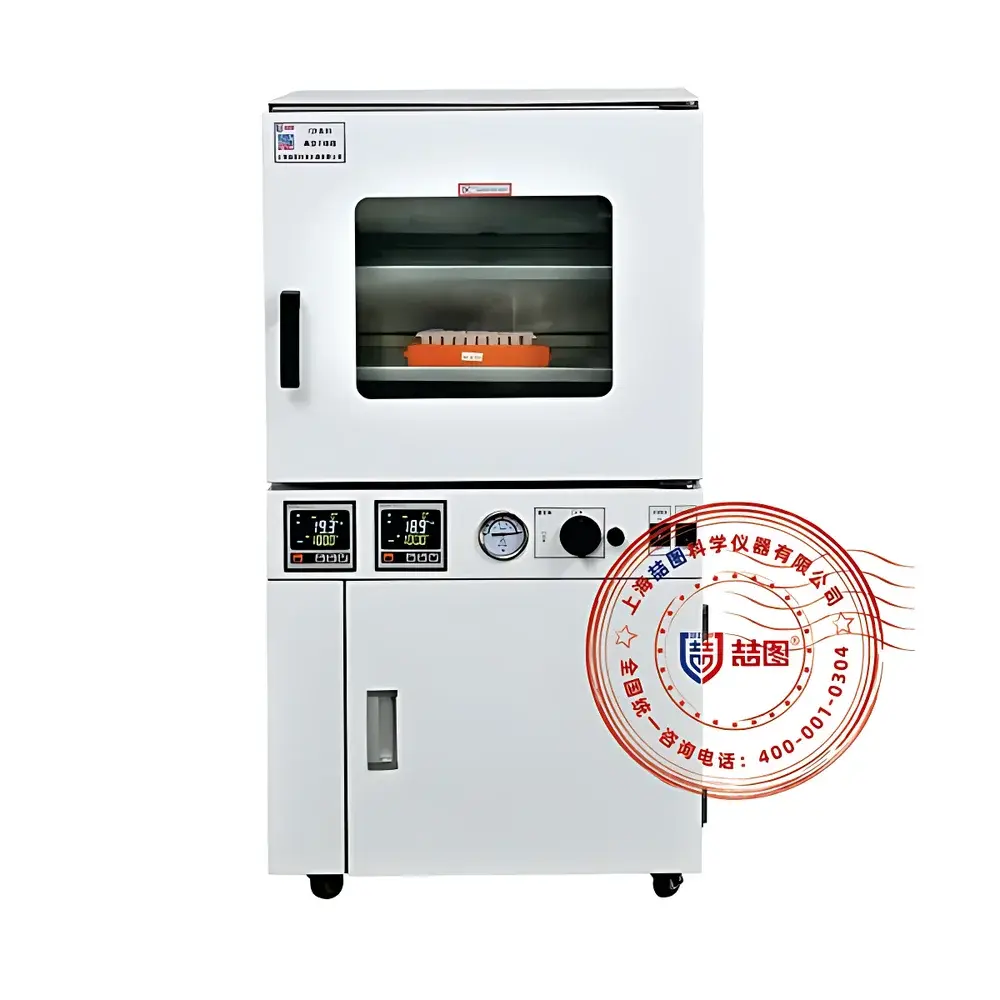

DRETOP TZS-6090V Programmable Vacuum Drying Oven

Overview

The DRETOP TZS-6090V Programmable Vacuum Drying Oven is an engineered solution for thermal processing under controlled low-pressure environments. It operates on the fundamental principle of vacuum-assisted drying—removing atmospheric gases via a mechanical vacuum pump to reduce vapor pressure, thereby lowering the boiling point of solvents and moisture and enabling gentle, efficient dehydration at reduced temperatures. This mechanism prevents thermal degradation of heat-sensitive materials such as polymers, pharmaceutical actives, biological samples, lithium-ion battery electrodes, and optoelectronic components. The unit maintains precise temperature control within a sealed stainless-steel–lined chamber while sustaining stable vacuum conditions down to ≤133 Pa (equivalent to ~1 Torr), placing it firmly in the low-to-medium vacuum range per ISO 27874 and ASTM E145 classifications. Its design complies with general laboratory safety standards for Class II electrical equipment (IEC 61010-1) and supports operation in GLP-compliant workflows where traceable process parameters are required.

Key Features

• Microprocessor-based PID temperature controller with 0.1°C resolution, ±0.5°C uniformity across the 450 × 450 × 450 mm working chamber, and programmable timer (1–9999 minutes)
• Dual-display digital interface showing real-time chamber temperature and vacuum pressure simultaneously; optional upgrade to color touchscreen HMI with data logging capability
• External four-side radiant heating architecture—eliminates internal heating element exposure to vacuum, preventing arcing, carbon deposition, or outgassing contamination
• Robust chamber construction: cold-rolled steel outer shell with electrostatic powder coating; interior chamber and pull-out wire shelves fabricated from corrosion-resistant cold-rolled steel
• Double-layer tempered glass observation window with silicone gasket seal and dual-stage zinc alloy latch system ensuring consistent vacuum integrity during extended cycles
• Comprehensive safety suite: over-temperature alarm and cut-off, short-circuit protection, ground-fault interruption, thermal insulation using high-density fiberglass between walls, and power-loss parameter retention memory

Sample Compatibility & Compliance

The TZS-6090V accommodates diverse sample formats—including powders, granules, thin-film coatings, wafers, PCB assemblies, gel matrices, and lyophilized formulations—without particle dispersion or oxidation due to its inert vacuum environment. Its ≤133 Pa operating range meets typical requirements for moisture removal in semiconductor packaging (J-STD-033), cathode drying in Li-ion battery manufacturing (ISO 12405-2), and residual solvent evaporation in API synthesis (ICH Q5C). While not intrinsically rated for hazardous area use, the oven’s non-sparking external heating design and grounded chassis support safe integration into ISO 14644-1 Class 7/8 cleanrooms. All electrical components conform to CE marking directives (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU), and firmware architecture allows audit-ready configuration for FDA 21 CFR Part 11–aligned environments when paired with optional RS485 communication and electronic signature-capable software.

Software & Data Management

Standard configuration includes a stand-alone microcontroller with local setpoint programming and event-triggered alarms. Optional upgrades include Ethernet-enabled PLC integration (Siemens S7-1200 compatible) and DRETOP’s proprietary D-VacLink™ software, which provides real-time graphing, CSV export, user-access-level management, and automated report generation compliant with ALCOA+ principles. When equipped with the VT-series color touchscreen, the system records timestamped vacuum/temperature profiles with ≥1 Hz sampling, stores ≥10,000 cycles internally, and supports USB data transfer (U盘 not included). Audit trails capture operator ID, parameter changes, alarm acknowledgments, and door-open events—fully traceable for GMP documentation (Annex 11) and internal quality audits.

Applications

• Electronics: De-gassing epoxy encapsulants, removing moisture from OLED substrates, and post-lithography bake stabilization
• Battery R&D: Drying NMC/LFP cathode slurries, pre-formation conditioning of solid-state electrolytes, and separator film annealing
• Pharmaceuticals: Solvent removal from sterile-filtered injectables, excipient drying prior to tableting, and stability study sample conditioning per ICH Q1A(R3)
• Materials Science: Outgassing of metal-organic frameworks (MOFs), thermal aging of polymer composites, and catalyst support activation
• Academic Research: Low-temperature dehydration of cryo-sectioned tissues, vacuum pyrolysis of biomass precursors, and controlled atmosphere annealing of 2D nanomaterials

FAQ

What vacuum level does the TZS-6090V achieve, and how is it measured?
The unit achieves a base pressure of ≤133 Pa (≤1 Torr) using a standard rotary vane vacuum pump (e.g., DRETOP V-20K, optional). Pressure is monitored via a calibrated digital vacuum sensor integrated into the control panel, traceable to NIST-certified references.
Can inert gas purging be added for oxygen-sensitive processes?
Yes—optional inert gas inlet valves (N₂ or Ar) with mass flow controllers (0–10 L/min range) are available as factory-installed accessories, enabling backfill-and-purge cycles or dynamic partial-pressure control.
Is the chamber suitable for corrosive vapors?
The standard cold-rolled steel chamber is appropriate for water and common organic solvents. For halogenated or acidic vapors, specify the optional 304 stainless steel chamber upgrade (model TZS-6090V-SS) at time of order.
How is temperature uniformity validated across the chamber volume?
Uniformity is verified per ASTM E2207 using nine calibrated PT100 sensors placed at standardized locations (center + six face centers + two corners); full validation reports are provided upon request.
Does the system support remote monitoring and control?
With the VT-series touchscreen and optional RS485 or Ethernet module, users can integrate the oven into centralized lab automation platforms (e.g., LabVantage, STARLIMS) via Modbus TCP or OPC UA protocols.
