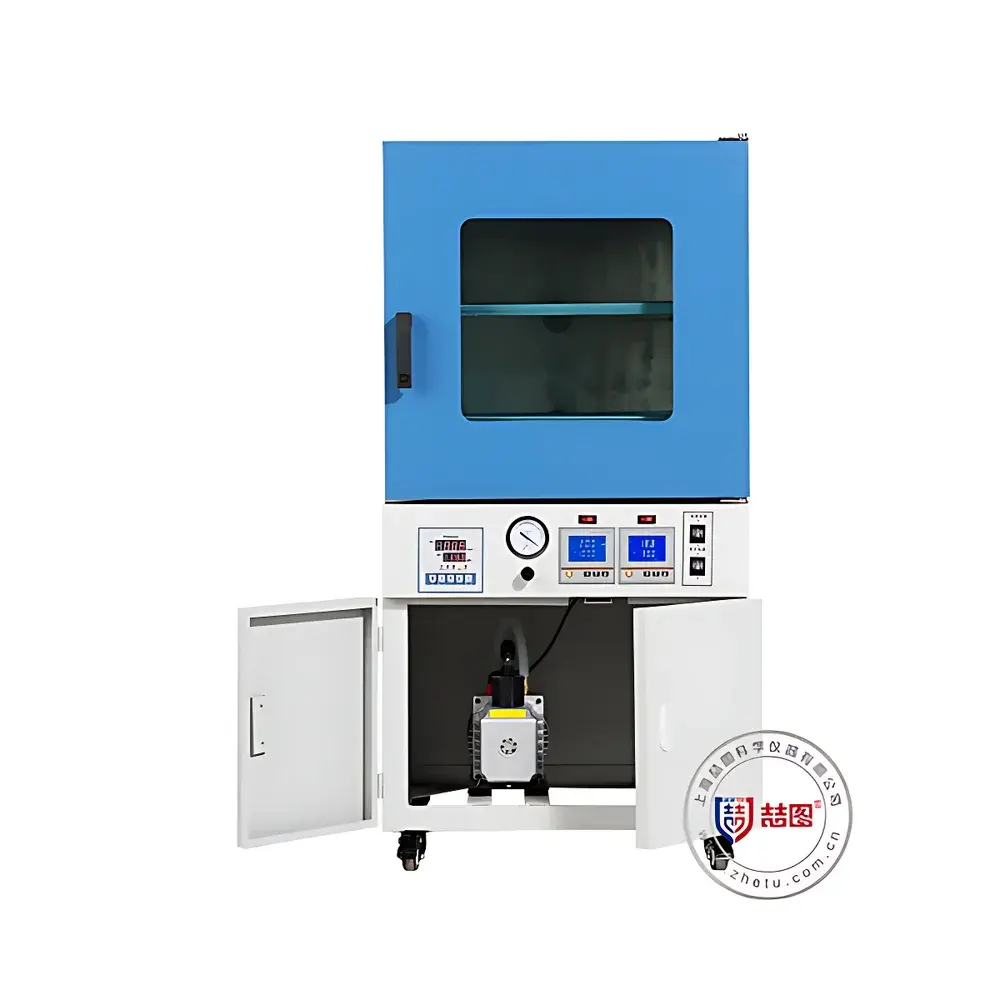

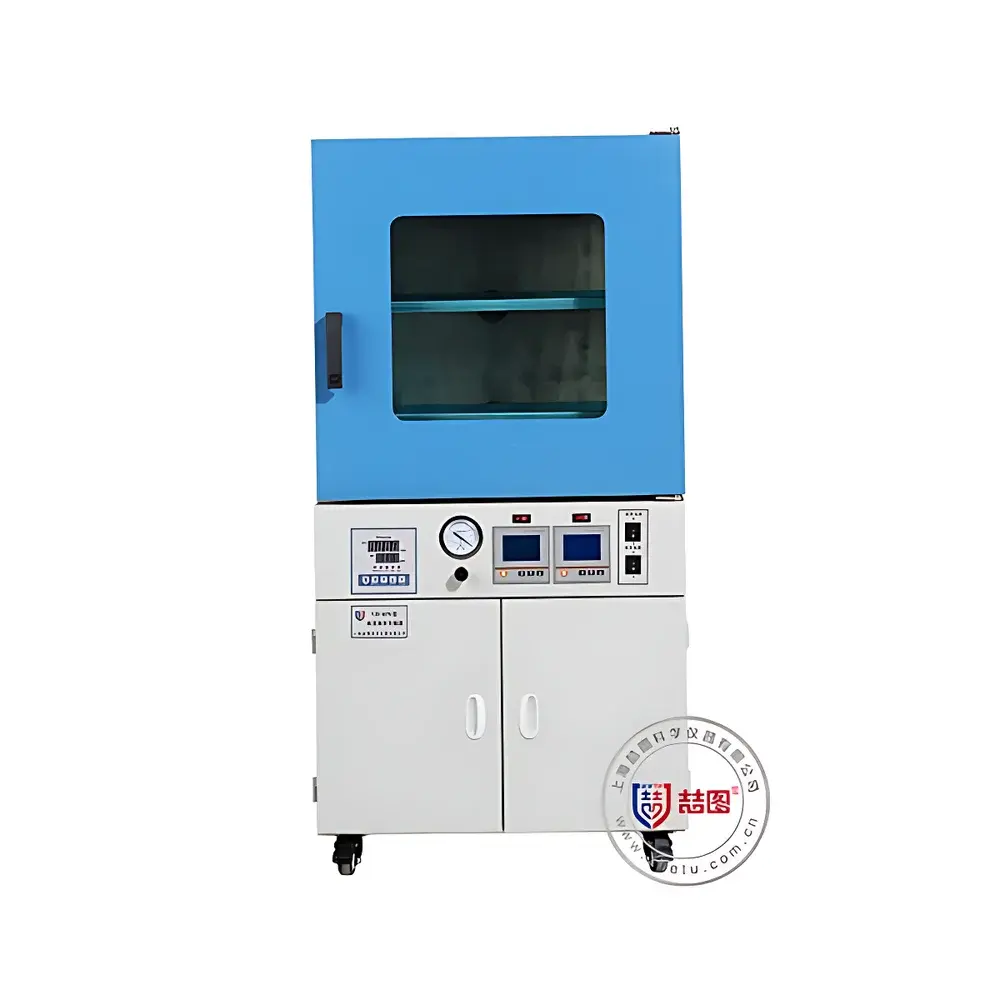

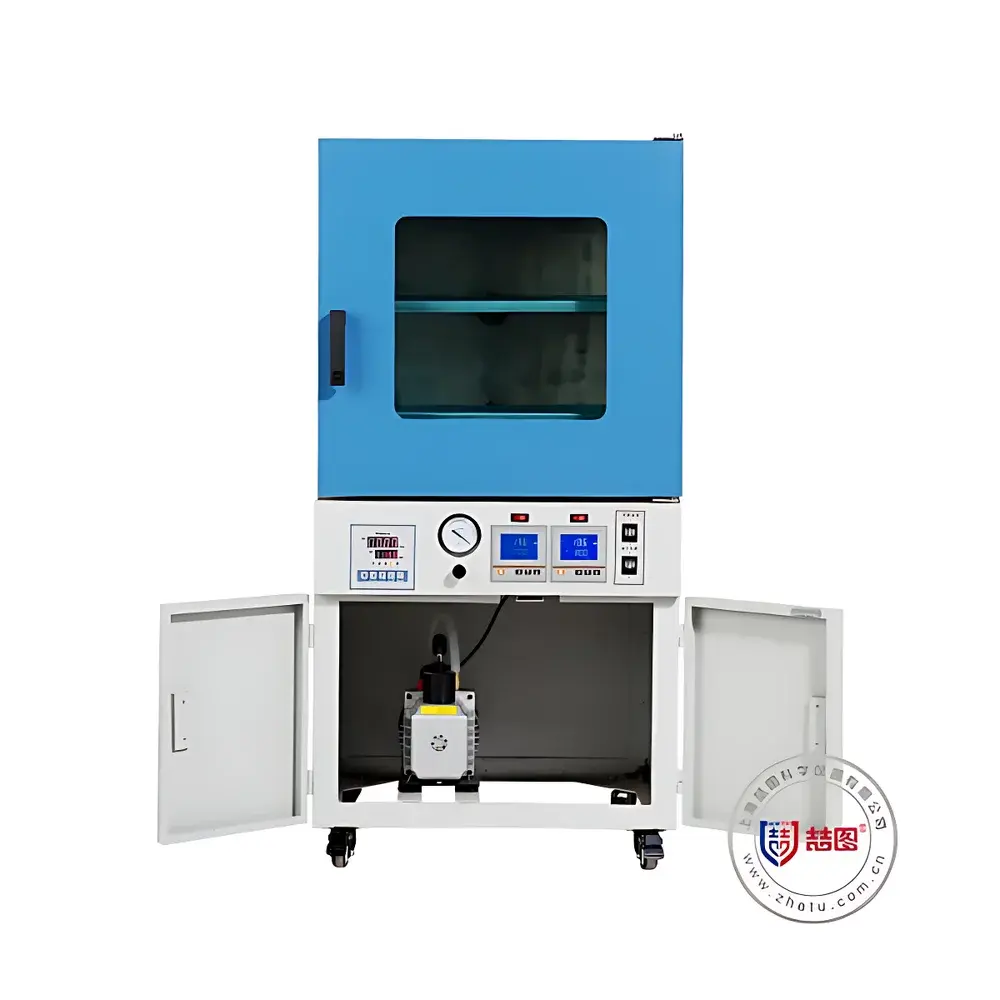

DRETOP TZS-6210L Digital Vacuum Drying Oven

Overview

The DRETOP TZS-6210L Digital Vacuum Drying Oven is an engineered solution for precise, oxidation-free thermal processing under controlled low-pressure environments. Based on the fundamental principle of vacuum-assisted moisture removal—where reduced ambient pressure lowers the boiling point of volatile solvents and water—the unit enables gentle, uniform drying of thermally sensitive, hygroscopic, or chemically reactive materials without degradation, decomposition, or surface oxidation. Unlike conventional forced-air ovens, this system eliminates convective heat transfer and oxygen exposure, making it essential for applications where sample integrity, purity, and reproducibility are critical—such as in semiconductor packaging, lithium-ion battery electrode conditioning, pharmaceutical lyophilization support, and high-purity material synthesis. Its robust stainless steel (304) chamber, external radiant heating architecture, and integrated vacuum control interface ensure stable operation across extended thermal cycles while maintaining compliance with core laboratory environmental and safety standards.

Key Features

• Microprocessor-based PID temperature controller with programmable timer (1–9999 minutes), over-temperature alarm, and automatic cut-off protection
• Digital vacuum gauge and high-resolution (0.1°C) temperature display with three-color LCD interface for intuitive status monitoring
• External heating configuration with four-sided stainless steel-sheathed heating elements—eliminating vacuum arcing, carbon buildup, and localized hot spots
• Double-layer tempered glass observation window with anti-fog coating, enabling real-time visual verification of sample condition without vacuum break
• Two-stage rotating zinc alloy door latch system with compression-sealed silicone gasket, achieving reliable vacuum integrity down to ≤133 Pa
• Energy-efficient insulation using high-density glass fiber between chamber and outer casing, minimizing thermal loss and supporting ISO 50001-aligned energy management practices
• Comprehensive safety suite: leakage current protection, short-circuit interruption, overheat shutdown, overload detection, and power-failure parameter retention
• Modular drawer-type stainless steel shelving (adjustable height, removable for cleaning), optimized for uniform airflow distribution and easy maintenance

Sample Compatibility & Compliance

The TZS-6210L accommodates a broad spectrum of sample types—including powders, granules, thin-film coatings, porous ceramics, polymer composites, biological tissue sections, and moisture-laden electronic assemblies—without particle dispersion or surface oxidation. Its inert 304 stainless steel chamber resists mild organic solvents and non-aggressive aqueous residues, supporting routine use in QC labs operating under GLP and GMP frameworks. While not rated for strong acid/alkali exposure, optional configurations with 316L stainless steel or PTFE-coated interiors are available for corrosive applications. The system meets general electrical safety requirements per IEC 61010-1 and supports traceable calibration via NIST-traceable reference sensors. Vacuum performance aligns with ASTM E145 Class B specifications for vacuum drying apparatus, and its temperature uniformity (±1°C) satisfies ISO 17025 metrological criteria for accredited testing laboratories.

Software & Data Management

The standard configuration includes a stand-alone digital control panel with non-volatile memory for setpoint retention during power interruption. For advanced process automation, optional PLC-integrated controllers (LP series) or full-color touchscreen HMI (LT series) enable synchronized ramp-soak-hold profiles for both temperature and vacuum parameters. These modules support RS485 Modbus RTU communication for integration into centralized lab information management systems (LIMS) and provide audit-trail-capable event logging compliant with FDA 21 CFR Part 11 requirements—including user authentication, timestamped parameter changes, and tamper-proof data export. Optional embedded printers and USB data dump functionality further enhance documentation rigor for regulatory submissions and internal SOP adherence.

Applications

• Semiconductor manufacturing: Pre-bake of photoresist-coated wafers, desiccation of MEMS packaging components, and outgassing of ceramic substrates
• Lithium battery R&D: Electrode drying prior to cell assembly, electrolyte solvent removal from separator films, and cathode/anode slurry conditioning
• Pharmaceutical development: Excipient drying, API stability testing under inert vacuum, and pre-lyophilization dehydration of sterile formulations
• Materials science: Thermal aging studies of nanocomposites, solvent exchange in MOFs, and moisture content validation per USP <921>
• Environmental analysis: Gravimetric moisture determination in soil/sediment samples (ASTM D2216), and residual solvent quantification in EPA SW-846 Method 8260B workflows
• Academic research: Low-temperature polymer crosslinking, catalyst activation under reducing vacuum, and controlled pyrolysis of biomass precursors

FAQ

What vacuum level can the TZS-6210L achieve, and how is it measured?
The unit achieves a base vacuum of ≤133 Pa (1 Torr) using a standard 2 L/s rotary vane pump; vacuum level is monitored continuously via a calibrated digital piezoresistive sensor with 1 Pa resolution.
Is the chamber suitable for oxygen-sensitive reactions?
Yes—the sealed stainless steel chamber and validated leak rate (<0.5 Pa·min⁻¹ at 133 Pa) ensure minimal atmospheric ingress, enabling safe handling of air-sensitive organometallics and reactive metal powders.
Can inert gas purging be integrated?
Yes—optional mass flow-controlled inert gas inlet valves (N₂ or Ar) allow backfilling to predetermined partial pressures, supporting glovebox-like workflows without vacuum cycling.
Does the system support IQ/OQ validation protocols?
Yes—DRETOP provides factory-verified calibration certificates, URS-compatible documentation packages, and on-site qualification support for GxP-compliant installations.
What maintenance intervals are recommended for long-term reliability?
Vacuum pump oil replacement every 500 operational hours, door gasket inspection quarterly, and temperature sensor recalibration annually—per ISO/IEC 17025 maintenance guidelines.
