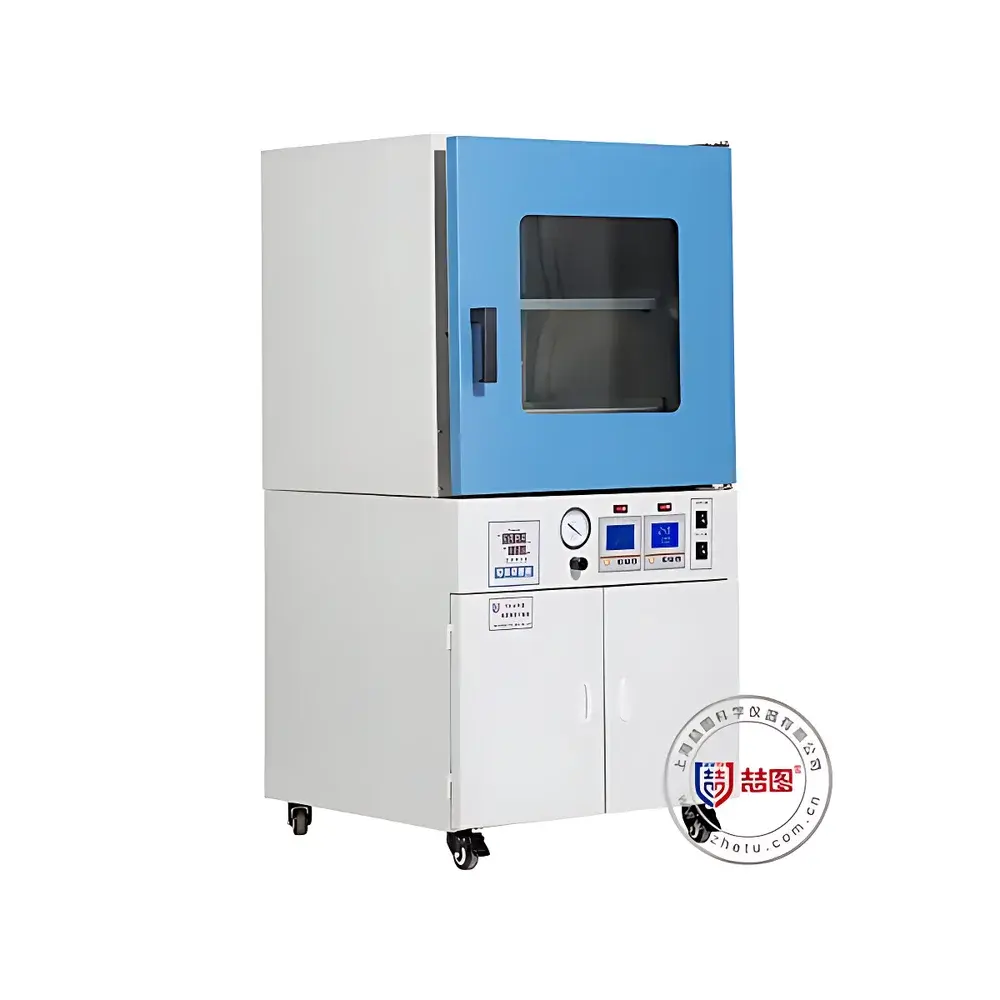

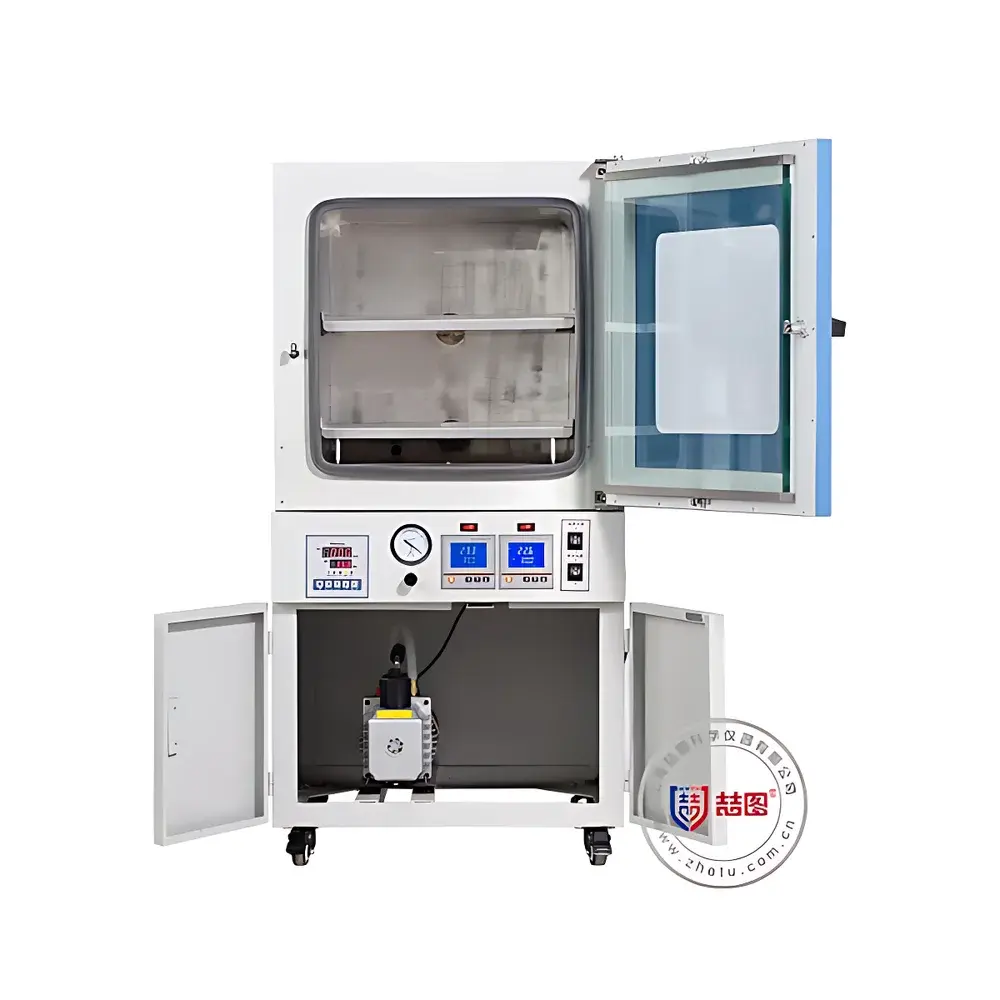

DRETOP TZS-6250LP Programmable Digital Vacuum Drying Oven

Overview

The DRETOP TZS-6250LP Programmable Digital Vacuum Drying Oven is an engineered solution for thermal processing under controlled low-pressure environments. It operates on the principle of vacuum-assisted dehydration: by evacuating ambient air via integrated or externally connected rotary vane vacuum pumps, the system lowers the partial pressure of water vapor—thereby reducing the boiling point of solvents and moisture within samples. This enables efficient, low-temperature drying of thermally sensitive, oxidation-prone, or chemically unstable materials without structural degradation or decomposition. Unlike conventional convection ovens, the TZS-6250LP eliminates convective heat transfer and oxygen exposure, making it indispensable for applications where residual solvent removal, volatile compound preservation, or inert atmosphere conditioning is critical. Its design adheres to fundamental engineering requirements for laboratory-grade vacuum thermal systems—including hermetic chamber integrity, thermal stability under dynamic vacuum loads, and repeatable process control across batch cycles.

Key Features

• Programmable microprocessor-based PID temperature controller with dual-setpoint capability (process temperature + safety cutoff), integrated timer (1–9999 minutes), and automatic over-temperature alarm & cut-off protection.
• Large-format backlit LCD display showing real-time chamber temperature, setpoint, vacuum level (digital readout), elapsed time, and fault codes—enabling rapid diagnostics and operator intervention.
• Robust stainless steel (AISI 304) inner chamber and slide-out perforated stainless steel shelves; external cabinet finished with electrostatic powder coating for corrosion resistance and mechanical durability.
• Double-layer tempered glass observation window with silicone-sealed door gasket and dual-stage zinc-alloy locking mechanism ensures long-term vacuum integrity and thermal insulation performance.
• Externally mounted radiant heating elements surrounding the chamber walls provide uniform thermal distribution without internal wiring risks—eliminating arcing, carbon deposition, or localized hot spots common in internal-heating configurations.
• High-efficiency thermal insulation using compressed glass fiber between chamber and outer shell minimizes standby heat loss and improves energy efficiency per ASTM E145-21 standards for laboratory ovens.
• Comprehensive electrical safety architecture including over-current, short-circuit, ground-fault, and over-temperature protections; non-volatile memory retains all user parameters after power interruption.

Sample Compatibility & Compliance

The TZS-6250LP accommodates a broad spectrum of sample types—from polymeric thin films and lithium-ion battery electrode coatings to pharmaceutical excipients, biopolymer gels, and ceramic precursors. Its vacuum compatibility (≤133 Pa) and temperature range (RT+10 to 250 °C) align with ISO 14644-1 cleanroom-compatible drying protocols and support GLP-compliant documentation when paired with optional RS485/USB data logging interfaces. For regulated environments, the oven supports audit-ready operation when configured with optional PLC-based controllers meeting IEC 61131-3 programming standards and compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures (when used with validated software packages). The stainless steel construction satisfies USP material compatibility guidelines for pharmaceutical manufacturing equipment.

Software & Data Management

While the base TZS-6250LP utilizes a stand-alone programmable controller, optional upgrades include a full-color touchscreen HMI (Human-Machine Interface) with embedded vacuum-temperature co-control logic. This interface allows users to define multi-step drying profiles—e.g., ramp-hold-evacuate-hold sequences—with independent vacuum setpoints per segment. All process data—including timestamped temperature, vacuum pressure, and elapsed time—is exportable via USB or RS485 to CSV files for traceability. Optional integration with SCADA platforms (Modbus RTU/TCP) enables centralized monitoring across multi-unit installations. Firmware supports firmware revision tracking, user-access-level management (operator/engineer/admin), and configurable alarm log retention (≥10,000 entries).

Applications

• Semiconductor packaging: moisture removal from die-attach epoxies and underfill materials prior to curing—preventing popcorn delamination during reflow.
• Lithium-ion battery R&D: solvent evaporation from slurry-coated cathodes/anodes while suppressing transition-metal reduction and electrolyte decomposition.
• Pharmaceutical solid dosage forms: residual solvent clearance from lyophilized APIs and granules per ICH Q5C stability guidelines.
• Optoelectronic component manufacturing: outgassing of LED encapsulants and optical adhesives to eliminate micro-bubbles and interfacial voids.
• Academic materials science: controlled pyrolysis of MOFs, polymer nanocomposites, and aerogel precursors under inert gas backfill (with optional inert gas inlet valve).
• Environmental testing labs: accelerated aging of coated substrates under vacuum-thermal stress per ASTM D5894 and ISO 11341 protocols.

FAQ

What vacuum pump is recommended for optimal performance with the TZS-6250LP?
A 4 L/s two-stage rotary vane pump with gas ballast and oil mist filter is recommended for achieving ≤133 Pa within ≤30 minutes. For moisture-laden samples, optional W-series cold trap integration is advised.
Can this oven be used for inert gas purging?
Yes—when equipped with the optional inert gas inlet valve and mass flow controller, the chamber can be backfilled with N₂ or Ar to maintain positive pressure or create a controlled reducing atmosphere.
Is the temperature uniformity verified per ASTM E145?
Yes—calibration reports (available upon request) document temperature uniformity mapping at three load conditions (empty, 50% loaded, fully loaded) per ASTM E145 Annex A3.
Does the unit comply with electromagnetic compatibility (EMC) directives?
It meets CE marking requirements under EN 61326-1 (2013) for laboratory measurement and test equipment, including radiated/conducted emissions and immunity testing.
What maintenance intervals are specified for long-term reliability?
Vacuum seal inspection every 6 months; heater circuit resistance verification annually; calibration of temperature sensor and vacuum transducer every 12 months per ISO/IEC 17025 accredited procedures.
