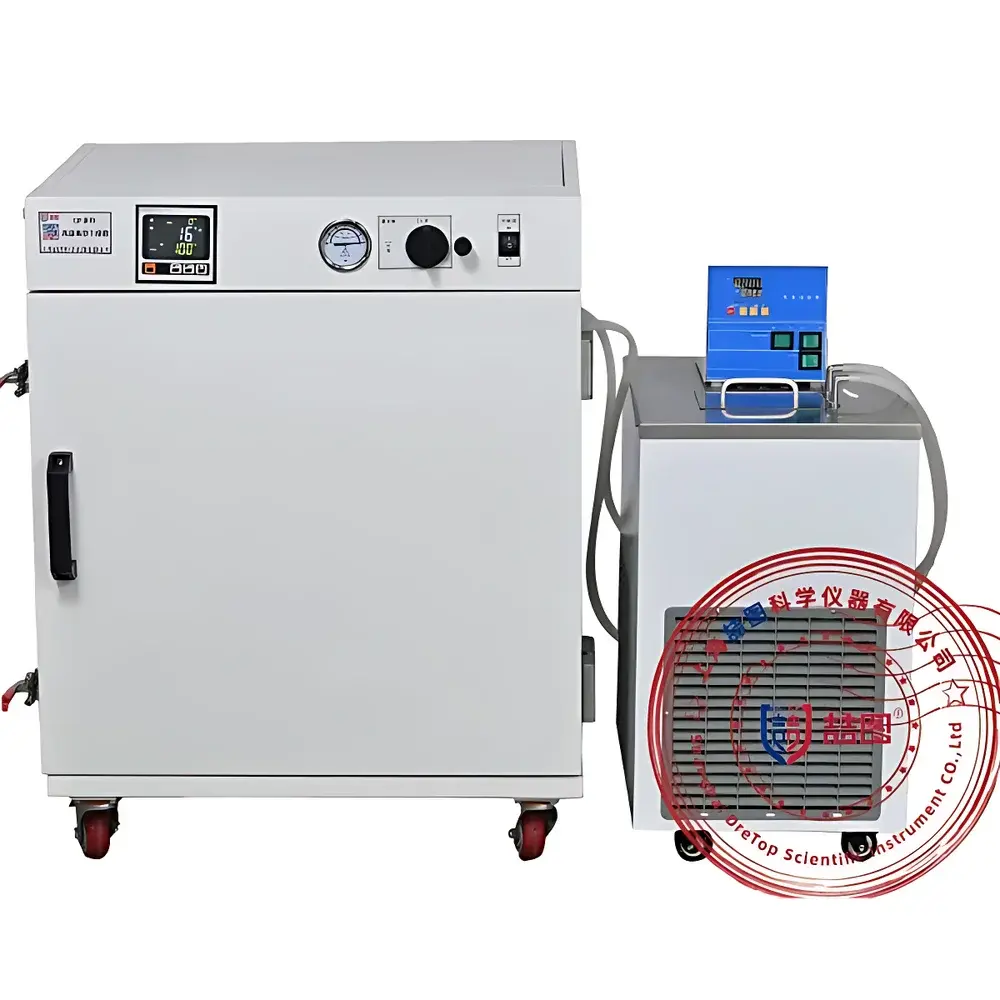

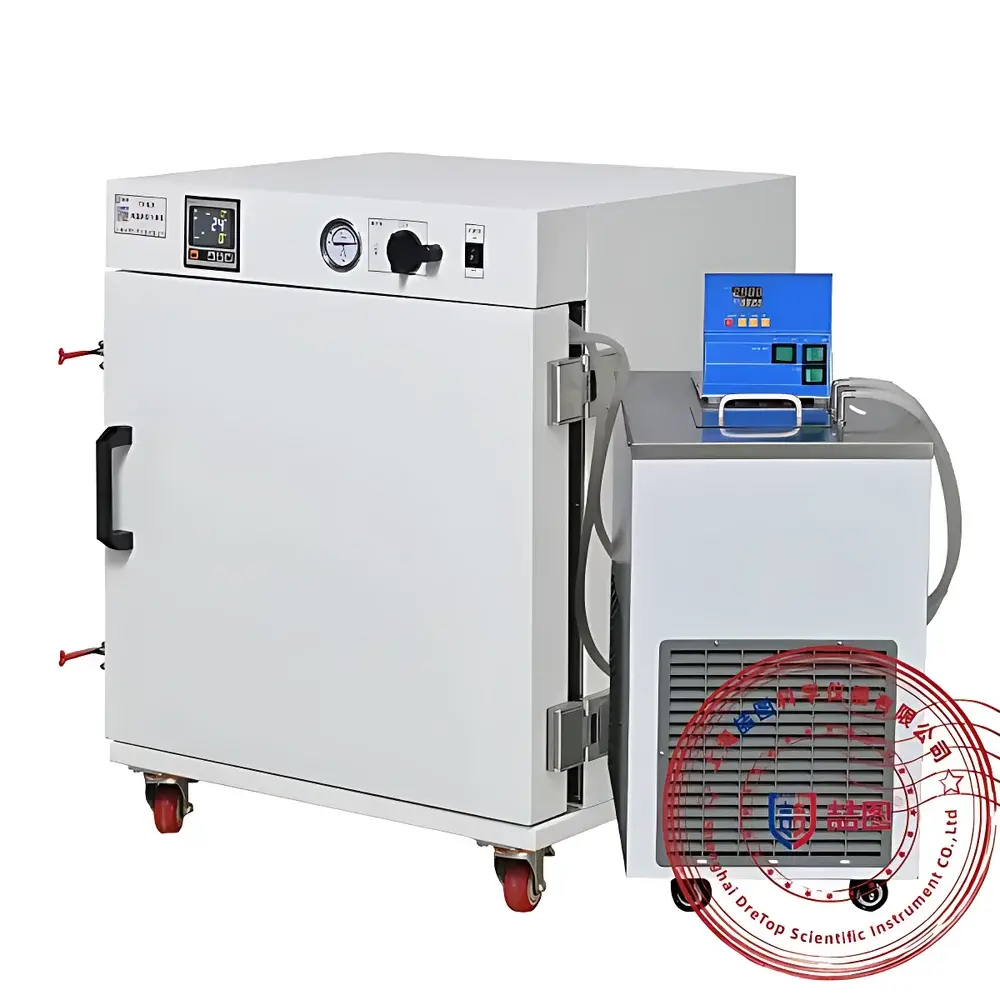

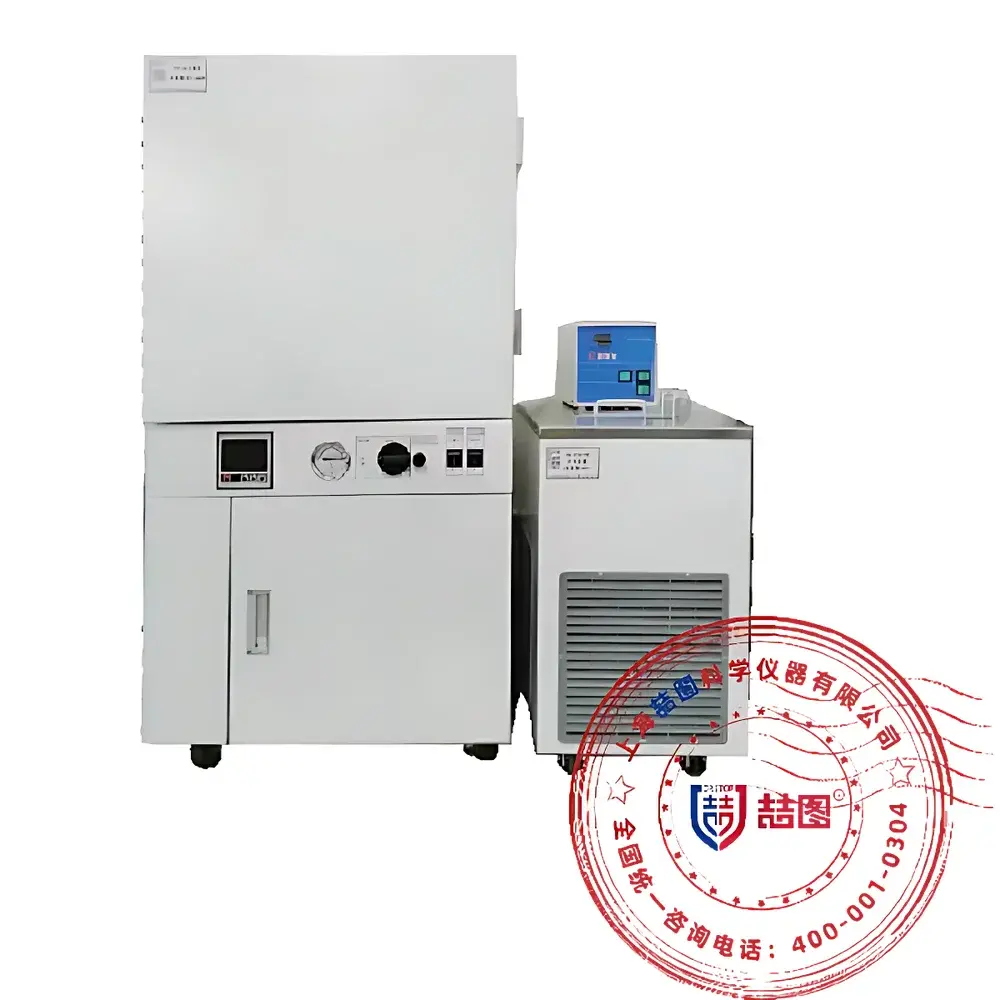

DRETOP UR4-50LBV-II Digital High-Temperature Vacuum Drying Oven

Overview

The DRETOP UR4-50LBV-II Digital High-Temperature Vacuum Drying Oven is a precision-engineered laboratory oven designed for thermal processing under controlled vacuum conditions. It operates on the fundamental principle of lowering the boiling point of volatile components—primarily water and solvents—by reducing ambient pressure, thereby enabling efficient, low-thermal-stress drying of heat-sensitive, oxidation-prone, or moisture-retentive materials. Unlike forced-air convection ovens, this unit maintains a true vacuum environment (≤133 Pa) without internal airflow, eliminating particle dispersion, oxidation, and thermal degradation during extended high-temperature exposure up to 400 °C. Its robust construction supports applications in semiconductor fabrication, battery electrode conditioning, aerospace component outgassing, electronic encapsulant curing, and inert-atmosphere annealing—where reproducibility, material integrity, and process traceability are critical.

Key Features

• High-Fidelity Temperature Control: Equipped with a microprocessor-based PID controller featuring 0.1 °C resolution, ±1 °C uniformity, and programmable ramp-soak profiles; includes over-temperature deviation protection and audible/visual alarm triggers.
• Vacuum Integrity Engineering: Double-layer stainless steel inner chamber with argon arc-welded seams; high-temperature silicone door gasket with dual-stage rotary latch mechanism; optional water-cooled jacket and integrated condensate management (B-type or E-type vacuum pump protection systems) to prevent vapor-induced pump damage and extend service life.
• Operator-Centric Interface: II-series configuration features a full-color TFT touchscreen HMI displaying real-time vacuum level, temperature curve, elapsed time, and fault diagnostics—including alphanumeric error codes for rapid troubleshooting.
• Thermal Efficiency & Safety Architecture: Fiberglass-insulated cavity minimizes heat loss; grounded chassis with triple-layer safety interlocks (leakage current, short-circuit, overheat, overcurrent); non-volatile parameter memory retains settings after power interruption per GLP-compliant data integrity requirements.
• Modular Expandability: Standard RS485 interface enables integration into centralized lab automation networks; optional accessories include inert gas inlet valves (N₂/Ar), mass flow controllers, embedded thermal printers, USB data export, and FDA 21 CFR Part 11–compliant audit trail modules.

Sample Compatibility & Compliance

The UR4-50LBV-II accommodates powder samples, thin-film substrates, ceramic green bodies, lithium-ion cathode/anode coatings, optical lens assemblies, and MEMS devices—all without mechanical agitation or oxidative exposure. Its 50 L stainless steel chamber (415 × 370 × 345 mm) supports up to two adjustable, removable stainless steel shelves with load capacity ≥15 kg per shelf. The system complies with IEC 61010-1 (Electrical Safety for Laboratory Equipment), ISO 17025 calibration traceability guidelines, and ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens), adapted for vacuum operation. For regulated environments, optional validation packages support IQ/OQ/PQ documentation aligned with GMP and pharmaceutical stability testing protocols (ICH Q1–Q5).

Software & Data Management

DRETOP’s proprietary D-Link™ control software (included with II-series models) provides local and remote monitoring via Ethernet or Wi-Fi. It logs timestamped temperature/vacuum datasets at user-defined intervals (1–60 s), generates PDF/CSV reports with digital signatures, and enforces role-based access control. Audit trails record all parameter modifications, start/stop events, and alarm acknowledgments—fully compliant with FDA 21 CFR Part 11 requirements when paired with optional electronic signature and secure user authentication modules. Data encryption (AES-256) and automatic cloud backup (via optional DRETOP Cloud Gateway) ensure long-term archival integrity and regulatory readiness.

Applications

• Pre-conditioning of battery electrode slurries and separator films prior to cell assembly
• Outgassing of optical components and vacuum chamber feedthroughs in photonics R&D
• Thermal stabilization of polymer composites and carbon fiber pre-pregs
• Moisture removal from hygroscopic catalysts and metal-organic frameworks (MOFs)
• Controlled pyrolysis of biochar precursors under inert vacuum
• Stress-relief annealing of sintered ceramics and additive-manufactured alloys
• Residual solvent extraction from pharmaceutical granules and lyophilized APIs

FAQ

What vacuum level can the UR4-50LBV-II achieve, and how is it measured?
The chamber consistently reaches and maintains ≤133 Pa (1 Torr) using a calibrated digital vacuum transducer; optional high-accuracy capacitance manometers (±0.5% FS) are available for metrology-grade validation.
Is the oven suitable for processes requiring inert gas purging?
Yes—optional N₂ or Ar inlet valves with precision needle valves and integrated pressure regulators enable controlled backfilling, multi-cycle purge sequences, and maintenance of positive inert overpressure during cooling.
How does the B-type vs. E-type vacuum pump protection differ?
The B-type system cools hot vapor streams via passive heat exchangers within the base cabinet, suited for low-moisture loads; the E-type employs an active 3 L condensate trap with refrigerated coil, essential for high-water-content samples such as hydrated gels or aqueous polymer solutions.
Can temperature and vacuum profiles be synchronized and programmed?
Yes—the II-series controller supports multi-step programs where vacuum hold, heating ramp, dwell time, and inert gas introduction are fully coordinated and repeatable across batches.
What calibration and service support is available internationally?
DRETOP provides NIST-traceable factory calibration certificates; authorized service partners in EU, North America, and APAC offer on-site IQ/OQ, preventive maintenance contracts, and spare parts logistics with <72-hour lead time for critical components.
