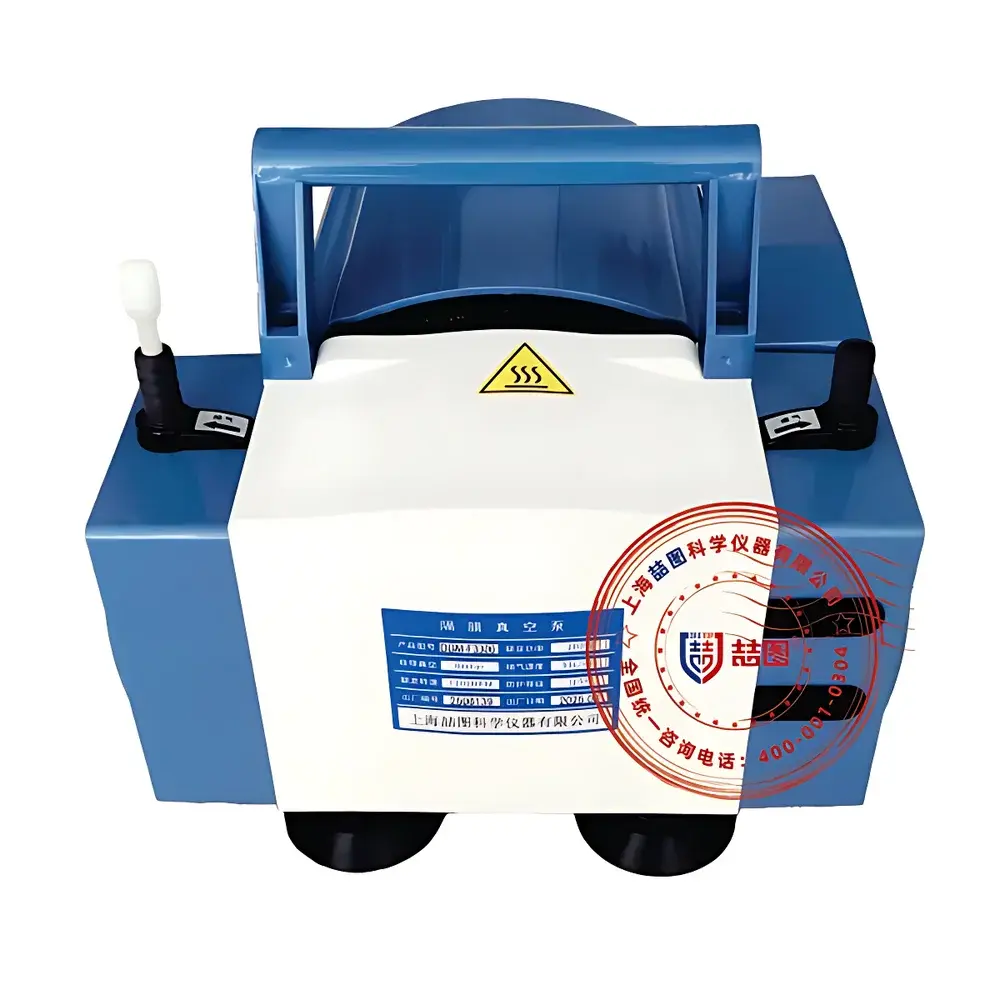

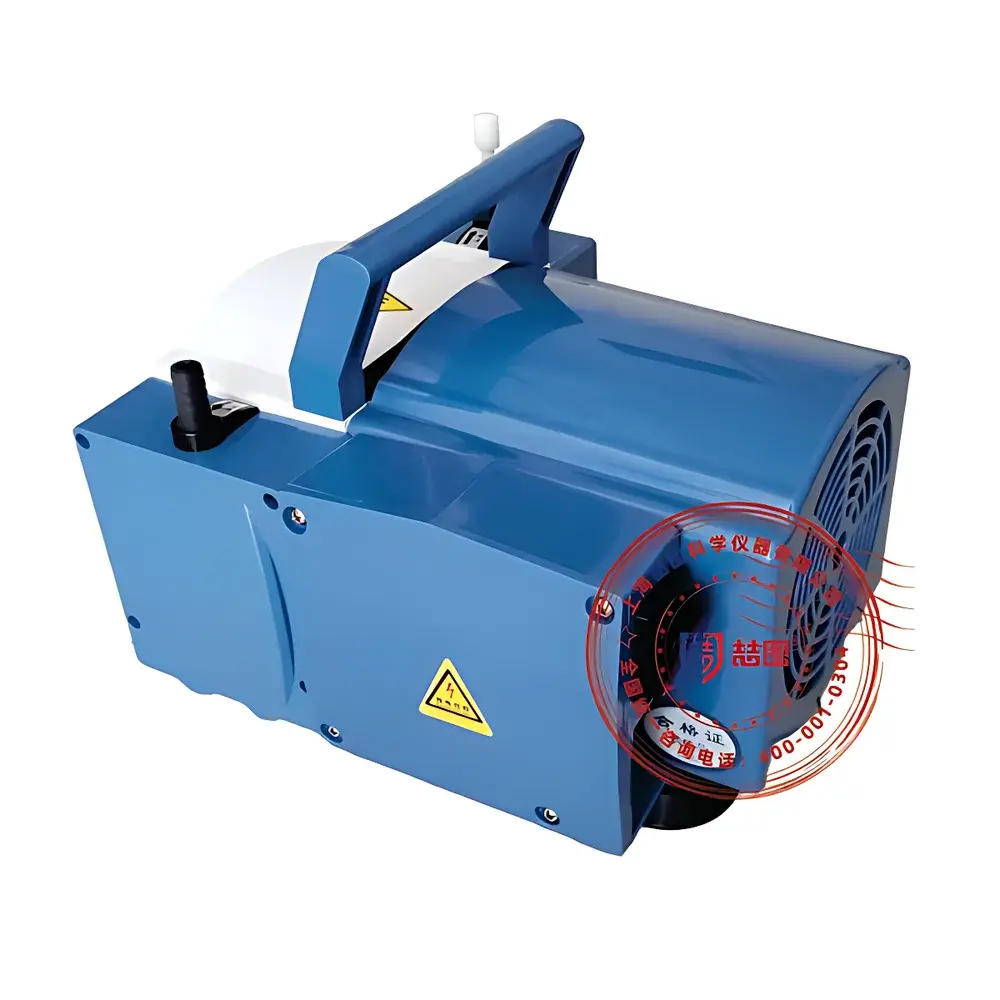

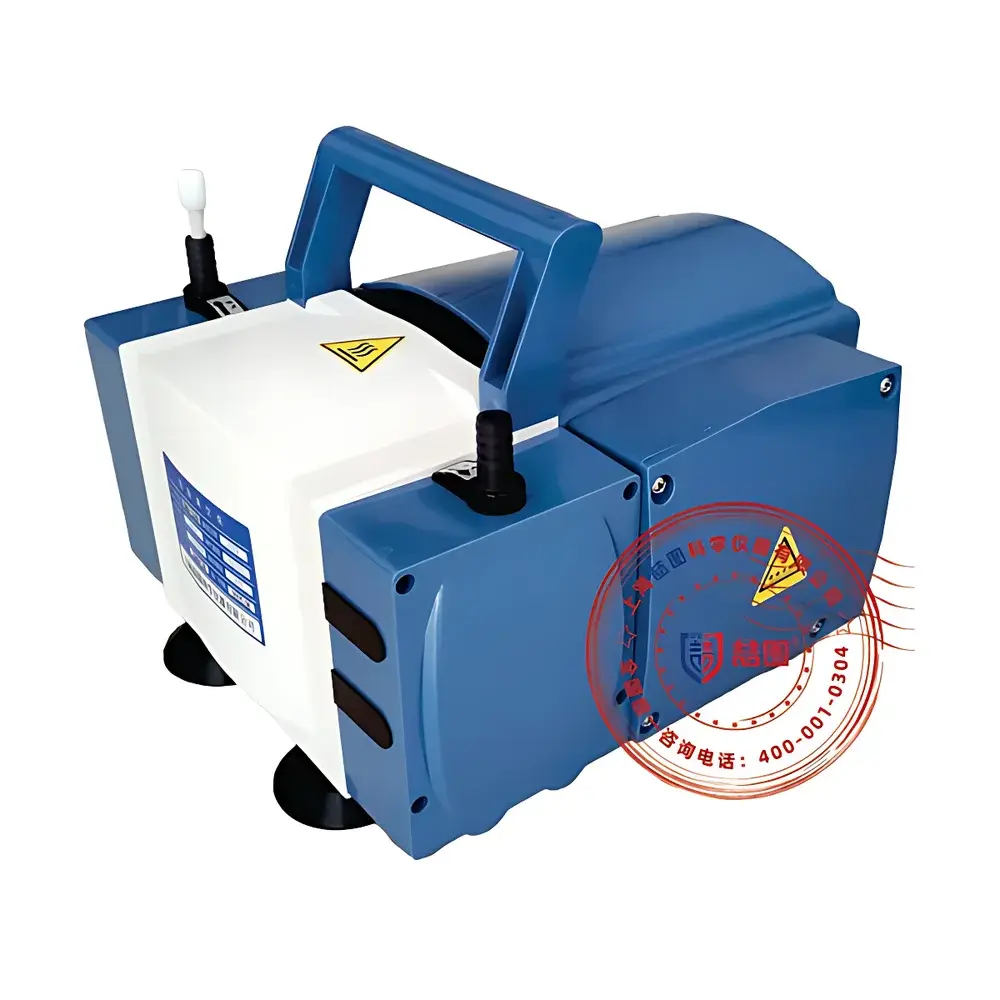

DRETOP VGM-F3306 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The DRETOP VGM-F3306 Corrosion-Resistant Diaphragm Vacuum Pump is an oil-free, chemically inert vacuum generation system engineered for demanding laboratory and industrial applications where exposure to aggressive media—such as concentrated acids, caustic alkalis, halogenated solvents, and oxidizing agents—is routine. Based on positive displacement principle, the pump employs a PTFE-reinforced diaphragm and FFKM valve assemblies to achieve non-contact fluid handling, eliminating lubricant contamination and ensuring zero hydrocarbon carryover into the vacuum line. Its design conforms to fundamental requirements for clean vacuum environments in analytical instrumentation support, pharmaceutical processing, and high-purity material handling. Unlike rotary vane or scroll pumps, the VGM-F3306 operates without internal oil, making it inherently suitable for applications governed by ISO 8573-1 Class 0 air purity standards and compatible with GLP/GMP workflows requiring documented traceability and minimal maintenance intervention.

Key Features

• Chemically resistant wetted components: Diaphragm, valves, gas chamber, tubing, and inlet/outlet fittings are constructed from PTFE, FFKM (perfluoroelastomer), PTFE+C (polytetrafluoroethylene + carbon fiber), and FEP (fluorinated ethylene propylene), delivering exceptional resistance to HNO₃, H₂SO₄, HF, NaOH, ClO₃⁻, acetone, toluene, and other corrosive process streams.
• Stable vacuum performance: Achieves an ultimate pressure of 6 mbar (600 Pa) with a nominal pumping speed of 33 L/min at 20 °C and 1013 hPa ambient conditions—sufficient for rapid evacuation in vacuum drying ovens, rotary evaporators, and filtration manifolds.
• Thermally optimized motor assembly: Equipped with a 200 W induction motor featuring enhanced airflow via large-diameter fan blades and a precision-engineered heat dissipation duct; surface temperature remains ≤50 °C under continuous operation, mitigating thermal degradation of elastomeric seals and extending service life.
• Low-vibration mechanical architecture: Dynamic balancing of the crankshaft and diaphragm actuation mechanism reduces operational vibration amplitude to <0.5 mm/s RMS, enabling stable mounting on sensitive instrumentation platforms such as mass spectrometers or HPLC systems without signal interference.
• Compact footprint and ergonomic deployment: Measuring only 270 × 250 × 210 mm (W × D × H), the unit integrates seamlessly into space-constrained fume hoods, gloveboxes, or modular production lines while maintaining full functional capability.

Sample Compatibility & Compliance

The VGM-F3306 is validated for use with liquid and gaseous samples containing aggressive chemical species typical in API synthesis, semiconductor wafer cleaning, food-grade vacuum packaging, and environmental wastewater treatment. Its material construction complies with USP for polymer identification and meets ASTM D471 resistance criteria for elastomers exposed to corrosive fluids. While not certified to ATEX or IECEx for explosive atmospheres, the pump is rated for indoor laboratory and controlled industrial environments per IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity). It supports regulatory alignment in pharmaceutical settings when paired with audit-trail-capable controllers compliant with FDA 21 CFR Part 11.

Software & Data Management

As a standalone analog vacuum source, the VGM-F3306 does not incorporate embedded firmware or digital control interfaces. However, it is fully compatible with external vacuum controllers (e.g., MKS 925, Agilent Vacuubrand VACUU·SELECT) via standard 0–10 V analog input/output ports. When integrated into automated systems, real-time pressure feedback and run-time logging can be achieved using third-party SCADA platforms or LabVIEW-based acquisition modules. All mechanical operation parameters—including motor current draw, duty cycle, and cumulative runtime—are monitorable through optional current-sensing relays or smart power strips supporting Modbus RTU communication.

Applications

• Lab-Scale Sample Preparation: Coupled with rotary evaporators (e.g., Buchi R-300), centrifugal concentrators, and freeze dryers for solvent removal without thermal decomposition or cross-contamination.
• Analytical Instrument Support: Provides stable backing vacuum for GC-MS, LC-MS/MS, and residual gas analyzers—critical for maintaining ion source integrity and detector sensitivity.
• Pharmaceutical Manufacturing: Used in lyophilization condenser evacuation, sterile filtration of parenteral solutions, and vacuum-assisted filling of vials under Grade A laminar flow.
• Electronics Fabrication: Supports LCD panel etching lines and semiconductor wafer rinsing stations where chloride- or fluoride-containing etchants must be handled without metallic leaching.
• Environmental Engineering: Applied in sludge dewatering vacuum filters and acid gas scrubber vent stream sampling, where sulfuric or nitric acid vapors require inert transport.

FAQ

Is the VGM-F3306 suitable for vacuum distillation of hydrofluoric acid?
Yes—the PTFE+FFKM wetted path provides verified compatibility with anhydrous HF below 120 °C; however, system-level validation including downstream trap materials and exhaust treatment is required prior to deployment.
Can this pump be mounted vertically?
No—operation is specified only in horizontal orientation with base-mounted feet to ensure proper diaphragm flexure dynamics and thermal convection airflow.
What is the recommended maintenance interval under continuous 24/7 operation?
Diaphragm and valve kits should be replaced every 6,000 hours or annually, whichever occurs first; motor bearings are sealed for life and do not require greasing.
Does the pump include an integrated vacuum gauge?
No—vacuum measurement requires an external Pirani or capacitance manometer calibrated to the ISO 23500 reference standard.
Is electrical certification available for EU markets?
The unit carries CE marking per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU compliance documentation is provided upon request.
