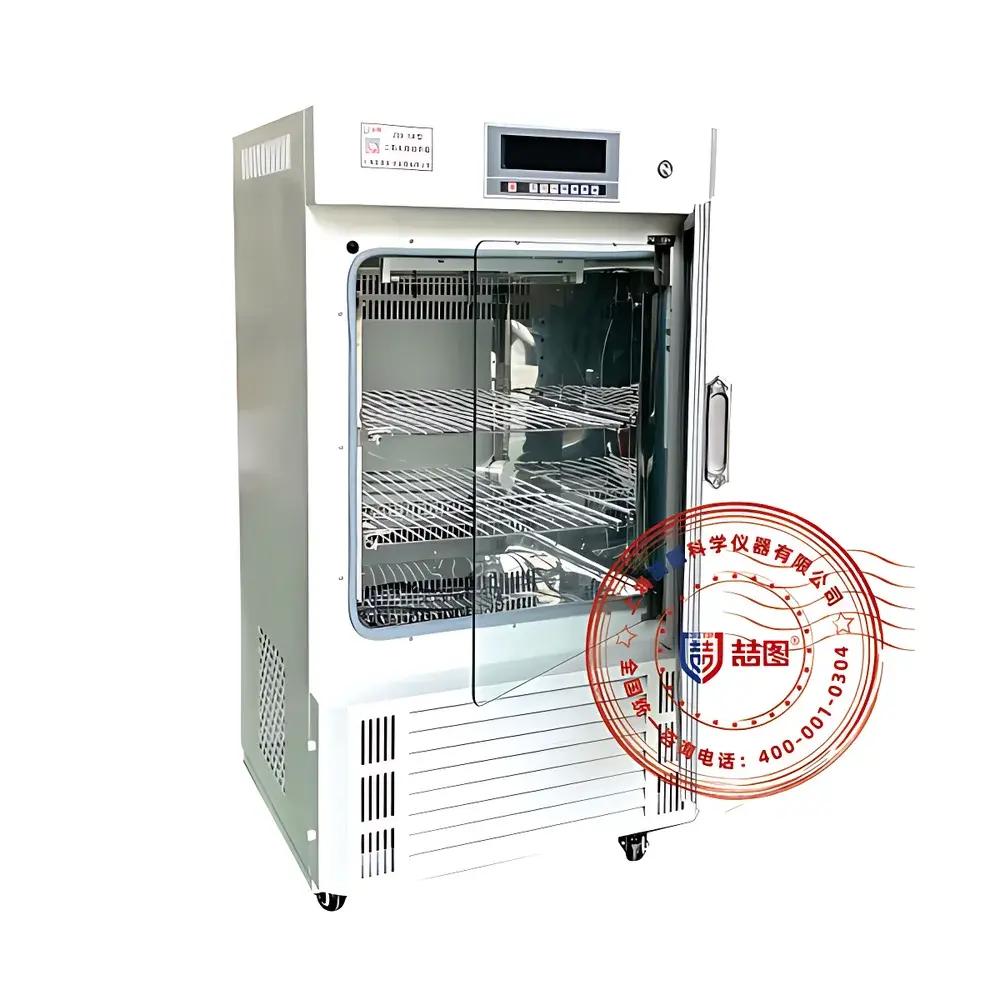

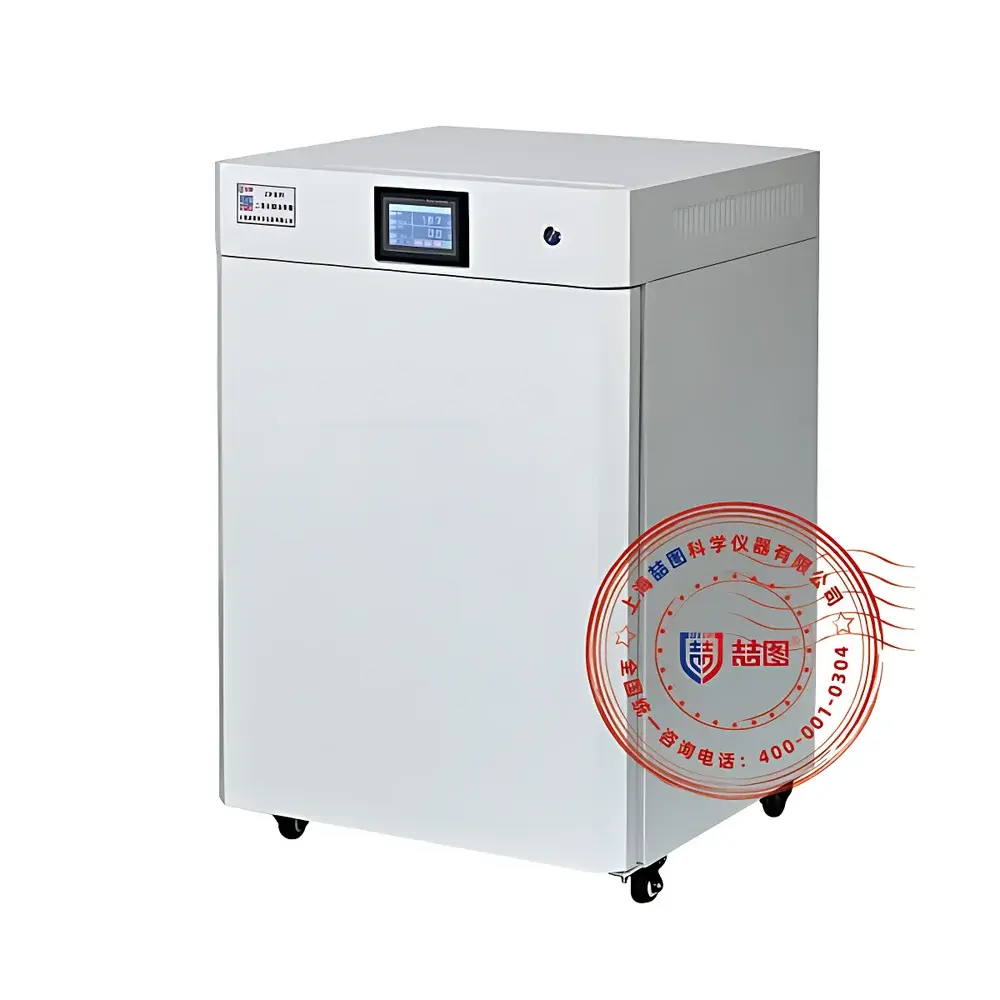

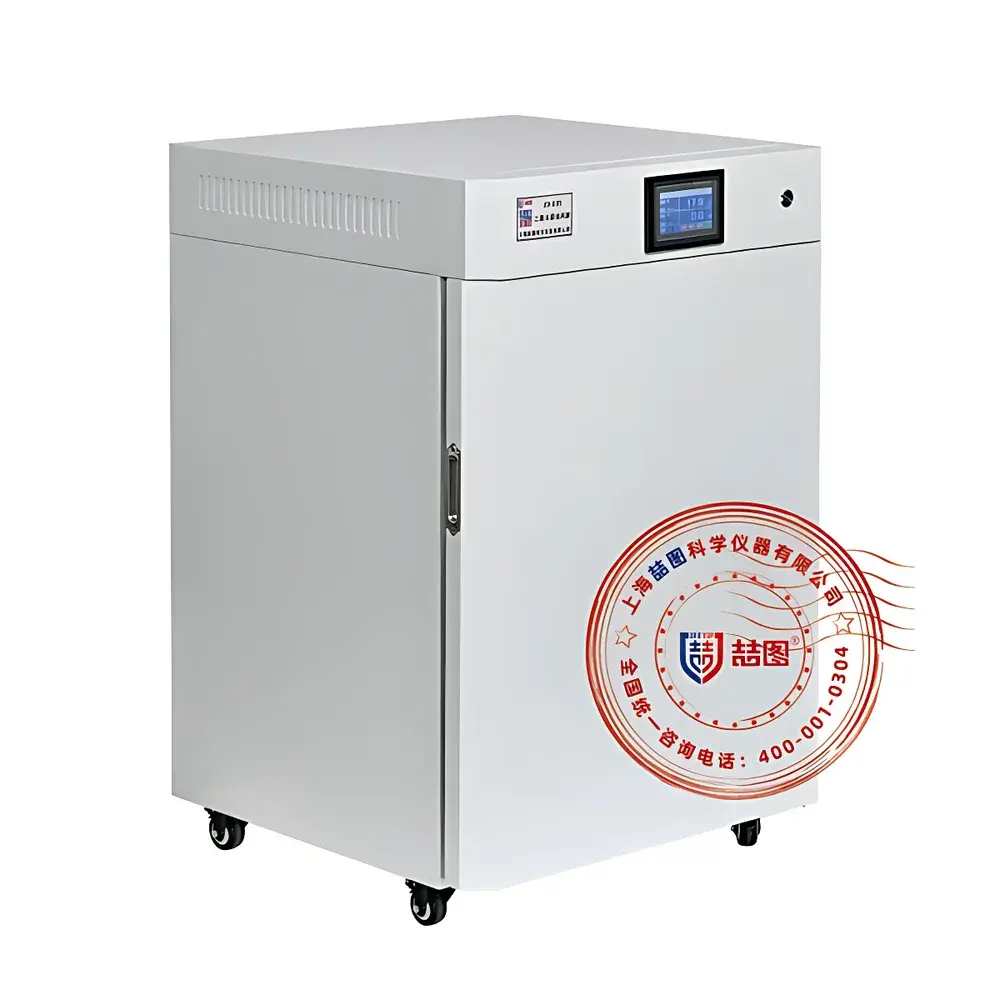

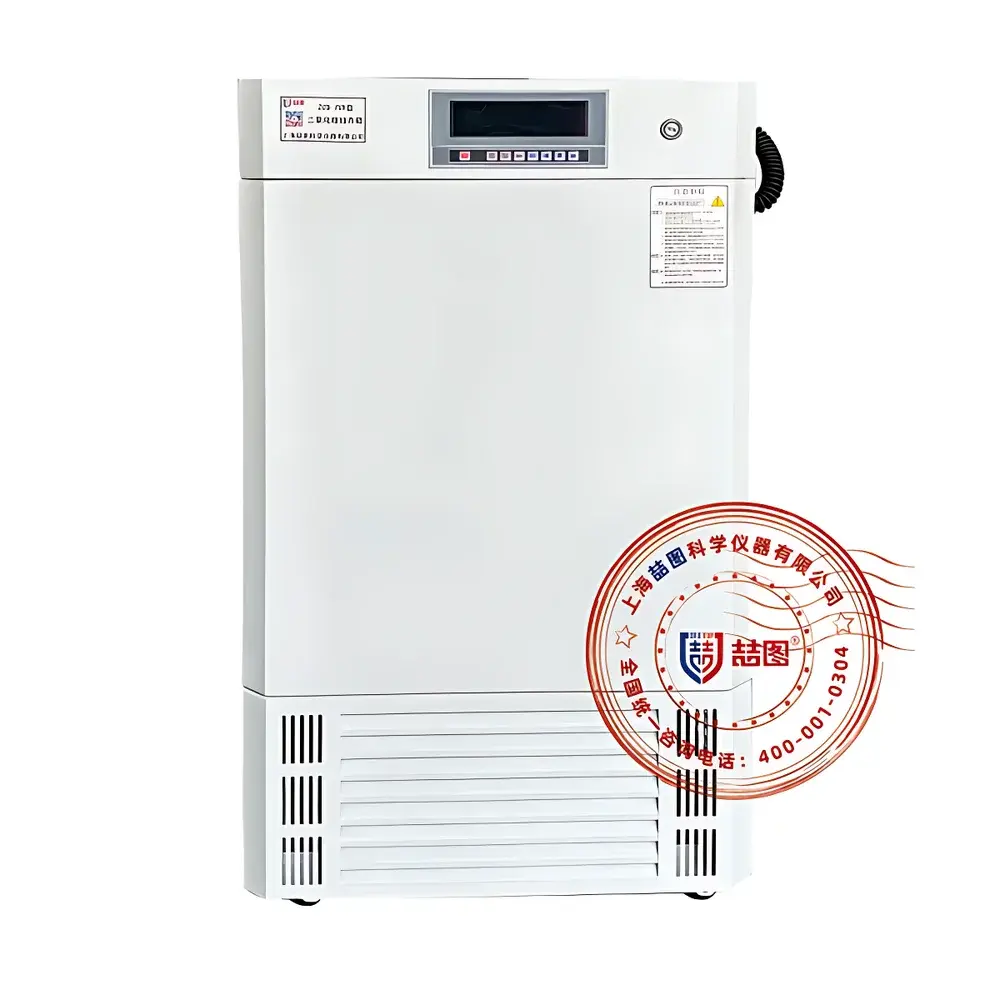

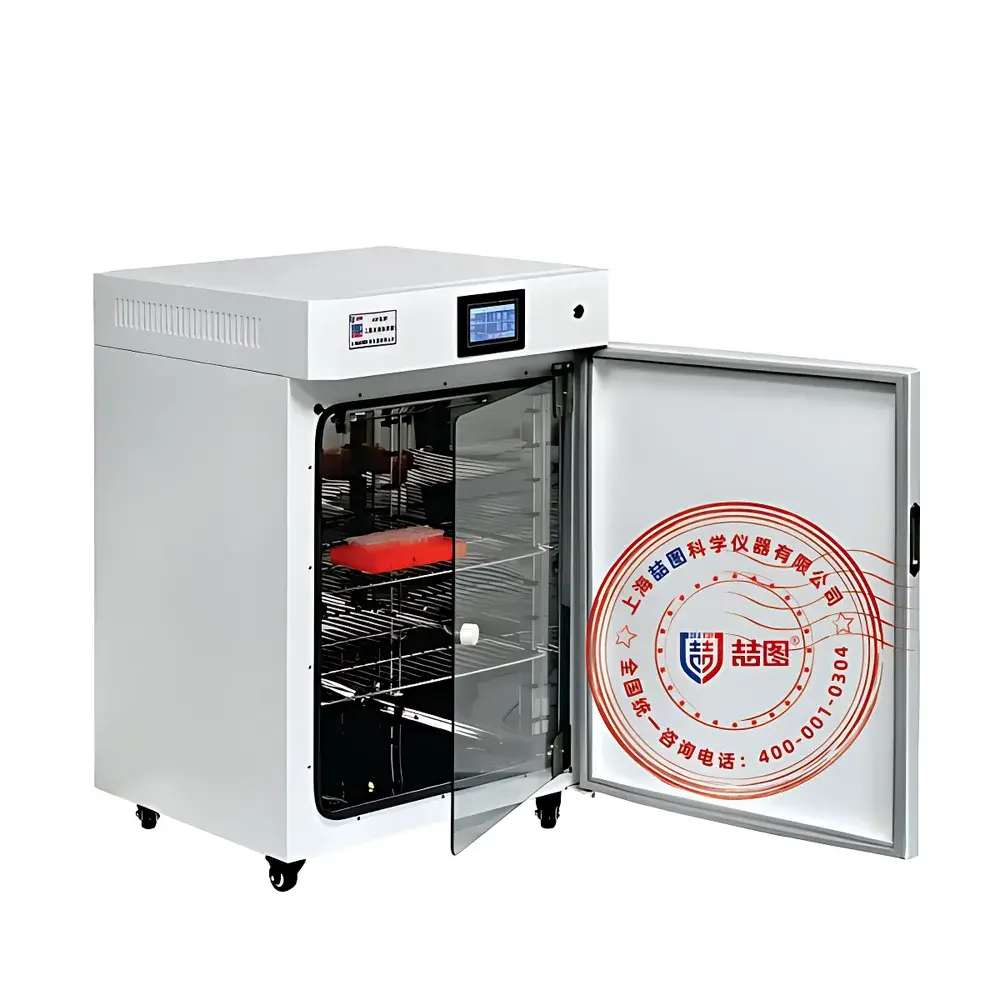

DRETOP ZCW-50T Water-Jacketed CO₂ Incubator

Overview

The DRETOP ZCW-50T is a precision-engineered water-jacketed CO₂ incubator designed for reliable, long-term cell and tissue culture under physiologically relevant conditions. It maintains tightly controlled environmental parameters—temperature (RT + 5°C to 60°C), CO₂ concentration (0–20% vol), and relative humidity (95% RH ±3% RH)—to replicate the in vivo microenvironment essential for mammalian cell proliferation, stem cell expansion, hybridoma cultivation, IVF procedures, and biopharmaceutical production. Unlike forced-air (air-jacketed) systems, the ZCW-50T employs a passive thermal mass strategy: a surrounding water jacket provides exceptional thermal inertia and stability, minimizing temperature fluctuations during power interruptions or frequent door openings. This architecture ensures continuity of sensitive cultures in resource-constrained or unstable-grid laboratory environments. The system integrates an IR-based CO₂ sensor with automatic zero-point calibration and temperature compensation, delivering high reproducibility without oxygen dependency or catalytic poisoning—critical for uninterrupted operation in GLP- and GMP-aligned workflows.

Key Features

• Water-jacketed thermal design with ceramic fiber insulation and mirror-polished stainless-steel interior (304 grade), featuring seamless, radius-corner construction for full cleanability and microbial resistance.
• High-efficiency particulate air (HEPA) filtration (≥99.998% at ≥0.3 µm) on all intake pathways, ensuring sterile internal airflow and reducing contamination risk during routine access.
• Dual-stage humidity management: reservoir-style water pan with large evaporation surface area and anti-tilt shelf design—enabling rapid RH recovery (<5 min after 30-sec door opening) and preventing medium spillage during handling.
• Intelligent control interface with backlit LCD display, supporting multiple timing modes (run timer, constant-temp timer, constant-humidity timer) and programmable setpoint retention across power cycles.
• Integrated safety architecture: door-heated inner glass to prevent condensation-induced microbial bridging; low-water-level cutoff with audible/visual alarm; independent over-temperature limit controller (adjustable); real-time environmental calibration capability.
• UV germicidal irradiation (254 nm, ozone-free) targeting circulating air and humidification reservoir vapor—validated for reduction of airborne and surface-associated bioburden between runs.

Sample Compatibility & Compliance

The ZCW-50T accommodates standard tissue culture vessels—including T-flasks (up to T-175), multi-well plates (6–96-well), Petri dishes, and roller bottles—on two adjustable, autoclavable stainless-steel shelves. Its 50 L chamber volume balances footprint efficiency with sufficient working space for mid-throughput academic or QC labs. The incubator meets ISO 13485 design principles for medical device manufacturing support and complies with key biological safety requirements outlined in ISO 14644-1 (Class 5 cleanroom air quality for internal circulation). While not FDA 21 CFR Part 11–certified out-of-the-box, its data logging capabilities (via optional RS485 interface) support audit-ready traceability when integrated into validated laboratory information management systems (LIMS). All materials in contact with the chamber interior are non-leaching and compliant with USP Class VI biocompatibility standards.

Software & Data Management

The ZCW-50T operates via embedded microprocessor-based firmware—not cloud-dependent software—ensuring deterministic response and operational autonomy. Logged parameters (temperature, CO₂, RH, runtime, alarm events) are stored locally with timestamping and retained through power loss (non-volatile memory). Optional RS485 serial output enables integration with SCADA platforms or centralized monitoring dashboards compliant with IEEE 11073 or ASTM E2670 standards. For regulated environments, the unit supports external validation protocols: temperature mapping (per ISO 14159), CO₂ uniformity assessment (per ISO 13738), and humidity distribution studies. Calibration routines—spanning temperature (PT100 reference), CO₂ (NIST-traceable gas mix), and RH (saturated salt solutions)—are accessible via service menu and documented per ISO/IEC 17025 guidelines.

Applications

This incubator serves core applications requiring stable, contamination-minimized culture conditions: primary human cell isolation and expansion; monoclonal antibody production via hybridoma culture; embryonic and induced pluripotent stem cell maintenance; 3D organoid development; cytotoxicity and drug metabolism assays; vaccine vector propagation; and microbiological work with fastidious capnophilic organisms (e.g., Neisseria meningitidis, Helicobacter pylori). Its water-jacketed thermal stability makes it especially suitable for overnight or multi-day experiments where ambient HVAC variability or grid instability may compromise air-jacketed alternatives. The optional 90°C humid heat sterilization cycle provides an alternative to chemical decontamination—validated per EN 14255-1 for sporicidal efficacy against Bacillus stearothermophilus spores.

FAQ

What is the typical CO₂ recovery time after door opening?
After a 30-second door opening event at 37°C / 5% CO₂, the system restores target CO₂ concentration within ≤3 minutes and temperature within ≤6 minutes.
Does the ZCW-50T support regulatory-compliant data archiving?
Yes—when equipped with the RS485 interface and connected to a compliant LIMS or ELN, it supports ALCOA+ data integrity principles including attributable, legible, contemporaneous, original, and accurate records.
Can the incubator be stacked or installed in confined spaces?
The unit is stackable (with optional support frame) and features rear-service access—ideal for modular lab layouts. Minimum clearance requirements: 100 mm top/sides, 150 mm rear for ventilation.
Is the water jacket serviceable without disassembling the chamber?
Yes—the external water-fill port and level indicator allow routine refilling, draining, and visual inspection without compromising internal sterility or structural integrity.
How is humidity maintained without active humidification?
Humidity is generated passively via evaporation from a stainless-steel reservoir pan; the large surface area and optimized chamber airflow ensure consistent 95% RH with minimal drift—even during repeated access.
