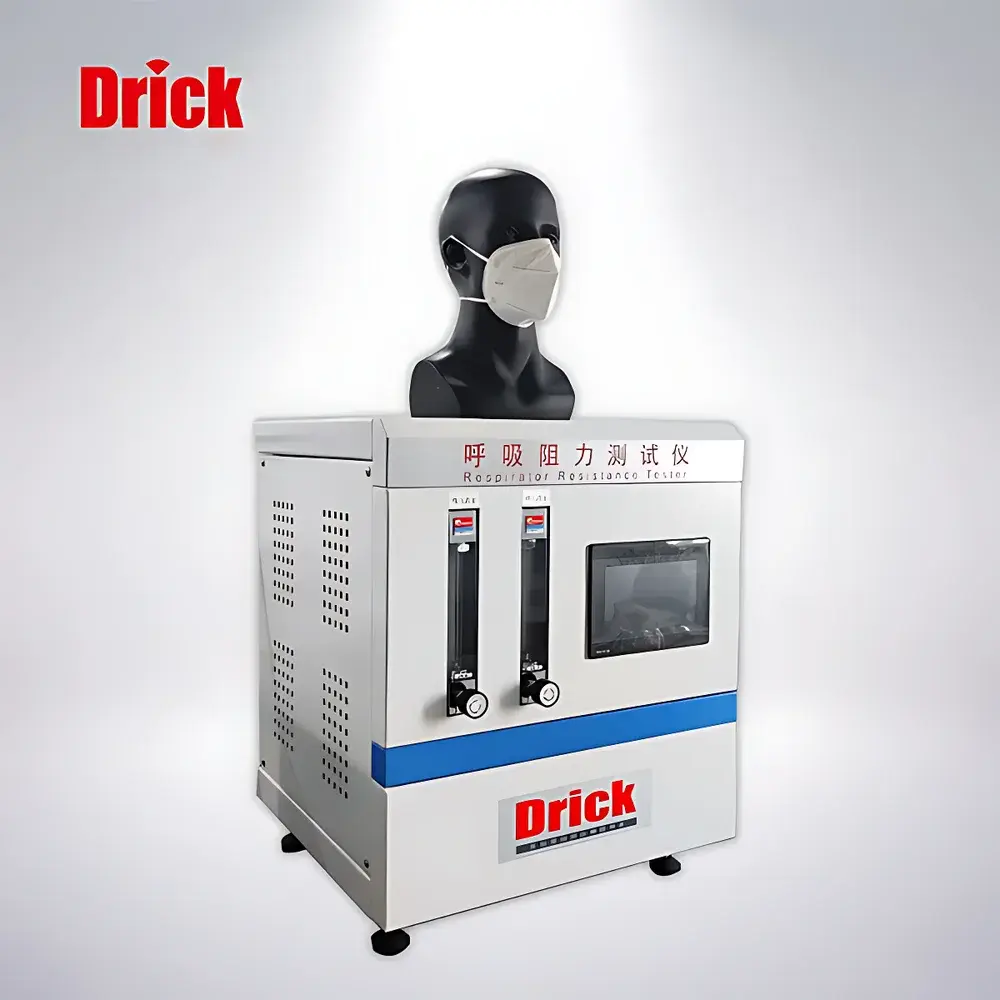

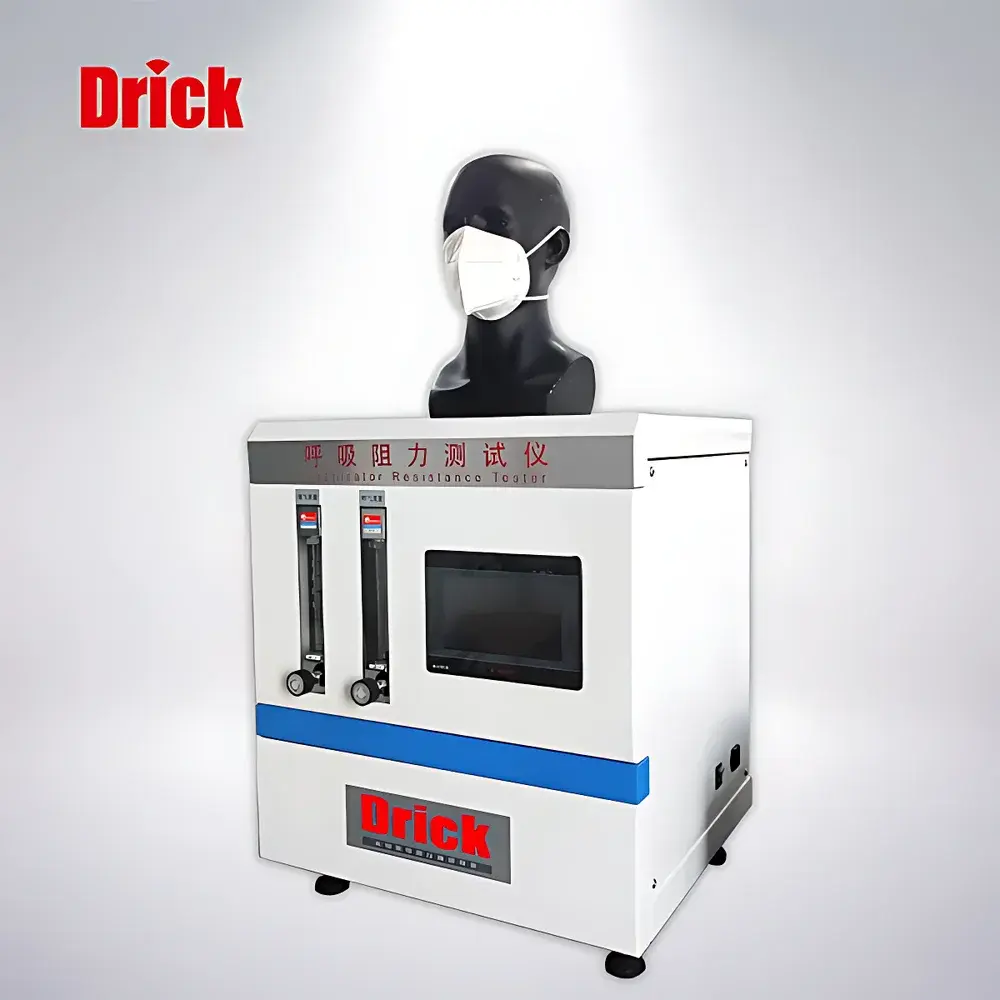

Drick DRK260 Respiratory Resistance Tester for Face Masks

Overview

The Drick DRK260 Respiratory Resistance Tester is an engineered precision instrument designed to quantify the pressure differential across respiratory protective devices—including medical surgical masks, N95/KN95 respirators, dust-proof masks, and daily protective face coverings—under standardized airflow conditions. It operates on the fundamental principle of measuring the static pressure drop (ΔP) across a test specimen at controlled volumetric flow rates, in strict accordance with established regulatory protocols for respiratory protection performance evaluation. This device implements a constant-flow methodology, where air is drawn through the mask sample via a calibrated vacuum pump system, and simultaneous high-fidelity readings of flow rate and differential pressure are acquired using traceable digital sensors. The DRK260 supports both inhalation and exhalation resistance testing modes, enabling bidirectional assessment critical for evaluating real-world breathing dynamics and compliance with international safety benchmarks.

Key Features

• Integrated dual-mode operation: configurable for inhalation-only, exhalation-only, or sequential dual-phase resistance measurement.
• High-resolution 7-inch LCD display with intuitive menu navigation and real-time graphical feedback of pressure and flow profiles.
• Imported high-accuracy digital differential pressure transducer (0–2000 Pa range, ±1 Pa repeatability) certified to ISO/IEC 17025 traceable calibration standards.
• Calibrated mass flow meter (0–100 L/min, ±3% full-scale accuracy) with active thermal compensation for ambient temperature and humidity variations.
• Automated pneumatic valve manifold that eliminates manual hose switching between inhalation and exhalation tests—reducing operator error and improving inter-laboratory reproducibility.
• Rugged steel frame construction with vibration-dampened base and integrated acoustic shielding to minimize environmental interference during low-pressure measurements.
• Comprehensive hardware safety logic: overpressure cutoff, thermal overload protection, and flow stall detection prevent sensor damage and ensure long-term metrological stability.

Sample Compatibility & Compliance

The DRK260 accommodates flat-panel mask samples up to 200 mm × 150 mm mounted on standardized test fixtures per ISO 16900-1:2016 and ASTM F2299/F3502 requirements. Its test chamber design conforms to the dimensional and sealing specifications outlined in GB 19083–2010 (Medical Protective Masks), GB 2626–2019 (Respiratory Protection – Self-Contained Filtering Devices Against Particulates), and GB/T 32610–2016 (Daily Protective Masks). The instrument’s measurement uncertainty budget has been validated against NIST-traceable reference standards and satisfies the minimum performance criteria for accredited laboratories operating under CNAS-CL01 (ISO/IEC 17025) and GLP-compliant quality systems. All firmware and control algorithms are documented per ISO 9001:2015 design control procedures.

Software & Data Management

The DRK260 operates with embedded firmware supporting automated test sequencing, pass/fail threshold evaluation, and CSV-exportable raw data logs (timestamp, flow rate, ΔP, test mode, operator ID). Optional PC-based software (DRK-DataLink v3.2) provides advanced features including multi-sample statistical analysis (mean, SD, CV%), batch reporting aligned with FDA 21 CFR Part 11 audit trail requirements, and customizable certificate generation compliant with ISO/IEC 17025 clause 7.8. Data integrity safeguards include encrypted local storage, user role-based access control (admin/operator), and immutable electronic signatures for final report approval. All calibration events and sensor diagnostics are automatically timestamped and archived within the internal event log.

Applications

• Quality assurance testing of disposable and reusable respiratory masks during production line release.
• Regulatory submission support for CE marking, NIOSH certification, and China NMPA registration dossiers.
• R&D validation of novel filter media, electrostatically charged nonwovens, and multi-layer composite structures.
• Comparative performance benchmarking against EN 149:2001+A1:2009, KN95, FFP2, and ASTM F2100 Level 3 filtration standards.
• Third-party conformity assessment by national PPE testing centers and ISO/IEC 17025-accredited laboratories.
• Root cause analysis of high-resistance batches linked to fiber web density, binder content, or pleat geometry deviations.

FAQ

Does the DRK260 comply with GB 2626–2019 and ISO 16900–1?
Yes—the instrument’s flow control architecture, pressure sensing path length, and fixture geometry have been validated against the physical test configurations defined in both standards.
Can the DRK260 be used for fit testing or leakage evaluation?
No—it measures only material-level airflow resistance, not facial seal integrity or total inward leakage; those require separate anthropometric test systems such as PortaCount or TSI 8038.
Is external calibration required annually?
Yes—users must perform annual verification using NIST-traceable pressure and flow references; Drick provides certified calibration kits and issues ISO/IEC 17025-compliant certificates upon request.
What maintenance intervals are recommended for the vacuum pump and sensors?
The diaphragm pump requires oil-free operation and scheduled filter replacement every 500 operational hours; pressure and flow sensors should undergo functional verification before each shift.
Does the system support integration with LIMS or MES platforms?
Yes—via RS-232/USB-C serial interface and Modbus RTU protocol; API documentation and HL7-compatible data mapping templates are available under NDA.
