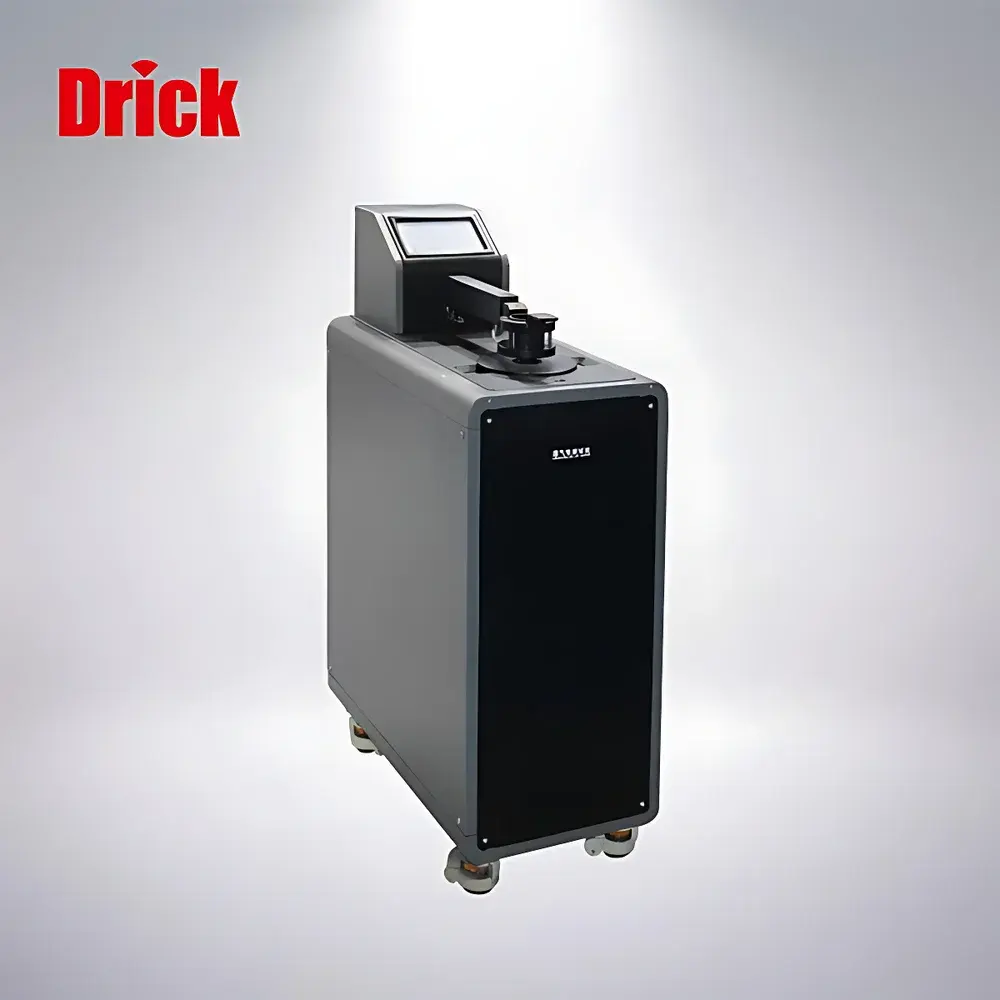

Drick DRK461 Advanced Air Permeability Tester for Industrial Filter Media and Technical Textiles
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Model | DRK461 |
| Pressure Differential Range | 1–2400 Pa |
| Air Permeability Range | 0.5–14000 mm/s (at 20 cm²), Resolution: 0.1 mm/s |
| Measurement Accuracy | ≤ ±1% |
| Max Sample Thickness | ≤10 mm (DRK461D) / ≤8 mm (DRK461E) |
| Clamping Method | Pneumatic (DRK461E) or Manual (DRK461D) |
| Test Area | 20 cm² |
| Data Storage Capacity | Up to 3200 test records per batch |
| Output Interface | 7-inch TFT color touchscreen + PC connectivity (RS232/USB) + A4 bilingual (EN/CN) thermal printer |
| Units Supported | mm/s, cm³/cm²/s, L/dm²/min, m³/m²/min, m³/m²/h, dm³/s, CFM |
| Power Supply | AC 220 V, 50 Hz, 1500 W |
| Compliance | GB/T 5453, GB/T 13764, ISO 9237, EN ISO 7231, ASTM D737, BS 5636, DIN 53887, EDANA 140.1, JIS L1096, TAPPI T251 |
| Calibration | Integrated certified orifice plate with traceable NIST-equivalent verification protocol |
Overview
The Drick DRK461 is a precision-engineered air permeability tester designed for rigorous quality control and R&D applications across industrial filtration, technical textiles, and functional polymer materials. It operates on the principle of constant-pressure (or constant-flow) differential air flow measurement through planar porous media under standardized pressure differentials—fully compliant with the core physical definition of air permeability as defined in ISO 9237:1995 (“Textiles — Determination of the permeability of fabrics to air”). The system quantifies volumetric airflow per unit area under controlled pressure gradient, enabling direct comparison of resistance-to-airflow characteristics critical for filter media validation, breathability assessment in protective fabrics, and process consistency monitoring in nonwovens manufacturing. Unlike simplified benchtop gauges, the DRK461 integrates closed-loop feedback control of suction flow, real-time differential pressure stabilization, and auto-ranging measurement logic—ensuring metrological integrity across five orders of magnitude in permeability (from dense industrial filter papers to highly open geotextiles).
Key Features
- Two operational variants: DRK461D (manual clamping, broad material scope) and DRK461E (pneumatic clamping, optimized for high-throughput filter paper testing)
- High-stability differential pressure control (1–2400 Pa range) via precision piezoresistive micro-pressure sensors with <±0.5% FS long-term drift specification
- Dynamic airflow regulation using closed-loop PID-controlled vacuum blower with integrated acoustic dampening—reducing operational noise to <62 dB(A) at 1 m distance
- Standardized 20 cm² test area with interchangeable stainless-steel annular gaskets and calibrated orifice plate for routine performance verification per ISO/IEC 17025 internal audit requirements
- Dual-control architecture: standalone operation via 7-inch capacitive touchscreen (with intuitive icon-driven workflow) or full remote supervision via Windows-based software with real-time ΔP–Q curve plotting and statistical trend analysis
- Robust mechanical design: anodized aluminum test platform, powder-coated steel chassis, and ergonomic long-reach clamping lever accommodating specimens up to 300 × 300 mm without pre-cutting
- Comprehensive unit conversion engine supporting 7 industry-standard permeability expressions—including SI-aligned m³/m²/min and legacy US customary CFM—enabling seamless data exchange with global supply chain partners
Sample Compatibility & Compliance
The DRK461 accommodates rigid and flexible sheet materials up to 10 mm thick (DRK461D) or 8 mm (DRK461E), including but not limited to: meltblown and spunbond polypropylene filter media; HEPA and ULPA substrate papers; cement sack kraft paper; asphalt-saturated roofing felts; coated technical textiles; synthetic leather laminates; and elastomeric barrier films. Its mechanical clamping system ensures uniform sealing pressure distribution (≥120 kPa contact stress) across heterogeneous surfaces—critical for minimizing edge leakage artifacts during low-permeability measurements. All hardware and firmware comply with electromagnetic compatibility (EMC) directives IEC 61326-1 and safety standard IEC 61010-1. The instrument supports full GLP/GMP documentation workflows: each test record embeds timestamp, operator ID, calibration status flag, environmental temperature/humidity metadata (via optional external sensor input), and digital signature fields—fully compatible with FDA 21 CFR Part 11 electronic record requirements when deployed with validated software configuration.
Software & Data Management
The optional DRK-Soft v3.2 application provides full instrument control, automated report generation (PDF/Excel), and database-backed result archiving. It implements audit-trail functionality tracking all parameter modifications, calibration events, and user logins with immutable timestamps. Real-time graphical display includes dual-axis plots of differential pressure versus volumetric flow rate, enabling immediate identification of non-linear permeability behavior—such as compression-induced pore collapse in compressible nonwovens. Batch processing tools allow statistical summarization (mean, SD, CV%, min/max) across up to 3200 stored tests, with configurable pass/fail thresholds aligned to internal QC limits or customer specifications. Export modules support ASTM E1447-compliant data packaging for third-party lab accreditation submissions.
Applications
- Quality assurance of HVAC, automotive cabin, and medical-grade air filter media against ISO 16890 and EN 779 classification thresholds
- Development of breathable yet liquid-resistant barrier fabrics for personal protective equipment (PPE), per ASTM F1868 and ISO 11092 protocols
- Process validation of papermaking lines producing filtration-grade kraft and cellulose acetate substrates
- Comparative permeability mapping of multi-layer composite laminates used in battery separators and fuel cell membranes
- Regulatory submission support for FDA 510(k) filings requiring air resistance characterization of surgical drapes and gowns
FAQ
What standards does the DRK461 fully support for regulatory testing?
It natively executes test sequences per GB/T 5453, ISO 9237, ASTM D737, and EN ISO 7231—including automatic pressure ramping profiles, dwell time enforcement, and unit-conversion logic required for cross-standard equivalence reporting.
Can the DRK461E perform unattended batch testing?
Yes—the pneumatic clamping variant supports sequential auto-test mode: after loading multiple specimens onto the staging tray, the system autonomously indexes, seals, measures, and ejects samples with minimal operator intervention.
Is calibration traceability provided with the instrument?
Each unit ships with a factory-issued calibration certificate referencing a certified orifice plate calibrated against national metrology institute standards (equivalent to NIST SRM 2800 series), valid for 12 months under normal use conditions.
How is measurement repeatability ensured across operators and laboratories?
Through hardware-level pressure stabilization (<±0.3 Pa fluctuation), temperature-compensated sensor electronics, and software-enforced test parameter locking—eliminating variability from manual timing or subjective endpoint judgment.
Does the system support integration into a central LIMS environment?
Via optional OPC UA server module (DRK-LINK-OPC), enabling bidirectional data exchange with laboratory information management systems compliant with ASTM E1578 and ISO/IEC 17025 Annex A.2 requirements.
