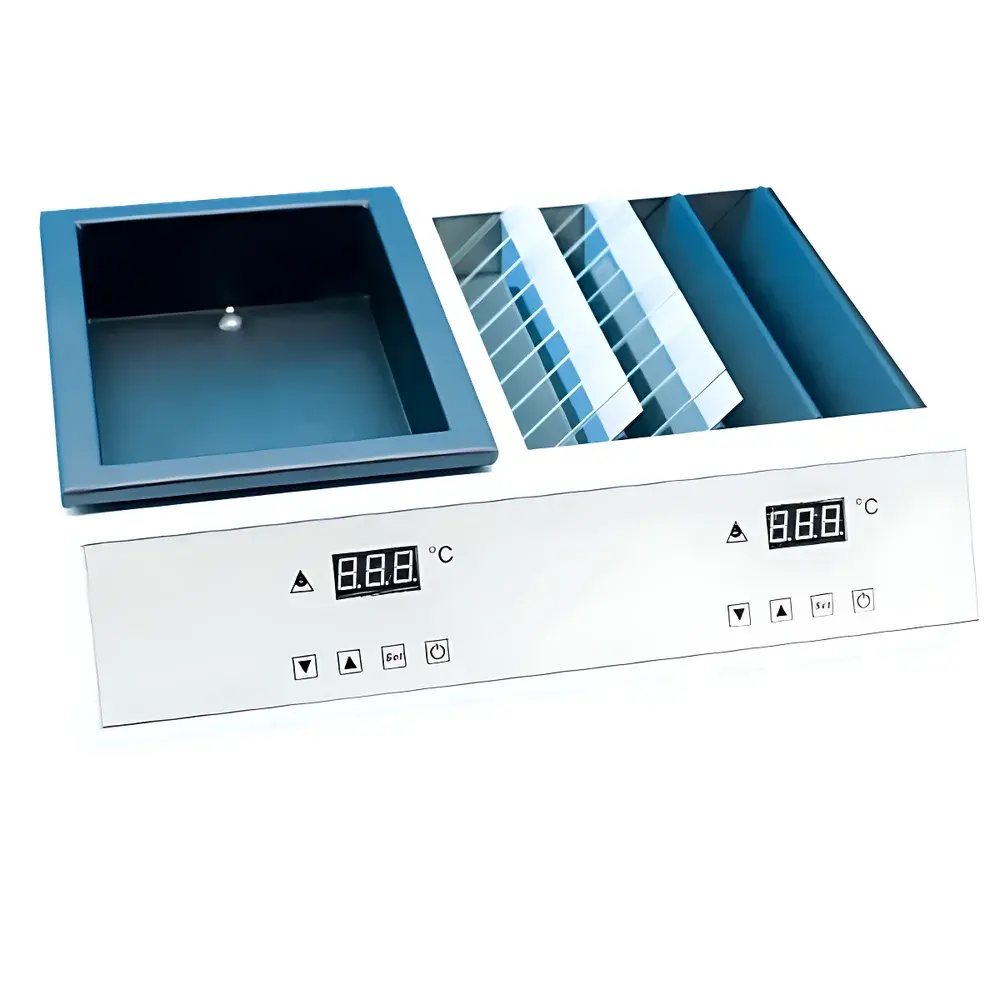

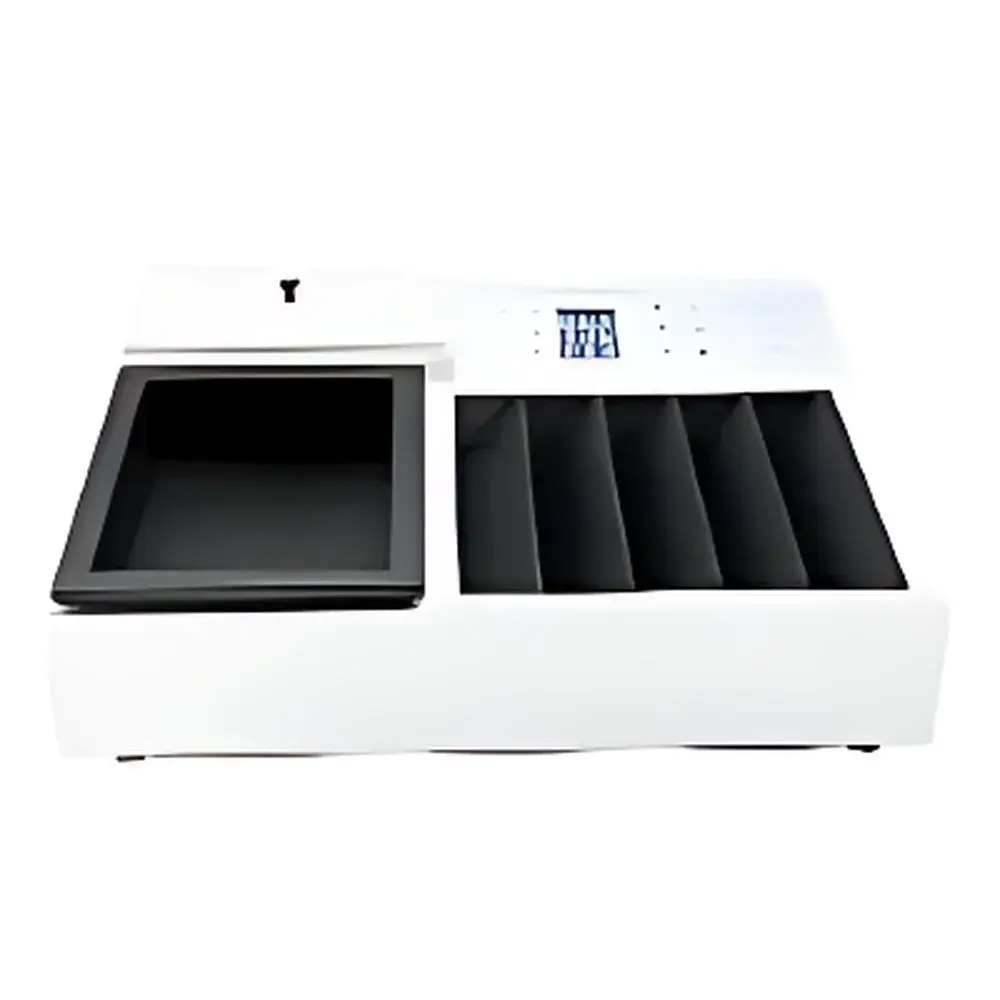

DS DK-100 Tissue Flattening and Baking Station

Overview

The DS DK-100 Tissue Flattening and Baking Station is a precision-engineered benchtop instrument designed for standardized histopathological specimen preparation in clinical laboratories, academic research facilities, and diagnostic pathology centers. It integrates two critical pre-staining steps—tissue section flattening (also known as “floating” or “spreading”) and controlled thermal adhesion (baking)—into a single, compact platform. The device operates on resistive surface heating principles, utilizing a high-uniformity imported heating film to deliver rapid thermal response and stable plateau temperatures across the entire 330 × 280 mm working surface. Its core function is to ensure optimal adherence of paraffin-embedded tissue sections onto glass microscope slides prior to deparaffinization and staining—thereby minimizing section detachment, wrinkling, or curling during downstream processing. Engineered for reproducibility and compliance with routine histology workflows, the DK-100 supports GLP-aligned laboratory practices through deterministic thermal control and traceable operational parameters.

Key Features

• PID-based digital temperature regulation with real-time feedback loop, achieving ±0.5°C stability across the full operating range (typically 30–75°C); eliminates temperature overshoot and ensures consistent thermal profiles between batches.
• Integrated dust-resistant transparent hood (patent-pending design), mechanically isolated from the heating surface, preventing particulate contamination and reducing long-term oxidation of the aluminum alloy workplate.
• Surface-mounted heating film provides uniform heat distribution (>95% spatial uniformity measured per ASTM E2202), fast thermal ramp-up (<5 min to reach 60°C from ambient), and extended service life (>10,000 hours MTBF).
• Dual-voltage compatibility (AC 110 V / 60 Hz and AC 220 V / 50 Hz) enables seamless deployment in North American, European, and APAC laboratory environments without external transformers.
• Compact footprint (330 × 330 × 90 mm) optimizes space utilization in crowded histology suites while maintaining full-size slide capacity—up to 50 standard 1″ × 3″ glass slides per cycle.

Sample Compatibility & Compliance

The DK-100 accommodates all conventional histological slide formats, including plain, charged, poly-L-lysine-coated, and APES-silanized glass substrates. It is compatible with both paraffin-embedded and frozen-section tissues mounted using standard water-bath spreading techniques. No modification to existing microtome or flotation bath protocols is required. From a regulatory standpoint, the instrument meets IEC 61010-1:2010 safety requirements for laboratory electrical equipment. While not classified as an IVD device under EU IVDR or FDA 21 CFR Part 809, its operational consistency supports adherence to CAP, CLIA, and ISO 15189-accredited histology SOPs. Temperature calibration records can be maintained manually to satisfy internal QA audits and GLP documentation requirements.

Software & Data Management

The DK-100 is a standalone analog-digital hybrid instrument with no embedded firmware, cloud connectivity, or proprietary software. Temperature setpoint and actual surface reading are displayed via a dual-digit LED interface; no data logging or export functionality is provided. This architecture intentionally prioritizes reliability, electromagnetic compatibility (EMC), and serviceability in electromagnetically noisy histology environments (e.g., near microtomes, centrifuges, or vacuum tissue processors). Users may integrate external calibrated thermocouple probes (e.g., Type K, Class 1) for periodic verification per ISO/IEC 17025 metrological traceability guidelines. All operational parameters—including voltage input, power draw, and thermal specifications—are documented in the bilingual (EN/CN) user manual supplied with each unit.

Applications

• Routine H&E staining preparation in hospital pathology departments
• Immunohistochemistry (IHC) slide baking where precise antigen preservation depends on controlled thermal exposure
• In situ hybridization (ISH) workflows requiring minimal RNA degradation during adhesion
• Research-grade tissue microarray (TMA) construction with multi-tissue section alignment
• Teaching laboratories conducting undergraduate histology practicals with emphasis on reproducible technique training

FAQ

Does the DK-100 support programmable temperature ramps or multi-step protocols?
No. It is a single-setpoint thermostatic station optimized for steady-state baking (typically 60°C for 30–60 min) and does not offer time-temperature profiling.
Can the heating surface be recalibrated by the end user?
Yes—via the front-panel zero-adjust potentiometer, users may perform offset correction against a NIST-traceable reference thermometer at any point within the operating range.
Is the dust cover autoclavable or chemically resistant?
The hood is constructed from impact-modified acrylic and withstands routine cleaning with 70% ethanol or isopropyl alcohol; it is not suitable for autoclaving or immersion in xylene or chloroform.
What maintenance is required beyond routine cleaning?
Annual inspection of heater film continuity and terminal screw torque is recommended; no consumables or scheduled replacements are specified under normal usage conditions.
Does DS provide international technical support or spare parts distribution?
DS maintains authorized service partners in Germany, Singapore, and Brazil; spare heating modules and control PCBs are available under part numbers DK-100-HM and DK-100-PCB, respectively, with lead times of 4–6 weeks ex-warehouse Zhejiang.
