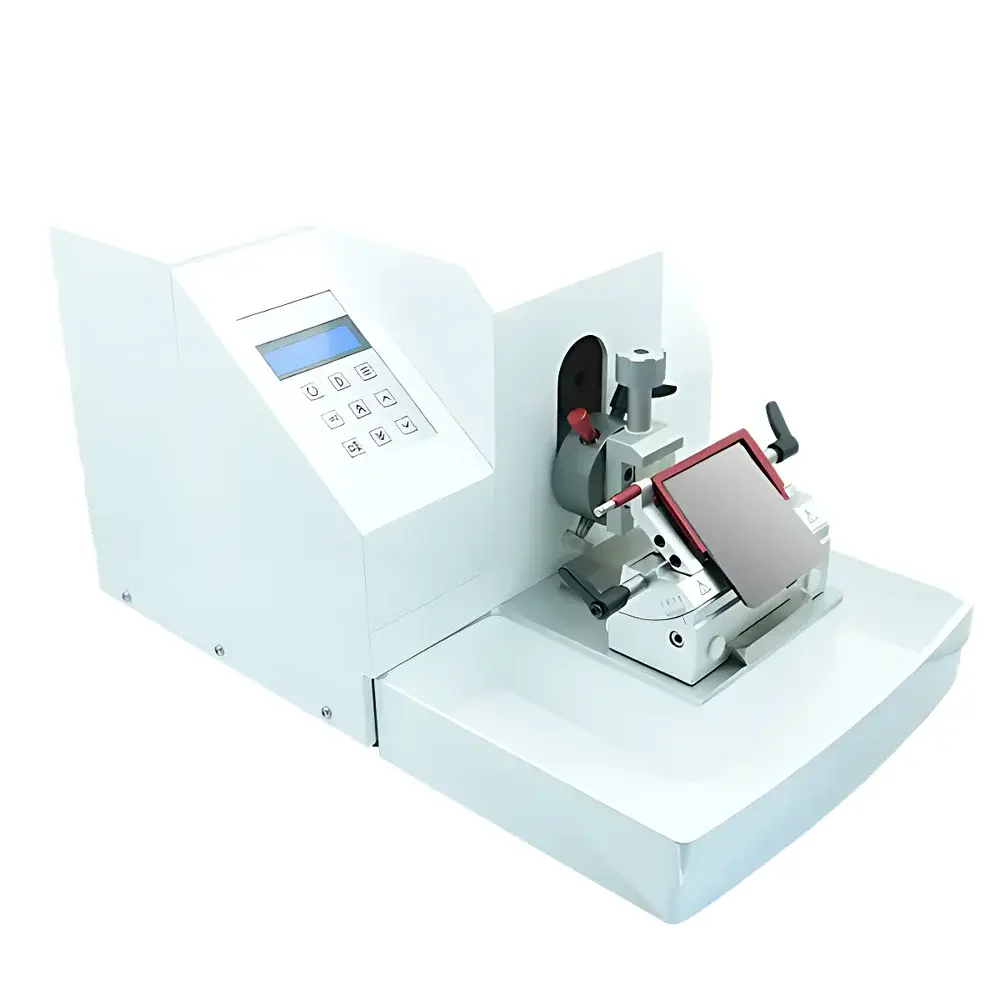

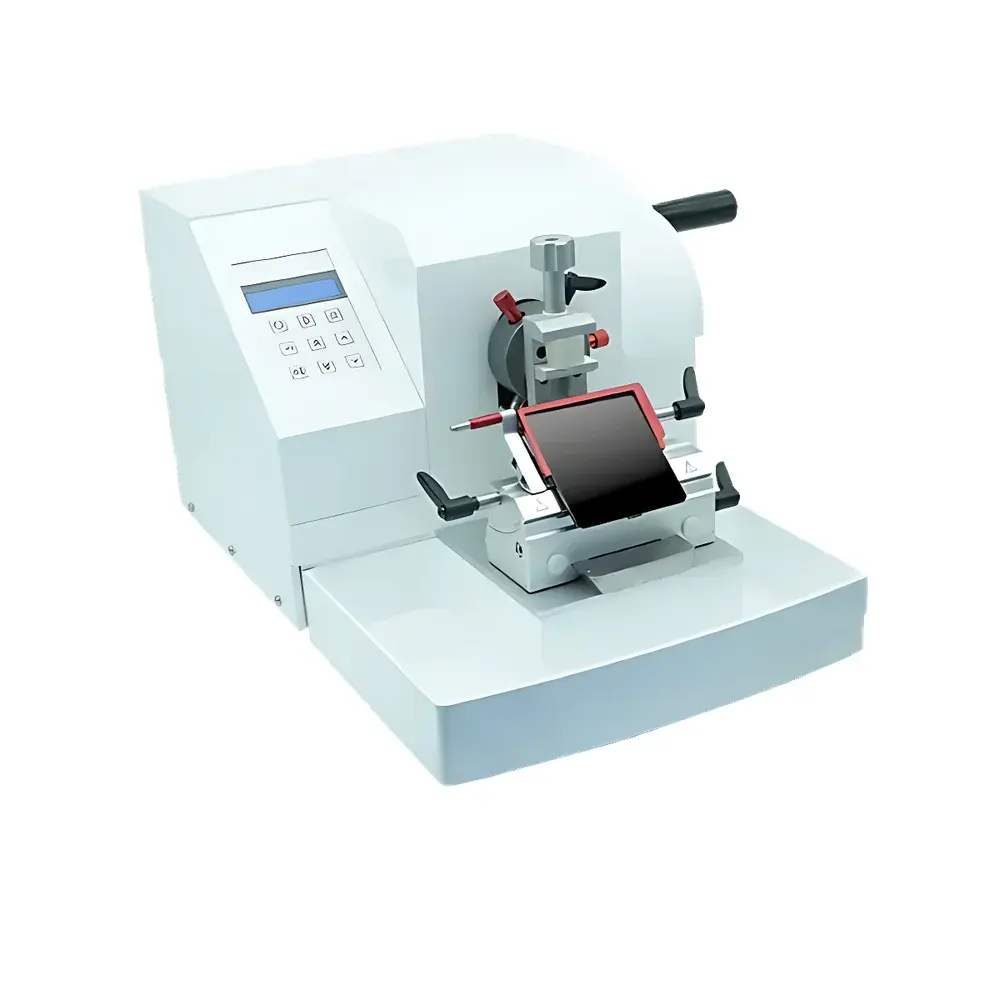

DS JY-8500 Semi-Automatic Rotary Microtome

Overview

The DS JY-8500 Semi-Automatic Rotary Microtome is an engineered solution for routine and research-grade histopathology laboratories requiring precise, reproducible sectioning of paraffin-embedded and semi-frozen tissue specimens. Designed on the principle of rotary microtomy—where a specimen block advances incrementally toward a stationary knife during each cutting cycle—the JY-8500 integrates electromechanical feed control with manual user intervention to balance operator control and process consistency. Its architecture supports both standard paraffin sectioning and low-temperature applications (down to –5 °C ambient), making it suitable for labs transitioning between conventional and cryo-histological workflows without dedicated equipment duplication. The device complies with fundamental mechanical safety requirements outlined in IEC 61010-1 for laboratory equipment and is constructed to meet ISO 9001-certified manufacturing practices.

Key Features

• 5-inch capacitive touchscreen interface with intuitive icon-based navigation—enables simultaneous one-hand sectioning and parameter adjustment without interrupting workflow.
• Stepper motor-driven specimen advance system ensures repeatable thickness delivery across the full 0–100 µm range, with discrete step increments configurable in 1 µm increments.
• Dual-speed specimen feed (coarse/fine) facilitates rapid initial positioning and high-precision final alignment during knife approach.
• Programmable memory function stores up to five distinct sectioning protocols—including thickness, coarse/fine feed ratio, and knife angle—allowing instant recall for standardized tissue types (e.g., liver, kidney, brain).
• Spring-balanced handwheel with adjustable tension provides consistent rotational torque across varying specimen hardness, reducing operator fatigue during extended sessions.
• Knife holder with 0–15° angular adjustment and lateral translation (±5 mm) enables optimal bevel alignment for differential tissue elasticity and knife geometry requirements.
• Two-stage handwheel lock: position-independent engagement for temporary stabilization, and top-dead-center lock for secure blade or cassette replacement.
• Automatic knife retraction (1.5 mm) upon completion of each stroke prevents accidental compression or crushing of delicate sections during specimen return.
• Bilingual UI support (English / Chinese) with firmware-upgradable architecture for future language expansion and feature enhancement.

Sample Compatibility & Compliance

The JY-8500 accommodates standard histological cassettes and metal specimen holders conforming to ANSI/NCCLS GP24-A3 dimensions. It accepts tissue blocks up to 70 mm (L) × 30 mm (W) × 40 mm (H), compatible with common paraffin embedding molds and cryomolds used in clinical pathology. All metallic components contacting specimens are passivated stainless steel (AISI 316) or anodized aluminum to prevent corrosion and cross-contamination. While not certified to UL/CSA standards for standalone medical device classification, the instrument meets essential performance criteria referenced in CLSI document H36-A3 (Requirements for Microtomes Used in Histopathology) and supports GLP-compliant documentation when integrated with validated LIMS or electronic lab notebook systems.

Software & Data Management

Firmware version 2.1 includes embedded logging of session metadata—including date/time stamp, total sections cut, average thickness deviation (±0.8 µm typical), and active protocol ID. Export is supported via USB 2.0 to CSV format for integration into QA dashboards. No cloud connectivity or remote access functionality is implemented; all data remains locally stored to comply with institutional data sovereignty policies. Audit trail capabilities satisfy basic FDA 21 CFR Part 11 requirements when paired with time-stamped, role-based user authentication on host workstations.

Applications

• Routine diagnostic histology in hospital pathology departments performing H&E, special stains, and immunohistochemistry preparation.
• Academic and pharmaceutical preclinical research involving serial sectioning of rodent and primate tissue blocks for morphometric analysis.
• Biobanking operations requiring long-term reproducibility across multiple operators and shifts.
• Veterinary pathology labs processing heterogeneous tissue types—from dense connective tissue to adipose-rich samples—requiring dynamic knife-angle optimization.
• Training environments where tactile feedback and manual control remain pedagogically essential alongside motor-assisted precision.

FAQ

Is the JY-8500 compatible with disposable blades from major OEMs (e.g., Leica, Sakura)?

Yes—it accepts standard 25-mm-wide disposable blades using universal clamping geometry. Blade retention force is mechanically fixed and does not require torque calibration.
Does the unit support temperature-controlled operation for frozen sections?

It is rated for ambient use down to 5 °C; for cryosectioning below –10 °C, external cold stage integration is required. No built-in Peltier or refrigeration module is included.
Can thickness settings be locked to prevent accidental changes during operation?

Yes—administrator-level password protection can be enabled to restrict modification of critical parameters including thickness, feed speed, and memory recall.
What maintenance intervals are recommended for optimal performance?

Lubrication of the specimen advance gear train every 6 months and annual calibration verification against NIST-traceable thickness standards are advised.
Is service documentation available in English?

Full technical manuals, spare parts schematics, and firmware update notes are provided in English PDF format upon registration.
