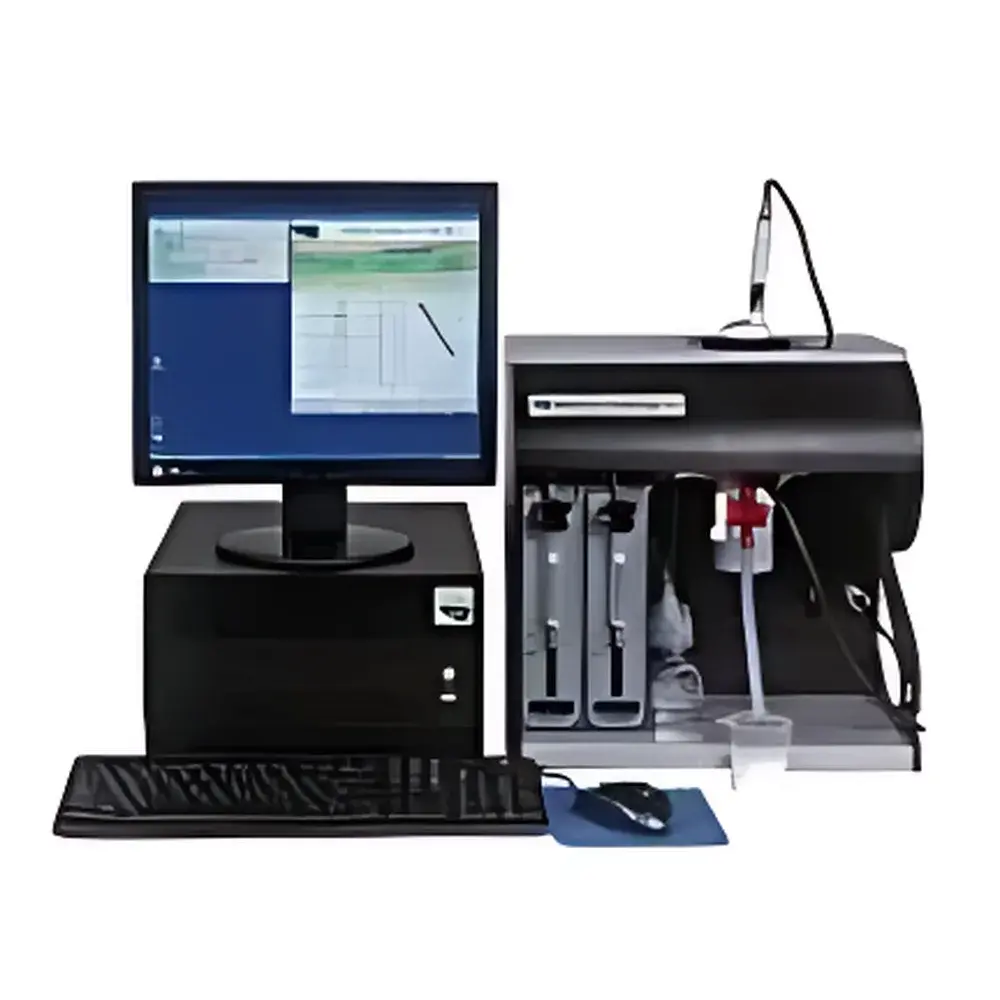

DT-1202 Multi-Parameter Ultrasound and Electroacoustic Spectrometer
| Brand | DT (USA) |
|---|---|
| Origin | USA |
| Model | DT-1202 |
| Particle Size Range | 5 nm – 1000 µm |
| Zeta Potential Measurement Range | Unlimited (±0.1 mV accuracy) |
| Concentration Range | 0.1–50 vol% |
| pH Range | 0.5–13.5 |
| Conductivity Range | 0.0001–10 S/m |
| Temperature Range | <50 °C |
| Max. Viscosity | 20,000 cP |
| Frequency Range | 1–100 MHz |
| Minimum Sample Volume | 2 mL |
| Titration Resolution | 0.1 µL |
| Simultaneous Measurement | Particle Size + Zeta Potential in One Cell |
| Optional Modules | Rheology, pH, Conductivity, Temperature, Auto-Titration, Non-Aqueous Systems |
Overview
The DT-1202 Multi-Parameter Ultrasound and Electroacoustic Spectrometer is a high-precision, benchtop analytical platform engineered for comprehensive colloidal characterization in complex, undiluted dispersions. Unlike conventional laser diffraction or electrophoretic light scattering instruments, the DT-1202 employs electroacoustic and ultrasonic attenuation spectroscopy—principles rooted in colloid vibration current (CVI) and dynamic electrophoretic mobility—to determine particle size distribution (PSD), zeta potential, and acoustic rheological properties *in situ*, without dilution or optical constraints. This enables direct analysis of highly concentrated, opaque, or non-aqueous systems—including polymer emulsions, ceramic slurries, battery electrode suspensions, and pharmaceutical nanosuspensions—where traditional optical methods fail. Its modular architecture integrates multiple transducers and sensors into a single measurement cell, allowing concurrent acquisition of electroacoustic signals, sound speed, attenuation spectra, pH, conductivity, temperature, and titration-controlled variables—delivering a unified physicochemical profile of colloidal stability and interfacial behavior.
Key Features
- Simultaneous dual-parameter measurement: Particle size distribution and zeta potential acquired from the same sample volume in a single cell—eliminating sampling variability and cross-contamination risks.
- Unrestricted zeta potential quantification: Capable of resolving low-mobility particles down to ±0.1 mV, with validated accuracy across conductivities from 0.0001 to 10 S/m—enabling reliable IEP (isoelectric point) determination even in highly conducting electrolytes (e.g., saline buffers, Li-ion battery electrolytes).
- True high-concentration operation: Supports undiluted samples up to 50 vol%, including viscous gels and latex concentrates (≤20,000 cP), removing artifacts introduced by dilution-induced aggregation or surface charge screening.
- Non-aqueous compatibility: Equipped with chemically inert sensor modules and dielectric calibration protocols for organic solvents (e.g., toluene, DMF, ethanol), enabling zeta and PSD analysis in solvent-based coatings, inkjet inks, and catalyst slurries.
- Integrated micro-titration system: Programmable auto-titrator with 0.1 µL resolution supports precise acid/base, surfactant, or salt addition—automating IEP mapping, stabilization envelope studies, and formulation optimization under GLP-compliant audit trails.
- Multi-sensor synchronization: All probes—including CVI transducers, pH electrodes, conductivity cells, and temperature sensors—are time-aligned and calibrated to a common reference frame, ensuring data coherence for multivariate correlation analysis.
Sample Compatibility & Compliance
The DT-1202 accommodates heterogeneous dispersions—including polydisperse mixtures, aggregated clusters, and multimodal colloids—without prior fractionation. It meets ASTM D7854 (Standard Test Method for Zeta Potential of Colloidal Dispersions by Electroacoustic Measurement) and ISO 20998-2 (Particle Size Analysis — Ultrasound Spectroscopy — Part 2: Determination of Particle Size Distribution). Its firmware and software architecture comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, supporting full audit trails, user access control, and instrument calibration logging—making it suitable for regulated environments (e.g., QC labs in pharmaceutical, cosmetic, and advanced materials manufacturing). CE marking confirms conformity with EU electromagnetic compatibility (EMC) and low-voltage directives.
Software & Data Management
DT’s proprietary SpectraSoft™ v6.x suite provides real-time spectral deconvolution, Mie/continuum modeling for PSD inversion, and Smoluchowski/Booth mobility-to-zeta conversion with adjustable dielectric boundary conditions. Data files are stored in vendor-neutral HDF5 format with embedded metadata (instrument ID, calibration date, operator, SOP version). Batch processing supports statistical comparison across formulations, time-series stability monitoring, and export to LIMS via ASTM E1384-compliant XML schema. The software includes built-in validation reports for system suitability testing (SST), including signal-to-noise ratio (SNR ≥ 25 dB), baseline stability (<±0.5% drift over 10 min), and probe cross-calibration traceability to NIST-traceable standards.
Applications
- Formulation science: Mapping colloidal stability envelopes via pH- and ionic strength-dependent zeta potential and PSD shifts.
- Battery R&D: Characterizing cathode/anode slurry rheology, particle agglomeration, and surface charge in non-aqueous electrolyte media.
- Biopharmaceuticals: Assessing aggregation onset in protein therapeutics under stress conditions—without fluorescent labeling or dilution.
- Coatings & inks: Quantifying pigment dispersion quality, flocculation kinetics, and surfactant adsorption isotherms via automated titration-coupled electroacoustics.
- Environmental colloids: Analyzing natural organic matter (NOM)-coated nanoparticles in groundwater simulants with high ionic strength.
- Quality control: Validating batch-to-batch consistency of industrial emulsions, nanocellulose gels, and ceramic feedstocks per internal SOPs aligned with ISO 9001.
FAQ
Can the DT-1202 measure zeta potential in samples with zero surface charge?
Yes. Using zero-charge referencing and phase-sensitive CVI detection, the instrument resolves hydrodynamic diameter independently of electrophoretic mobility—enabling accurate PSD determination even at the isoelectric point.
Is sample heating during ultrasonic interrogation controlled?
Yes. Integrated Peltier cooling maintains cell temperature within ±0.2 °C during 1–100 MHz scanning; thermal drift compensation algorithms correct for sound speed variations in real time.
How is sensor cross-talk mitigated during simultaneous multi-probe operation?
Each sensor operates on isolated analog front-ends with synchronized digital sampling (100 MS/s), and firmware applies adaptive filtering to suppress electromagnetic coupling between CVI excitation and pH/conductivity circuits.
Does the system support method transfer between laboratories?
Yes. SpectraSoft™ includes method export/import functionality with embedded calibration certificates, probe serial numbers, and environmental metadata—ensuring reproducibility across global sites under ISO/IEC 17025 guidelines.
What maintenance is required for long-term reliability?
Annual verification against DT-certified reference dispersions (NIST-traceable polystyrene latices) and quarterly probe performance checks using conductivity/pH standard solutions are recommended; no consumables beyond standard electrodes and titrant cartridges are required.
