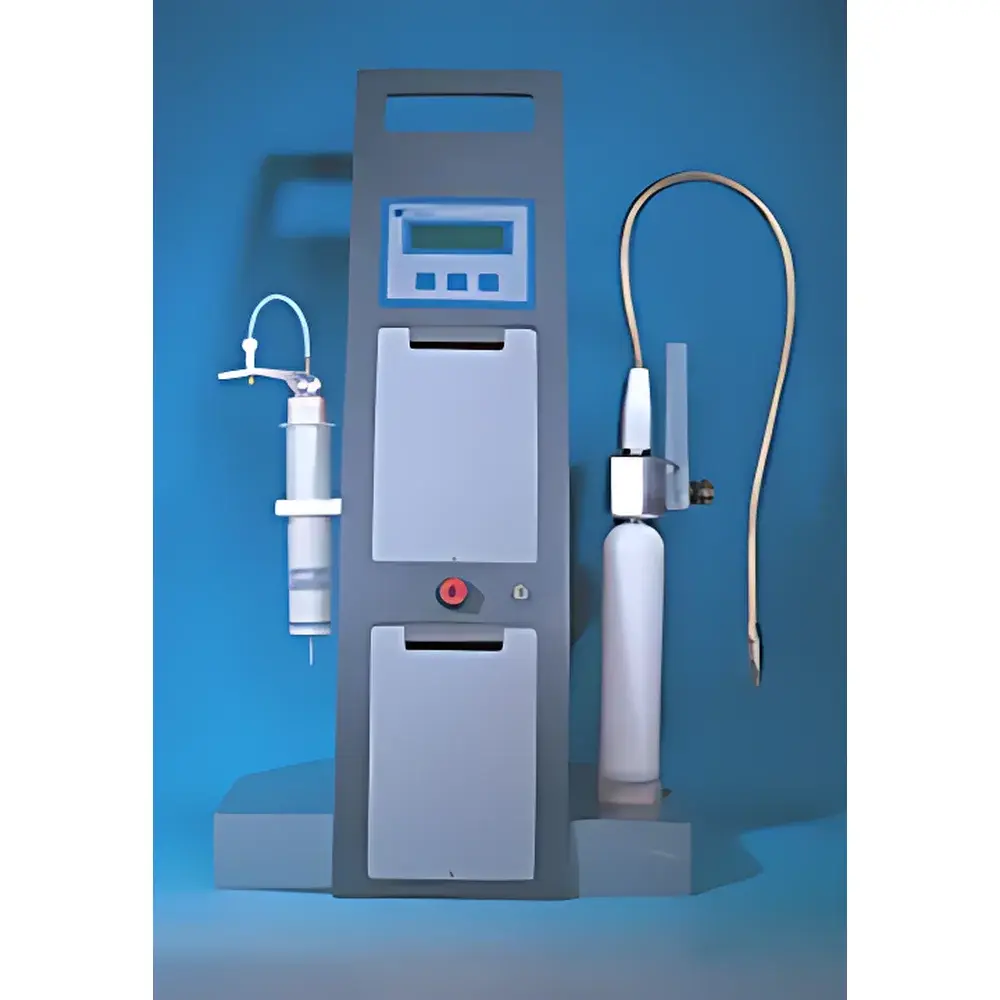

Easi Flash Preparative Flash Chromatography System by GYAN
| Origin | Italy |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Easi Flash |
| Instrument Type | Medium-Pressure Preparative Liquid Chromatography System |
| Max. Operating Pressure | 5.5 bar |
| Max. Flow Rate | 250 mL/min |
| Pump Technology | Centrifugal (EasiPump) |
| Column Diameter Compatibility | 12 mm, 26 mm, 40 mm |
| Solvent-Wetted Materials | PTFE (Teflon®) |
| Construction | Anodized Aluminum Housing |
| Portability | Hand-Carried Design |
Overview
The Easi Flash Preparative Flash Chromatography System is a medium-pressure, benchtop-scale purification platform engineered by GYAN — an Italian manufacturer specializing in robust, application-driven chromatographic solutions for natural product isolation, combinatorial library purification, and fine chemical refinement. Unlike conventional gravity-fed column chromatography, the Easi Flash operates on the principle of forced-flow elution using a high-efficiency centrifugal pump (EasiPump), enabling reproducible separation under controlled pressure (up to 5.5 bar) and flow rates up to 250 mL/min. This pressure regime bridges the performance gap between open-column chromatography and high-performance liquid chromatography (HPLC), delivering accelerated resolution without requiring ultra-high-pressure hardware, specialized columns, or extensive method development. Its design targets laboratories where throughput, operational simplicity, and solvent economy are prioritized over analytical-level resolution — particularly in synthetic chemistry, phytochemistry, and process R&D environments.
Key Features
- Centrifugal EasiPump technology ensures pulse-free, low-shear solvent delivery with rapid gradient formation and excellent flow stability across variable viscosity mobile phases.
- Modular column compatibility supports internal diameters of 12 mm, 26 mm, and 40 mm — accommodating standard pre-packed or user-packed silica, reversed-phase, and specialty stationary phases (e.g., amino, cyano, diol).
- Full PTFE (Teflon®) wetted path eliminates metal ion leaching and ensures chemical resistance to aggressive solvents including chlorinated hydrocarbons, THF, DMF, and concentrated acids/bases.
- Lightweight anodized aluminum frame (under 8 kg) enables true portability — suitable for shared lab spaces, pilot-scale synthesis suites, or field-deployable purification workflows.
- Integrated solid sample introduction options include loop injectors and dedicated solid-phase loading cartridges, minimizing sample loss and improving recovery of thermally sensitive or low-solubility compounds.
- No external gas supply or high-voltage components required — operation relies solely on standard AC power and common laboratory-grade solvents.
Sample Compatibility & Compliance
The Easi Flash system accommodates a broad range of compound classes, including alkaloids, flavonoids, terpenes, peptides, organometallics, and small-molecule APIs. It supports both isocratic and linear binary gradient elution (A/B solvent programming), with manual or semi-automated fraction collection based on UV detection (optional integrated 254/280 nm detector available). While not certified for GMP manufacturing, its construction and documentation support GLP-compliant operation when paired with validated SOPs and electronic logbooks. All PTFE components meet USP Class VI biocompatibility standards, and the system’s mechanical design aligns with ISO 13485-aligned handling protocols for non-sterile chemical processing equipment.
Software & Data Management
The Easi Flash operates via intuitive front-panel controls with real-time display of pressure, flow rate, and elapsed run time. For enhanced traceability, optional PC connectivity (RS-232 or USB) enables logging of method parameters, run history, and fraction metadata into CSV or Excel-compatible formats. Though it does not incorporate FDA 21 CFR Part 11-compliant audit trails or electronic signatures, its deterministic control architecture allows integration into LIMS environments through standardized data export — supporting QA/QC documentation requirements in academic, contract research, and early-stage pharmaceutical development settings.
Applications
- Rapid purification of reaction mixtures following multi-step organic syntheses.
- Isolation of bioactive constituents from crude plant extracts (e.g., bark, leaves, roots) under mild pressure conditions preserving labile functional groups.
- Scalable fractionation of combinatorial libraries prior to biological screening.
- Desalting and buffer exchange of peptide intermediates prior to lyophilization.
- Recycling and reprocessing of failed HPLC fractions at preparative scale.
- Teaching laboratory implementation for chromatographic theory, method optimization, and green solvent selection (e.g., EtOAc/hexane vs. EtOH/water systems).
FAQ
What is the maximum recommended column length for use with the Easi Flash system?
Standard columns up to 25 cm in length are fully supported; longer beds may be used with reduced flow rates to maintain pressure compliance.
Can the Easi Flash perform gradient elution with more than two solvents?
Binary gradient capability is native; ternary or quaternary gradients require external solvent selection valves or manual solvent switching with method recalibration.
Is UV detection integrated or optional?
UV detection is optional — a compact dual-wavelength (254 nm / 280 nm) absorbance detector can be added as a modular accessory with analog output to fraction collectors.
Does the system support automated fraction collection?
Yes — time-based or peak-triggered fraction collection is enabled via TTL-compatible outputs when paired with third-party fraction collectors (e.g., Gilson, ISCO, or Biotage systems).
What maintenance is required for the EasiPump?
The centrifugal pump has no seals or bearings in contact with solvent; routine maintenance consists of periodic inspection of the rotor housing and cleaning of the inlet filter screen.
