EcoTech Multi-Channel Insect Respirometry System
| Brand | EcoTech |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | EcoTech Multi-Channel |
| Pricing | Upon Request |
Overview
The EcoTech Multi-Channel Insect Respirometry System is a modular, research-grade respirometry platform engineered for high-precision, real-time measurement of CO₂ production (VCO₂), O₂ consumption (VO₂), respiratory quotient (RQ), and water vapor (H₂O) exchange in arthropods and small invertebrates. Based on validated open-flow, stop-flow, and intermittent-flow respirometry principles—aligned with established methodologies in comparative physiology and ecological energetics—the system enables quantitative assessment of metabolic rate across diverse experimental paradigms. Its core architecture supports both continuous dynamic monitoring and discrete endpoint measurements, accommodating species ranging from 500 mg lepidopteran pupae or coleopteran larvae. The system complies with foundational respirometric standards referenced in ASTM E2937-14 (Standard Guide for Respirometric Measurements in Ecological Toxicology) and ISO 8692:2012 (Water quality — Fresh water algal growth inhibition test), while its data acquisition framework meets GLP-aligned traceability requirements for longitudinal metabolic studies.
Key Features
- Modular multi-channel architecture: Configurable from 4 to 32 independent measurement channels, including optional baseline reference channels for drift compensation
- Dual-mode gas analysis: Standard NDIR CO₂ analyzer (0–5% range, <1 s response, 0.1 ppm resolution) + optional differential paramagnetic O₂ analyzer (0–100%, ±0.1% accuracy, 0.0001% resolution)
- Precision flow control: Mass flow controllers with selectable ranges (0–100 mL/min to 0–500 mL/min), ±1% full-scale accuracy, integrated thermal mass flow meters (1 mL/min resolution)
- High-fidelity data acquisition: 12-channel DAQ system with 16-bit analog inputs, 0.001 °C temperature resolution across 4 thermistor inputs, 10 Hz sampling rate, and hardware-based digital filtering
- Flexible respirometry protocols: Support for open-flow, stop-flow, and intermittent-flow configurations—optimized for DGC (discontinuous gas exchange) analysis in diapausing or low-metabolism insects
- Optional environmental integration: Temperature-controlled incubation modules (±0.1 °C stability), IR-based activity monitoring (900 nm non-invasive beam, 0.0005–1 g detection threshold), and humidity-compensated H₂O sensing (dew point range, ±2% RH accuracy)
Sample Compatibility & Compliance

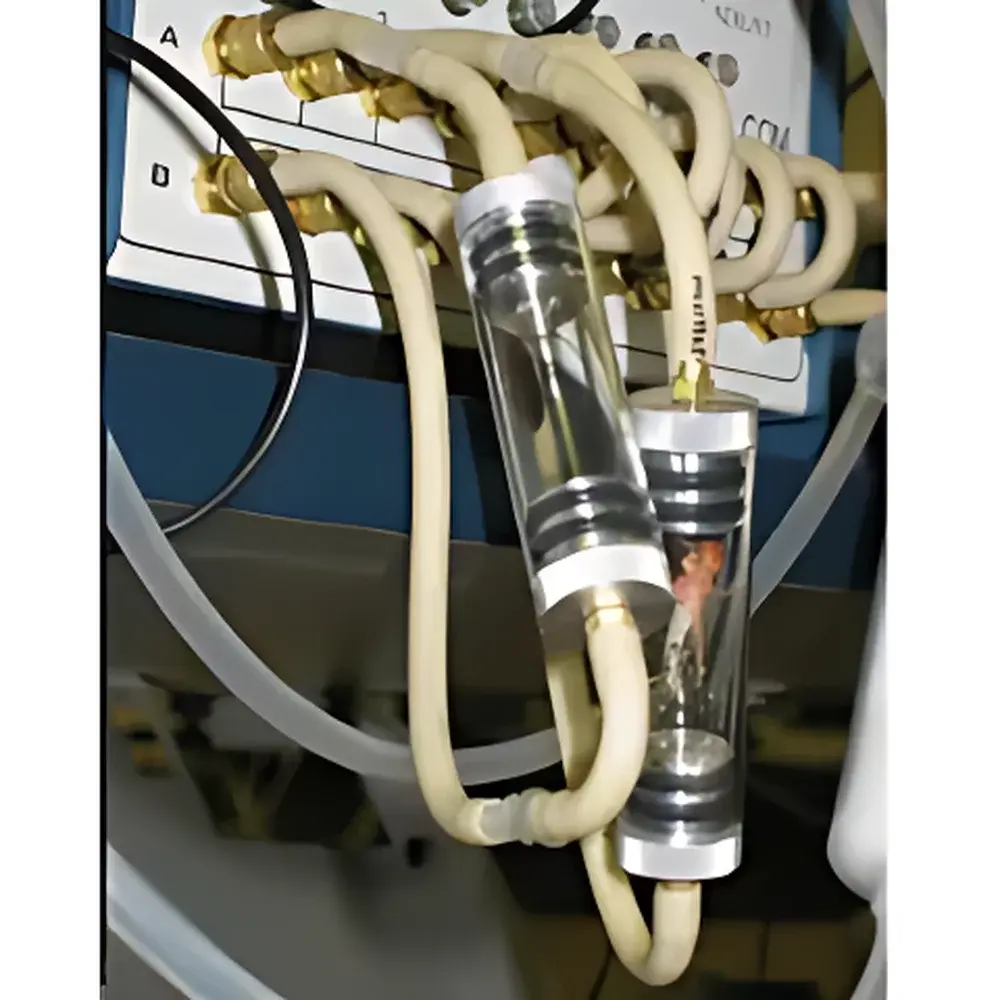

The system accommodates a broad taxonomic and morphometric spectrum: Diptera (e.g., Drosophila, mosquitoes), Hemiptera (aphids), Hymenoptera (honeybees, parasitoid wasps), Lepidoptera (caterpillars, pupae), Coleoptera, Arachnida (spiders, mites), and soil-dwelling nematodes and enchytraeids. Respiratory chambers are custom-fabricated in borosilicate glass or inert polymer materials, with volumes from 0.5 mL to 500 mL and inlet/outlet port configurations optimized for laminar flow and minimal dead volume. All gas handling components comply with USP Class VI biocompatibility standards; CO₂ and O₂ analyzers are factory-calibrated against NIST-traceable standard gases. System validation protocols support FDA 21 CFR Part 11–compliant audit trails when paired with EcoTech’s certified respirometry software suite.
Software & Data Management
EcoTech RespiroSoft™ provides integrated instrument control, real-time visualization, and post-acquisition analysis. The software implements automated zero/span calibration routines, pressure/temperature compensation algorithms per ISO 7888:1999, and RQ calculation using stoichiometric equations for carbohydrate, lipid, and protein oxidation. Raw time-series data are stored in HDF5 format with embedded metadata (channel ID, chamber ID, timestamp, ambient T/P/RH). Export options include CSV, MATLAB .mat, and Excel-compatible formats. For regulatory environments, optional 21 CFR Part 11 modules provide electronic signatures, role-based access control, and immutable audit logs covering all parameter changes, calibration events, and data exports.
Applications
- Metabolic phenotyping of genetically modified Drosophila lines under controlled thermal or hypoxic stress
- Ecotoxicological assessment of sublethal pesticide effects on mitochondrial respiration in Apis mellifera workers
- Thermal performance curves (TPCs) and CTmax determination in invasive insect species under climate change scenarios
- Soil ecophysiology: Respiration dynamics of Collembola and Oribatida mites exposed to microplastic-contaminated substrates
- Discontinuous gas exchange cycle (DGC) characterization in resting moths and beetles, including burst-phase timing and interburst interval analysis
- Energy budget modeling in parasitoid-host systems using simultaneous VCO₂/VO₂-derived ATP turnover estimates
FAQ
What respirometry methods does the system support?
Open-flow, stop-flow, and intermittent-flow protocols—each configurable per channel via software-defined sequence logic.
Can it measure both CO₂ and O₂ simultaneously on the same channel?
Yes, using dual-analyzer configuration with synchronized sampling and cross-compensated calibration.
Is the system suitable for aquatic insect larvae?
Yes—custom water-permeable chambers and dissolved O₂/CO₂ equilibration modules are available as application-specific add-ons.
How is temperature controlled during long-term metabolic assays?
Integrated Peltier-based incubation units maintain setpoint stability within ±0.1 °C over 72+ hour runs, with programmable ramping profiles.
Does the system meet GLP or GMP documentation requirements?
When deployed with RespiroSoft™ Part 11 Edition, it delivers full audit trail generation, user authentication, and electronic signature capability compliant with OECD GLP Principles and ISO/IEC 17025.
