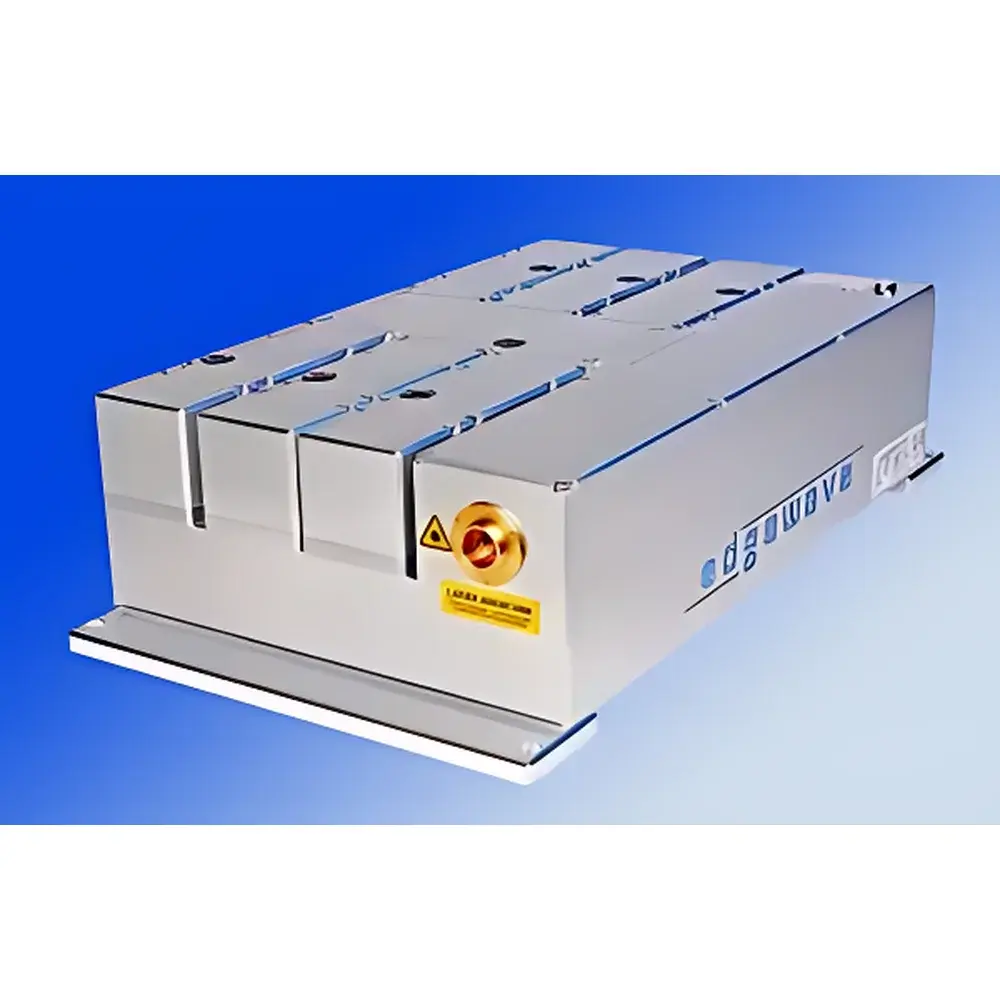

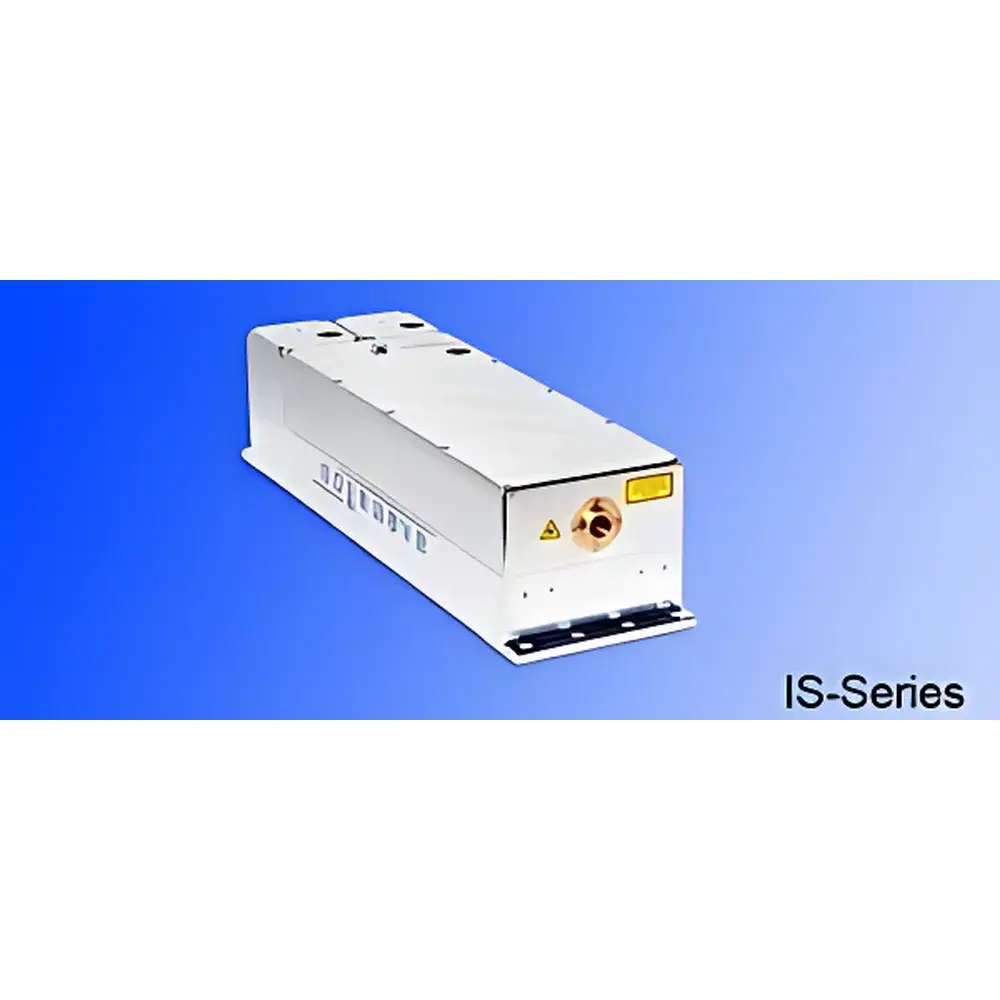

EdgeWave BX-1064nm Short-Pulse High-Power Nd:YAG Laser System
| Brand | EdgeWave |
|---|---|
| Origin | Germany |
| Model | BX-1064nm |
| Beam Quality (M²) | < 2 |
| Pulse Energy | up to 8 mJ |
| Pulse Width | < 4 ns |
| Peak Power | up to 1 MW |
| Repetition Rate | up to 150 kHz |
| Average Output Power | up to 80 W |
| Wavelength | 1064 nm |
| Cooling | Passive (Semiconductor Diode Pumped) |
| Compliance | CE, RoHS, ISO 9001-certified Manufacturing |
Overview
The EdgeWave BX-1064nm is a diode-pumped, electro-optically Q-switched Innoslab laser system engineered for industrial and scientific applications requiring high peak power, exceptional beam quality, and temporal precision in the nanosecond regime. Operating at the fundamental 1064 nm wavelength of Nd:YAG gain media, this laser leverages EdgeWave’s proprietary Innoslab architecture—a monolithic slab geometry with optimized thermal management and transverse pumping—to deliver stable, diffraction-limited output (M² < 2) without compromising pulse-to-pulse stability or long-term reliability. Unlike conventional rod or fiber lasers, the Innoslab design enables uniform heat extraction across the gain medium, minimizing thermal lensing and enabling consistent spatial mode control even at elevated repetition rates. Its sub-4 ns pulse duration and megawatt-class peak power generate minimal heat-affected zones (HAZ), making it particularly suitable for cold ablation processes in precision micromachining, where material integrity and edge fidelity are critical.
Key Features
- Electro-optic Q-switching for precise temporal control and high extinction ratio
- Innoslab gain module with passive semiconductor diode pumping—no active water cooling required
- Beam quality of M² < 2 across full operating range (1–150 kHz), ensuring tight focusability and high irradiance
- Configurable beam profile options: Gaussian, line-shaped top-hat, and square top-hat via integrated beam shaping optics (optional)
- Integrated digital controller with RS-232/USB interface for remote parameter setting and status monitoring
- Robust mechanical housing rated for continuous 24/7 operation in factory-floor environments
- Compliance with IEC 60825-1:2014 Class 4 laser safety standards; interlock-ready for integration into OEM machinery
Sample Compatibility & Compliance
The BX-1064nm laser is compatible with a broad range of optically opaque and semi-transparent materials, including crystalline silicon, fused silica, sapphire, thin-film metal oxides (e.g., ITO, AZO), FR-4 PCB substrates, and polyimide. Its 1064 nm emission couples efficiently with standard fused silica focusing optics and is well-absorbed by metals and doped semiconductors—enabling direct-write processing without auxiliary absorber layers. All systems are manufactured under ISO 9001-certified processes and conform to EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. For regulated industries, optional firmware supports audit-trail logging and user-access-level controls aligned with FDA 21 CFR Part 11 principles (when deployed with compliant host software).
Software & Data Management
EdgeWave provides the LaserControl Suite—a Windows-based application enabling full configuration of pulse parameters (energy, repetition rate, burst mode), real-time monitoring of diode current, cavity temperature, and output power stability. The software exports timestamped measurement logs in CSV format for traceability and integrates with LabVIEW™ and MATLAB® via TCP/IP or DLL interfaces. Optional SDKs support custom automation in production lines adhering to SECS/GEM or OPC UA protocols. Firmware updates are delivered via signed binary packages with SHA-256 verification to ensure integrity and prevent unauthorized modification.
Applications
- Photovoltaics: Selective ablation of passivation layers (SiNx, Al2O3) and metallization on Si wafers; edge isolation and scribing of thin-film CIGS and perovskite solar cells
- Display Manufacturing: Patterning of transparent conductive oxides (TCOs) on glass substrates; micro-cutting of cover glass with sub-50 µm kerf width
- Microelectronics: Drilling of blind vias in rigid-flex PCBs; trimming of thick-film resistors; selective removal of solder mask without substrate damage
- Glass Processing: Internal engraving of tempered glass via nonlinear absorption; subsurface micro-channel fabrication for microfluidic devices
- R&D Support: Pump source for optical parametric oscillators (OPOs), dye lasers, and Ti:sapphire amplifiers; seed source for high-energy amplifier chains
FAQ
What is the typical pulse-to-pulse energy stability over 8 hours?
Energy stability is ≤ ±1.5% RMS when operated within specified ambient temperature (18–28°C) and humidity (<60% RH non-condensing).
Can the BX-1064nm be upgraded to higher pulse energy or average power?
No—the BX series is a fixed-performance platform. For scalable output, EdgeWave recommends the IS-series (up to 30 mJ / 200 W) or HD-series (up to 60 mJ / 600 W) as drop-in replacements with identical mechanical footprint and control interface.
Is harmonic generation (e.g., 532 nm) available as a factory option?
Yes—integrated SHG modules delivering >50% conversion efficiency at 532 nm are available as configured options; all harmonics retain M² < 2 beam quality.
Does the system include beam diagnostics or alignment aids?
Standard delivery includes a calibrated photodiode-based power meter and IR-viewing card. Optional add-ons include CCD-based beam profilers (1064 nm optimized) and automated alignment stages with motorized iris and flip mirrors.
What maintenance intervals are recommended for sustained operation?
No routine optical alignment is required. Annual inspection of pump diodes, thermal interface compounds, and electrical connectors is advised per EdgeWave’s Maintenance Protocol EP-BX-001.
