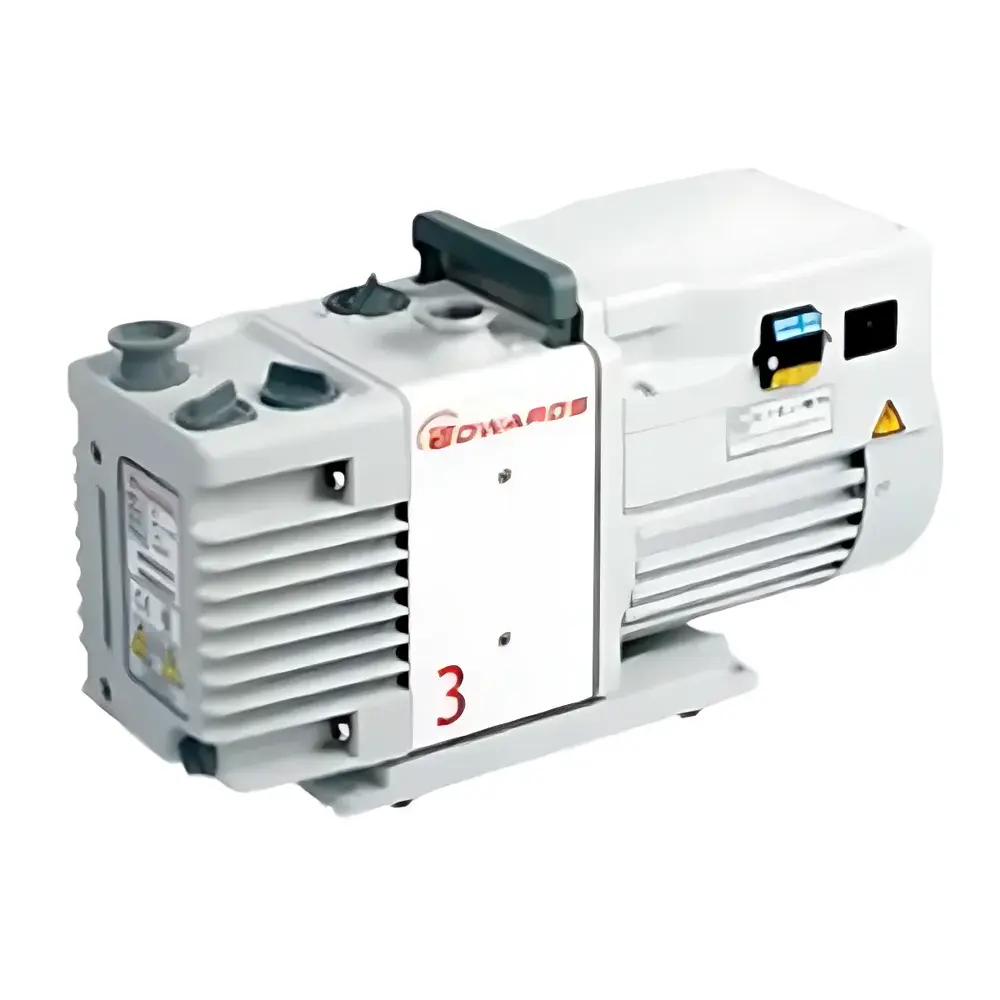

Edwards RV3 Rotary Vane Vacuum Pump

Overview

The Edwards RV3 is a compact, high-reliability oil-sealed rotary vane vacuum pump engineered for continuous duty in demanding laboratory and light industrial applications. Based on proven Couette-flow rotor-stator geometry and precision-machined vanes, the RV3 operates via positive displacement: rotating vanes trap gas between the rotor and stator chamber, compressing it axially before exhausting it through the outlet valve. Its design delivers stable base pressure performance down to 2 × 10⁻³ mbar—sufficient for applications including vacuum drying, solvent evaporation, freeze drying pre-pumping, mass spectrometry roughing, and low-pressure thermal analysis. Manufactured by Edwards Vacuum (a UK-based global leader in vacuum science since 1916), the RV3 integrates robust cast-iron housing, thermally stable rotor assembly, and optimized oil circulation pathways to ensure consistent vapor handling and long-term dimensional stability under thermal cycling.

Key Features

• Oil-sealed rotary vane architecture with hardened steel vanes and nickel-plated stator surface for extended service life and resistance to mild chemical vapors
• Integrated thermal protection circuitry and overload relay to prevent motor damage during extended operation or inlet overpressure events
• Low-noise operation (<62 dB(A) at 1 m) achieved through balanced rotor dynamics and acoustic damping in the housing
• Dual-voltage compatibility (115 V / 230 V, 50/60 Hz) with universal terminal block for seamless integration across global laboratory power infrastructures
• Front-mounted oil sight glass with level indicator and drain plug for rapid visual verification and maintenance access
• Optional exhaust filtration kit available to minimize oil mist emission and comply with local environmental ventilation requirements

Sample Compatibility & Compliance

The RV3 is compatible with a wide range of non-corrosive and mildly aggressive process gases commonly encountered in analytical and preparative labs—including water vapor, acetone, ethanol, ethyl acetate, and hydrocarbon solvents. It is not rated for use with halogenated solvents (e.g., chloroform, carbon tetrachloride), strong oxidizers (e.g., NO₂, O₃), or highly polymerizing monomers without additional gas ballast or cold trap protection. The pump meets CE marking requirements per EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. While not intrinsically safe, its construction supports installation in Class I, Division 2 hazardous locations when used with appropriate electrical isolation and ventilation per NEC Article 500. Documentation includes full Declaration of Conformity and RoHS 2011/65/EU compliance statement.

Software & Data Management

The RV3 is a standalone mechanical pump with no embedded digital controller or communication interface. All operational parameters—including runtime, oil condition, and pressure decay trends—are monitored manually using external gauges (e.g., Pirani or capacitance manometers). For laboratories operating under GLP or GMP frameworks, users may integrate the RV3 into validated vacuum systems using third-party pressure loggers compliant with FDA 21 CFR Part 11 (audit trail, electronic signature, and data integrity controls). Maintenance records—including oil change dates, filter replacements, and vibration checks—should be retained per ISO/IEC 17025:2017 clause 8.9 for equipment calibration and traceability.

Applications

• Roughing pump for turbomolecular and diffusion vacuum systems in surface science and thin-film deposition setups
• Vacuum source for rotary evaporators, lyophilizers, and vacuum ovens in pharmaceutical R&D and QC labs
• Backing pump for residual gas analyzers (RGAs) and quadrupole mass spectrometers requiring stable low-mid vacuum environments
• Process vacuum generation in small-scale vacuum impregnation, degassing of resins, and vacuum-assisted casting
• Support system for electron microscopy sample preparation stations where oil-free alternatives are impractical due to cost or footprint constraints

FAQ

What type of vacuum oil is recommended for the RV3?
Edwards specifies Ultragrade PFPE-based synthetic oil (e.g., Ultragrade A or F series) for optimal vapor pressure suppression, thermal stability up to 200 °C, and compatibility with common organic solvents.
Can the RV3 be operated continuously for 24/7 duty cycles?
Yes—the RV3 is rated for continuous operation under nominal load conditions; however, scheduled oil changes every 3,000 operating hours and annual inspection of vanes and seals are required to maintain ultimate vacuum specification.
Is an exhaust cold trap necessary when pumping water vapor?
Not mandatory, but strongly recommended for high-volume aqueous evaporation; condensing water upstream prevents oil emulsification and extends oil service life by up to 40%.
Does the RV3 include a gas ballast valve?
Yes—factory-fitted gas ballast allows controlled admission of atmospheric air during compression to reduce condensable vapor saturation and improve pump-down speed for wet loads.
How is maintenance accessibility designed on the RV3?
The top cover and rear access panel are secured with slotted screws; oil drain plug, sight glass, and filter housing are front-facing and require only basic hand tools for routine servicing.
