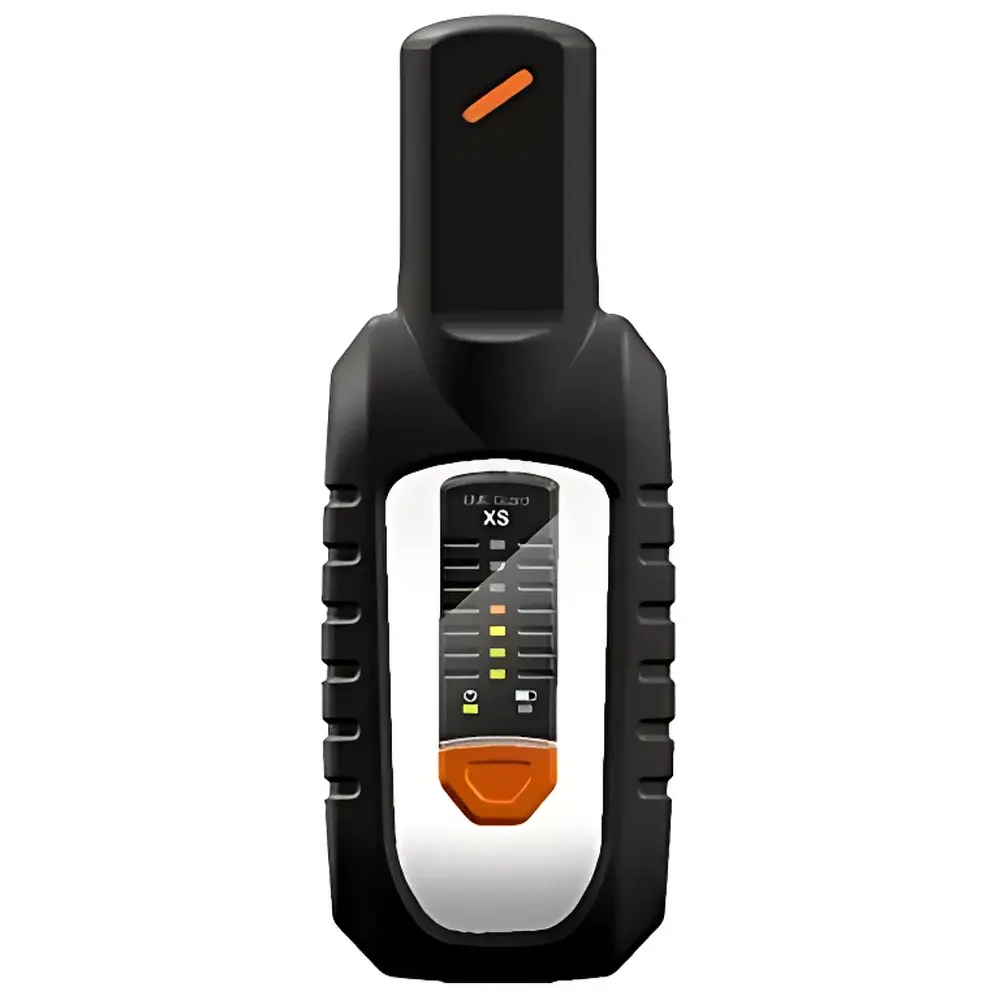

EME Guard XS Electromagnetic Field Strength Analyzer

Overview

The EME Guard XS Electromagnetic Field Strength Analyzer is a compact, handheld broadband field monitor engineered for real-time assessment of electromagnetic field (EMF) exposure in occupational and regulatory environments. Based on isotropic triaxial electric field sensing and calibrated RMS detection, the device operates across an 80 MHz–6 GHz frequency range—covering critical bands used by mobile telecommunications (2G–5G), broadcast transmitters, PMR radios, Wi-Fi, and radar systems. Designed in compliance with international EMF safety frameworks—including ICNIRP 2020, FCC OET Bulletin 65 (Supplement C, 96-326), Health Canada’s Safety Code 6 (2015), and EU Directive 2013/35/EU (replacing 2004/40/EC)—the EME Guard XS delivers traceable, field-deployable measurements aligned with occupational exposure limit values (ELVs) and action levels defined in Annex II of the directive. Its purpose-built architecture prioritizes operational robustness, measurement repeatability, and immediate hazard recognition—making it suitable for routine site surveys, antenna proximity monitoring, and compliance verification by RF safety officers, telecom maintenance crews, and national regulatory authorities.

Key Features

• Triaxial isotropic E-field probe with integrated orthogonal dipole sensors ensuring uniform angular response across all orientations—eliminating measurement bias due to probe alignment.
• Real-time RMS-based field strength computation updated every second, supporting continuous exposure assessment without temporal averaging artifacts.
• Visual alarm system comprising seven status LEDs arranged in a color-coded bar graph (green → yellow → red), directly mapping measured field intensity to predefined exposure thresholds per selected standard.
• Configurable audio alarm with proportional tone frequency and duty cycle, active across the full 5–200 V/m dynamic range—enabling intuitive auditory feedback even in high-noise industrial settings.
• Ruggedized rubberized housing (IP54-rated ingress protection), ergonomic form factor (131 × 46 × 25 mm), and ultra-lightweight construction (120 g with batteries) optimized for extended wear and one-handed operation.
• Low-power electronics enabling >100 hours of continuous use on two standard AA alkaline cells; orange LED indicator signals low battery condition prior to operational interruption.

Sample Compatibility & Compliance

The EME Guard XS is validated for use in complex near-field and far-field RF environments typical of base station sites, rooftop installations, broadcast towers, and indoor DAS deployments. It does not require user calibration or field correction factors when operated within its specified temperature (−10°C to +50°C) and humidity (<85% RH, non-condensing) envelope. All factory calibrations are performed against NIST-traceable standards at SATIMO’s ISO/IEC 17025-accredited laboratory. The instrument complies with EN 62233:2008 (measurement methods for EMF exposure), EN 50492:2008 (guide for assessing human exposure), and supports audit-ready documentation including optional initial calibration certificate and traceable calibration report (available upon request). Alarm thresholds are programmable during manufacturing per customer-specified exposure limits—ensuring direct alignment with national regulations or internal safety policies.

Software & Data Management

While the EME Guard XS operates as a standalone, battery-powered field instrument without onboard data logging, it integrates seamlessly into broader EMF safety workflows via optional accessories and post-processing support. The included calibration report provides full uncertainty budgeting per ISO/IEC 17025 requirements, including contributions from linearity, frequency response, isotropy deviation, and thermal drift. Optional extended calibration services cover periodic revalidation at 12- or 24-month intervals, with full metrological documentation compliant with GLP principles. For enterprise-level deployment, SATIMO offers configuration management protocols compatible with centralized RF safety management platforms—supporting traceability, version-controlled threshold updates, and electronic record retention aligned with ISO 9001 and ISO 14001 quality/environmental management systems.

Applications

• Ongoing monitoring of personnel working in proximity to active RF radiators—including tower climbers, broadcast engineers, and small-cell installers.
• Pre-deployment EMF surveys for new antenna installations, verifying spatial compliance before commissioning.
• Audit support for regulatory inspections under national spectrum management regimes (e.g., ANFR in France, Ofcom in the UK, FCC in the US).
• Training and awareness demonstrations for occupational health and safety departments conducting EMF risk assessments.
• Field validation of predictive EMF modeling outputs generated by simulation tools such as CST Studio Suite or SEMCAD X.

FAQ

Is the EME Guard XS suitable for measuring fields from 5G NR base stations?
Yes—the 80 MHz–6 GHz operating range fully encompasses n78 (3.3–3.8 GHz), n41 (2.496–2.69 GHz), and n79 (4.4–5.0 GHz) 5G bands, and supports both TDD and FDD modulation schemes.
Can alarm thresholds be modified in the field?
No—thresholds are fixed at time of manufacture per customer specification. Reconfiguration requires return to SATIMO’s accredited facility for firmware reprogramming and recalibration.
What is the measurement uncertainty for isotropy across the frequency band?
Isotropy deviation is ≤±0.5 dB (k=2) over 100 MHz–3 GHz, and ≤±1.2 dB (k=2) up to 6 GHz, as documented in the supplied calibration report.
Does the device meet FDA or IEC 62366 usability requirements?
While not a medical device, its interface design follows IEC 62366-1 principles for safe, intuitive operation—particularly in high-risk RF zones where rapid visual/audio interpretation is essential.
Is the EME Guard XS compatible with tripod mounting for stationary monitoring?
Yes—optional wooden tripod adapter enables stable long-term placement; however, continuous measurement remains limited to the device’s internal power supply and lacks external trigger or remote readout capability.
