Overview

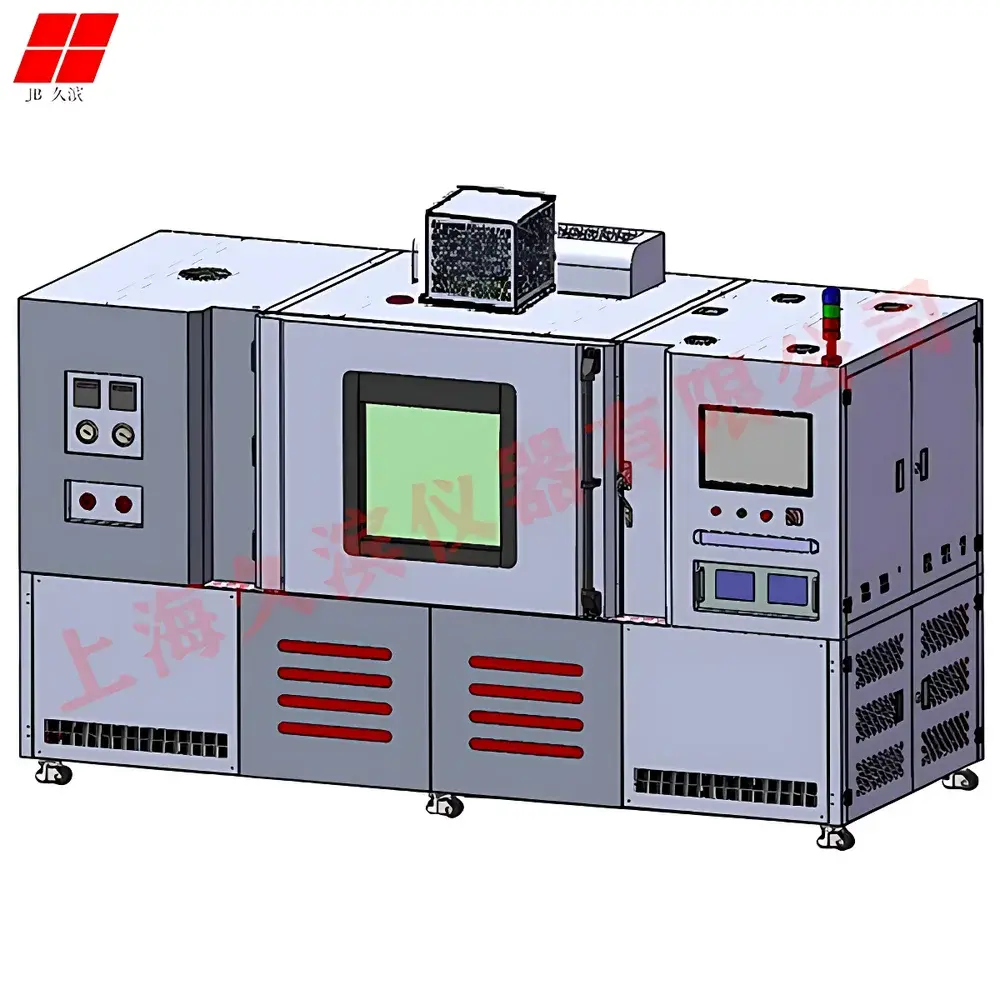

The Jiubin JB-JM8 Hydraulic Pulse Test System is an engineered platform designed for accelerated fatigue validation of liquid-cooled automotive and industrial thermal management components under dynamically controlled pressure, temperature, and mechanical vibration conditions. It operates on the principle of cyclic hydraulic pressure loading—applying precisely regulated, repeatable pressure pulses to fluid-filled test specimens while simultaneously subjecting them to programmable thermal transients and multi-axis mechanical excitation. This integrated stress methodology replicates real-world service conditions experienced by coolant-carrying systems—including thermal expansion/contraction, pressure surge propagation, flow-induced vibration, and material creep-fatigue interaction—enabling rigorous durability assessment in accordance with internationally recognized automotive and component-level standards.

Key Features

• Modular pressure generation architecture with high-fidelity servo-controlled hydraulic actuators, supporting stable output across the full 0–2 MPa range with minimal hysteresis and pressure ripple.
• Dual independent thermal control loops: one for environmental chamber air temperature (−50 °C to +200 °C), and a second for direct fluid temperature regulation within each test circuit—both configurable in constant-setpoint or time-based cyclic profiles.
• Multi-mode waveform synthesis engine enabling precise reproduction of sine, triangular, trapezoidal, and quasi-square pulse shapes—critical for simulating transient events such as cold-start surges, pump cavitation spikes, or rapid throttle transitions.
• Scalable channel configuration: supports 2 to 10 parallel test circuits, each equipped with individual pressure transducers, temperature sensors, and flow monitoring capability (optional), ensuring statistical validity through replicated testing.
• Integrated vibration sub-systems offering five distinct excitation modalities: electromagnetic single-axis shakers (for high-frequency, low-displacement inputs), mechanical crank-driven single-axis systems (for mid-frequency, higher-force loads), servo-controlled triaxial platforms (for orthogonal coupling studies), 6-degree-of-freedom robotic motion systems (for complex path-following simulations), and rotary mechanical fixtures (for torsional fatigue evaluation).
• Rugged stainless-steel fluid handling manifolds with PTFE-lined tubing paths, corrosion-resistant valves, and leak-tight quick-connect fittings compatible with water, glycol blends, and industry-standard antifreeze formulations.

Sample Compatibility & Compliance

The JB-JM8 system accommodates a broad spectrum of coolant-path components, including rubber coolant hoses (with or without reinforcement layers), aluminum or copper-alloy radiator cores, HVAC heater cores, plastic or stamped-metal warm-air heat exchangers, and liquid cold plates used in battery thermal management systems (BTMS) and power electronics cooling. Its operational envelope meets the physical and procedural requirements of multiple global OEM and regulatory specifications—including GB/T 18948 (China), QC/T 468 (Chinese automotive standard), TL 52361 (Volkswagen), GMW 14329 / GMW 15904 / GMW 14785 / GMW 16295 (General Motors), JIS D 2602 (Japan), Honda D321WH-A, PF90080 / PF11118-200 (Ford), ESDG93-8C012-AA / ESDG93-8260-AA (Chrysler), B22 6142-10-2007-D (BMW), and DIN 73411-2 / DIN 73411 (Germany). All test sequences are fully traceable and support audit-ready documentation per ISO/IEC 17025 and GLP-compliant laboratory practices.

Software & Data Management

Control and data acquisition are managed via Jiubin’s proprietary PulseTest Suite v4.x—a Windows-based application built on deterministic real-time kernel extensions. The software provides synchronized logging of pressure, temperature (ambient and fluid), cycle count, vibration displacement/acceleration, and optional flow rate at user-defined sampling intervals (down to 100 Hz per channel). All raw datasets are stored in HDF5 format with embedded metadata (test ID, operator, calibration timestamps, environmental conditions), enabling interoperability with MATLAB, Python (h5py), and LIMS platforms. Audit trail functionality complies with FDA 21 CFR Part 11 requirements, including electronic signatures, role-based access control, and immutable event logs for all parameter changes, start/stop commands, and alarm acknowledgments.

Applications

• Validation of hose assembly burst resistance and interlayer delamination under combined thermal cycling and pulsating pressure.
• Endurance testing of brazed aluminum radiator cores subjected to simultaneous coolant pressure pulses and chassis-induced vibration spectra.
• Thermal-mechanical fatigue analysis of water-cooled battery module cold plates exposed to repeated charge/discharge thermal gradients and EV drive-cycle pressure transients.
• OEM supplier qualification per GMW15904 Annex C (coolant circuit pressure cycling with vibration) and TL52361 Section 5.3 (thermal shock + pulsation).
• Root cause analysis of premature joint failure in heater core assemblies using phase-resolved correlation between pressure waveform harmonics and thermally induced strain patterns.
• Development of predictive life models for elastomeric seals and gaskets operating under dynamic compression in high-temperature coolant environments.

FAQ

What types of coolant media are compatible with the JB-JM8 system?

Deionized water, aqueous ethylene glycol solutions (up to 60% v/v), commercially formulated antifreeze mixtures meeting ASTM D3306 or D6210 specifications, and oil-in-water emulsions with pH stability between 6.5 and 9.5.
Can the system perform simultaneous pressure pulsing and multi-axis vibration on a single specimen?

Yes—the JB-JM8 supports synchronized actuation of hydraulic pressure waveforms and servo-driven triaxial or robotic 6-DOF vibration, with phase alignment accuracy better than ±2° over the full 0.1–3 Hz frequency band.
Is third-party calibration certification available for pressure and temperature sensors?

All primary transducers ship with NIST-traceable calibration certificates; optional annual recalibration services are provided through Jiubin’s ISO/IEC 17025-accredited metrology lab in Shanghai.
Does the software support automated pass/fail evaluation against predefined limits?

Yes—PulseTest Suite includes configurable limit-checking logic per channel, with real-time flagging of deviations from pressure amplitude tolerance (±1.5% FS), temperature drift thresholds, or cycle-count deviation exceeding ±0.1%, and automatic test suspension upon violation.
What is the maximum allowable test duration for continuous unattended operation?

The system is rated for 720-hour uninterrupted operation under Class II environmental conditions (ISO 14644-1 Class 8 cleanroom), with redundant thermal shutdown, pressure relief, and fluid-level monitoring ensuring safe long-duration testing.
