Overview

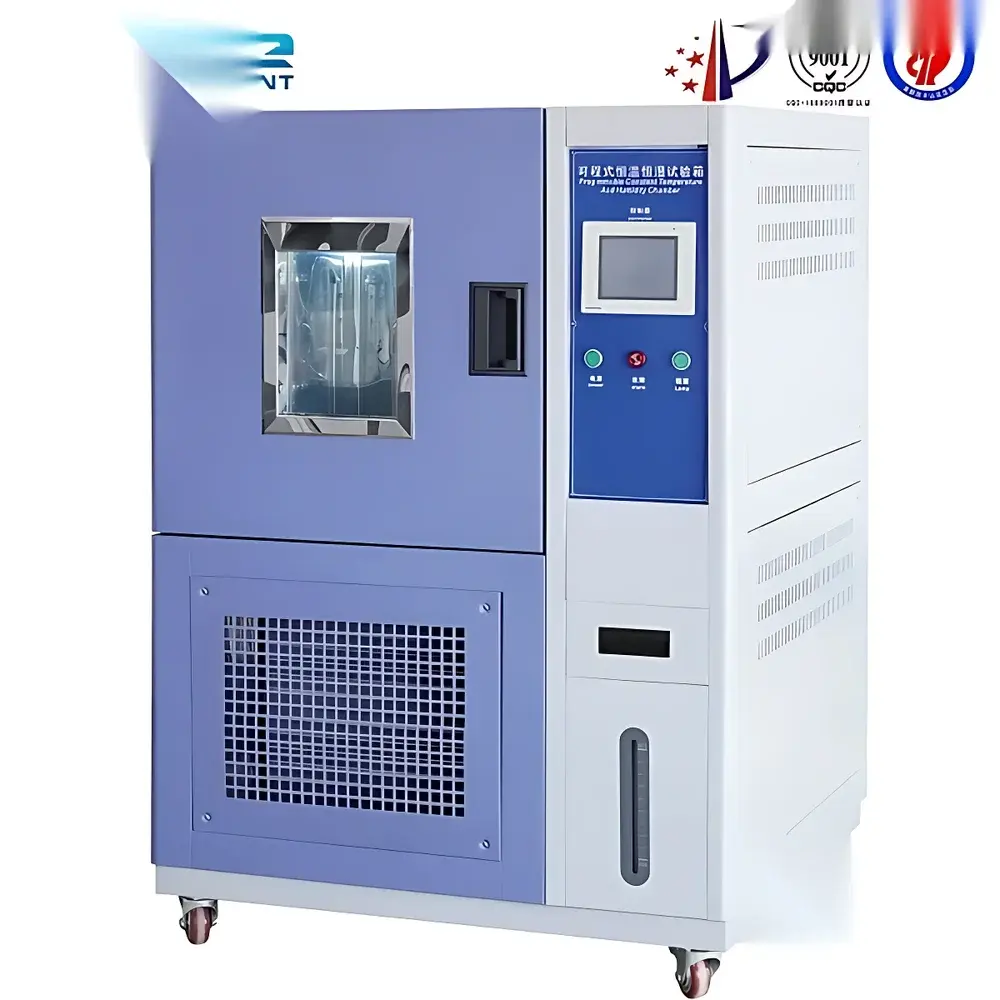

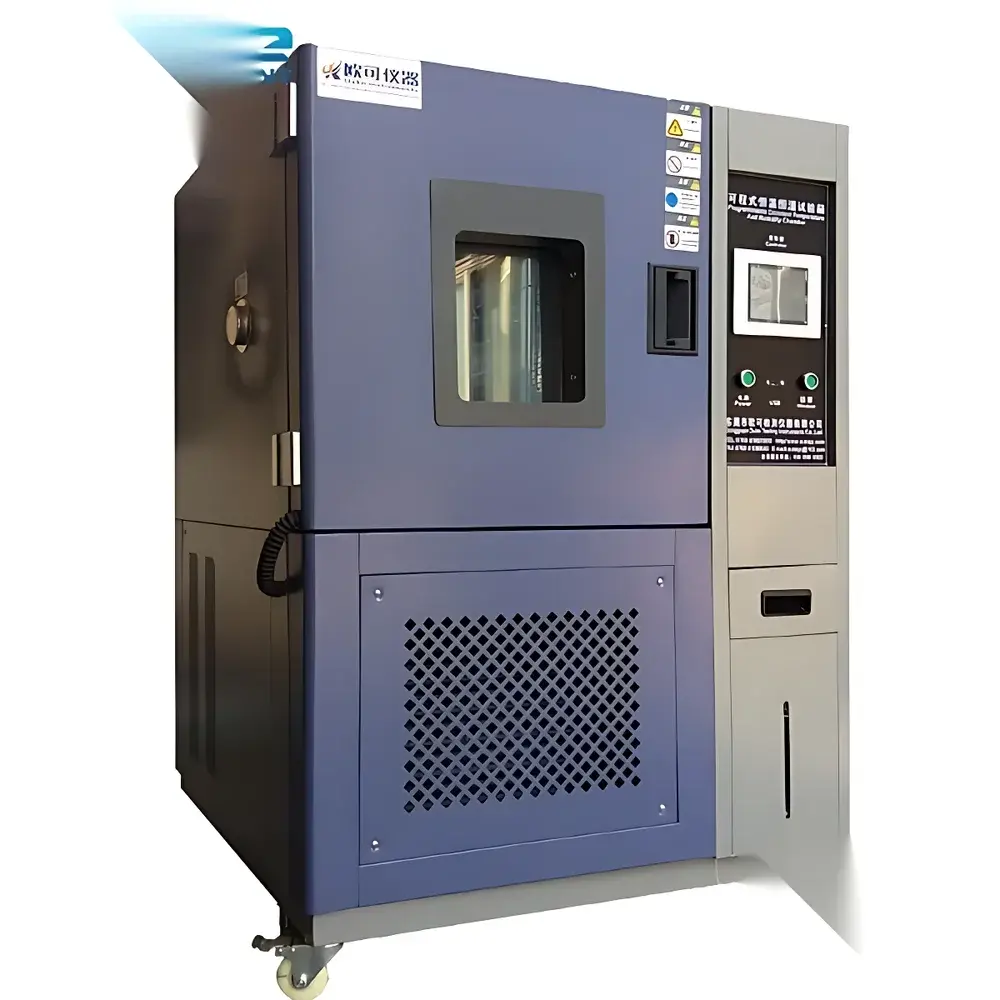

The Dual-85 Thermal Cycling and Humidity Test Chamber is an engineered environmental stress screening system designed for accelerated reliability assessment of electronic components, automotive ECUs, aerospace avionics, electrical insulation materials, and coated substrates under combined high-humidity and extreme temperature conditions. Its name derives from the industry-standard “85°C / 85% RH” test profile—widely referenced in JEDEC JESD22-A101, IEC 60068-2-78, and MIL-STD-810H Method 507.5—used to evaluate moisture ingress, delamination, corrosion, and dielectric degradation mechanisms. Unlike basic thermal chambers, this unit integrates precision humidity control with wide-range cryogenic-to-high-temperature capability (-70°C to +150°C), enabling sequential or simultaneous thermal-hygrometric stress application per IPC-TM-650 2.6.25 and ASTM D4332 protocols. The chamber’s robust architecture supports both steady-state conditioning and dynamic cycling profiles—including rapid transitions between sub-zero freeze and saturated humid soak phases—critical for validating solder joint integrity, conformal coating adhesion, and PCB substrate hygroscopic stability.

Key Features

• Full-color 7-inch capacitive touchscreen controller with intuitive menu navigation, real-time graphing, and dual-language support (English/Chinese) for global lab interoperability.
• Dual-stage hermetic refrigeration system using R404A (high-temp stage) and R23 (low-temp stage), compliant with EU F-Gas Regulation (EU) No 517/2014 and EPA SNAP requirements.
• SUS#304 stainless steel construction throughout interior cavity, chamber walls, and structural frame—resistant to chloride-induced pitting and long-term condensate exposure.
• Multi-layer observation window with electrically heated conductive film prevents fogging during low-temperature/high-humidity operation, ensuring unobstructed visual monitoring per ISO 17025 clause 6.4.2.
• Integrated Ø50 mm feedthrough port on left sidewall, fitted with silicone gasket and clamping collar—certified for Class I, Division 2 hazardous location compatibility when used with intrinsically safe signal lines.
• Comprehensive safety suite: independent over-temperature cutout, humidity sensor fault detection, compressor high-pressure shutdown, door-open alarm, and emergency power-off circuit meeting IEC 61000-6-2 EMC immunity standards.

Sample Compatibility & Compliance

The chamber accommodates test specimens up to 1000 L volume (OK-TH-1000 model), supporting full-size automotive control modules, stacked PCB assemblies, battery packs, and polymer-coated metal housings. Internal shelves are adjustable, load-rated stainless steel trays with reinforced edge lips prevent lateral displacement during vibration-coupled testing. All models comply with mandatory CE marking requirements (2014/30/EU EMC Directive, 2014/35/EU LVD Directive) and are factory-calibrated traceable to NIST standards. Optional configurations include RS-485 Modbus RTU interface for integration into centralized MES or SCADA systems, and GLP/GMP-compliant audit trail logging (per FDA 21 CFR Part 11 Annex 11) when paired with validated software packages.

Software & Data Management

The embedded controller logs temperature and humidity data at user-defined intervals (1s–60 min), storing up to 10,000 hours of time-stamped records internally. Export options include USB flash drive (CSV format) and Ethernet-based FTP push to network servers. Optional PC-based software provides advanced profile programming—including multi-step ramp-soak-dwell sequences, conditional branching logic, and deviation alert thresholds—with digital signature authentication for report generation. Data integrity safeguards include write-protected memory partitions, cyclic redundancy check (CRC32) validation, and automatic backup upon power loss. All firmware updates undergo regression testing against IEC 62304 Class B medical device software requirements.

Applications

• Qualification testing of automotive ADAS sensors per AEC-Q200 Rev D high-temperature humidity bias (HTHB) requirements.
• Accelerated aging of lithium-ion battery enclosures under combined thermal shock and moisture absorption per UL 2580 Section 11.
• Validation of conformal coating performance on military-grade printed circuit boards (IPC-CC-830B).
• Reliability screening of LED lighting modules subjected to cyclic condensation per IEC 60598-1 Annex Q.
• Material compatibility studies for epoxy encapsulants, silicone gels, and thermoplastic housings exposed to tropical climatic conditions (IEC 60068-2-30 Db).

FAQ

What does “Dual-85” refer to in the chamber’s designation?

It denotes the standard accelerated stress condition of 85°C temperature and 85% relative humidity—a benchmark profile defined in JEDEC JESD22-A101 for evaluating moisture sensitivity levels (MSL) of surface-mount devices.

Can the chamber perform thermal cycling without humidity control?

Yes. The system operates in dry thermal cycling mode (e.g., -40°C ↔ +125°C) with humidity subsystem de-energized and chamber purged, maintaining full temperature accuracy and uniformity specifications.

Is calibration documentation included with shipment?

Each unit ships with a factory calibration certificate covering temperature (at three points: -40°C, 25°C, 100°C) and humidity (at 30%, 60%, and 90% RH), traceable to national metrology institutes via ISO/IEC 17025-accredited providers.

What maintenance intervals are recommended for the refrigeration system?

Compressor oil analysis and filter-drier replacement every 24 months under continuous operation; annual inspection of condenser coil cleanliness and refrigerant charge verification per ASHRAE Guideline 3-2021.

Does the chamber support remote monitoring via industrial IoT platforms?

Yes—via optional OPC UA server module (IEC 62541 compliant), enabling secure TLS 1.2-encrypted data streaming to cloud-based predictive maintenance dashboards or enterprise CMMS systems.
