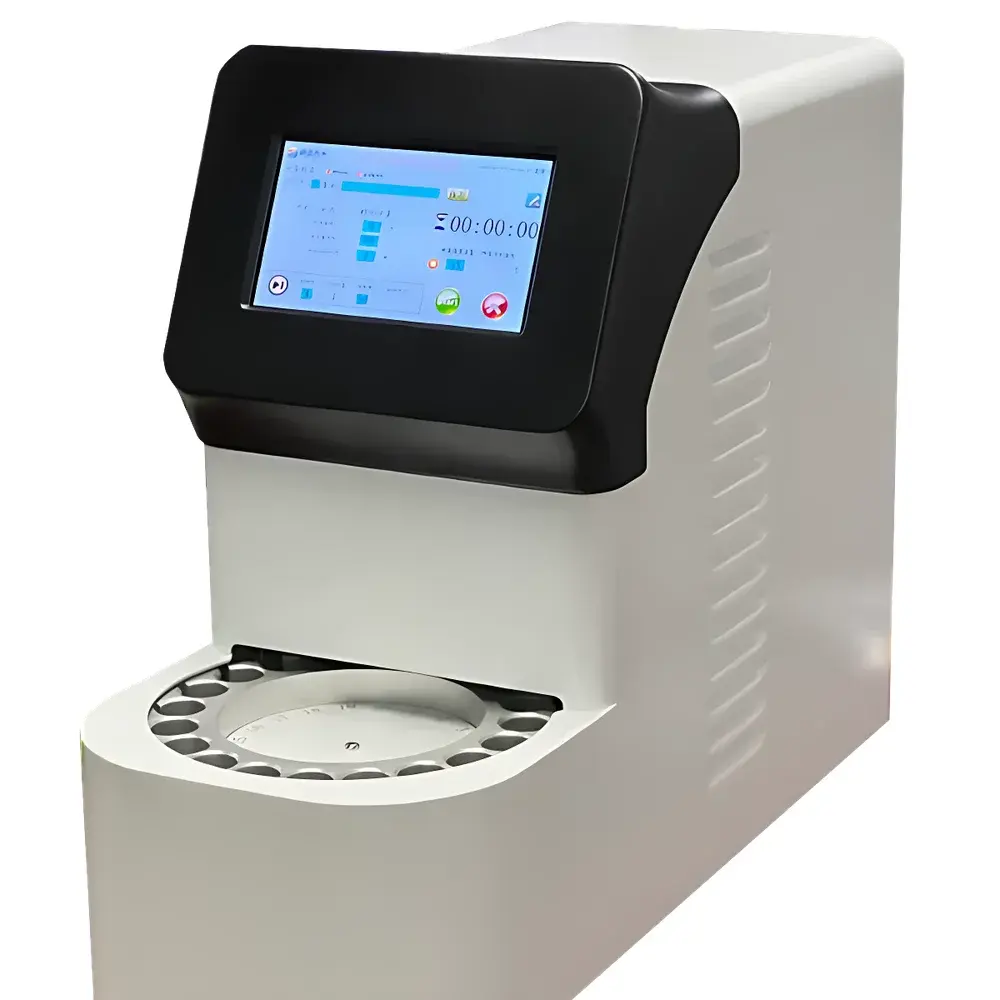

ENSOUL HSS20 Automated Headspace Sampler for Electronic Nose Systems
| Brand | ENSOUL |
|---|---|
| Model | HSS20 |
| Origin | Beijing, China |
| Sample Capacity | 20 positions |
| Sample Zone Temperature Range | Ambient to 200 °C |
| Temperature Control Accuracy | ±1 °C |
| Operating Ambient Temperature | 10–35 °C |
| Relative Humidity | <85% RH |
| Power Supply | AC 220 V ±10%, 50 Hz ±0.5 Hz |
| Display Interface | Method parameter configuration, real-time operational status, elapsed runtime, and timestamp (YYYY-MM-DD-HH) |
Overview
The ENSOUL HSS20 Automated Headspace Sampler is a precision-engineered thermal desorption interface designed specifically for coupling with electronic nose (e-nose) platforms—particularly the AIRSENSE series—to enable reproducible, quantitative headspace volatile profiling of solid and liquid samples. It operates on the principle of static headspace sampling: samples are sealed in standardized vials and heated under controlled conditions to equilibrate volatile organic compounds (VOCs) between the condensed phase and the gas phase above it. The HSS20 then automates the extraction of a defined volume of equilibrated headspace gas directly into the e-nose sensor array via a heated transfer line, minimizing condensation and adsorption losses. Its architecture supports method-driven workflows essential for routine quality control, sensory analysis, and authenticity screening in food, pharmaceutical, environmental, and agricultural laboratories.
Key Features
- 20-position sample carousel with programmable sequence execution and vial position tracking
- Independent temperature-controlled sample zone (ambient to 200 °C) with ±1 °C stability across full range, validated per IEC 61000-4-30 for thermal performance consistency
- Heated gas pathway (up to 150 °C) to prevent VOC condensation during transfer from vial to sensor inlet
- Integrated real-time display showing method parameters, active step status, elapsed time, and full timestamp (YYYY-MM-DD-HH)
- Robust mechanical design with low-dead-volume valves and inert flow path (electropolished stainless steel and PTFE components) to ensure minimal carryover and baseline stability
- Modular mounting interface compatible with standard AIRSENSE PEN3, Alpha MOS HERACLES, or other e-nose systems requiring 1/16″ OD capillary input
Sample Compatibility & Compliance
The HSS20 accommodates standard 10–22 mL crimp-top or screw-cap headspace vials (including ASTM D7622-compliant formats). It supports heterogeneous matrices—including powders, pastes, liquids, and packaged foods—without modification. All thermal and pneumatic operations comply with IEC 61010-1 for laboratory equipment safety. While the instrument itself does not carry CE or FDA 510(k) certification, its operational parameters align with GLP-compliant headspace methodology frameworks used in ISO 11014, USP , and AOAC Official Method 2009.01 for residual solvent analysis. Data integrity is supported through audit-trail-capable method storage (via external PC connection) and timestamped run logs.
Software & Data Management
The HSS20 operates in standalone mode with onboard method storage (up to 10 user-defined protocols), but integrates seamlessly with third-party e-nose acquisition software via RS-232 or USB-to-serial interface. Trigger synchronization ensures precise timing between vial pressurization, needle penetration, and sensor data capture. Exported metadata—including temperature ramp profiles, hold times, vial IDs, and timestamps—is structured as CSV-compatible ASCII files for downstream multivariate analysis (PCA, LDA, PLS-DA) in MATLAB, SIMCA, or Orange. No proprietary cloud service or vendor lock-in is involved; all raw event logs and configuration files remain fully accessible and editable.
Applications
- Food authenticity verification (e.g., olive oil adulteration, coffee origin classification, dairy spoilage detection)
- Pharmaceutical excipient and packaging interaction studies (headspace VOC migration assessment)
- Agricultural product grading (grain freshness, fruit ripeness, tea leaf oxidation level)
- Environmental monitoring of landfill leachate or wastewater headspace signatures
- QC release testing of consumer products (cosmetics, cleaning agents, adhesives) against odor reference standards
- Method development for ISO/IEC 17025-accredited laboratories performing sensory equivalence testing
FAQ
Is the HSS20 compatible with non-AIRSENSE electronic noses?
Yes—it provides a standardized 1/16″ OD heated transfer line output and TTL/RS-232 trigger signals, enabling integration with most commercial e-nose platforms that accept external headspace injection.
What vial types and sizes are supported?
Standard 10 mL, 20 mL, and 22 mL headspace vials with crimp seals or polypropylene screw caps; septa must be silicone/PTFE-faced to withstand temperatures up to 200 °C.
Does the system support dynamic headspace or thermal desorption modes?
No—the HSS20 implements static headspace only. Dynamic headspace or TD-tube coupling requires external hardware not included with this model.
Can method parameters be password-protected or version-controlled?
Onboard methods are stored without encryption; however, when connected to a host PC running compliant LIMS or ELN software, full versioning, role-based access, and electronic signature support can be implemented externally.
What maintenance is required for long-term reliability?
Quarterly validation of temperature calibration using NIST-traceable RTD probes and annual inspection of syringe drive belts and valve actuators are recommended per manufacturer’s technical bulletin TB-HSS20-REV3.
