Environmental Express® HotBlock® TKN Digestion System

Overview

The Environmental Express® HotBlock® TKN Digestion System is a precision-engineered, benchtop thermal digestion platform specifically optimized for total Kjeldahl nitrogen (TKN) analysis in environmental, wastewater, and regulatory compliance laboratories. It operates on the fundamental principle of acid-catalyzed wet digestion—using concentrated sulfuric acid under controlled high-temperature conditions to convert organic nitrogen compounds into ammonium sulfate, enabling subsequent distillation and quantification. Unlike generic heating blocks, the HotBlock® TKN system integrates thermally robust 316 stainless steel construction, programmable multi-step temperature ramping, and method-specific thermal profiles validated for reproducible recovery across complex matrices including sludge, surface water, and industrial effluents.

Key Features

• High-temperature capability up to 450°C—enabling complete mineralization of recalcitrant nitrogenous compounds in challenging samples such as digested biosolids and high-fat wastewaters.
• Programmable touchscreen controller supporting up to 8 preloaded analytical methods—including a dedicated TKN protocol with two-phase thermal profile: 60 min at 160°C (initial digestion), followed by controlled ramp (60 min) to 380°C and hold (30 min) for oxidation completion.

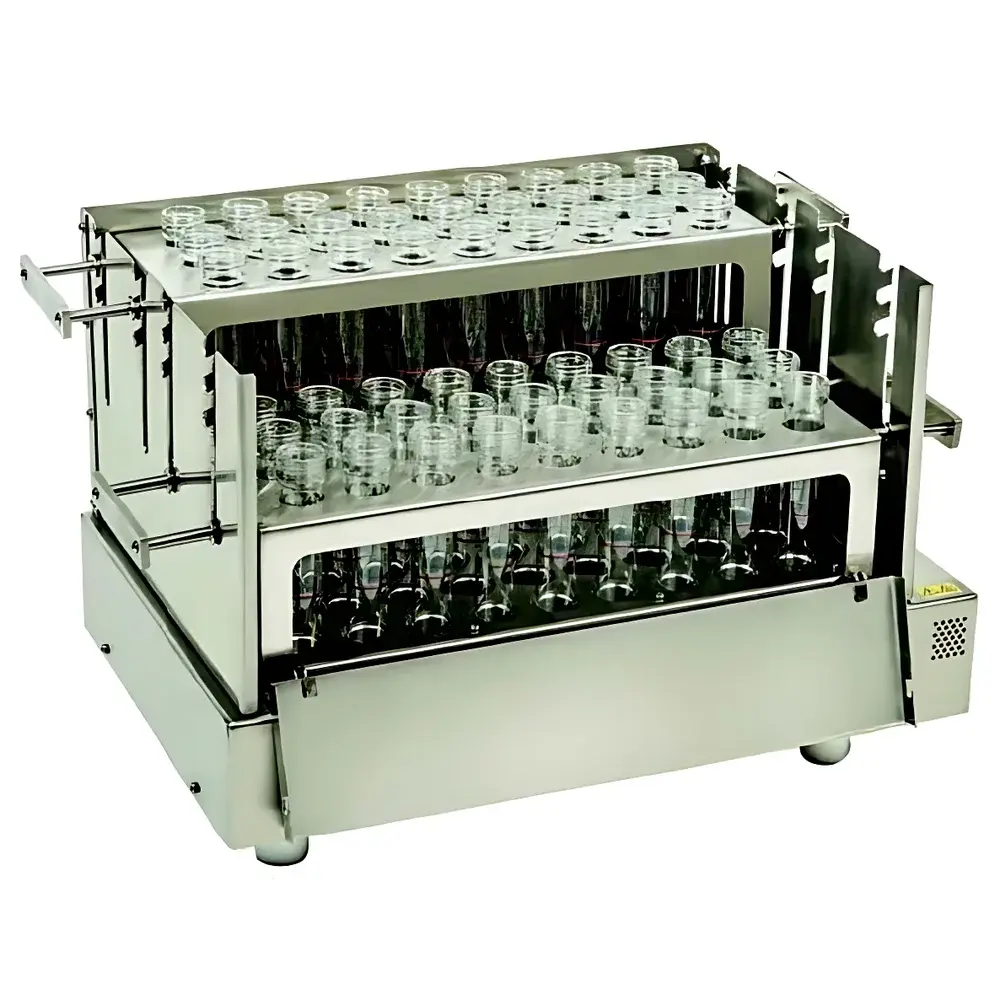

• Flexible configuration options: 28-position and 54-position modules—both share identical tube geometry and thread specifications, ensuring full interchangeability with Environmental Express SimpleDist® distillation systems.
• Corrosion-resistant architecture: Entire heating block, tube rack, and cooling rack fabricated from electropolished 316 stainless steel—resistant to H₂SO₄ fumes and condensate at elevated temperatures.

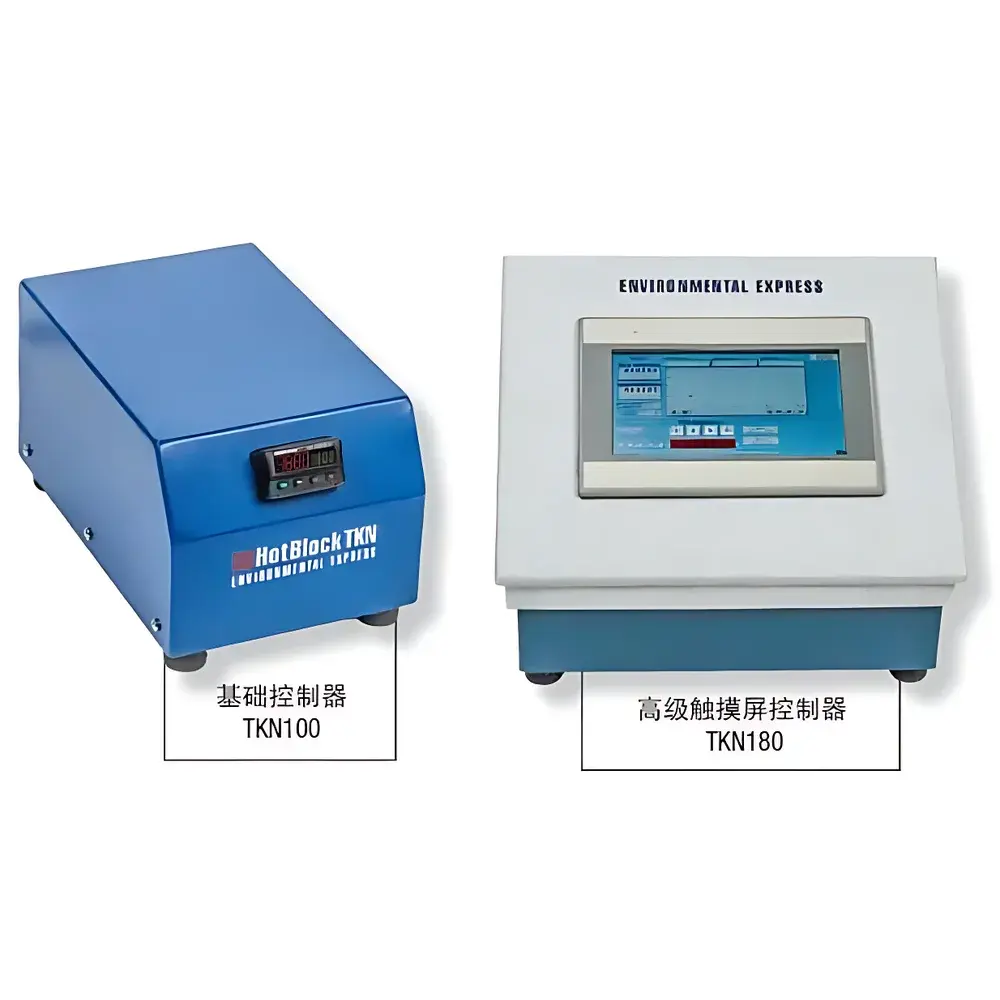

• Modular controller design: Controller is physically separated from the heating module and intended for external placement outside the fume hood—minimizing exposure to acidic vapors and extending operational lifespan.
• Fully customizable digestion programs: Each method supports up to 20 discrete temperature steps with independent setpoints, ramp rates (°C/min), and dwell times—facilitating adaptation to non-standard protocols per ISO 11905-1 Annex B or laboratory-developed methods.

Sample Compatibility & Compliance

The HotBlock® TKN system accommodates standard 16 × 150 mm or 20 × 150 mm threaded digestion tubes—compatible with both manual and automated SimpleDist® distillation workflows. It meets critical regulatory requirements for TKN determination under EPA Method 351.2 (for wastewater), ASTM D5179 (for soils and sediments), and ISO 11905-1 (water quality—determination of Kjeldahl nitrogen). Its thermal stability and repeatability support GLP-compliant data generation, and when paired with audit-trail-enabled LIMS integration (via optional RS-232/USB output), it satisfies documentation expectations aligned with FDA 21 CFR Part 11 for regulated environmental testing laboratories.

Software & Data Management

The advanced touchscreen controller provides intuitive method navigation, real-time temperature graphing, and on-device event logging—including start time, peak temperature, hold duration, and fault codes. All parameters are password-protected and editable only by authorized users. Exportable log files (CSV format) include timestamped thermal profiles and user-initiated actions—supporting traceability during internal audits or third-party accreditation assessments (e.g., NELAC, UKAS, or ISO/IEC 17025). No proprietary software installation is required; data retrieval is performed via USB flash drive or direct serial connection to laboratory PCs.

Applications

• Routine TKN analysis in municipal wastewater treatment plants for process control and discharge compliance reporting.
• Regulatory monitoring of nitrogen loading in receiving waters per Clean Water Act reporting requirements.
• Soil and sediment characterization in ecological risk assessments and remediation projects.
• Validation of nitrogen removal efficiency in pilot-scale bioreactors and membrane bioreactor (MBR) studies.
• Method development and interlaboratory comparison studies requiring precise thermal reproducibility across digestion cycles.

FAQ

What sample preparation best prevents bumping or splashing during TKN digestion?
Vortex mixing immediately prior to acid addition ensures homogeneous suspension of particulates—critical for preventing localized overheating and violent boiling. This step is especially important for heterogeneous samples like activated sludge or algae-rich lake water.
Can the HotBlock® TKN be used for other digestion applications beyond TKN?
Yes—the 20-step programmability and 450°C upper limit support adaptations for total phosphorus (EPA 365.4), heavy metal extraction (EPA 3050B), and organic carbon determination (ISO 14235), provided appropriate acid systems and tube compatibility are verified.
Is the controller compatible with networked lab infrastructure?
While the base unit lacks Ethernet connectivity, its RS-232 port enables integration with centralized lab automation platforms via serial-to-TCP/IP gateways, supporting remote monitoring and scheduled run initiation in multi-instrument environments.
How often does the heating block require calibration verification?
Per ISO/IEC 17025 Clause 6.4.10, we recommend quarterly verification using NIST-traceable thermocouple probes at three points across the operating range (160°C, 380°C, and 450°C), with documented deviation ≤ ±2°C considered acceptable for TKN workflows.
