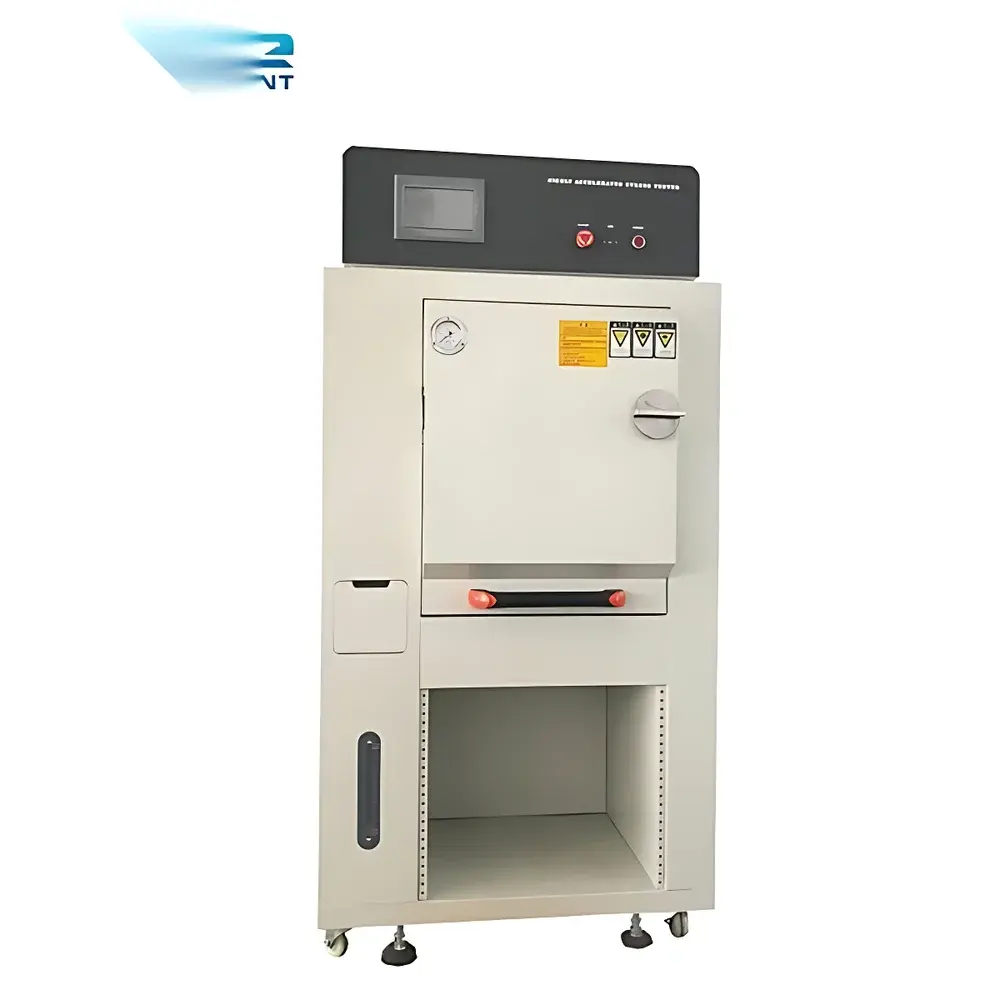

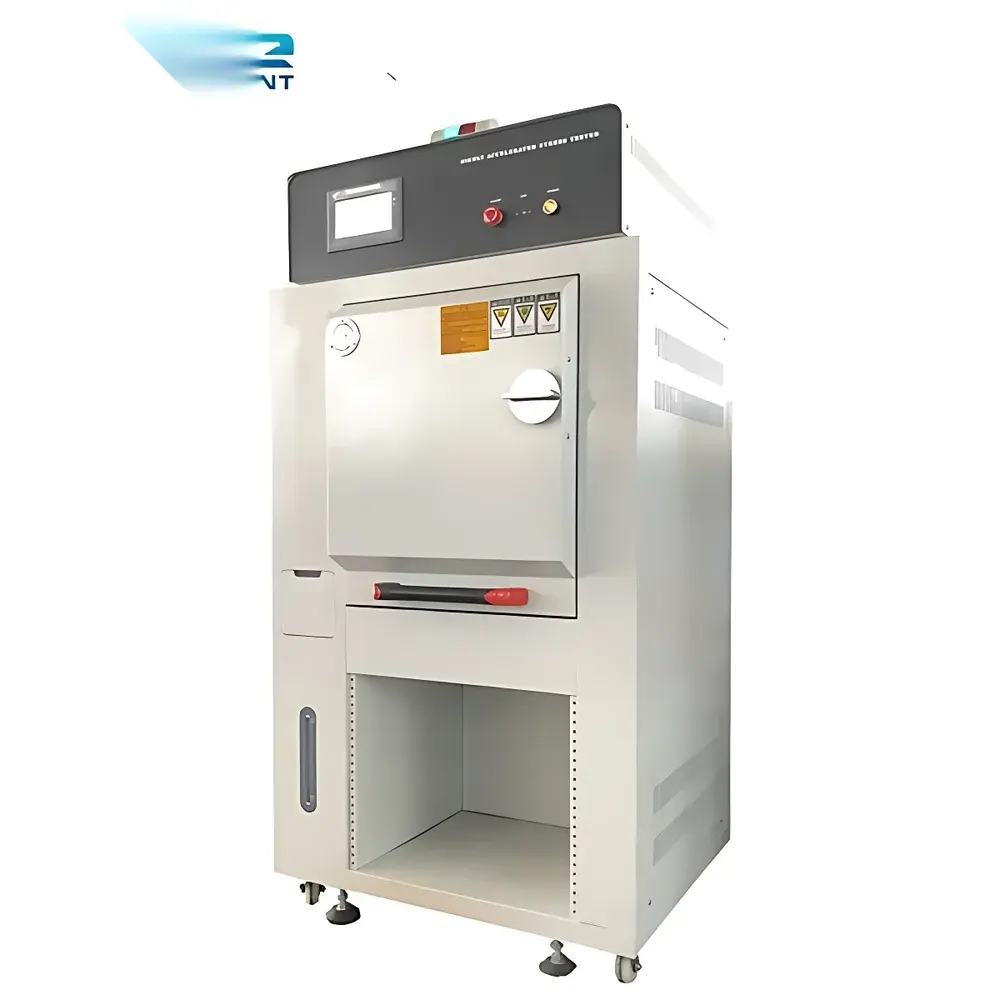

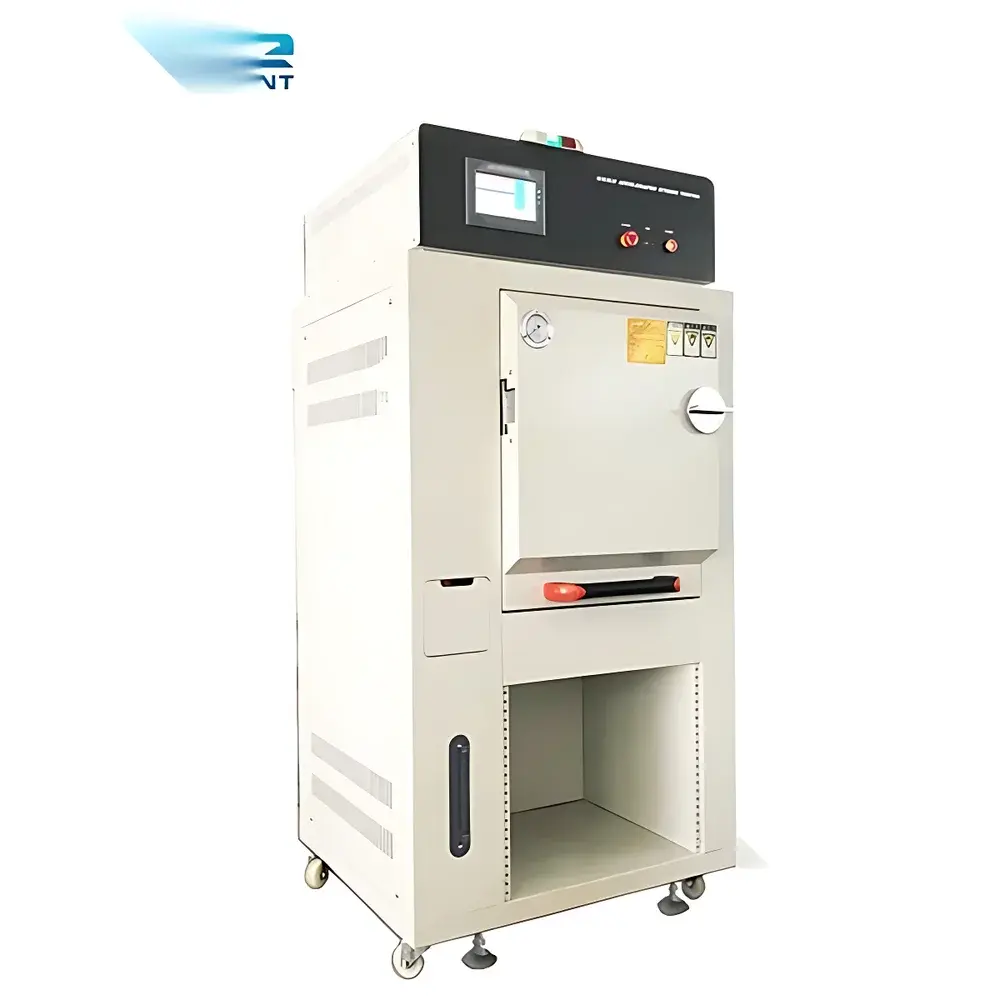

Environmental Stress Screening Chamber with Temperature, Humidity and Pressure Control

Overview

The Environmental Stress Screening Chamber with Temperature, Humidity and Pressure Control is a vertically oriented, cylindrical test chamber engineered for accelerated reliability validation of electronic components, sealed enclosures, medical packaging, and hermetic devices under combined thermo-hygrometric and overpressure stress conditions. It operates on the principle of saturated steam generation within a fully sealed stainless steel cavity, enabling precise replication of high-humidity, elevated-temperature, and controlled-pressure environments—critical for evaluating moisture ingress resistance, seal integrity, and material degradation kinetics. Unlike conventional humidity chambers relying on psychrometric calculation or dew-point approximation, this system employs direct, real-time measurement of temperature, relative humidity, and absolute pressure via calibrated industrial-grade sensors (Pt100 RTD, capacitive RH transducer, and piezoresistive pressure transducer), ensuring traceable, physics-based environmental control aligned with fundamental thermodynamic saturation behavior.

Key Features

• Cylindrical internal chamber (Ø300 mm × 500 mm L) constructed entirely from corrosion-resistant SUS316 stainless steel (3 mm wall thickness), optimized for uniform steam distribution and mechanical stability under sustained positive pressure.
• Dual-layer thermal insulation combining mineral rockwool and rigid polyurethane foam (≥35 mm total thickness), minimizing thermal bridging and reducing external surface temperature rise during extended high-temperature operation.
• Platinum-coated finned seamless stainless steel steam generator, delivering rapid, contamination-free vaporization without scaling or metallic leaching—essential for repeatable test outcomes in GMP-aligned qualification protocols.
• Integrated safety architecture: dual-circuit high-temp solenoid valve, redundant overpressure cutoff (mechanical + electronic), emergency depressurization button, manual vent valve, and pressure-interlocked door latch preventing access while internal pressure exceeds 0.02 MPa (gauge).
• Real-time P–T correlation display synchronized with ISO 11670 and IEC 60068-2-30 saturation reference curves—enabling immediate verification of compliance with specified test points per MIL-STD-810 or JEDEC JESD22-A101.
• On-the-fly automatic water replenishment system permits uninterrupted multi-day testing cycles without operator intervention or chamber opening, maintaining stable RH and pressure profiles across extended durations.

Sample Compatibility & Compliance

This chamber accommodates samples up to Ø280 mm × 450 mm in dimension and is routinely deployed for qualification of IP67/IP68-rated electronics, sterile barrier systems (e.g., Tyvek®-sealed trays), MEMS sensors, automotive connectors, and implantable device housings. Its construction and control logic conform to key international standards including GB/T 2423.1–1989 (cold), GB/T 2423.2–1989 (dry heat), and GB/T 2423.3–1993 (damp heat, steady state). While not certified to UL or CE as a standalone appliance, its sensor calibration traceability supports audit readiness for ISO/IEC 17025-accredited laboratories and satisfies baseline requirements for GLP-compliant environmental testing documentation. The absence of moving parts in the humidity delivery path eliminates particulate shedding—critical for cleanroom-adjacent applications.

Software & Data Management

The embedded controller logs timestamped temperature, humidity, pressure, and system status data at user-selectable intervals (1 s to 60 min), storing ≥30 days of continuous records internally. Export is supported via USB 2.0 to CSV or Excel-compatible formats. Optional Ethernet interface enables integration into centralized lab management systems (LIMS) and supports Modbus TCP for remote monitoring. All logged parameters include sensor serial numbers, calibration due dates, and uncertainty values per ISO/IEC 17025 Annex A. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with validated third-party software, including electronic signature capture and immutable record retention.

Applications

• Accelerated moisture resistance testing of conformal-coated PCBs and encapsulated power modules.
• Hermeticity validation of vacuum-sealed medical packages under saturated steam pressure ramp profiles.
• Stress screening of lithium-ion battery housings prior to thermal runaway evaluation.
• Qualification of optical window seals exposed to tropical climatic conditions (e.g., IEC 60068-2-30 Test Db).
• Material compatibility assessment of adhesives, gaskets, and elastomers under simultaneous thermal, hygric, and mechanical load.

FAQ

Does the chamber support programmable ramp-and-soak profiles for pressure and temperature?
Yes—up to 99 segments per program, with independent ramp rates for temperature (0.1–10 °C/min) and pressure (0.005–0.05 MPa/min), constrained by physical saturation limits.
Can the system be validated per IQ/OQ protocols?
Absolutely—the chamber ships with factory calibration certificates (NIST-traceable), empty-chamber mapping templates, and documented sensor response time specifications required for formal qualification.
Is condensate drainage integrated or manual?
Condensate is automatically evacuated through a heated drain line during drying cycles; no manual siphoning or external traps are required.
What is the maximum allowable working pressure (MAWP) of the chamber?
The design MAWP is 0.2 MPa (gauge), with safety valves set at 0.15 MPa (gauge) and verified per ASME BPVC Section VIII Division 1 principles.
Are replacement sensors available with certified calibration?
Yes—RTD, RH, and pressure transducers are field-replaceable and supplied with individual calibration reports valid for 12 months.
