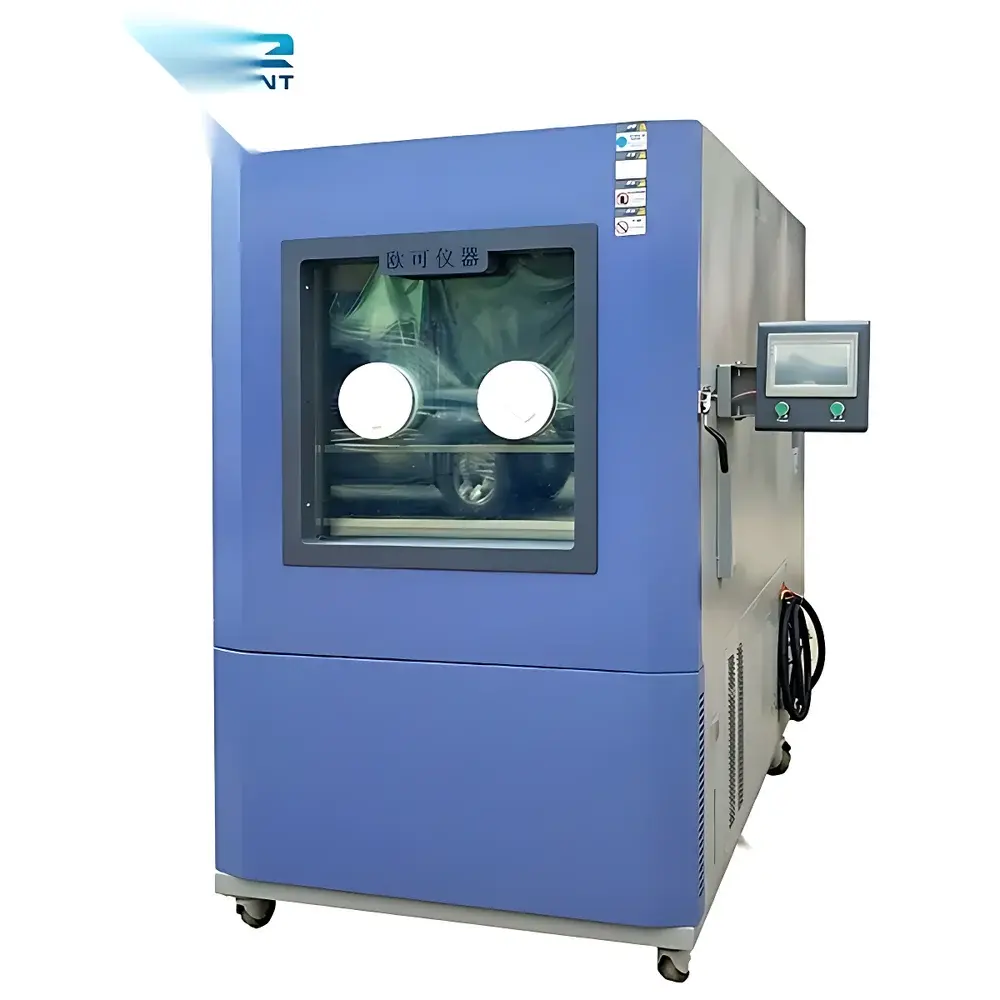

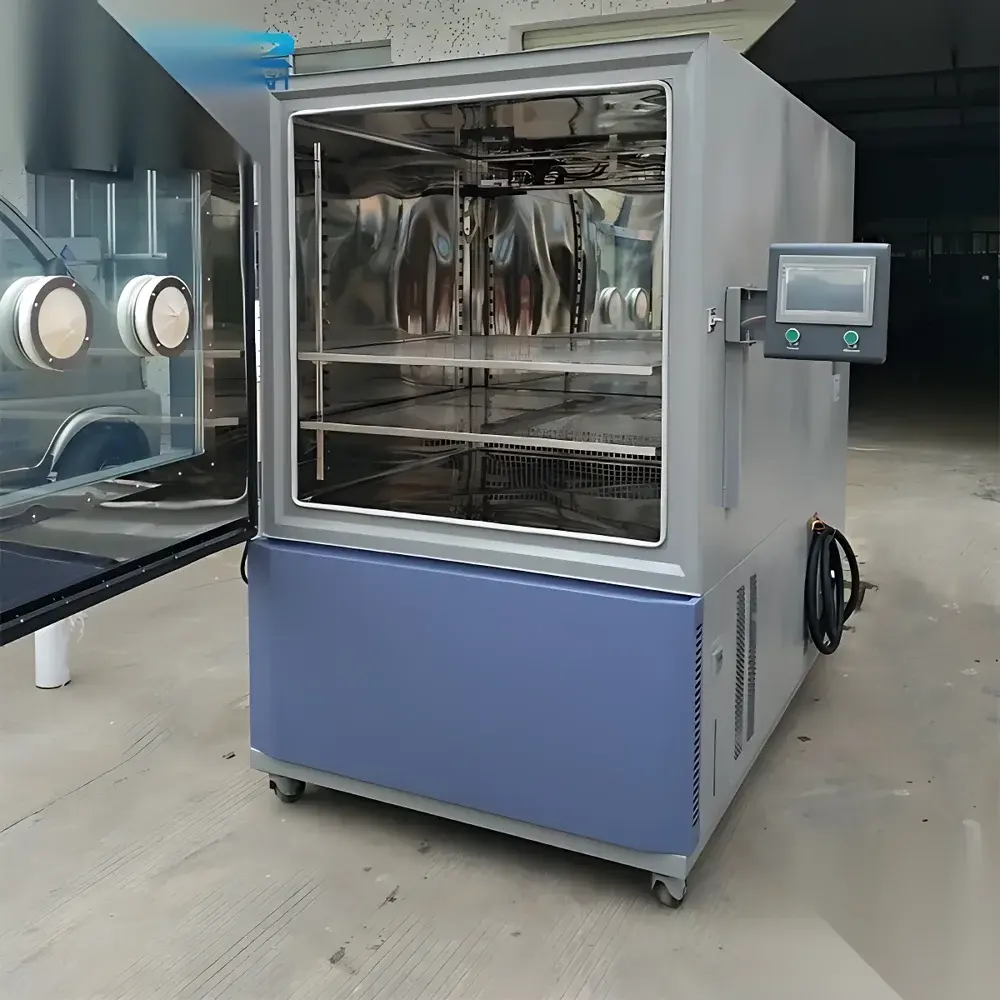

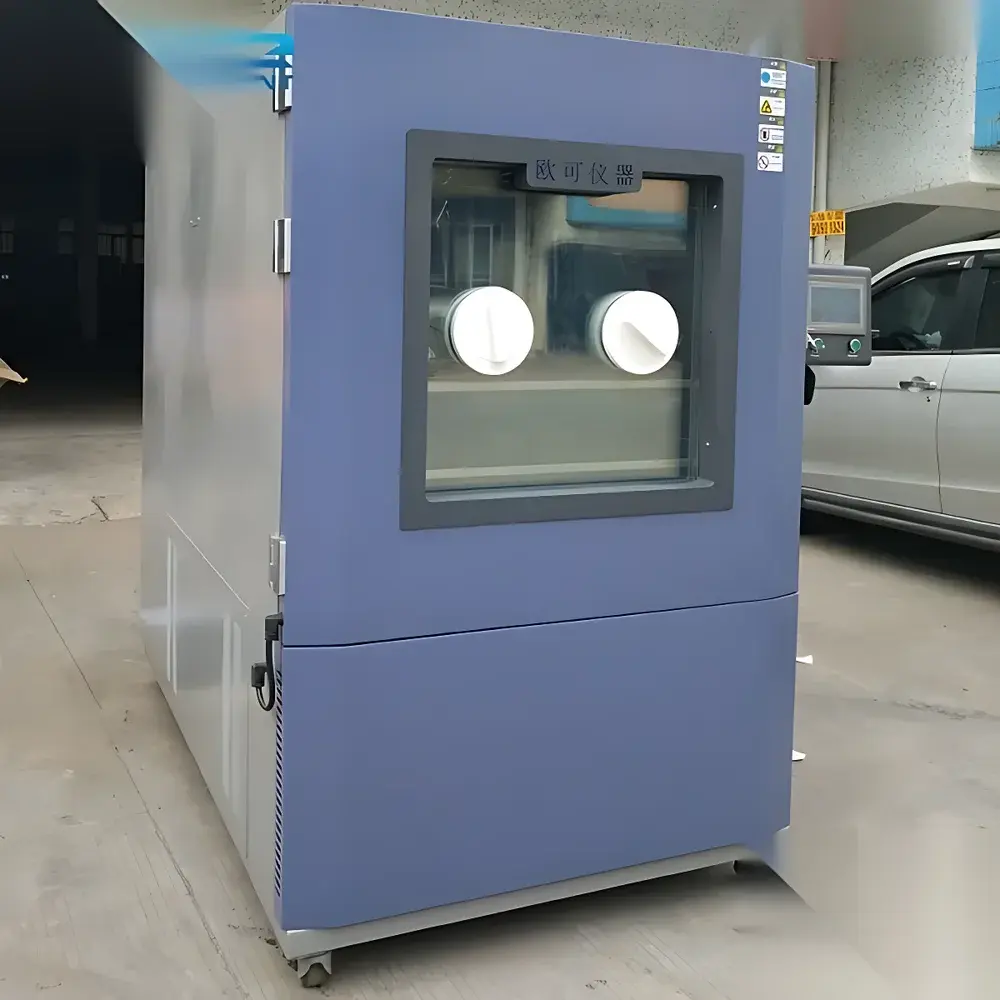

Environmental Test Chamber – Temperature and Humidity Controlled Chamber (Generic Industrial Grade)

Overview

The Environmental Test Chamber – Temperature and Humidity Controlled Chamber is an industrial-grade climatic simulation system engineered for precise, repeatable, and long-term exposure testing of materials, components, and finished products under controlled thermal and hygrothermal conditions. It operates on the principle of balanced temperature and humidity control (BTHC), integrating refrigeration, electric heating, steam or ultrasonic humidification, and forced-air circulation to maintain stable setpoints across defined operating ranges. Designed for compliance-driven laboratory and quality assurance environments, this chamber supports accelerated aging, environmental stress screening (ESS), reliability validation, and pre-shipment qualification per internationally recognized test standards. Its architecture enables simultaneous application of temperature and relative humidity stresses—critical for evaluating moisture absorption, dimensional stability, coating adhesion, electrical insulation integrity, and polymer degradation behavior.

Key Features

• Robust safety architecture including dry-heater protection for humidifiers, independent overtemperature cutoff, low-water-level interlock, compressor overload/overheat/overcurrent protection, high-pressure refrigerant switch, molded-case circuit breaker, and residual-current device (RCD) for personnel and equipment safety.
• Advanced BTHC (Balanced Temperature & Humidity Control) system utilizing PID-controlled SSR (Solid-State Relays) to dynamically match heating/humidifying output with thermal/hygric losses—ensuring minimal setpoint deviation and exceptional long-term stability.
• Full-capillary tube refrigeration system with automatic capacity modulation—eliminating mechanical expansion valve hysteresis and delivering smoother, faster, and more uniform temperature ramping compared to conventional TXV-based designs.
• Ergonomic curved cabinet design with high-gloss finish, flat non-reactive door handles, and intuitive touch-screen controller supporting multi-segment programming, real-time trend logging, and dual-mode operation (high-low temperature, combined temp/humidity).
• Optimized air distribution via centrifugal blower and perforated internal ductwork ensures ≥90% spatial uniformity (±1.0°C / ±2.0% RH) across working volume at steady state, verified per IEC 60068-3-5.

Sample Compatibility & Compliance

This chamber accommodates a broad spectrum of sample types—including PCB assemblies, automotive ECUs, medical device housings, packaging materials, lithium-ion battery modules, and optical components—without compromising control fidelity. All performance specifications are validated under no-load conditions at ambient reference temperature of 25°C ±6°C. Cooling performance requires supply water at 10–28°C and 0.1–0.3 MPa pressure. External dimensions exclude protrusions (e.g., cable ports, condensate drain); custom footprint and interior volume configurations are available upon engineering review.

The system complies with key international environmental test standards, including:

• GB/T 2423.1–2023 (IEC 60068-2-1) – Cold Testing
• GB/T 2423.2–2023 (IEC 60068-2-2) – Dry Heat Testing
• GJB 1032A–2021 – Environmental Stress Screening (ESS) for Electronic Equipment
• MIL-STD-2164A – ESS Methodology for Electronic Hardware
• GJB 234–1992 (Clause 5.1.6) – Quantitative ESS Procedures

It is suitable for GLP-compliant laboratories and supports audit-ready documentation when integrated with compliant data acquisition systems.

Software & Data Management

The embedded touchscreen controller provides local operation with up to 100 programmable test profiles, each supporting 99 segments with ramp/soak logic, alarm event logging, and USB export of CSV-formatted runtime data. Optional Ethernet or RS485 interfaces enable integration into centralized lab management platforms. When paired with validated third-party software, the chamber supports 21 CFR Part 11-compliant electronic signatures, user access levels, and immutable audit trails—meeting FDA-regulated QC/QA workflows in pharmaceutical, biotech, and medical device manufacturing.

Applications

• Environmental stress screening (ESS) of avionics and defense electronics per MIL-STD-2164A
• Accelerated moisture resistance testing of conformal coatings (IPC-CC-830)
• Thermal cycling and damp heat validation of photovoltaic modules (IEC 61215)
• Storage stability assessment of pharmaceutical packaging (ICH Q1A–Q1E)
• Material compatibility evaluation under combined thermal-hygric load (ASTM D4332, ISO 22309)
• Pre-conditioning of sensors and MEMS devices prior to functional testing

FAQ

What does “air average temperature change rate” mean in the specification sheet?
It refers to the arithmetic mean rate of temperature transition measured at multiple locations within the chamber’s air space—not at the surface or core of the test specimen. Actual sample response depends on mass, thermal conductivity, and mounting configuration.
Can the chamber operate continuously at 85°C and 85% RH?
Yes, provided cooling water parameters are maintained and internal airflow is unobstructed; however, extended operation at extreme setpoints may require periodic maintenance intervals as outlined in the service manual.
Is calibration traceability available?
NIST-traceable calibration certificates for temperature and humidity sensors can be supplied upon request, aligned with ISO/IEC 17025 requirements.
Does the system support remote monitoring?
Standard Ethernet or optional Modbus TCP connectivity enables integration with SCADA or LIMS platforms for real-time status and alarm notification.
Are custom interior configurations supported?
Yes—custom shelving, pass-through ports, internal lighting, and non-standard chamber volumes are available subject to structural and thermal validation.
