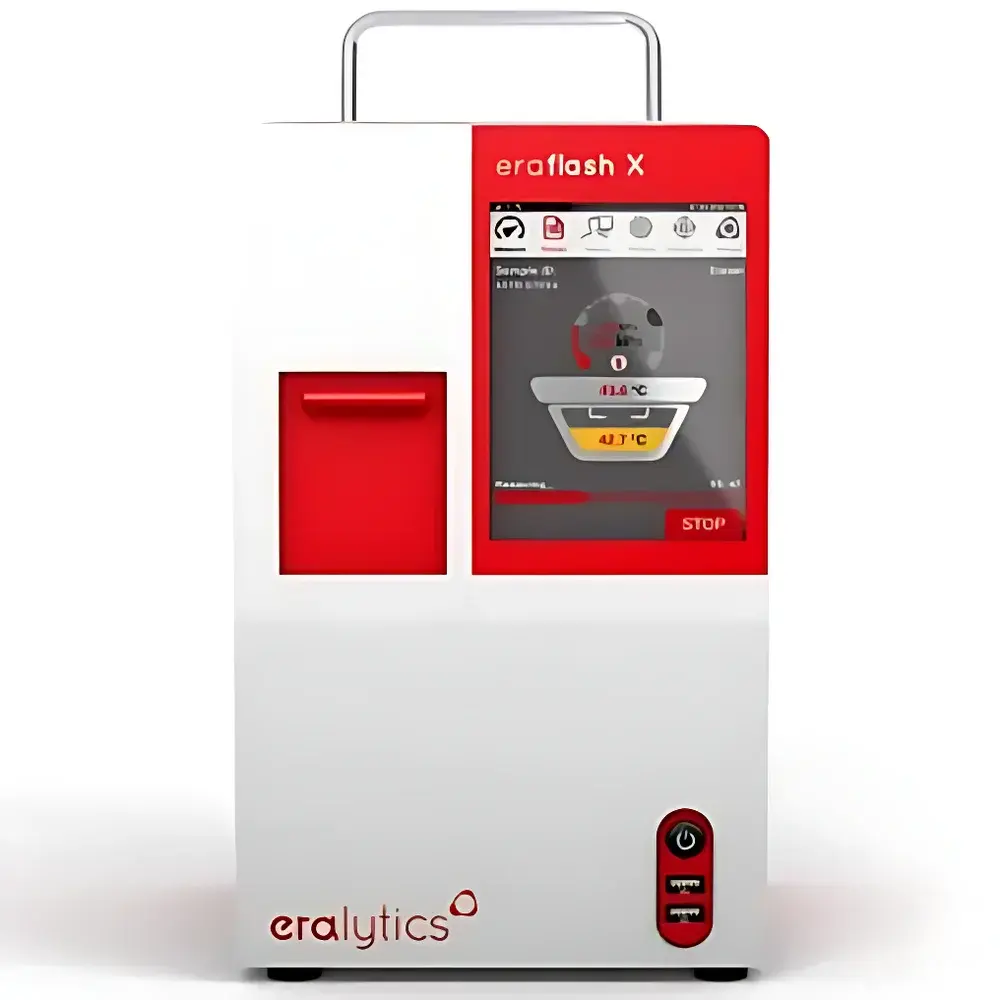

Eraflash X Automatic Micro Closed-Cup Flash Point Analyzer
| Brand | ERALYTICS |
|---|---|
| Origin | Austria |
| Model | Eraflash X |
| Detection Method | Closed-Cup |
| Operation Mode | Fully Automatic |
| Temperature Range | 18 °C to 370 °C |
| Ignition Method | Electric Arc Ignition |
| Repeatability | High |
| Compliant Standards | ASTM D7094, SH/T 0768 |
| Sample Volume | 2 mL |
| Cooling/Heating Technology | Peltier-Based Thermoelectric (PBT) |
| Data Storage Capacity | >100,000 test reports |
| Throughput | Up to 12 samples/hour |
| Temperature Accuracy | ±0.1 °C |
| Power Supply | 85–264 V AC or 12 V DC |
| Pollution Control | CPT Electrode Protection & Self-Cleaning Ignition System |
Overview
The Eraflash X Automatic Micro Closed-Cup Flash Point Analyzer is an advanced, fully automated instrument engineered for precise and safe determination of flash point in volatile petroleum products, solvents, biofuels, and lubricants under true closed-system conditions. It implements the Continuous Closed-Cup Flash Point (CCCFP) method specified in ASTM D7094 — a modern alternative to traditional Pensky-Martens (ASTM D93) and Tagliabue (ASTM D56) open- or semi-closed cup procedures. Unlike conventional methods that expose highly flammable vapors to ambient air and open flame ignition, the Eraflash X operates within a hermetically sealed measurement chamber, using electric arc ignition at controlled pressure conditions (≥20 kPa) to define flash point onset. This design eliminates open-flame hazards, reduces operator exposure to toxic or explosive vapors, and enables reliable analysis of low-flash-point materials — including gasoline blends, ethanol fuels, and light hydrocarbon fractions — without compromising safety or regulatory compliance.
Key Features
- Fully automated operation with integrated sample handling, temperature ramping, pressure control, ignition sequence, and result calculation — requiring minimal user intervention.
- PBT (Peltier-Based Thermoelectric) temperature control system delivering rapid heating (up to 20 °C/min) and active cooling (down to ambient +5 °C), enabling fast thermal equilibration between tests and reducing cycle time significantly.
- CPT (Contamination Prevention Technology): self-cleaning electrode surfaces and optimized arc geometry minimize carbon buildup and electrode degradation, extending maintenance intervals and ensuring long-term measurement stability.
- Real-time combustion profile visualization: graphical display of voltage-current transients during ignition events supports diagnostic evaluation of sample volatility behavior and chamber contamination status.
- Fuel dilution analysis module: automatically detects and quantifies fuel contamination in engine oils via flash point depression modeling, supporting predictive maintenance and oil condition monitoring protocols.
- Robust data architecture: stores over 100,000 full test records locally, each containing raw sensor traces, environmental metadata (ambient T/P), calibration logs, and audit-ready timestamps.
Sample Compatibility & Compliance
The Eraflash X is validated for use across a broad spectrum of petroleum-based and synthetic fluids, including gasoline, diesel, jet fuel (Jet A-1, JP-8), biodiesel (FAME), ethanol-gasoline blends (E10–E85), crude assay fractions, transformer oils, and hydraulic fluids. Its operational range (18–370 °C) and 2 mL sample requirement align with ASTM D7094’s low-volume, high-sensitivity paradigm. The instrument meets essential regulatory and quality system requirements: it supports GLP-compliant workflows through electronic signature-capable software, audit trail generation per FDA 21 CFR Part 11, and traceable calibration against NIST-traceable reference standards. In addition to primary compliance with ASTM D7094 and SH/T 0768, it provides method equivalence reporting for ASTM D93, ISO 2719, EN ISO 3679, IP 34, and GB/T 261 — facilitating cross-method validation and global laboratory harmonization.
Software & Data Management
The Eraflash X is operated via ERAControl software — a Windows-based platform featuring intuitive workflow navigation, customizable test templates, multi-user access control, and role-based permissions. All measurements are timestamped and digitally signed; changes to parameters or results trigger immutable audit entries. Export options include CSV, PDF, and XML formats compatible with LIMS integration (via ASTM E1384 or HL7 messaging). The software includes built-in statistical tools for repeatability assessment (RSD calculation), trend analysis across batches, and outlier detection based on ICH Q2(R2) guidelines. Remote diagnostics and firmware updates are supported over secure TLS-encrypted connections, ensuring continuous regulatory alignment without on-site service visits.
Applications
- Quality assurance in refinery blending operations and finished fuel certification.
- Research and development of next-generation biofuels and low-carbon aviation fuels (SAF).
- Regulatory submission testing for EPA, REACH, CLP, and GHS hazard classification.
- Field-deployable flash point verification using optional 12 V DC power input — suitable for mobile labs and offshore platforms.
- Condition monitoring of in-service lubricants where fuel dilution compromises viscosity and flash integrity.
- Academic and metrology laboratory use for method validation studies and interlaboratory comparison programs.
FAQ
What distinguishes ASTM D7094 from ASTM D93?
ASTM D7094 employs a continuously sealed measurement cell with dynamic pressure control and electric arc ignition, eliminating vapor leakage and open-flame risks inherent in the manual Pensky-Martens procedure (D93). It offers superior reproducibility for highly volatile samples and is increasingly mandated for safety-critical applications.
Can the Eraflash X be used for diesel fuel analysis?
Yes — while optimized for low-flash-point materials, its extended upper temperature limit (370 °C) and adaptive algorithm allow accurate flash point determination for middle distillates, including ultra-low-sulfur diesel (ULSD) and marine gas oil (MGO), per ASTM D93 equivalence mode.
Is external cooling water required?
No — the PBT thermoelectric system operates autonomously without chiller or tap-water connections, making installation flexible in space-constrained or non-plumbed environments.
How does the instrument handle sample carryover or residue buildup?
CPT technology actively cleans electrodes between tests using pulsed arc discharge and optimized airflow; combined with disposable sample cups (optional), this ensures negligible cross-contamination across diverse sample matrices.
Does the system support 21 CFR Part 11 compliance?
Yes — ERAControl software includes electronic signatures, audit trails, user authentication, and data integrity safeguards required for regulated pharmaceutical and contract testing laboratories.
